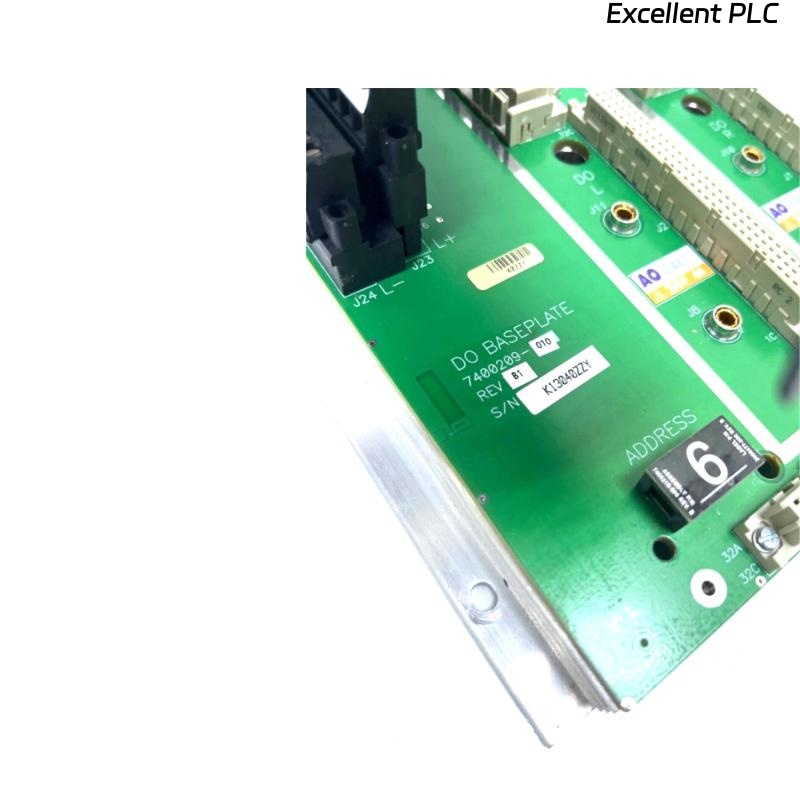

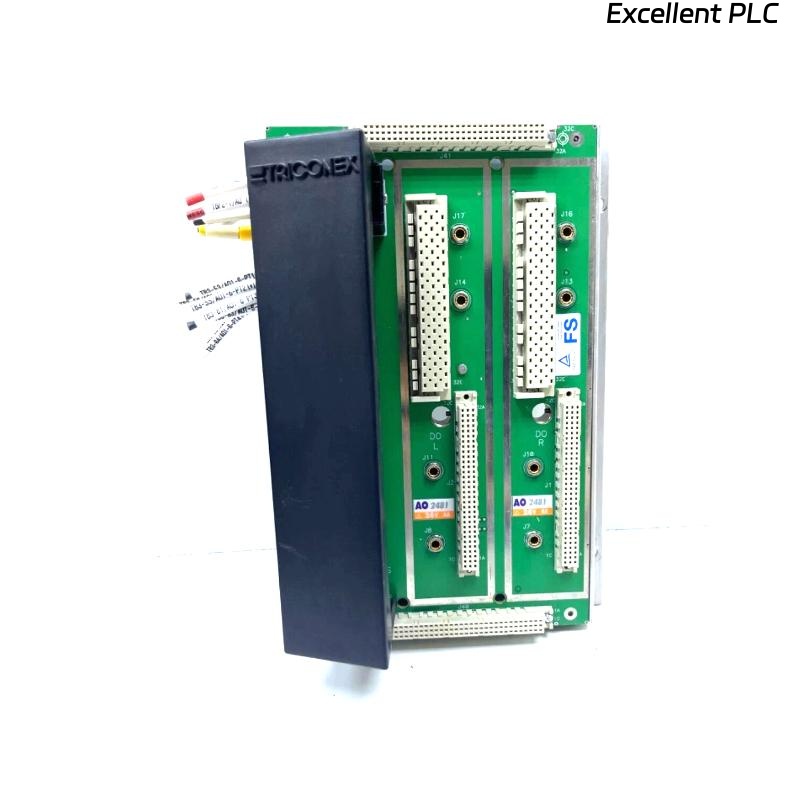

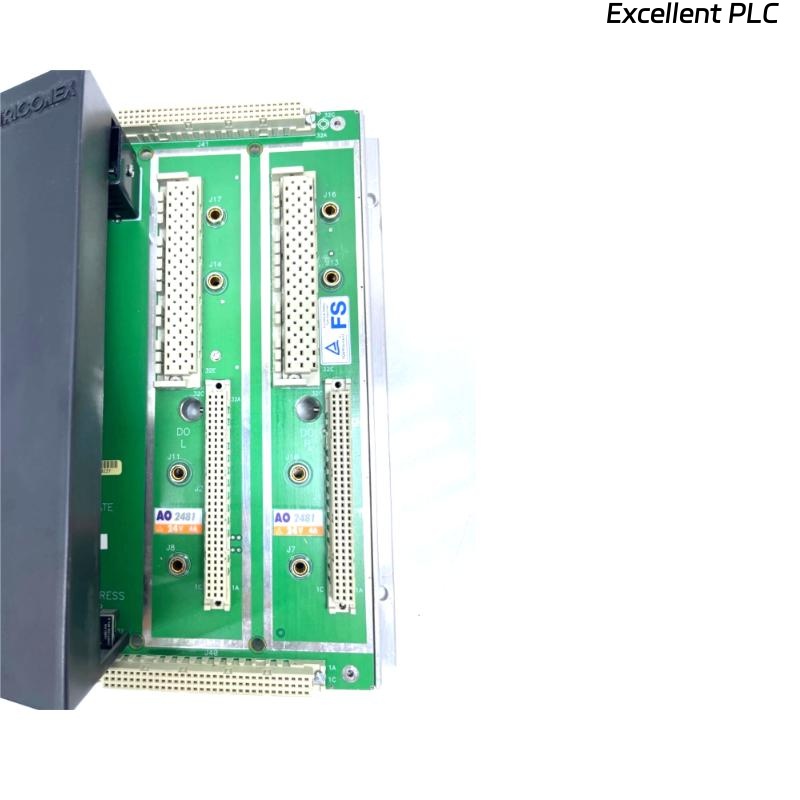

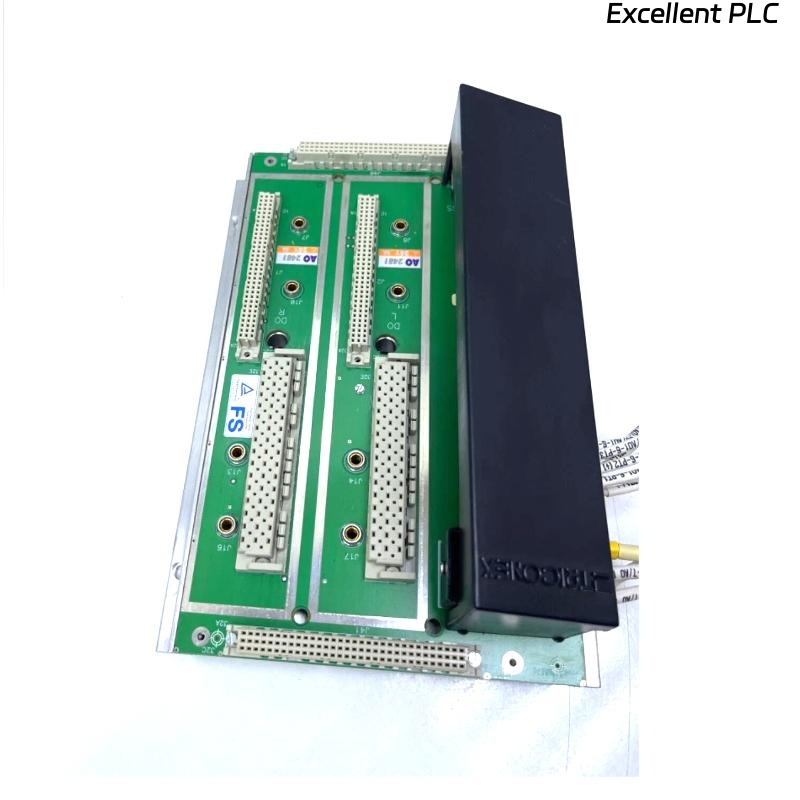

Triconex AO2481 7400209-010 Analog Output Baseplate
The Triconex AO2481 7400209-010 Analog Output Baseplate is a robust and reliable output interface designed for industrial safety and control systems. It serves as the mounting and connection base for analog output modules, enabling accurate and stable signal transmission to actuators and process control elements in critical applications.
Product Parameters
| Parameter | Description |
|---|---|
| Model | AO2481 7400209-010 |
| Type | Analog Output Baseplate |
| Compatibility | Triconex safety and control systems |
| Number of Channels | 8 or 16 (depending on module configuration) |
| Connection Type | Terminal block wiring |
| Power Supply | Via backplane connection |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions | 166.7 × 247.9 × 62.4 mm |
| Weight | 1 kg |
Product Applications
-
Distributed control systems (DCS) in power generation plants
-
Emergency shutdown systems in oil and gas facilities
-
Chemical and petrochemical process control
-
Industrial safety instrumented systems (SIS)
-
Water treatment and wastewater management automation
-
Critical infrastructure process automation
Product Advantages
-
High Reliability – Engineered for mission-critical safety applications.
-
Stable Signal Transmission – Ensures precise analog output to control devices.
-
Easy Integration – Designed for seamless installation within Triconex systems.
-
Rugged Construction – Suitable for harsh industrial environments.
-
Low Maintenance – Durable components reduce operational downtime.
-
Wide Compatibility – Works with multiple Triconex analog output modules.
FAQ
Q1: What is the function of the AO2481 7400209-010?
A1: It acts as a baseplate for analog output modules, providing connections and mechanical support.
Q2: Is the AO2481 compatible with all Triconex systems?
A2: It is compatible with specific Triconex systems designed for this baseplate type.
Q3: How many channels does it support?
A3: It supports 8 or 16 channels depending on the installed module.
Q4: Can it be used in hazardous environments?
A4: Yes, when paired with appropriate certified modules and system enclosures.
Q5: What are its installation requirements?
A5: It is installed into a Triconex chassis via standard mounting slots and terminal connections.
Q6: Does it have built-in diagnostics?
A6: Diagnostics depend on the installed analog output module, not the baseplate itself.
Q7: What is the typical lifespan of the baseplate?
A7: With proper maintenance, it can last over 10 years in industrial environments.
Q8: Does it require a separate power supply?
A8: No, it receives power through the backplane from the system power source.
Q9: Can it be hot-swapped?
A9: No, the system must be powered down for safe installation or removal.
Q10: What maintenance does it require?
A10: Periodic inspection for dust, corrosion, and secure wiring connections.
Related Models (Same Series or Function)
| Model | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| AO2480 | Analog Output Baseplate | 166.7 × 247.9 × 62.4 | 1 kg |
| AO2482 | Analog Output Baseplate | 166.7 × 247.9 × 62.4 | 1 kg |
| AO3481 | Analog Output Module | 166.7 × 247.9 × 62.4 | 1 kg |
| AO2483 | Analog Output Baseplate | 166.7 × 247.9 × 62.4 | 1 kg |
| AO3480 | Analog Output Module | 166.7 × 247.9 × 62.4 | 1 kg |
| AO2484 | Analog Output Baseplate | 166.7 × 247.9 × 62.4 | 1 kg |
