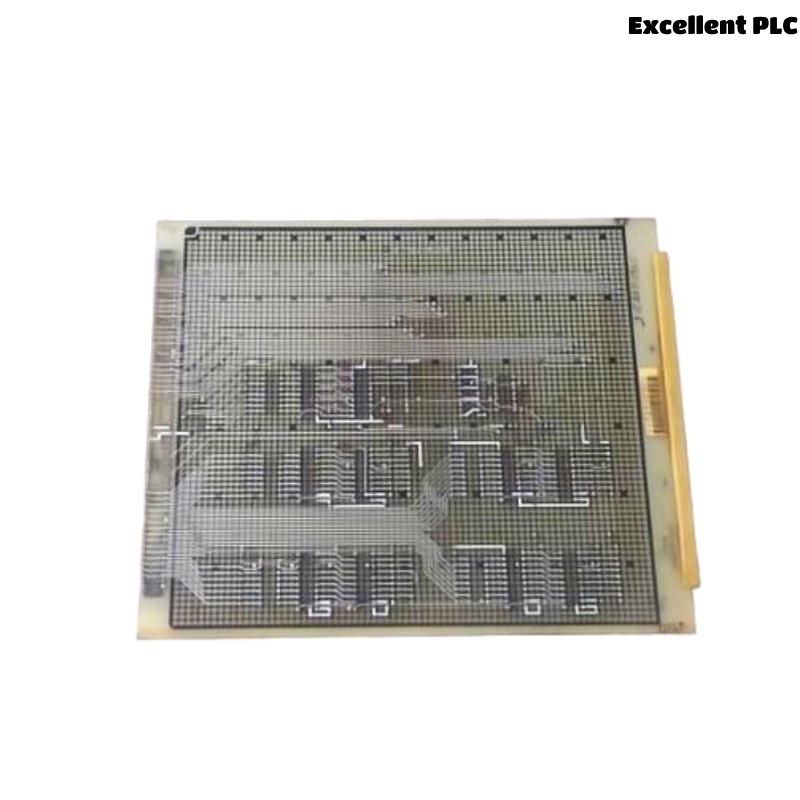

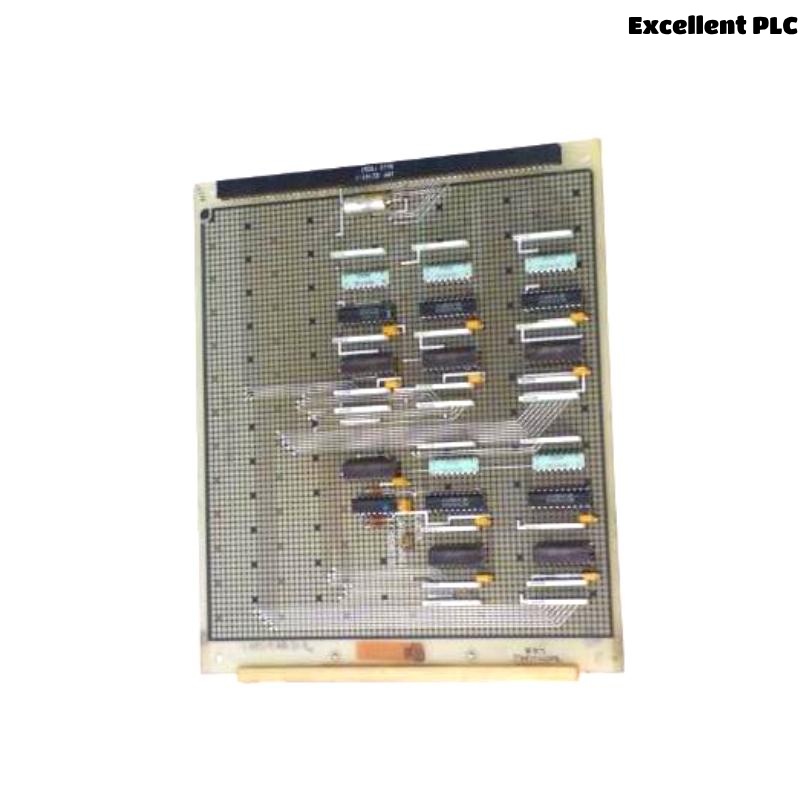

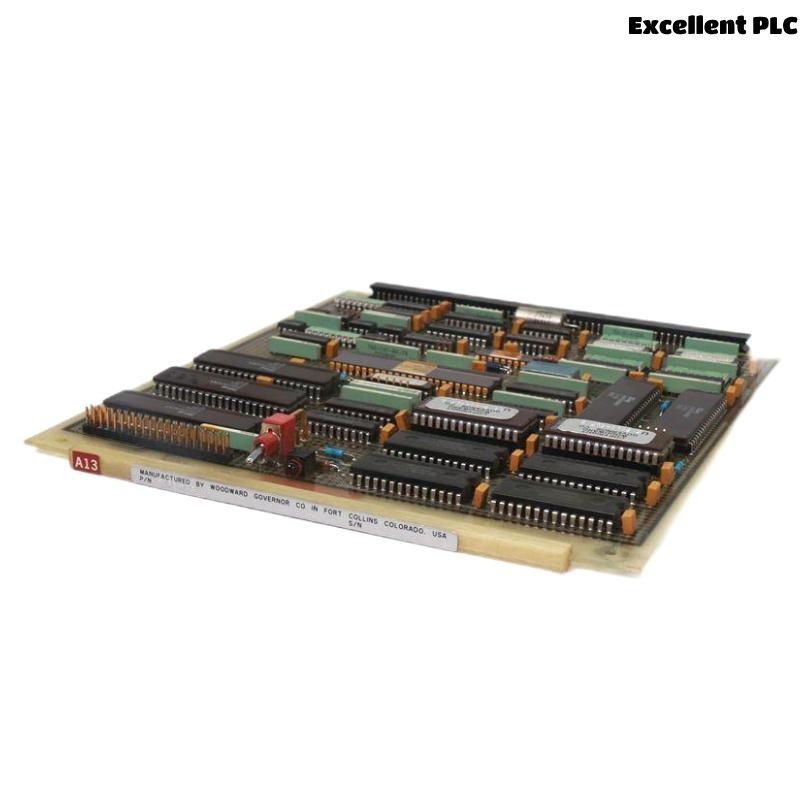

Woodward 5461-650 T/C Input Board

Product Overview

The Woodward 5461-650 T/C Input Board is a specialized thermocouple input module designed for Woodward control platforms, primarily for monitoring temperature-critical processes in turbine control, industrial engines, power generation, and process plants. The module enables high-accuracy thermocouple temperature measurements and integrates seamlessly into control systems requiring precise temperature feedback.

Built for harsh environments, the 5461-650 T/C Input Board accepts multiple thermocouple types and provides linearized, isolated, and highly stable analog input signals to the control processor. It supports high-speed sampling and advanced diagnostics, ensuring reliable operation even in high-vibration, high-temperature, or electromagnetically noisy conditions.

A critical component for systems that demand accuracy and availability, the 5461-650 is trusted by OEMs, operators, and engineers across various industries, from power plants to oil & gas refineries, to maintain safe, stable, and optimized process control.

Product Specifications

Applications

The Woodward 5461-650 T/C Input Board is used extensively in applications that require continuous, accurate temperature monitoring and control for critical equipment:

• Gas and Steam Turbines
  Blade temperature monitoring, exhaust temperature control, thermal profiling.

• Power Generation
  Boiler temperature monitoring, generator stator/rotor temperature.

• Industrial Engines
  Cylinder temperature monitoring for reciprocating engines.

• Oil & Gas
  Compressor temperature feedback, refinery heaters, fired equipment.

• Process Industries
  Chemical processing, metal smelting, and materials manufacturing.

• Pulp & Paper
  Drying section temperature control, steam control.

• Marine Propulsion Systems
  Monitoring of turbochargers and exhaust gas temperature.

Product Advantages

• High Accuracy & Stability
  16-bit resolution with ±0.1% span accuracy ensures precise temperature monitoring across the entire range.

• Wide Thermocouple Support
  Compatible with a broad range of standard thermocouples — Type J, K, E, T, R, S, B, N.

• Built-in Diagnostics
  Provides sensor open-circuit detection, alarm functions, and detailed channel status, improving safety and reducing troubleshooting time.

• Isolated Design
  Fully isolated inputs improve noise immunity and system safety, critical for turbine and high-vibration environments.

• Redundancy Ready
  Can be configured as part of redundant control systems for high availability applications.

• Fast Sampling
  Supports high-speed data acquisition to enable fast loop controls and accurate response to temperature fluctuations.

• Industrial-grade Build
  Operates reliably in environments with wide temperature variations and high electrical noise.

• Seamless Integration
  Designed for plug-in compatibility with Woodward’s control systems and backplanes — simple commissioning and service.

• Extended Operational Life
  MTBF of over 450,000 hours ensures dependable long-term use.

• Certified for Global Use
  CE, UL, CSA certifications meet international industrial compliance requirements.

Frequently Asked Questions (FAQ)

1. What thermocouple types does the 5461-650 T/C Input Board support?
   It supports Type J, K, E, T, R, S, B, and N thermocouples.

2. How many input channels does this module have?
   It has 8 independent thermocouple input channels.

3. Does this board provide input isolation?
   Yes, channel-to-channel and channel-to-ground isolation is provided.

4. Is redundancy supported?
   Yes, it can be used in redundant configurations with compatible Woodward controllers.

5. What is the temperature measurement range?
   The input range depends on the thermocouple type — up to +1800 °C for certain types.

6. What diagnostic features are included?
   Built-in open-circuit detection and sensor failure alarms are included.

7. Is the module hot-swappable?
   Hot-swap capability depends on system configuration — consult system documentation.

8. What is the power requirement?
   Operates on nominal 24 VDC with < 8 W power consumption.

9. Can this module be used in outdoor environments?
   It is intended for industrial indoor applications — for outdoor use, a suitable enclosure is required.

10. How long is the expected service life?
    With an MTBF of over 450,000 hours, it is designed for many years of reliable operation.
