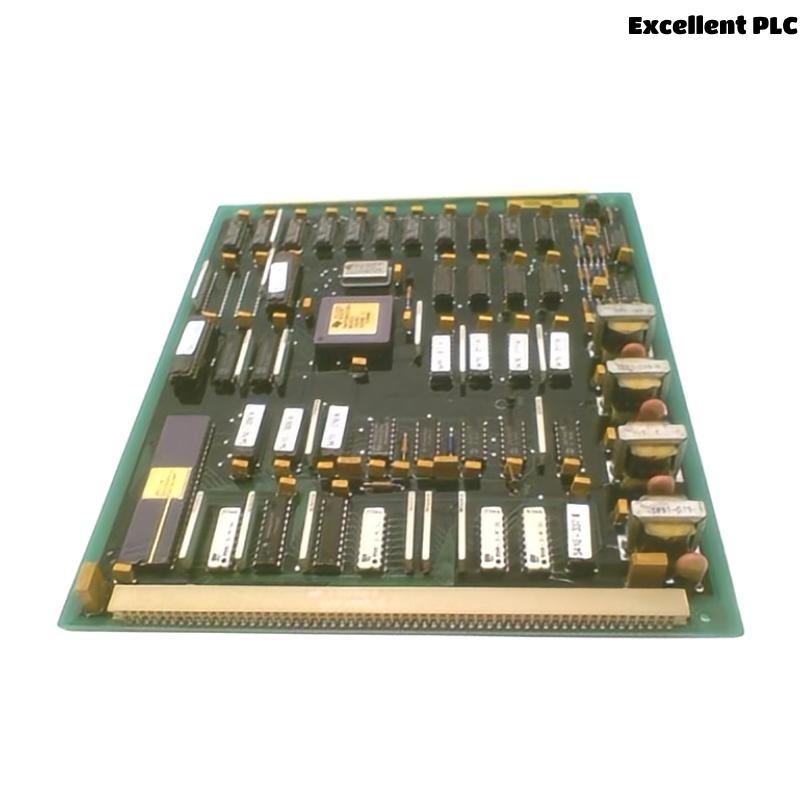

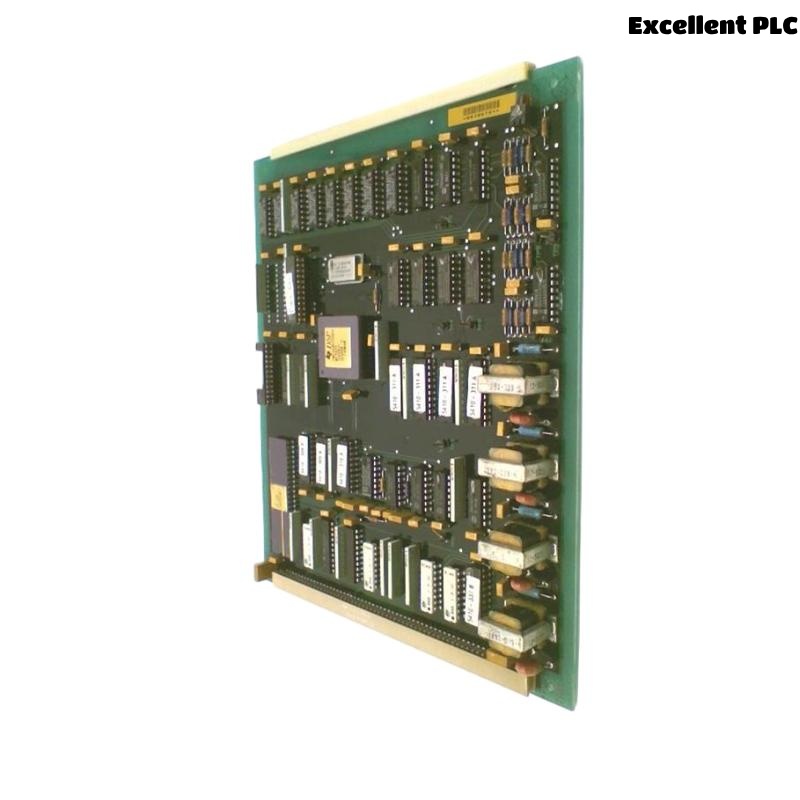

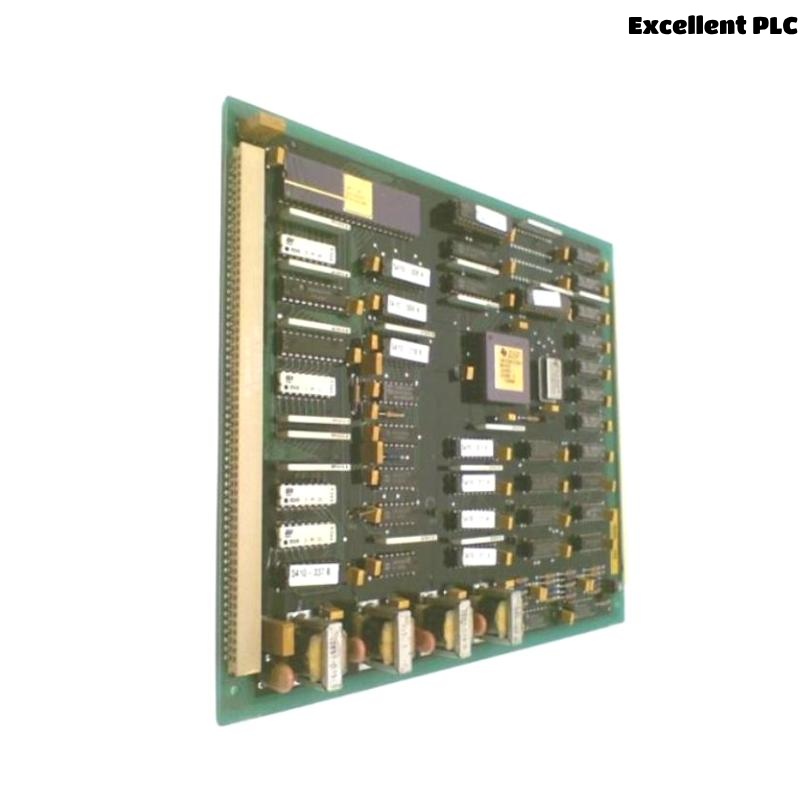

Woodward 5464-017 Speed ​​Sensor Module

Product Overview

The Woodward 5464-017 Speed Sensor Module is designed to interface with a variety of speed sensors, including magnetic and optical sensors, to provide accurate and reliable speed measurement. It is a versatile module that supports multiple types of sensor signals, converting them into digital outputs that can be processed by control systems. This makes it an ideal choice for applications requiring real-time speed monitoring and control.

The module is built to withstand harsh industrial environments and offers easy integration into existing Woodward control systems. With its robust design and high accuracy, the Woodward 5464-017 ensures that equipment operates at optimal speeds, preventing over-speeding or under-speeding, both of which can lead to significant damage or inefficiency.

---

Technical Specifications

---

Applications

The Woodward 5464-017 Speed Sensor Module is ideal for a wide range of industrial applications where accurate speed measurement is essential for optimal performance and safety. Some key applications include:

1. Power Generation: Used to monitor the speed of turbines and generators, ensuring that they operate within safe and efficient limits. The module provides real-time feedback to the control system to prevent over-speed or under-speed conditions.

2. Oil & Gas: Critical for monitoring equipment in oil rigs, pumps, and compressors, ensuring that they maintain the correct operating speeds for safety and efficiency.

3. Manufacturing: Used in automated machinery and production lines to maintain consistent machine speed, reducing wear and tear and improving production efficiency.

4. Marine Applications: Used to monitor the speed of engines and turbines on ships, ensuring they operate at safe speeds under varying load conditions.

5. HVAC Systems: Monitors the speed of fans, pumps, and compressors to ensure proper airflow and system efficiency in large commercial and industrial buildings.

6. Automotive and Engine Testing: In engine test benches, the module ensures that engines are tested under controlled conditions by providing accurate speed measurements.

---

Advantages

1. High Accuracy: The Woodward 5464-017 offers high accuracy (±0.1%), ensuring precise speed measurements that are critical for controlling machinery in real-time.

2. Wide Compatibility: It supports a variety of speed sensors, including magnetic and optical types, making it highly versatile and compatible with different types of industrial equipment.

3. Fast Response Time: The module has a fast response time of less than 1 millisecond, ensuring real-time speed monitoring and control in dynamic environments.

4. Signal Processing Flexibility: It provides frequency counting and pulse signal conversion, enabling it to work with different signal types and integrate easily into various control systems.

5. Durable and Reliable: Designed for harsh industrial environments, the module can operate within a wide temperature range and withstand vibration, ensuring long-term reliability.

6. Compact Design: Its compact form factor allows for easy installation, even in space-constrained control panels.

7. Low Power Consumption: Operating on a 24V DC power supply, the module is energy-efficient while providing high performance.

8. Easy Integration: The module is designed for DIN rail mounting, which simplifies installation and integration into existing systems.

9. Preventative Control: By accurately measuring speed, the module helps prevent over-speed and under-speed conditions, which could otherwise lead to system failure or damage.

10. International Certification: The module is CE and UL certified, ensuring compliance with global safety and performance standards.

---

FAQ

1. What is the purpose of the Woodward 5464-017 Speed Sensor Module?

   • The module is designed to measure the rotational speed of machinery and engines, providing accurate speed data to control systems for real-time monitoring and protection.

2. What types of speed sensors are compatible with this module?

   • The module is compatible with both magnetic and optical speed sensors.

3. What is the maximum input frequency the module can handle?

   • The module can handle a maximum input frequency of 10 kHz.

4. How is the module mounted?

   • The Woodward 5464-017 is designed for DIN rail mounting, making it easy to install in control panels.

5. What is the power supply requirement for the module?

   • The module operates on a 24V DC power supply.

6. What is the operating temperature range of the module?

   • The module operates within a temperature range of -20°C to 60°C.

7. What is the accuracy of the module?

   • The module has an accuracy of ±0.1%, ensuring precise speed measurements.

8. How fast is the module’s response time?

   • The module has a fast response time of less than 1 millisecond, making it suitable for real-time speed control.

9. Can the module be used in outdoor environments?

   • While designed for industrial use, the module should be housed in a protective enclosure if used outdoors.

10. Is the module certified to international safety standards?

    • Yes, the module is CE and UL certified, ensuring it meets global safety and performance standards.

---
