Product Introduction

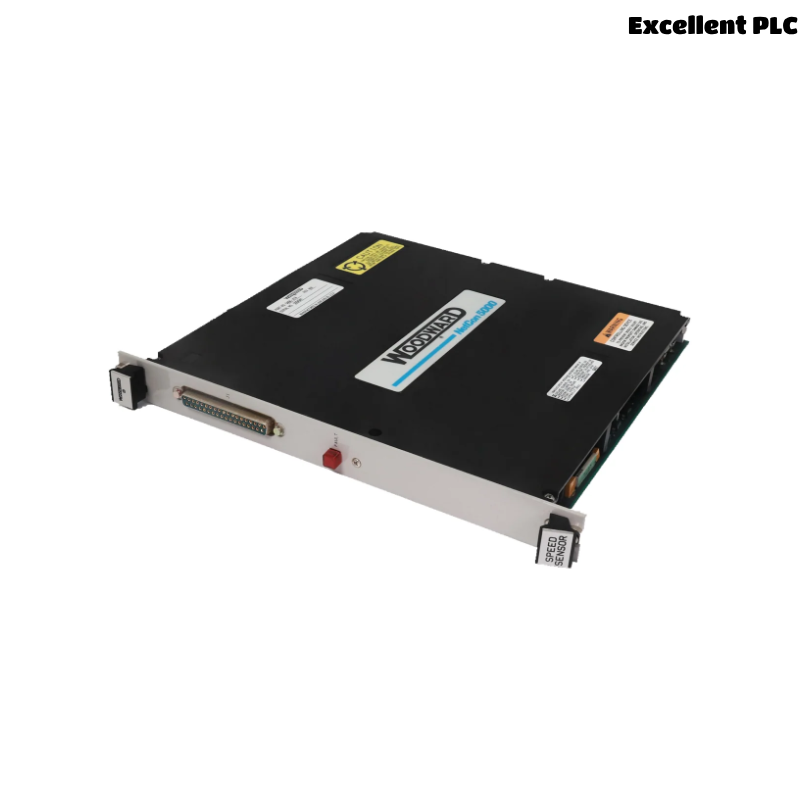

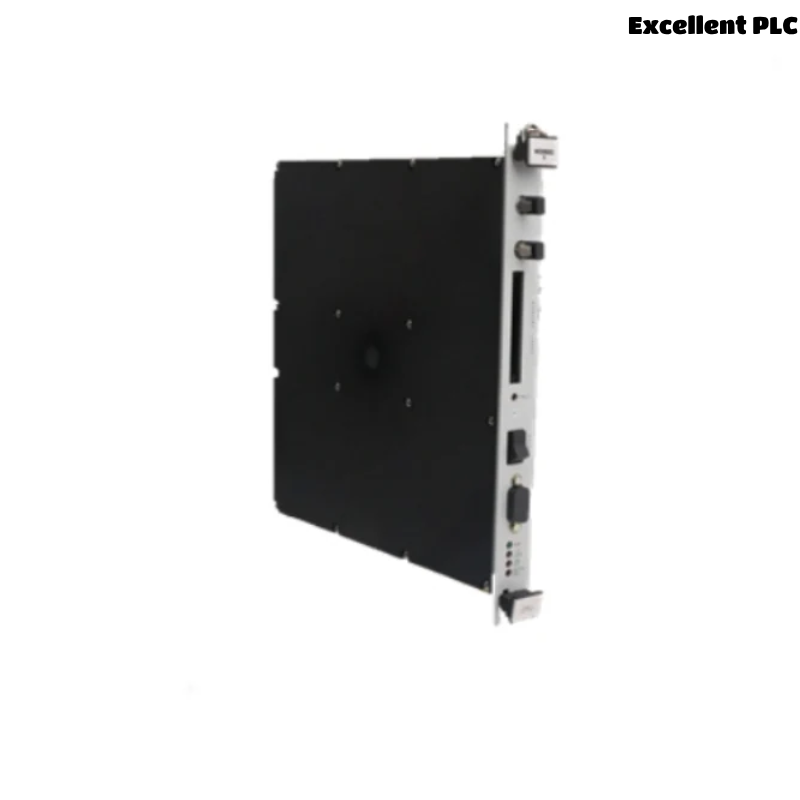

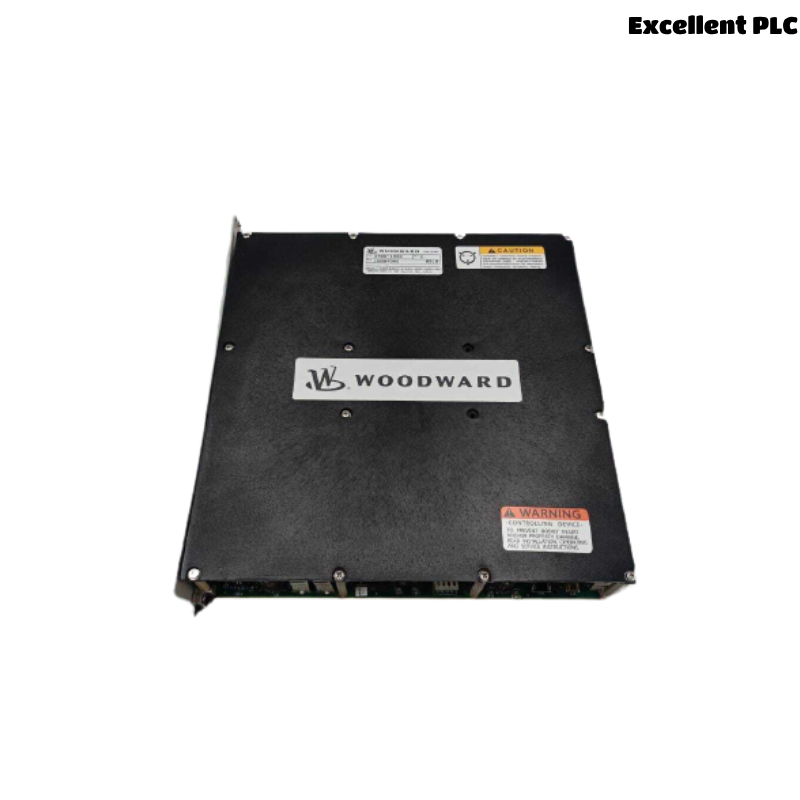

The Woodward 5466-1000 is a high-performance control module designed for industrial engine and turbine management systems. As part of Woodward’s 5000 series of microprocessor-based control solutions, the 5466-1000 is known for its superior reliability in critical applications such as power generation, marine propulsion, and process industries. It provides precise monitoring and control over fuel, air, and speed parameters in engines and turbines. The controller is engineered to deliver rapid response, robust interfacing, and seamless integration with existing SCADA or DCS platforms.
The 5466-1000 supports programmable logic and flexible I/O configurations, making it suitable for a wide range of custom control strategies. It is frequently used in conjunction with other Woodward hardware in redundant or distributed control architectures.
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | Woodward 5466-1000 |
| Description | Engine/Turbine Control Module |
| Supply Voltage | 18 to 32 VDC |
| Power Consumption | 15 W |
| Processor Type | 32-bit Microprocessor |
| Digital Inputs | 20 (isolated) |
| Digital Outputs | 16 (isolated, configurable) |
| Analog Inputs | 8 (4–20 mA or 0–5 V configurable) |
| Analog Outputs | 4 (0–20 mA) |
| Communication Ports | 2x RS-232, 1x RS-485, Ethernet |
| Operating Temperature | –20°C to +70°C |
| Storage Temperature | –40°C to +85°C |
| Humidity | 5%–95% RH non-condensing |
| Enclosure Rating | IP20 (standard) |
| Mounting Type | Panel Mount |
| Dimensions | 150 x 100 x 50 mm |
| Weight | 0.8 kg |
| Compliance | CE, UL, CSA, RoHS |
Product Advantages
-
Reliable Performance: Proven operation in demanding industrial and power generation environments.
-
High I/O Flexibility: Multiple digital and analog inputs/outputs to accommodate complex control schemes.
-
Programmable Logic Support: Fully programmable using Woodward’s GAP or AppManager tools.
-
Advanced Communication: Ethernet and serial ports for SCADA/DCS/PLC connectivity.
-
Compact Design: Optimized footprint for panel installation without sacrificing power.
-
Scalable System Integration: Suitable for standalone or redundant control systems.
-
Long Operational Life: Built to operate continuously in rugged field conditions.
-
Backward Compatibility: Compatible with legacy Woodward controls for system upgrades.
-
Event Logging: Embedded diagnostics and event logging for enhanced maintenance.
-
Field Serviceable: Designed for easy access and minimal downtime during servicing.
Product Applications
-
Gas turbine control systems in power plants
-
Diesel and gas engine management in marine propulsion
-
Compressor control in petrochemical and refinery systems
-
Generator set control in prime or standby power installations
-
Pipeline pump engine automation
-
Industrial combined heat and power (CHP) plant controls
-
Load sharing and synchronization for multi-unit systems
-
Redundant safety-critical control environments
Frequently Asked Questions (FAQ)
Q1: What is the primary use of the Woodward 5466-1000?
A1: It is used for controlling and monitoring industrial engines and turbines, especially in energy and process automation systems.
Q2: Can this unit be used in high-temperature environments?
A2: Yes, it supports operation up to +70°C and is built to endure industrial thermal conditions.
Q3: How is the 5466-1000 programmed?
A3: It can be programmed using Woodward’s GAP software or AppManager, both supporting custom logic development.
Q4: Does it support remote communication?
A4: Yes, with built-in Ethernet and serial ports, it can be remotely accessed and integrated into SCADA or DCS systems.
Q5: Is it compatible with older Woodward systems?
A5: Yes, it is backward-compatible with many Woodward control platforms, making upgrades easier.
Q6: What kind of maintenance is required?
A6: Routine maintenance includes periodic inspection of wiring, firmware updates, and checking diagnostics logs.
Q7: How many digital outputs does it support?
A7: It provides 16 configurable digital outputs.
Q8: Is the controller suitable for marine applications?
A8: Yes, it is frequently used in marine engine control systems for propulsion and auxiliary power management.
Q9: What happens if the controller fails during operation?
A9: It supports diagnostics and event logging for failure analysis; redundant systems can be configured to take over.
Q10: How is it mounted in control panels?
A10: The 5466-1000 is designed for panel mounting using standard brackets or DIN rail options.
Recommended Models from the Same Series or Related
-
Woodward 5466-1046
-
Woodward 5466-1048
-
Woodward 5466-1031
-
Woodward 5466-1001
-
Woodward 5466-1075
-
Woodward 5466-1012
These models offer similar form factors and functionalities with varying I/O configurations and firmware options suited to different control environments.
