Product Introduction

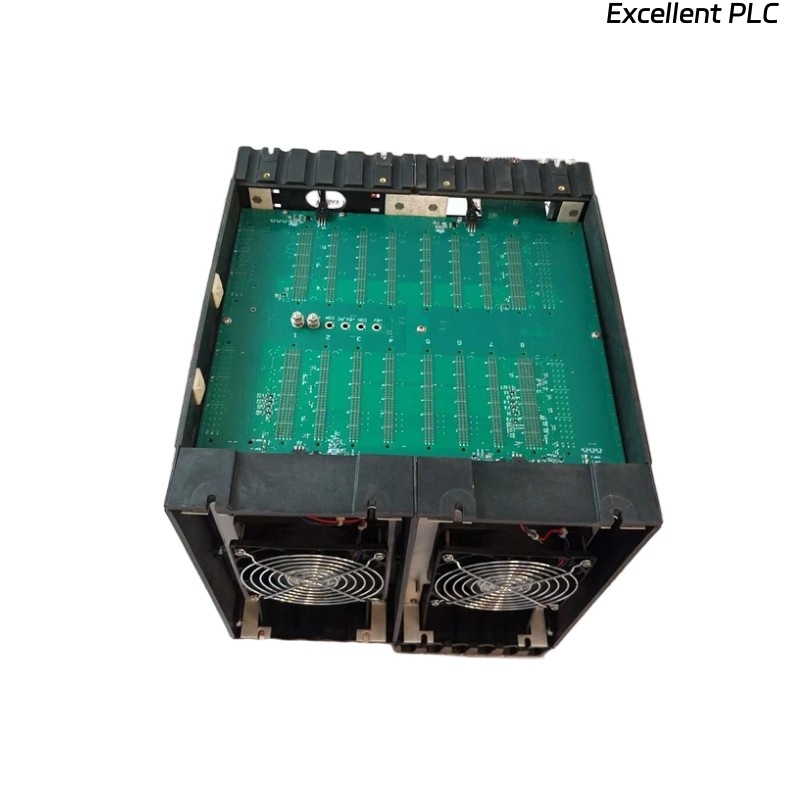

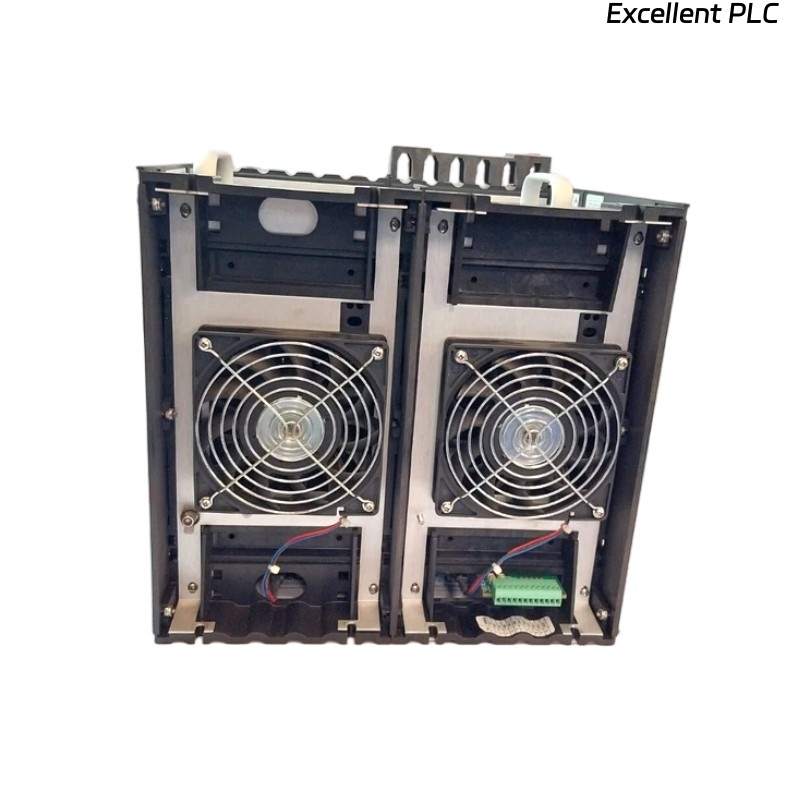

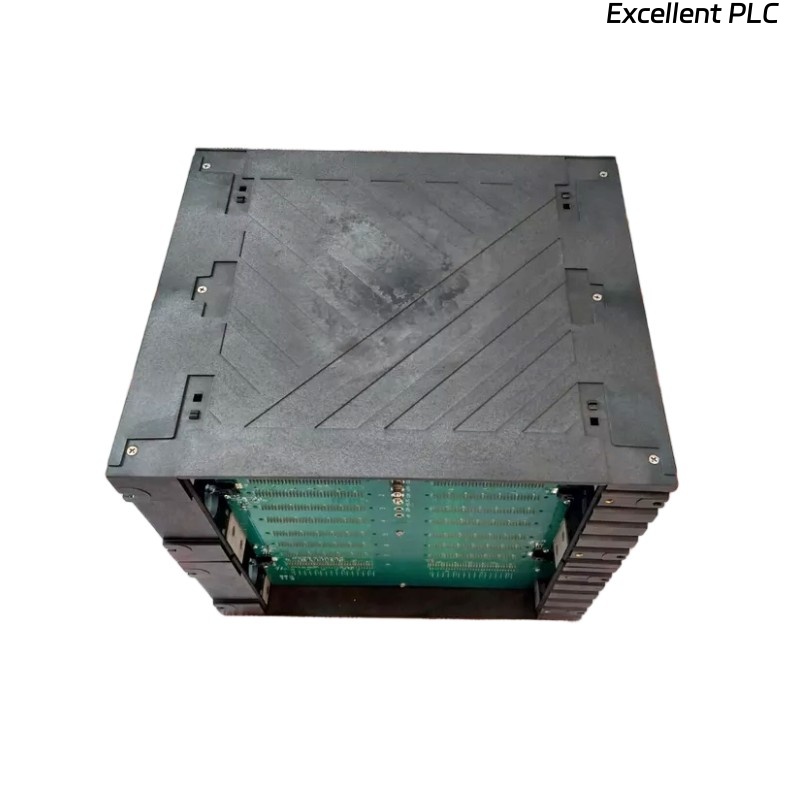

The Woodward 5466-1002 Micronet Alimentation Module is a high-performance power supply unit designed for industrial control systems, particularly in turbine and generator applications. It provides reliable and stable DC power to Micronet networks, ensuring seamless communication between controllers and peripheral devices. Its robust design guarantees consistent performance even in harsh industrial environments.
This module is widely used in power generation, process automation, and critical machinery monitoring systems where network reliability and power integrity are paramount.
Product Advantages
-
High Reliability: Provides consistent and stable voltage output under variable load conditions, minimizing network disruptions.
-
Industrial-Grade Build: Designed to withstand high temperatures, vibrations, and electrical noise commonly found in industrial environments.
-
Easy Integration: Fully compatible with other Micronet devices and control systems, reducing installation complexity.
-
Redundancy Support: Supports parallel operation to enhance system reliability in mission-critical applications.
-
Monitoring Capability: Built-in indicators and status signals allow operators to monitor the module’s operational state in real-time.
-
Compact Design: Space-efficient structure facilitates easy mounting in control cabinets or racks.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | 120/240 VAC ±10% |
| Output Voltage | 24 VDC |
| Output Current | 2 A |
| Operating Temperature | -20°C to +70°C |
| Relative Humidity | 0–95% non-condensing |
| Network Compatibility | Micronet Communication Network |
| Protection Features | Overvoltage, Overcurrent, Short-circuit |
| Dimensions (mm) | 180 × 120 × 60 mm |
| Weight (kg) | 1.2 kg |
| Mounting Type | DIN Rail / Panel Mount |
Product Applications
-
Power generation control systems
-
Gas and steam turbine monitoring
-
Industrial automation networks
-
Generator protection and control
-
Critical machinery control networks
-
Micronet-based distributed control systems
FAQ
Q1: What is the maximum output current of the 5466-1002?
A1: The module can provide up to 2 A of continuous DC output at 24 VDC.
Q2: Can this module operate in parallel with another 5466-1002 for redundancy?
A2: Yes, the module supports parallel operation to ensure system redundancy.
Q3: What protections are included in the module?
A3: It includes overvoltage, overcurrent, and short-circuit protections.
Q4: Is the module compatible with all Micronet network devices?
A4: Yes, it is fully compatible with all standard Micronet communication devices.
Q5: What is the input voltage range?
A5: The module accepts 120/240 VAC with a ±10% tolerance.
Q6: Can it operate in high-temperature environments?
A6: Yes, it can operate between -20°C and +70°C.
Q7: Does it provide status indicators for operational monitoring?
A7: Yes, the module features LED indicators for output status and fault conditions.
Q8: What mounting options are available?
A8: The module can be mounted on DIN rails or panels.
Q9: Is it suitable for industrial vibration conditions?
A9: Yes, the module is designed to withstand typical industrial vibration levels.
Q10: Can it maintain stable voltage under variable loads?
A10: Yes, the module provides stable voltage even under fluctuating load conditions.
Related or Same-Series Models
| Model Number | Description |
|---|---|
| 5466-1001 | Micronet Alimentation Module Basic |
| 5466-1003 | Micronet High-Current Module |
| 5466-1004 | Micronet Redundant Power Module |
| 5466-1005 | Micronet Industrial Power Module |
| 5466-1006 | Micronet Enhanced Voltage Module |
| 5466-1007 | Micronet Dual Output Power Module |
