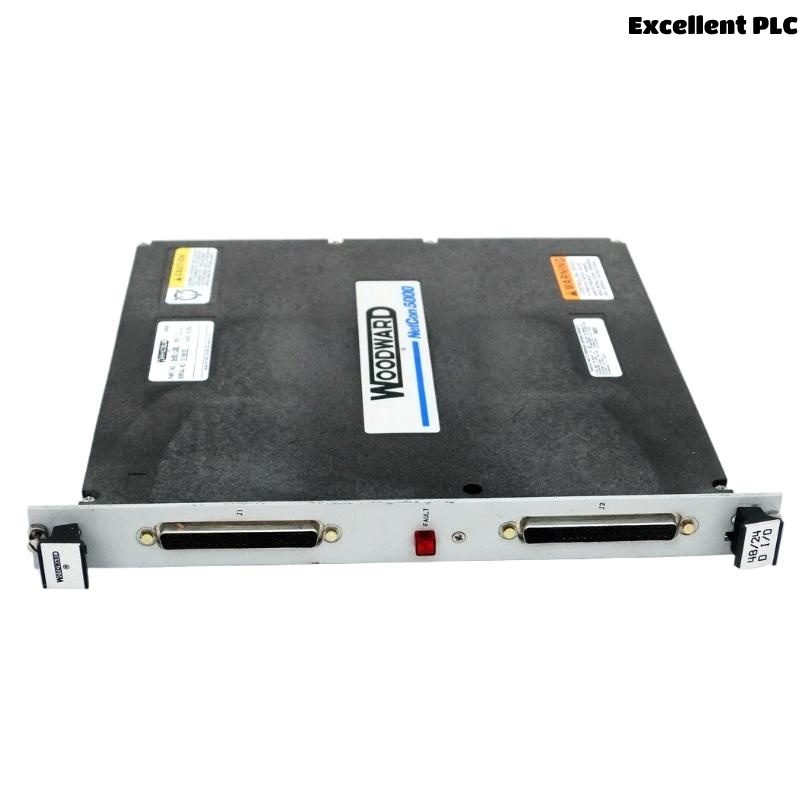

Woodward 5466-258M Discrete I/O Module

Product Introduction

The Woodward 5466-258M Discrete I/O Module is a robust input/output interface designed for Woodward’s MicroNet™ control systems. This module provides reliable processing and isolation of discrete signals for mission-critical industrial automation and turbine control applications. It supports both digital inputs and outputs, enabling seamless interaction between field devices and the control system.

Engineered for high-performance and harsh industrial environments, the 5466-258M ensures precise detection and actuation of on/off signals with built-in diagnostics for increased system reliability. Its modular design makes it suitable for scalable control architectures, while its rugged construction allows continuous operation in demanding conditions.


Product Specifications

Parameter Details
Product Model Woodward 5466-258M Discrete I/O Module
Product Type Digital Input/Output Module
Input Channels 16 isolated digital inputs
Output Channels 16 isolated digital outputs
Input Voltage Range 24 VDC (nominal)
Output Voltage Range 24 VDC (nominal)
Isolation Channel-to-channel and channel-to-ground isolation
Diagnostics Self-test, open/short circuit detection, status LEDs
Update Rate < 5 ms response time
Power Supply Requirement 24 VDC nominal
Operating Temperature –20°C to +65°C
Storage Temperature –40°C to +85°C
Mounting Type Rack-mounted (MicroNet™ rack)
Compliance Standards CE, UL, CSA, IEC
Dimensions (H x W x D) 265 × 120 × 45 mm
Weight 0.95 kg

Product Applications

The Woodward 5466-258M Discrete I/O Module is used in a wide range of industrial and power generation systems where reliable digital signal management is essential:

  • Turbine Control Systems: Interfaces with limit switches, solenoids, and trip circuits.

  • Compressor Control: Provides discrete signal monitoring and actuation for industrial compressors.

  • Power Generation Units: Integrates with generators and auxiliary systems for alarm and protection signals.

  • Industrial Automation: Handles on/off signals in distributed control systems.

  • Safety Systems: Supports emergency shutdown systems requiring high-reliability digital I/O.

  • Retrofit Projects: Ideal for upgrading existing MicroNet™ systems with additional digital I/O capabilities.


Product Advantages

  • High Channel Density: Provides 32 total channels (16 inputs + 16 outputs) in a compact module.

  • Industrial-Grade Isolation: Ensures signal integrity and protects against electrical noise.

  • Fast Response Time: <5 ms update rate suitable for real-time control and protection.

  • Built-In Diagnostics: Open/short detection and self-testing enhance system safety and reliability.

  • Seamless Integration: Designed for use with Woodward MicroNet™ racks and controllers.

  • Durable Design: Rugged construction supports continuous operation in harsh industrial environments.
