Product Introduction

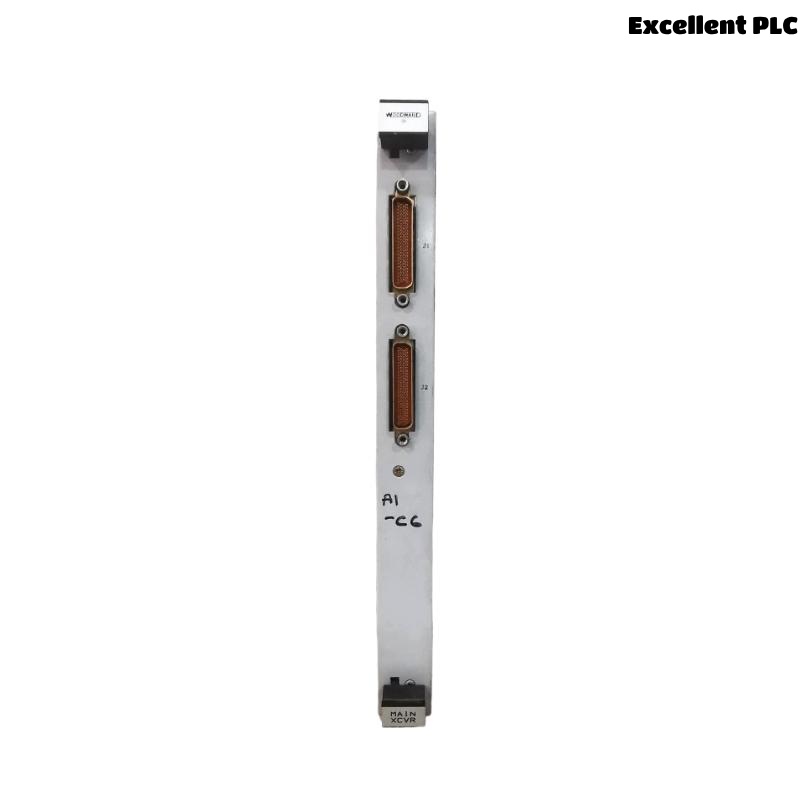

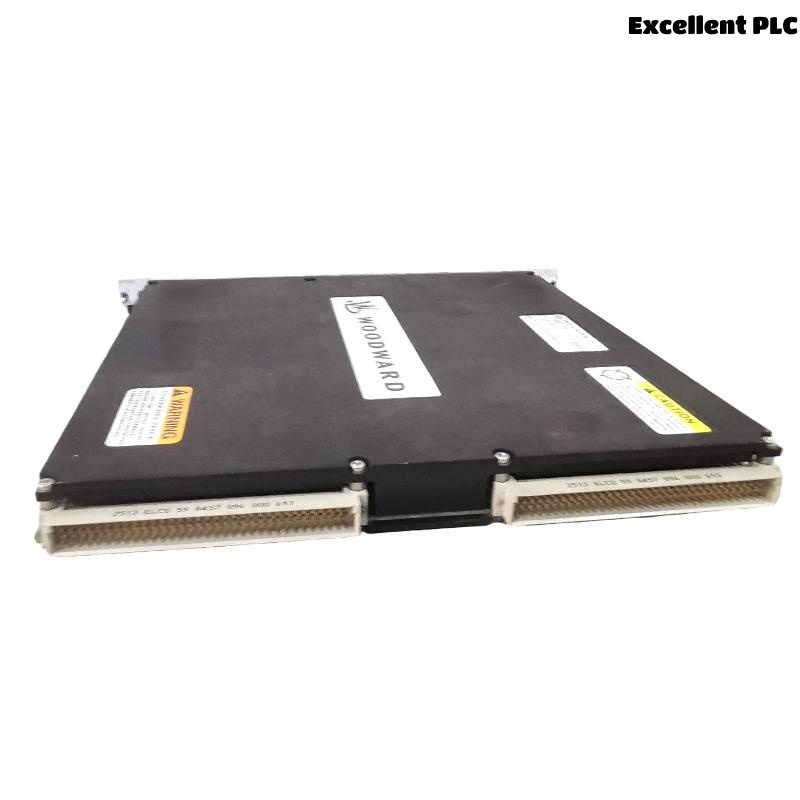

The Woodward 5466-353 Netcon Main Chassis Transceiver Module is a vital component in Woodward’s advanced digital control and communication systems. This module serves as a central communication interface, enabling the reliable exchange of data between various control systems, sensors, actuators, and other networked equipment. Designed to fit into the Netcon main chassis, this transceiver module facilitates high-speed, high-fidelity communication over industrial networks, ensuring smooth and uninterrupted operations in power generation, oil & gas, manufacturing, and other critical applications.
The 5466-353 module supports multiple communication protocols and is engineered for robust performance in demanding industrial environments. Its modular design allows for easy integration into Woodward’s existing digital platforms, providing flexibility, scalability, and enhanced system connectivity. The transceiver module is built for reliability, offering continuous data transmission with minimal latency, ensuring that control decisions are based on real-time information.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | 5466-353 |
| Device Type | Netcon Main Chassis Transceiver Module |
| Communication Protocols | Ethernet, Modbus TCP, RS-485 |
| Data Transfer Rate | 100 Mbps (Ethernet) |
| Connector Type | RJ45, Terminal Block (for RS-485) |
| Power Supply | 24 VDC (from Netcon chassis) |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (WxHxD) | 200 x 100 x 50 mm |
| Weight | 0.907 kg |
| Mounting | Mounted in Netcon main chassis |
| LED Indicators | Power, Link, Activity, Error |
| Certification | CE, UL |
| Protection | Short circuit and overcurrent protection |
Product Applications
The Woodward 5466-353 Netcon Main Chassis Transceiver Module plays a crucial role in numerous industrial applications, particularly where real-time data exchange is critical for optimal system performance and safety. Common uses include:
-
Power Generation: Facilitates communication between turbine control systems, governors, and remote monitoring devices.
-
Oil & Gas: Used in control systems for pipeline monitoring, compressor stations, and gas turbines to ensure safe and efficient operations.
-
Manufacturing Automation: Enables data transfer between machine controllers, production lines, and central control systems to streamline operations.
-
Renewable Energy: Ensures real-time data communication for wind farms, solar power stations, and other renewable energy sources.
-
Marine: Used in vessel control systems for efficient communication between engines, sensors, and navigation systems.
-
Transportation: Supports communication between locomotive engines, control systems, and monitoring devices to optimize performance.
-
Industrial Control Systems: Serves as the communication backbone in large-scale automated systems, including HVAC, lighting, and security monitoring.
Product Advantages
-
Reliable Communication: Ensures seamless and continuous data transfer across the network, minimizing the risk of communication delays or failures.
-
High Data Transfer Rate: Supports a data rate of 100 Mbps via Ethernet, ensuring high-speed, low-latency communication.
-
Flexible Connectivity: Supports multiple communication protocols (Ethernet, Modbus TCP, RS-485) for easy integration with existing systems.
-
Compact and Robust: Its small, rugged design is perfect for space-constrained environments while offering high durability in industrial settings.
-
Ease of Integration: Easy to install in the Netcon main chassis, providing a plug-and-play experience for system engineers and technicians.
-
Wide Temperature Range: Operates reliably in extreme temperatures from -40°C to +85°C, making it suitable for various industrial applications.
-
Power Efficiency: Powered by a 24 VDC supply, making it energy-efficient and well-suited for continuous operation in industrial systems.
-
Status Monitoring: Equipped with LED indicators for easy monitoring of power, network link status, activity, and errors.
-
High-Quality Build: CE and UL certified, ensuring compliance with rigorous industrial safety and quality standards.
Frequently Asked Questions (FAQ)
-
Q: What communication protocols are supported by the 5466-353 module?
A: The module supports Ethernet, Modbus TCP, and RS-485 protocols. -
Q: What is the maximum data transfer rate of the transceiver module?
A: It supports a maximum data transfer rate of 100 Mbps over Ethernet. -
Q: How is the module powered?
A: The module is powered by a 24 VDC supply, which comes from the Netcon main chassis. -
Q: What are the dimensions of the 5466-353 module?
A: The module measures 200 x 100 x 50 mm. -
Q: Can the 5466-353 module operate in extreme temperatures?
A: Yes, it operates within a temperature range of -40°C to +85°C. -
Q: How is the 5466-353 module mounted?
A: It is mounted within the Netcon main chassis. -
Q: Does the module have any indicators for troubleshooting?
A: Yes, it includes LED indicators for power, link, activity, and error status. -
Q: What certifications does the module hold?
A: The module is CE and UL certified for safety and reliability. -
Q: What is the weight of the module?
A: The module weighs 0.907 kg. -
Q: Is the 5466-353 module suitable for use in industrial environments?
A: Yes, it is designed for use in harsh industrial environments, offering high reliability and protection against short circuits and overcurrent.
Related Models and Variants
| Model Number | Description | Key Feature |
|---|---|---|
| 5466-354 | Netcon Main Chassis Transceiver Module with Dual Ports | Supports dual communication channels |
| 5466-355 | High-Speed Transceiver Module | Enhanced data transfer rate up to 1 Gbps |
| 5466-356 | Netcon Network Interface Module | Dedicated interface for network management |
| 5466-357 | Compact Chassis Transceiver Module | Smaller form factor for limited spaces |
| 5466-358 | Redundant Network Transceiver Module | Redundancy for enhanced network reliability |
| 5466-359 | Industrial Communication Module | Designed for rugged industrial environments |
Popular Woodward Brand Models
| Model Number | Description | Application Focus |
|---|---|---|
| 5460-610 | Digital Control System Module | Control system for turbines |
| 5460-611 | Generator Control Module | Used in generator systems |
| 5460-612 | Engine Control Module | For engine speed and load control |
| 5464-302 | Governor Control Module | Regulates speed for steam turbines |
| 5464-305 | Power Management Module | Optimizes energy use in power plants |
| 5464-310 | Protection Relay Module | Protects critical equipment from faults |
