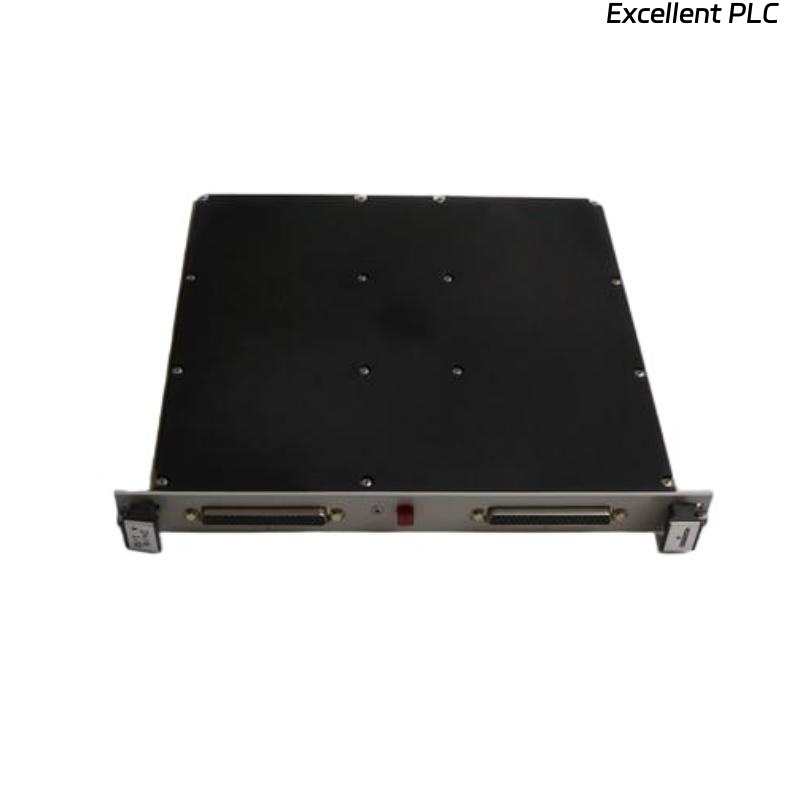

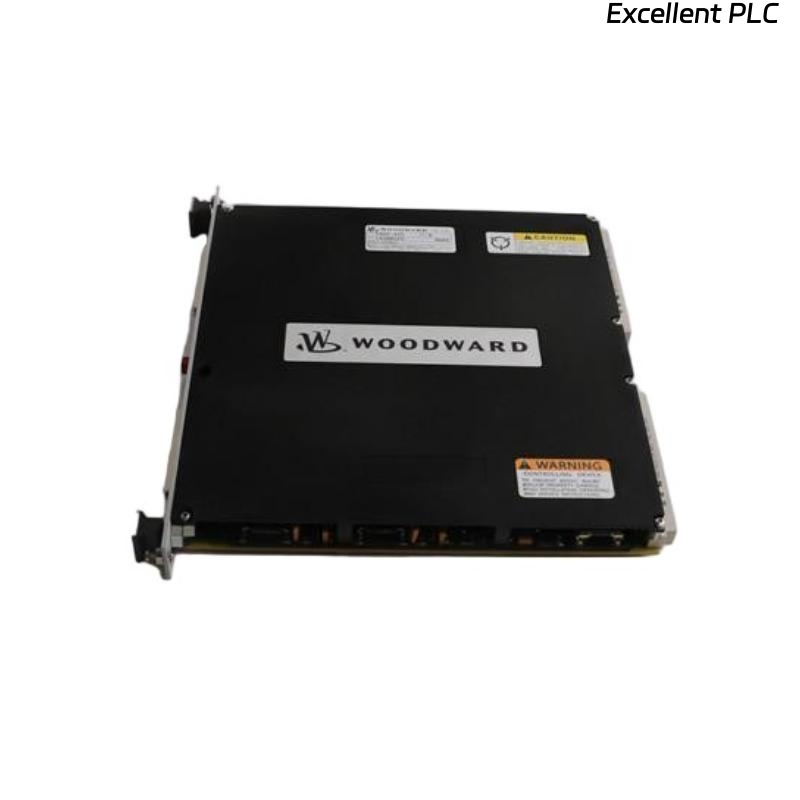

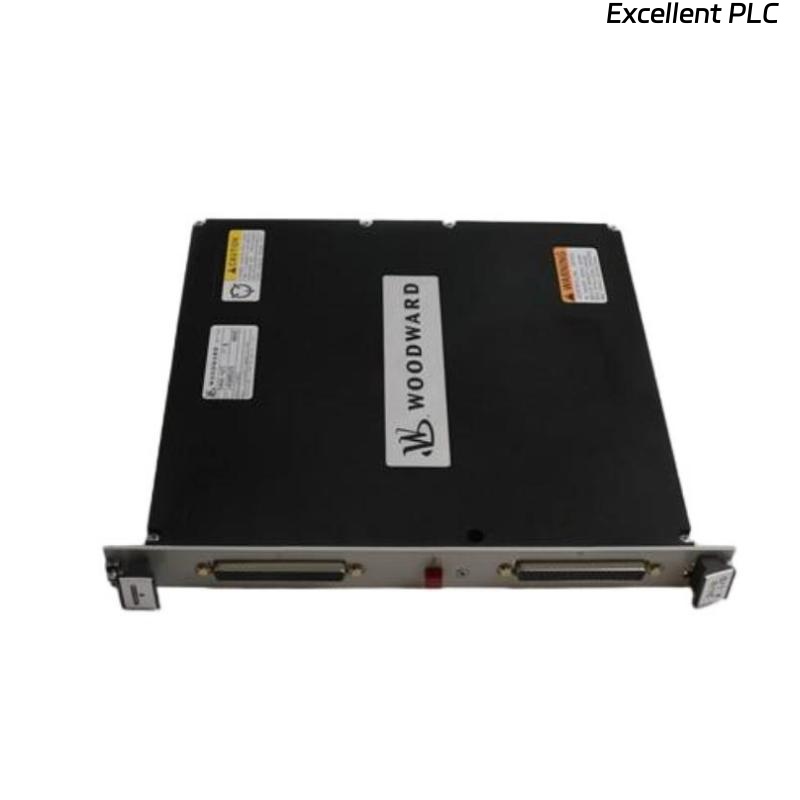

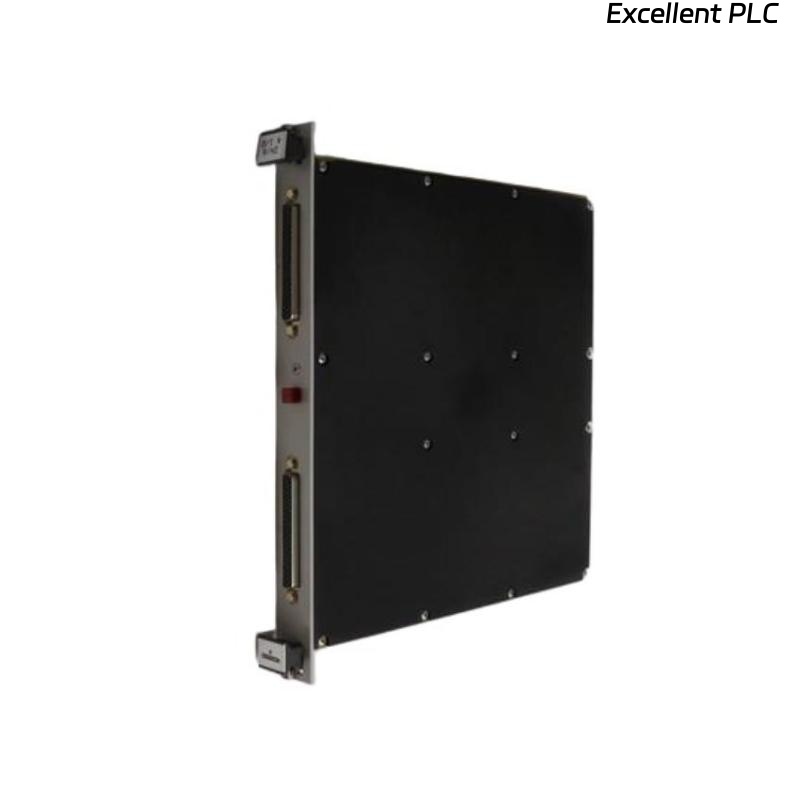

Woodward 5466-425D Analog I/O Modules

Product Overview

The Woodward 5466-425D Analog I/O Module is a versatile and robust component designed to support both analog input and output functions within industrial control systems. Specifically engineered for compatibility with Woodward’s MicroNet™ and NetCon™ platforms, this module enhances process control by providing precise measurement and actuation capabilities for a wide range of industrial applications, including energy, power generation, and heavy machinery automation.

Key Features

• Combined analog input and output functionality in one module

• High-resolution 12-bit or 16-bit A/D and D/A conversion

• Individually configurable channels

• Fast signal response and processing

• Electrical isolation for signal integrity and system protection

• Easy installation in rack-based systems

• Designed for mission-critical control applications

Technical Specifications

Industry Applications

• Turbine and engine control

• Industrial automation

• Power generation systems

• Oil and gas process management

• Water and wastewater control systems

Frequently Asked Questions (FAQ)

1. What does the 5466-425D module do?
   It provides both analog input and output capabilities for industrial control systems.

2. Can the channels be configured individually?
   Yes, channels can be set as input or output depending on system requirements.

3. Which systems is this module compatible with?
   It is compatible with Woodward’s MicroNet™ and NetCon™ platforms.

4. What type of signals does it handle?
   It handles standard voltage (e.g., 0–10 V, ±10 V) and current (e.g., 4–20 mA) signals.

5. Does it provide signal isolation?
   Yes, electrical isolation is provided to ensure system protection and signal integrity.

6. How is it mounted?
   It is rack-mounted within Woodward system chassis.

7. What is its accuracy?
   ±0.1% for input and ±0.2% for output signals.

8. Are diagnostic features included?
   Yes, it includes self-diagnostics and channel fault detection.

9. What is its operating temperature range?
   –40 °C to +70 °C.

10. Is it field-upgradable?
    Configuration options may allow updates; consult system documentation.
