Product Overview

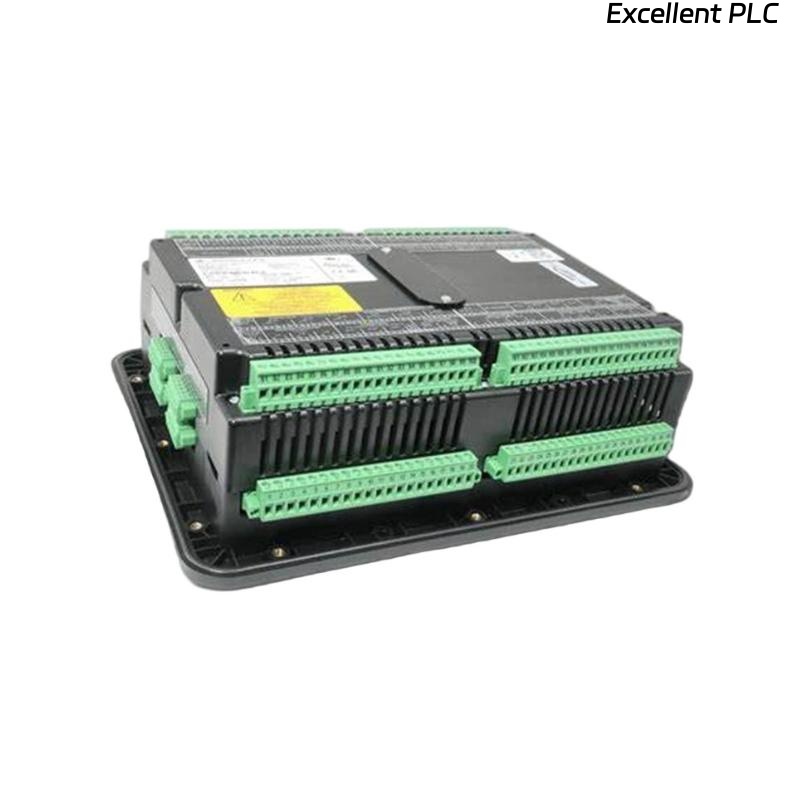

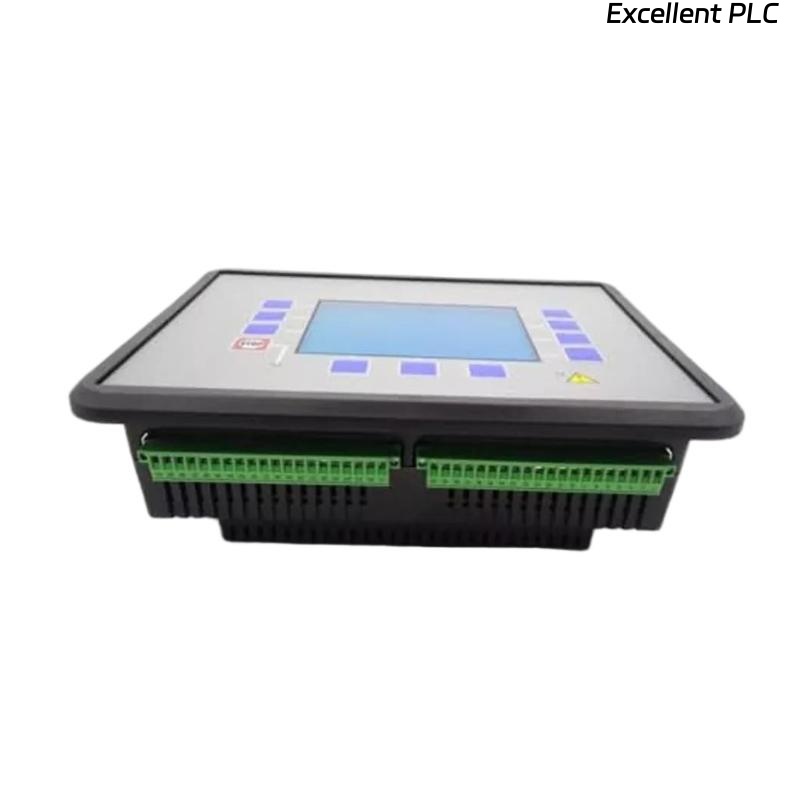

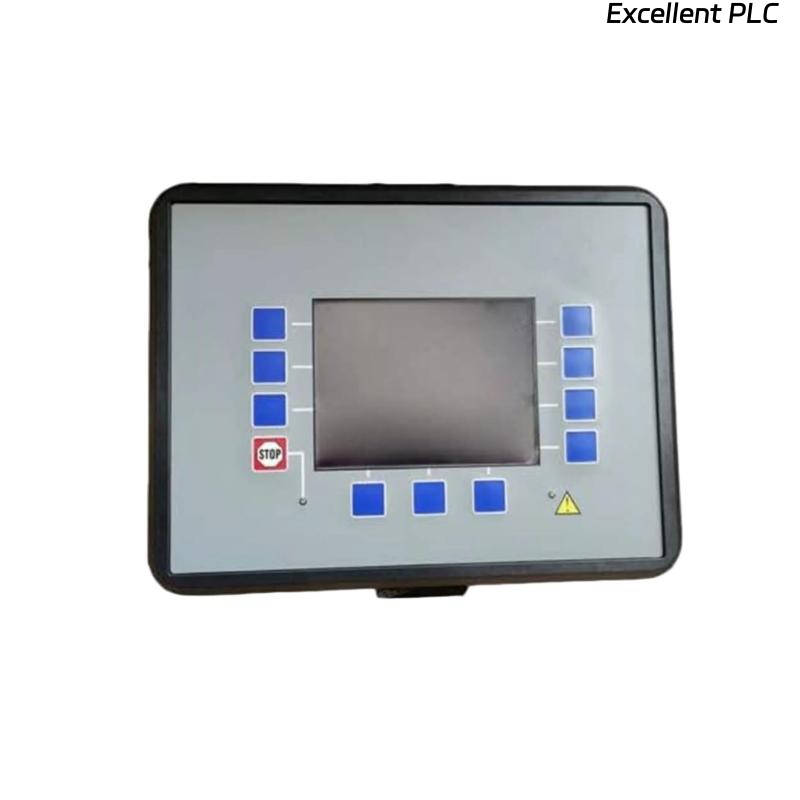

The Woodward 8440-2082 Controller is part of the easYgen™ 3000XT series, providing high-end control, protection, and synchronization for generator sets in a wide range of industrial and commercial power applications. With advanced load sharing, breaker control, and communication capabilities, this controller is ideal for complex power management systems requiring reliable automation and flexibility.
Key Features
-
Comprehensive genset control with synchronization and load sharing
-
Suitable for isolated and parallel operations
-
Support for dual-breaker applications (Mains and Generator breaker control)
-
Flexible communication via Ethernet, CAN, and Modbus protocols
-
Built-in PLC logic for user-defined control strategies
-
Rugged construction for harsh environments
-
IP65 front panel protection with graphical LCD interface
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 8440-2082 |
| Product Series | easYgen™ 3000XT Series |
| Control Type | Synchronization, Load Sharing, Protection |
| Communication Interfaces | Ethernet, CANopen, RS-232/RS-485, Modbus RTU/TCP |
| Display | High-resolution graphical LCD with soft keys |
| Digital Inputs | 16 configurable |
| Digital Outputs | 11 relay outputs |
| Analog Inputs | 3 configurable |
| Analog Outputs | 4 configurable (0–10 VDC or 4–20 mA) |
| Rated Voltage | 12/24 VDC (8–40 VDC range) |
| Frequency Range | 40–70 Hz |
| Operating Temperature | –20 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Protection Class | IP65 (front), IP20 (rear) |
| Dimensions | 240 × 172 × 65 mm |
| Weight | 1.5 kg |
| Certifications | CE, UL, CSA, EAC |
| Mounting Type | Panel mount |
Industry Applications
-
Prime and standby generator control
-
Industrial and commercial power plants
-
CHP (Combined Heat and Power) systems
-
Marine and offshore power management
-
Microgrid and utility-tie applications
Frequently Asked Questions (FAQ)
-
What applications is the 8440-2082 controller suitable for?
It is designed for generator set control in complex and mission-critical power systems. -
Does the controller support dual-breaker applications?
Yes, it can control both generator and mains breakers. -
Can the unit be used in islanded and grid-parallel modes?
Yes, it supports both operating modes. -
Is remote communication available?
Yes, via Ethernet, CAN, and Modbus protocols. -
Does it feature built-in PLC logic?
Yes, it supports user-defined PLC logic for custom operations. -
Is the display panel weatherproof?
The front panel is rated IP65, suitable for harsh environments. -
How many digital inputs and outputs does it support?
It supports 16 digital inputs and 11 relay outputs. -
Can analog I/O signals be customized?
Yes, analog channels are configurable for various sensor types. -
What kind of power supply is required?
The controller operates on 12/24 VDC power input. -
Is the controller certified for industrial use?
Yes, it meets CE, UL, CSA, and EAC certifications.
