Product Overview

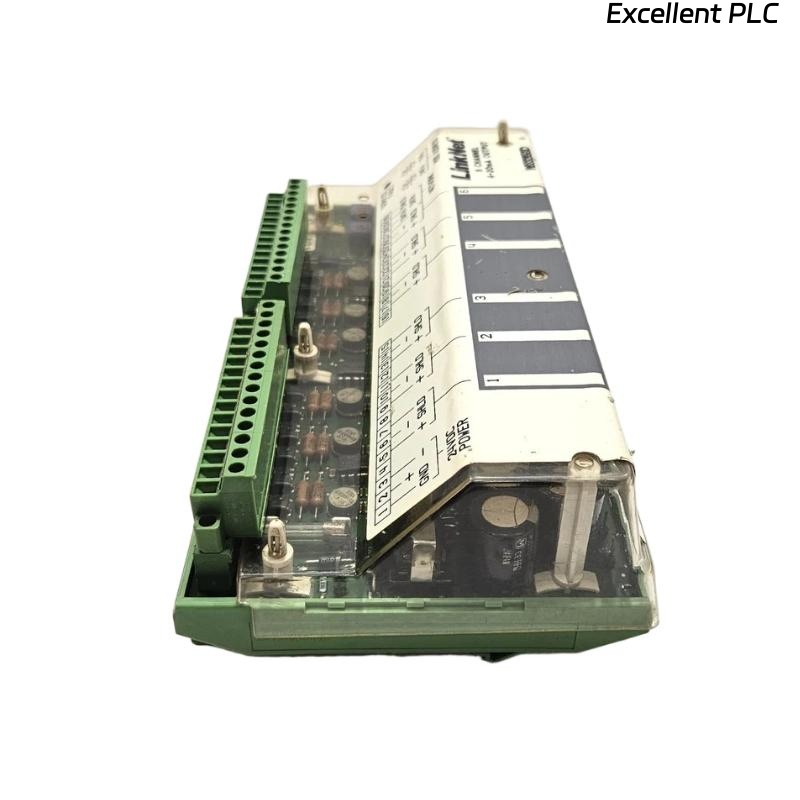

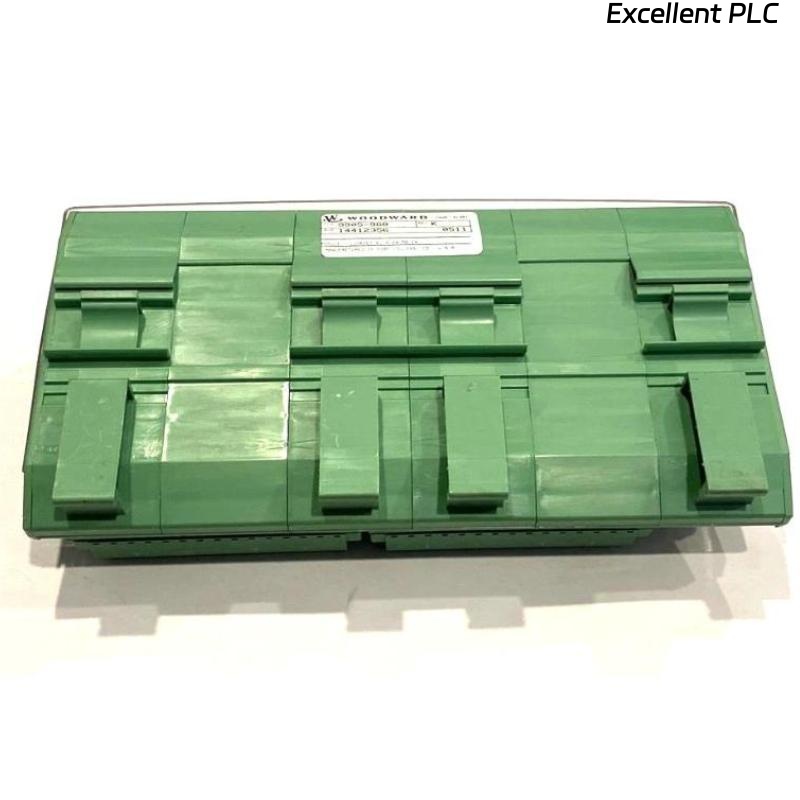

The Woodward 9905-968 is a 6-channel output module engineered for reliable and efficient control within Woodward’s advanced automation and power management systems. It delivers robust output capabilities to drive external devices such as relays, actuators, and indicators. Designed for critical industrial applications, the module ensures durability, accuracy, and stable performance under harsh operating conditions.
Key Features
-
Six isolated output channels for enhanced flexibility
-
High reliability for mission-critical applications
-
Compact modular design with easy installation and servicing
-
LED indicators for channel activity monitoring
-
Wide voltage and current handling capacity
-
Rugged construction for industrial environments
-
Full compliance with global EMC and safety standards
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | 9905-968 |
| Type | Output Module |
| Number of Channels | 6 |
| Output Type | Digital outputs (relay/driver type depending on system) |
| Voltage Rating | 24 VDC nominal |
| Output Current | Up to 2 A per channel |
| Isolation | Galvanic isolation between outputs and bus |
| Indicators | LED status for each channel |
| Mounting | Rack or panel mount compatible |
| Dimensions | 160 × 100 × 40 mm |
| Weight | 0.59 kg |
| Operating Temperature | -20 °C to +70 °C |
| Storage Temperature | -40 °C to +85 °C |
| Compliance | CE, UL, CSA |
Industry Applications
-
Power Generation – controlling genset outputs and auxiliary systems
-
Marine Systems – interfacing shipboard controllers with actuators
-
Oil & Gas – valve and compressor actuation control
-
Industrial Automation – reliable control of relays and drivers
-
Process Control – distributed output functions in automation systems
Advantages
-
Provides multiple isolated outputs for flexible system integration
-
Durable design ensures long service life in demanding conditions
-
Built-in LED indicators simplify troubleshooting and diagnostics
-
Compact and lightweight for efficient cabinet space utilization
-
Compatible with a wide range of Woodward controllers
Frequently Asked Questions (FAQ)
Q1: How many outputs does the 9905-968 provide?
It provides six independent output channels.
Q2: What type of outputs are supported?
Digital outputs, typically relay or driver type.
Q3: Is this module compatible with Woodward genset controllers?
Yes, it integrates seamlessly with Woodward systems.
Q4: What is the rated voltage?
24 VDC nominal.
Q5: How much current can each channel supply?
Up to 2 A per channel depending on the load.
Q6: Does the module provide isolation?
Yes, galvanic isolation is provided between channels and the system bus.
Q7: How can I check the output status?
Through the LED indicators on each channel.
Q8: What is the operating temperature range?
-20 °C to +70 °C.
Q9: What are the module dimensions?
160 mm × 100mm × 40 mm.
Q10: What certifications does it have?
CE, UL, and CSA.
