Product Introduction

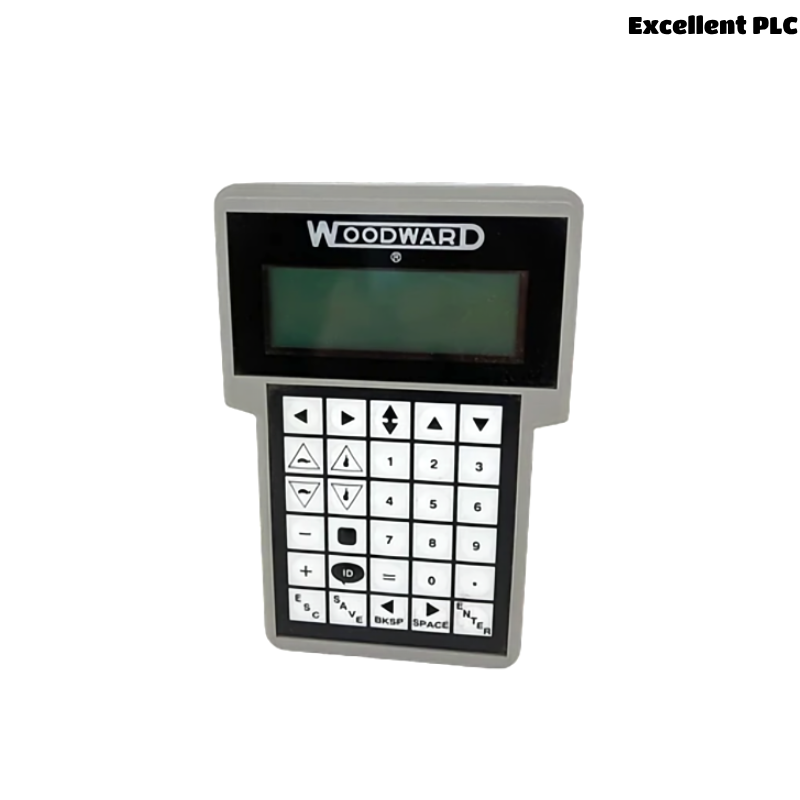

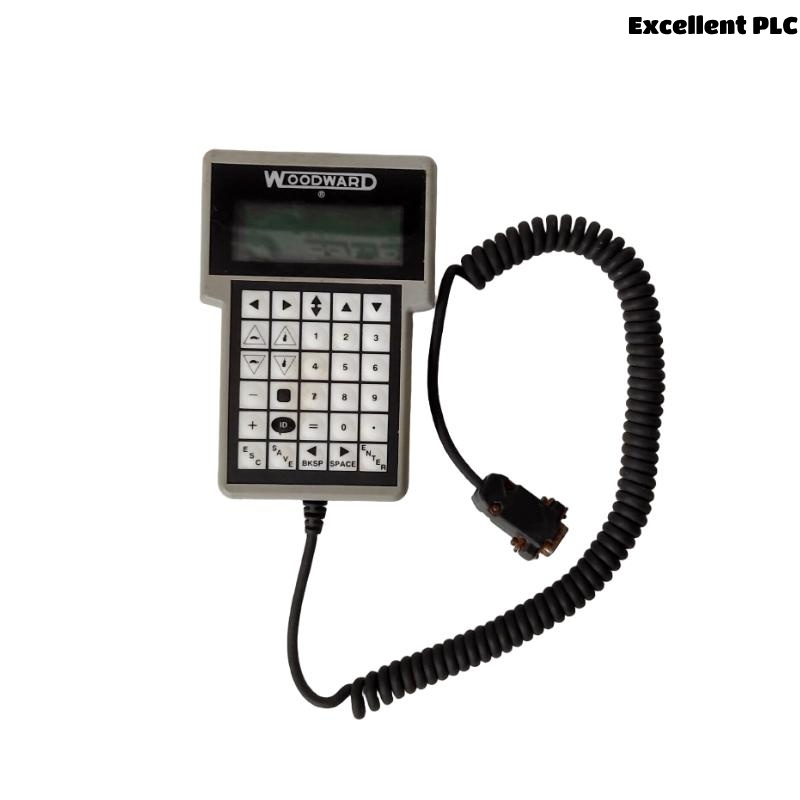

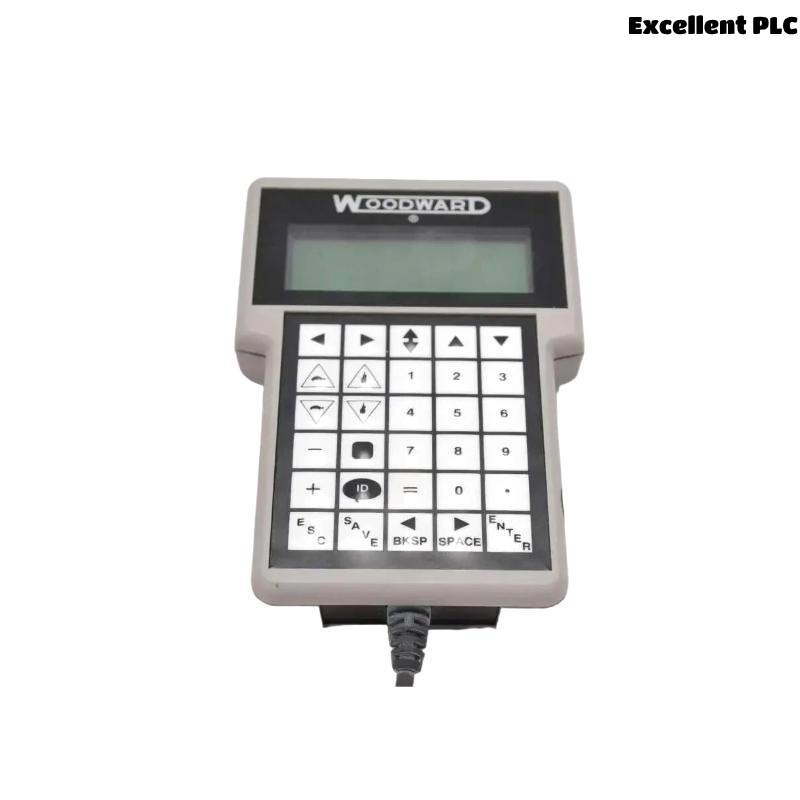

The Woodward 9907-205 Hand Held Programmer is a compact, durable interface device designed for configuration, monitoring, and tuning of Woodward analog engine and generator control modules. Specifically engineered to be used in field environments, this portable programmer allows technicians and engineers to interact directly with supported control units for diagnostics, setup, and real-time adjustments.
This programmer features a rugged keypad and a clear display for navigating through control parameters, fault logs, and system configurations. It eliminates the need for bulky PC-based tools or software and is ideal for remote, mobile, or maintenance-heavy operations. The 9907-205 is widely used with Woodward’s 2301A, 2301D, and other analog controllers.
Its lightweight design, field programmability, and direct communication capabilities make it an essential tool for service personnel in the power generation, oil & gas, marine, and industrial sectors.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | Hand Held Programmer |
| Model Number | 9907-205 |
| Manufacturer | Woodward, Inc. |
| Function | Configuration and tuning of compatible Woodward controllers |
| Display | LCD screen with backlight |
| Keypad Type | Tactile membrane keypad |
| Interface | Serial communication (proprietary cable required) |
| Power Supply | Supplied by the controller (no internal battery) |
| Usage Mode | Handheld, portable |
| Compatible Controllers | 2301A, 2301D, 723, Load Sharing Modules (analog) |
| Operating Temperature | –20 °C to +70 °C |
| Enclosure Rating | IP50 (dust-resistant) |
| Material | Industrial-grade plastic casing |
| Dimensions (W × H × D) | 100 × 180 × 45 mm |
| Weight | 1.9 kg |
| Certifications | CE compliant |
Product Applications
The Woodward 9907-205 is used in diverse industrial settings where reliable field-level controller access is required:
-
Power Generation Facilities
Enables real-time tuning and status monitoring of generator control modules. -
Oil & Gas Installations
Used for on-site calibration and diagnostics of engine/generator controllers in remote environments. -
Marine Propulsion Systems
Supports configuration of analog control units for onboard generator and engine synchronization. -
Field Maintenance & Service
Portable and robust tool for field engineers and service technicians. -
Backup Power Systems
Used in critical facilities like hospitals and data centers for on-demand adjustments during maintenance. -
Industrial Process Plants
Assists in setup and fine-tuning of controller behavior in process-driven engine systems.
Product Advantages
-
Rugged and Portable
Built for field use, the compact and durable design makes it ideal for harsh environments. -
Direct Controller Access
Eliminates the need for laptops or software—plug and play with supported Woodward units. -
No External Power Required
Draws minimal power directly from the controller for ease of use and reliability. -
User-Friendly Interface
Clear LCD display and tactile keypad make navigation and parameter entry fast and intuitive. -
Multi-Controller Support
Compatible with several widely used Woodward analog and digital controllers. -
Field-Tested Reliability
Proven in global industrial sectors for consistent performance in diverse conditions.
Frequently Asked Questions (FAQ)
-
Q: What is the main purpose of the 9907-205 Hand Held Programmer?
A: It is used to program, configure, and monitor Woodward control modules directly in the field. -
Q: Does this programmer need batteries or external power?
A: No, it draws power directly from the controller it connects to. -
Q: Which controllers are compatible with the 9907-205?
A: It is compatible with controllers like the 2301A, 2301D, and several analog load sharing modules. -
Q: Is any software installation required to use the programmer?
A: No, it is a standalone device and does not require a computer or software. -
Q: Can I use this programmer to upload or back up controller configurations?
A: It allows viewing and modifying configurations but does not store or transfer data externally. -
Q: Is this device waterproof?
A: It is dust-resistant (IP50), but not waterproof; it should be protected from direct exposure to liquids. -
Q: How is it connected to the controller?
A: Via a proprietary serial cable designed by Woodward for specific controller models. -
Q: Can this programmer update firmware?
A: No, it is only for parameter adjustments, not firmware updates. -
Q: What should I do if the screen doesn’t turn on?
A: Ensure the controller is powered and the cable is securely connected—the programmer powers through the controller. -
Q: Is training required to use the programmer?
A: Basic familiarity with the controller and menu navigation is helpful, but it is designed to be user-friendly.
