Product Introduction

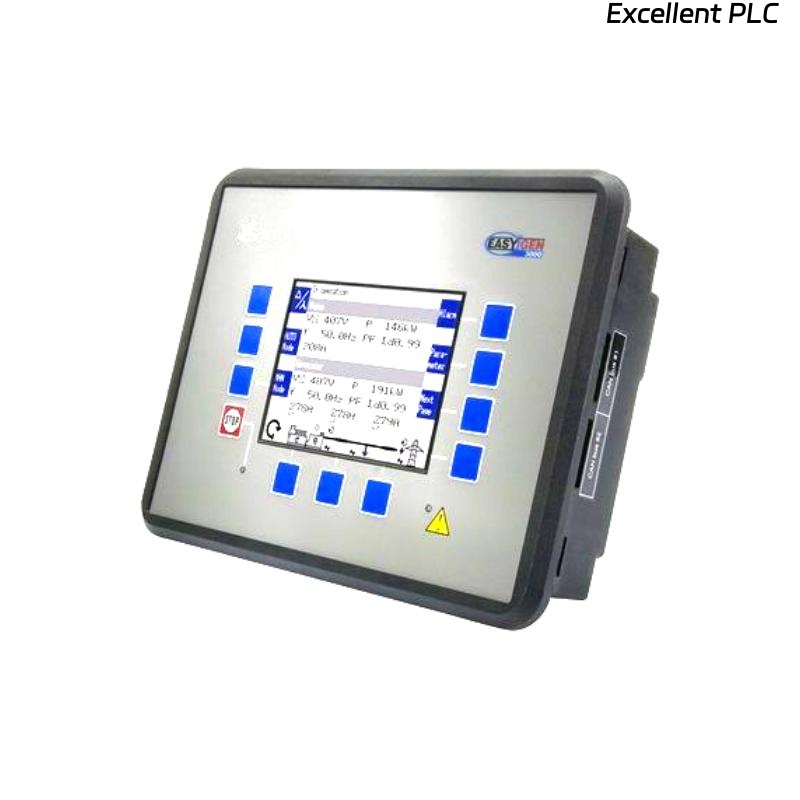

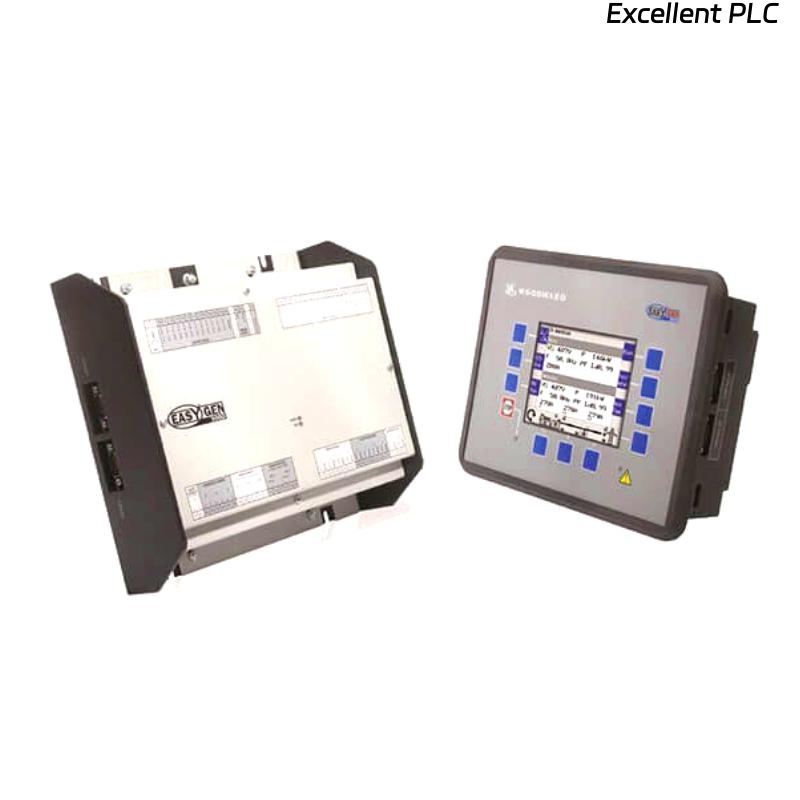

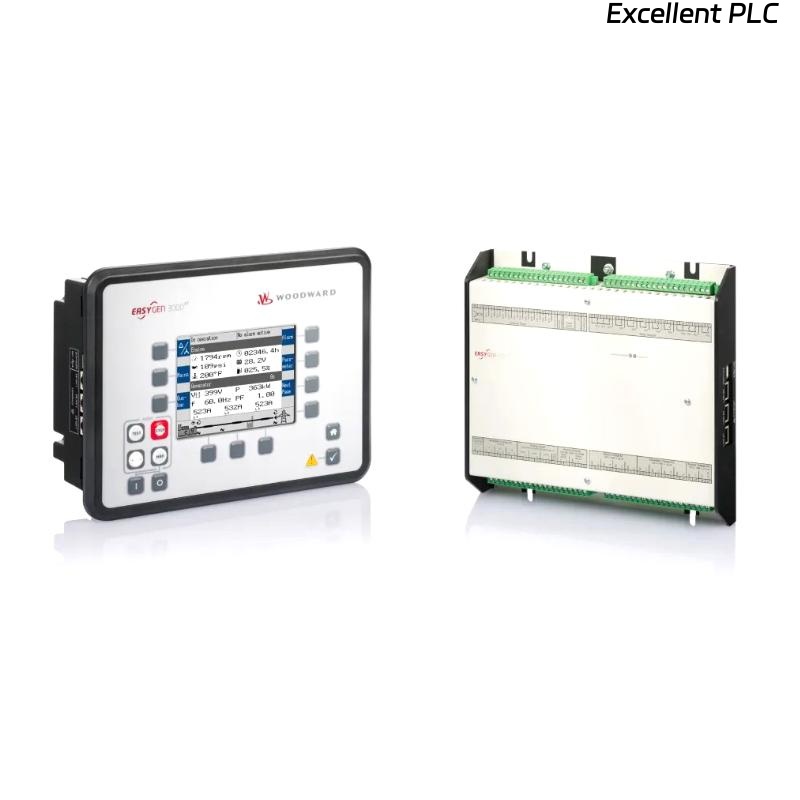

The Woodward ESAYGEN-3000 Generator Set Controller is a state-of-the-art controller designed for automatic monitoring and control of generator sets. It provides reliable operation and ensures efficient power generation through its advanced features such as load sharing, synchronization, and protection mechanisms. This controller is equipped to handle both single and multi-set applications, offering flexibility and robustness for various power generation needs. It is suitable for industrial, commercial, and residential applications where dependable power systems are crucial.
Product Specifications
| Parameter | Specification |
|---|---|
| Dimensions | 282 × 217 × 99 mm |
| Weight | 1.85 kg |
| Operating Voltage | 12 V DC or 24 V DC |
| Operating Temperature | -40°C to +70°C |
| Communication Protocols | Modbus RTU, CANopen, TCP/IP |
| Display Type | LCD with backlight |
| Input Voltage Range | 8 to 32 V DC |
| Outputs | Digital and Analog outputs |
| Environmental Protection | IP65 |
| Mounting Type | Panel mount |
Product Applications
-
Power Generation: For industrial and commercial backup power systems.
-
Remote Monitoring: In remote locations where human intervention is minimal.
-
Multi-set Synchronization: Managing multiple generators for large power systems.
-
Critical Infrastructure: Ensuring reliable power for hospitals, data centers, and communication towers.
Product Advantages
-
Advanced Protection Features: Provides essential protection against over-speed, under-speed, over-voltage, and over-current, ensuring the safety and longevity of the generator set.
-
Ease of Use: The intuitive LCD display and user-friendly interface allow for simple operation and configuration.
-
Flexible Communication: Supports multiple communication protocols such as Modbus RTU, CANopen, and TCP/IP, facilitating integration with other control systems.
-
Energy Efficiency: Optimizes power generation efficiency through load sharing and demand-based operation.
-
Customization: Offers programmable settings for tailored generator control based on specific operational needs.
-
Remote Access: Enables remote diagnostics and monitoring for troubleshooting and preventive maintenance.
FAQ
1. What types of communication protocols does the ESAYGEN-3000 support?
The ESAYGEN-3000 supports Modbus RTU, CANopen, and TCP/IP communication protocols for integration with various systems.
2. Can the ESAYGEN-3000 handle multiple generator sets simultaneously?
Yes, it is designed for multi-set applications and can manage synchronization and load sharing for multiple generator sets.
3. What protection features are included in the ESAYGEN-3000?
It provides protection against over-speed, under-speed, over-voltage, and over-current conditions.
4. What is the operating voltage range for the ESAYGEN-3000?
The controller operates within a voltage range of 8 to 32 V DC.
5. Can the ESAYGEN-3000 be mounted in various positions?
Yes, it is designed for panel mounting, providing flexibility in installation.
6. Is the ESAYGEN-3000 suitable for outdoor use?
Yes, with its IP65 rating, the controller is protected against dust and water, making it suitable for outdoor and harsh environments.
7. Does the ESAYGEN-3000 support remote monitoring?
Yes, it allows remote diagnostics and monitoring for easier management of the generator sets.
8. What display features does the ESAYGEN-3000 offer?
The controller comes with an LCD display that features a backlight for ease of reading in various lighting conditions.
9. What are the temperature limits for the ESAYGEN-3000?
It operates in a temperature range of -40°C to +70°C, making it suitable for extreme environments.
10. What kind of outputs does the ESAYGEN-3000 provide?
The controller provides both digital and analog outputs for controlling generator functions and external devices.
Related Models
| Model Name | Description |
|---|---|
| ESAYGEN-2000 | A compact generator controller with basic protection features. |
| ESAYGEN-4000 | Enhanced version with advanced monitoring capabilities. |
| ESAYGEN-5000 | High-end controller with support for large-scale power systems. |
| ESAYGEN-7000 | Offers integration with renewable energy sources for hybrid systems. |
| ESAYGEN-9000 | Ideal for critical infrastructure with redundancy and failover capabilities. |
| ESAYGEN-X | Customizable controller for specialized generator set applications. |
