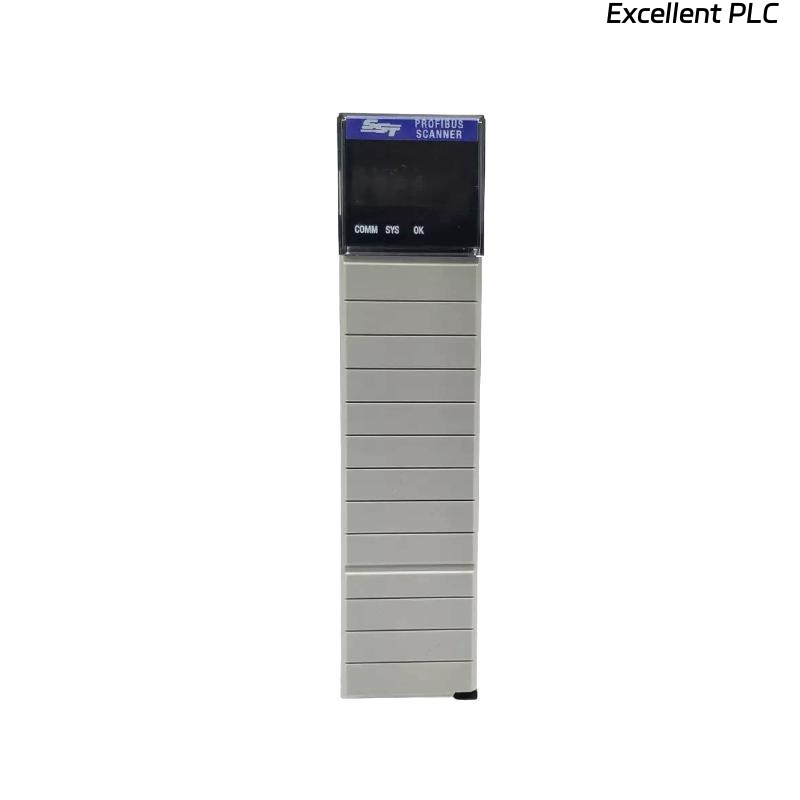

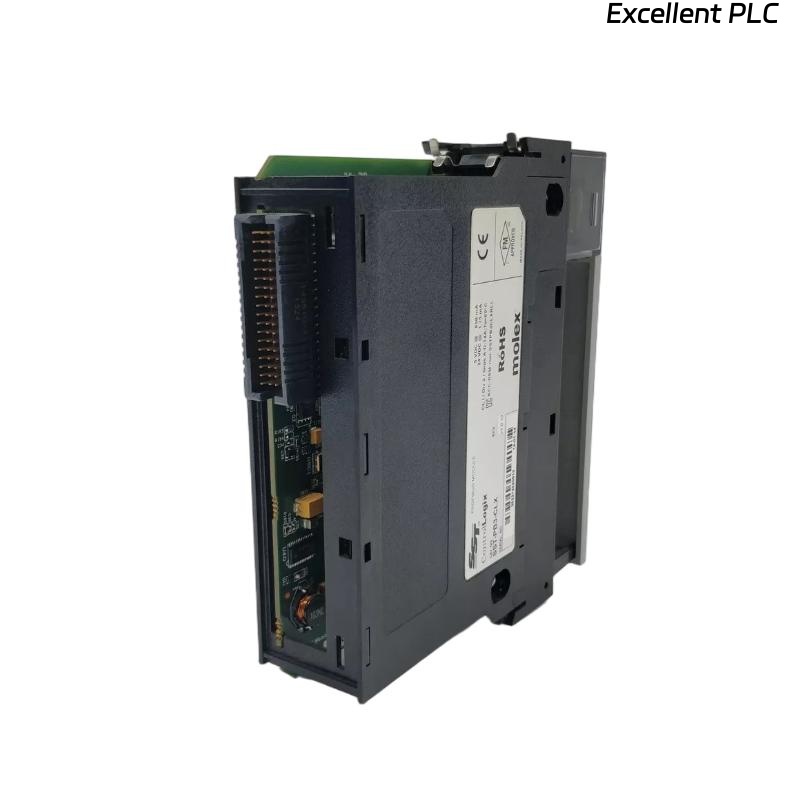

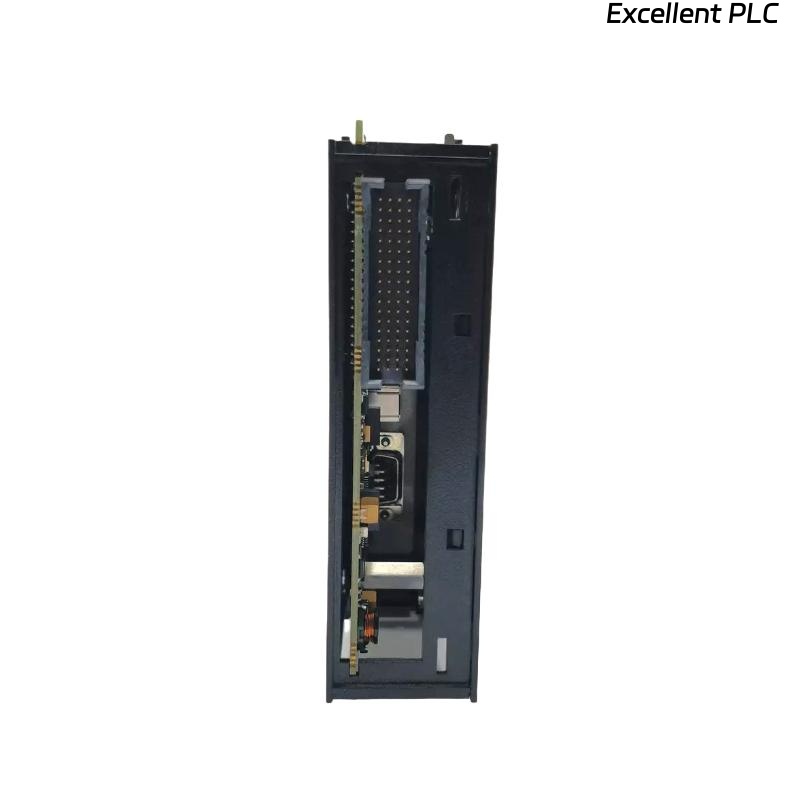

Woodward SST-PB3-CLX Communication Module

Product Introduction

The Woodward SST-PB3-CLX Communication Module is a high-performance interface device designed to enable seamless communication between Woodward SST-PB3 controllers and external monitoring, control, or data acquisition systems. It provides reliable and secure data exchange over industry-standard communication protocols, allowing real-time monitoring, configuration, and remote diagnostics. This module is engineered for use in critical industrial applications such as power generation, engine control, and distributed energy systems, where fast, accurate, and secure communication is essential. The SST-PB3-CLX ensures interoperability, system flexibility, and operational efficiency in demanding industrial environments.

Product Parameters

Applications

The SST-PB3-CLX module is primarily used for communication and data integration in industrial control systems, including:

• Distributed Power Generation Systems – monitoring and controlling multiple generator sets via centralized SCADA systems.

• Engine Control Systems – providing real-time data exchange between controllers and operator interfaces for diesel or gas engines.

• Industrial Automation – enabling integration with PLCs, HMIs, and data acquisition devices.

• Remote Monitoring and Diagnostics – allowing maintenance teams to access controller parameters and logs remotely.

• Hybrid Power Systems – facilitating communication between renewable sources, storage, and engine-driven generators.

Its robust communication capabilities ensure uninterrupted data flow, reliable performance, and system interoperability in critical applications.

Advantages

• High-Speed Data Exchange: Supports real-time communication for fast response in control systems.

• Protocol Flexibility: Compatible with multiple industrial protocols including Modbus TCP/IP, Ethernet/IP, and CAN.

• Robust Industrial Design: Operates reliably under a wide temperature and humidity range.

• Easy Integration: Simple installation on DIN rails or panels with standard connectors.

• Remote Diagnostics: Enables secure monitoring, logging, and configuration from remote locations.

• Scalable and Flexible: Supports multi-controller communication and integration into large distributed systems.

• LED Status Indicators: Provides immediate visual feedback on network activity and module health.

• Compliance and Safety: CE, UL, and RoHS certifications ensure compatibility and regulatory compliance.

FAQ

1. Which communication protocols are natively supported by the SST-PB3-CLX module?
   Modbus TCP/IP, Ethernet/IP, and CAN are standard; optional Profibus support is available.

2. What is the nominal input voltage and typical power consumption?
   Nominal 24 V DC with typical power consumption of 5 W.

3. How can the module be mounted in industrial setups?
   It supports DIN rail mounting and panel mounting for flexible installation options.

4. What temperature and humidity conditions can the module reliably operate in?
   Operational temperature range is –20 °C to +70 °C with 5–95 % relative humidity, non-condensing.

5. Does the module support real-time remote diagnostics?
   Yes, it enables secure remote access to controller parameters, logs, and status monitoring.

6. What types of connectors are provided for communication interfaces?
   RJ45 Ethernet ports and CAN terminals are included for protocol connectivity.

7. How are network activity and operational status indicated?
   LED indicators display power, network activity, and error conditions for immediate visual feedback.

8. Can the SST-PB3-CLX communicate with multiple SST-PB3 controllers simultaneously?
   Yes, it is designed to support multi-controller configurations for centralized monitoring and control.

9. Is the module compatible with standard industrial PLCs and HMIs?
   Yes, through supported protocols such as Modbus TCP/IP and Ethernet/IP, it integrates with most PLCs and HMIs.

10. What compliance and safety certifications does the module have?
    It is CE marked, UL listed, and RoHS compliant, ensuring compatibility with international industrial standards.
