Product Introduction

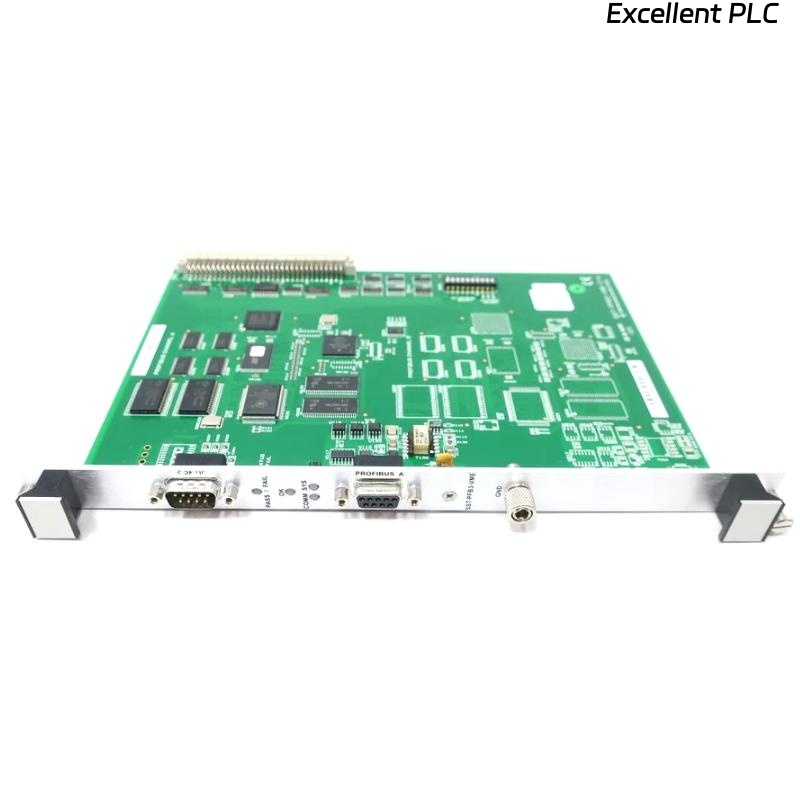

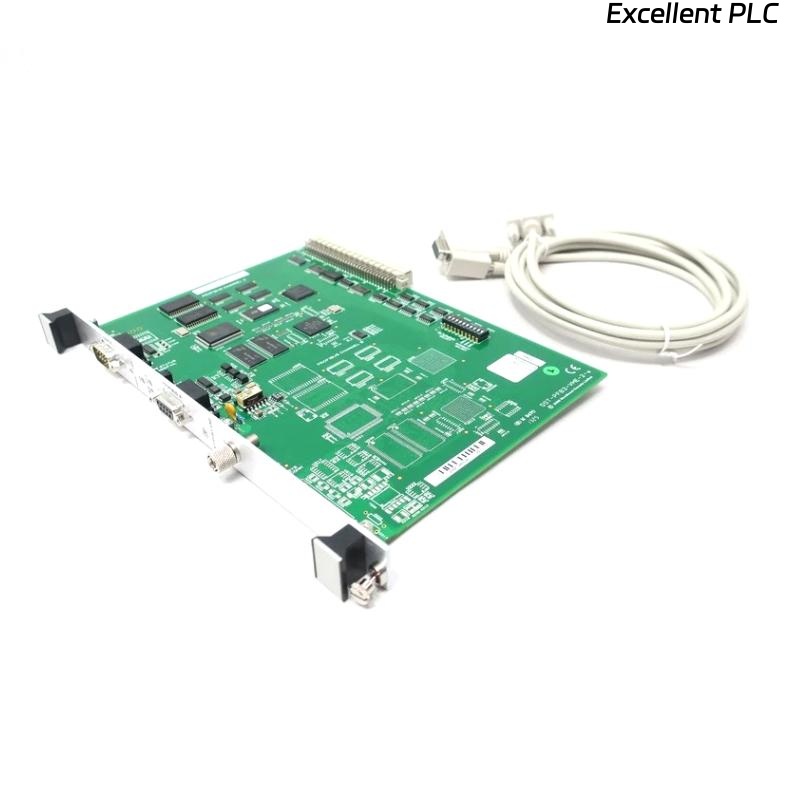

The Woodward SST-PB3-VME-1 VDC Logic I/O Module is designed to provide reliable digital I/O functionality for industrial control systems. It is a part of the Woodward SST product line, offering high-performance connectivity between industrial automation systems and process equipment. This module features a robust design with precise input/output capabilities, making it suitable for applications requiring high reliability and flexibility.
Product Specifications
| Specification | Details |
|---|---|
| Dimensions | 169 x 111 x 20 mm |
| Weight | 0.46 kg |
| Voltage Range | 24 VDC |
| Input Type | Digital Logic |
| Output Type | Digital Logic |
| I/O Configuration | 16 I/O points (8 inputs, 8 outputs) |
| Bus Type | VME Interface |
| Operating Temperature | -40°C to +85°C |
| Mounting | VME Rack-mounted |
| Communication Interface | VME Bus |
Product Applications
-
Automation Systems: Integrating digital I/O into industrial control systems for process automation.
-
Control Cabinets: Providing reliable I/O functionality for VME-based control cabinets.
-
Process Control: Ensuring seamless operation of digital logic in process automation environments.
-
Factory Automation: Enabling efficient communication between devices and control systems in manufacturing setups.
-
Data Acquisition: Collecting and managing digital data for real-time analysis and control.
Product Advantages
-
High Reliability: The SST-PB3-VME-1 offers exceptional reliability in harsh industrial environments, with a broad operating temperature range.
-
Flexibility: It provides a versatile 16 I/O points configuration (8 inputs, 8 outputs), suitable for various applications.
-
Compact Design: Its compact form factor (169 x 111 x 20 mm) ensures ease of integration into existing control systems and panel installations.
-
VME Compatibility: Compatible with the VME interface, it ensures compatibility with a wide range of industrial equipment.
-
Energy Efficiency: Designed with low power consumption, the module helps reduce operational costs in large-scale systems.
-
Enhanced Connectivity: Offers seamless integration and communication with other Woodward automation devices and third-party systems.
FAQ
1. What is the voltage range supported by the SST-PB3-VME-1 module?
The module operates within a voltage range of 24 VDC, suitable for various industrial applications.
2. How many I/O points are available on this module?
The SST-PB3-VME-1 module has a total of 16 I/O points, consisting of 8 inputs and 8 outputs.
3. What is the communication interface used by the module?
The module uses the VME bus for communication, ensuring compatibility with other VME-based systems.
4. Can this module operate in extreme temperatures?
Yes, the SST-PB3-VME-1 is designed to operate in temperatures ranging from -40°C to +85°C, making it suitable for harsh industrial environments.
5. What is the weight of the module?
The SST-PB3-VME-1 weighs approximately 0.46 kg, making it lightweight and easy to install.
6. How is the module mounted?
The module is rack-mounted and designed to fit into a VME-compatible chassis.
7. Does the module support both input and output functionality?
Yes, it supports both digital logic inputs and outputs, with 8 inputs and 8 outputs in total.
8. Is the module compatible with Woodward’s other control products?
Yes, the SST-PB3-VME-1 is fully compatible with other Woodward automation devices, allowing for easy integration into existing control systems.
9. Can the module be used for factory automation?
Yes, it is ideal for factory automation systems, providing reliable digital I/O for process control.
10. What is the purpose of the VME interface?
The VME interface allows the module to communicate with other devices and systems in a VME-based industrial control environment.
Recommended Models
| Model Name | Key Features |
|---|---|
| SST-PB3-VME-2 | 32 I/O points, VME Interface |
| SST-PB3-VME-3 | Enhanced digital I/O, VME interface |
| SST-PB3-VME-4 | Expanded input/output, higher voltage range |
| SST-PB3-VME-5 | Compact I/O, robust design |
| SST-PB3-VME-6 | High-speed digital I/O, VME Interface |
| SST-PB3-VME-7 | Fault-tolerant I/O system |
Popular Models
| Model Name | Key Features | Voltage Range |
|---|---|---|
| SST-PB3-VME-1 | Digital Logic I/O | 24 VDC |
| SST-PB2-VME-1 | Digital I/O for VME | 24 VDC |
| SST-PB4-VME-1 | High-speed I/O Module | 24 VDC |
| SST-PB5-VME-1 | Enhanced I/O Functionality | 24 VDC |
| SST-PB6-VME-1 | Digital I/O with Fault Tolerance | 24 VDC |
| SST-PB7-VME-1 | Modular I/O System | 24 VDC |
