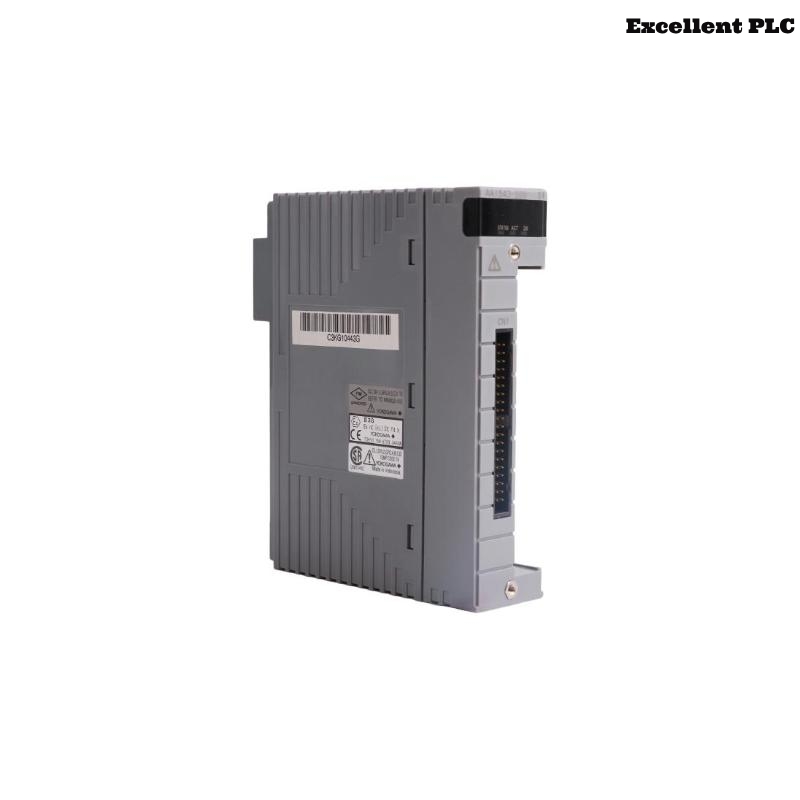

Yokogawa AAI543-h00 Analog Output Module

Product Introduction

The Yokogawa AAI543-H00 Analog Output Module is a high-performance output module used in process automation systems, particularly within Yokogawa’s CENTUM CS 3000 and CENTUM VP distributed control systems (DCS). Designed to deliver stable and precise analog signals, the module converts digital commands from the controller into continuous analog signals, used to manipulate external actuators such as control valves, variable frequency drives, or other current/voltage-sensitive field devices.

As a key element in the I/O architecture of a process control system, the AAI543-H00 emphasizes reliability, signal integrity, and seamless integration. It provides superior performance for applications where fine control and accurate modulation of physical processes are required. The -H00 suffix denotes a standard hardware configuration suitable for most conventional analog output applications.

This module is built to meet the demands of harsh industrial environments, offering a wide temperature operating range, noise immunity, and compliance with global safety and quality standards.

Technical Specifications

Applications

The AAI543-H00 Analog Output Module plays a pivotal role in automation systems across diverse industries where analog signal control is required. Key application areas include:

• Petrochemical & Oil Refining
  Used to modulate control valves in flow control loops or tank-level adjustments.

• Power Generation
  Interfaces with turbines and auxiliary systems that require current-driven actuator control.

• Pharmaceutical Manufacturing
  Precisely controls heating elements, fluid dosage systems, and environmental controls in GMP-critical processes.

• Water & Wastewater Treatment
  Sends current signals to control pumps, aeration blowers, and chemical dosing equipment.

• Pulp and Paper Industry
  Regulates steam and chemical inputs in the paper manufacturing process.

• Metals & Mining
  Offers analog modulation for drive systems, crushers, and feeders in rugged conditions.

Key Advantages

1. High Signal Precision
   With 16-bit resolution and ±0.1% output accuracy, the AAI543-H00 delivers finely tuned analog signals that enhance control loop stability and system responsiveness.

2. Reliable Isolation
   Electrical isolation between channels and system ground prevents cross-interference and enhances system safety.

3. Hot Swappable Design
   The ability to replace or maintain the module without halting the system improves uptime and maintainability.

4. Robust Environmental Tolerance
   Designed for industrial-grade operation, it performs reliably under wide temperature ranges and high humidity.

5. Direct Integration with Yokogawa DCS
   Seamless integration with CENTUM VP and CS 3000 systems using Yokogawa’s Vnet/IP architecture ensures consistent communication and easy configuration.

6. Space Efficient
   Its slim form factor allows for high-density installations, optimizing cabinet space in control rooms.

7. Reduced Maintenance
   Minimal drift over time and robust components reduce the need for frequent recalibration or servicing.

Frequently Asked Questions (FAQ)

1. What is the main function of the AAI543-H00 module?
   The AAI543-H00 converts digital control signals from a Yokogawa controller into 4–20 mA analog output signals for field device actuation.

2. Can the AAI543-H00 be used in hazardous environments?
   Yes, it complies with safety standards and is suitable for use in certified hazardous area enclosures when combined with appropriate isolators.

3. How many channels does it support?
   The AAI543-H00 supports four independent analog output channels.

4. Does the module support voltage output?
   No, it is designed specifically for current output (4–20 mA). For voltage outputs, other models like the AAI543-S00 may be used.

5. What kind of signal isolation does it have?
   Each channel is isolated from others and from the system ground to prevent noise and signal interference.

6. What is the load resistance range?
   It supports a load resistance from 0 to 750 Ohms.

7. Is the module hot-swappable?
   Yes, it can be replaced without shutting down the system, minimizing downtime.

8. What are the typical industries using AAI543-H00?
   Oil & gas, power generation, chemicals, pharmaceuticals, and water treatment plants commonly use this module.

9. How is the module powered?
   It draws power from the system bus of the I/O base, requiring no external power supply.

10. Does the AAI543-H00 work with CENTUM VP systems?
    Yes, it is fully compatible with Yokogawa’s CENTUM VP and CS 3000 systems.
