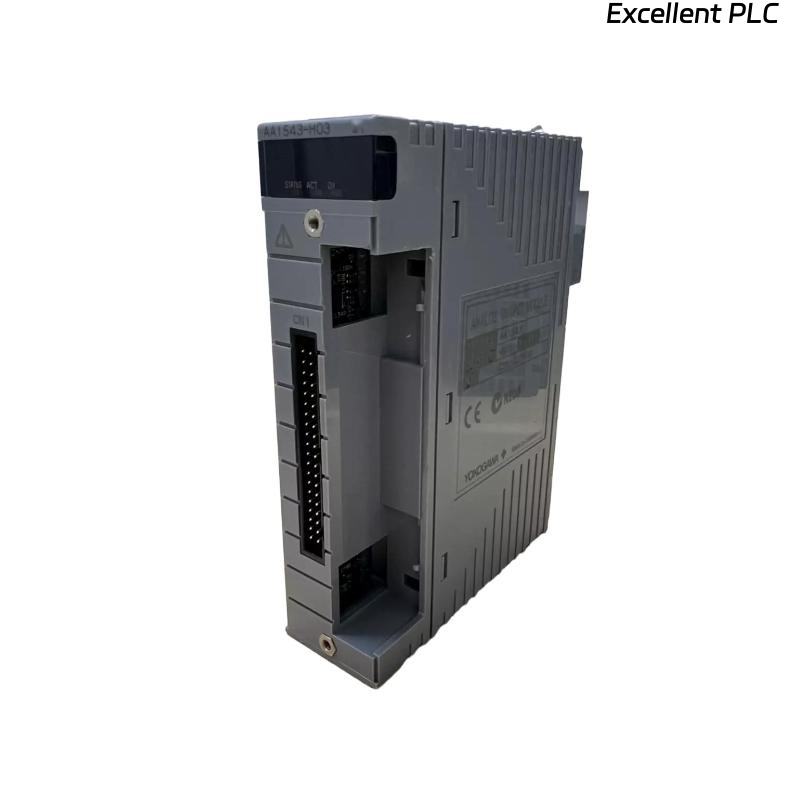

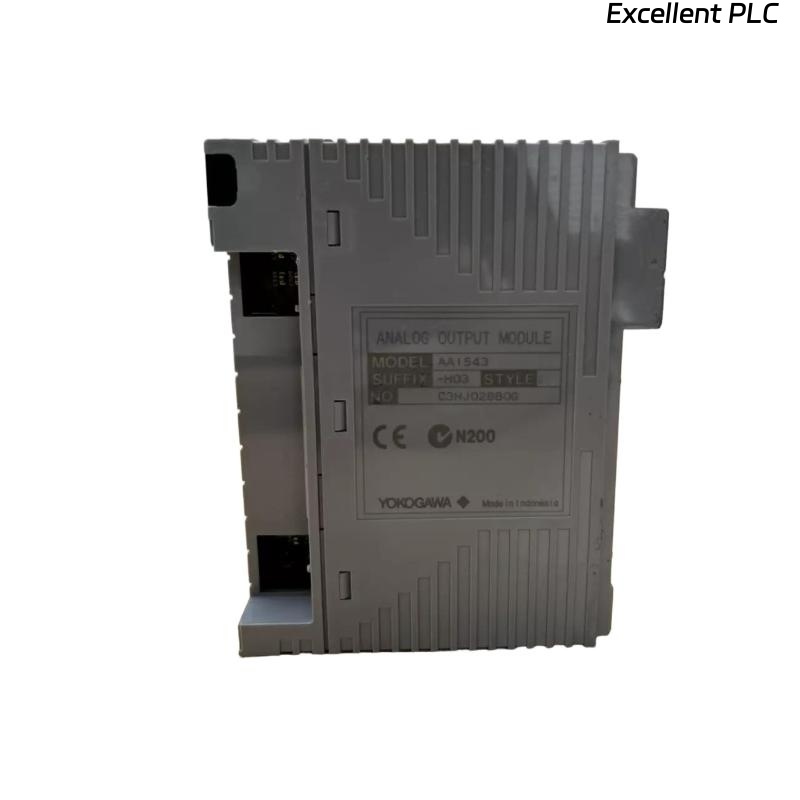

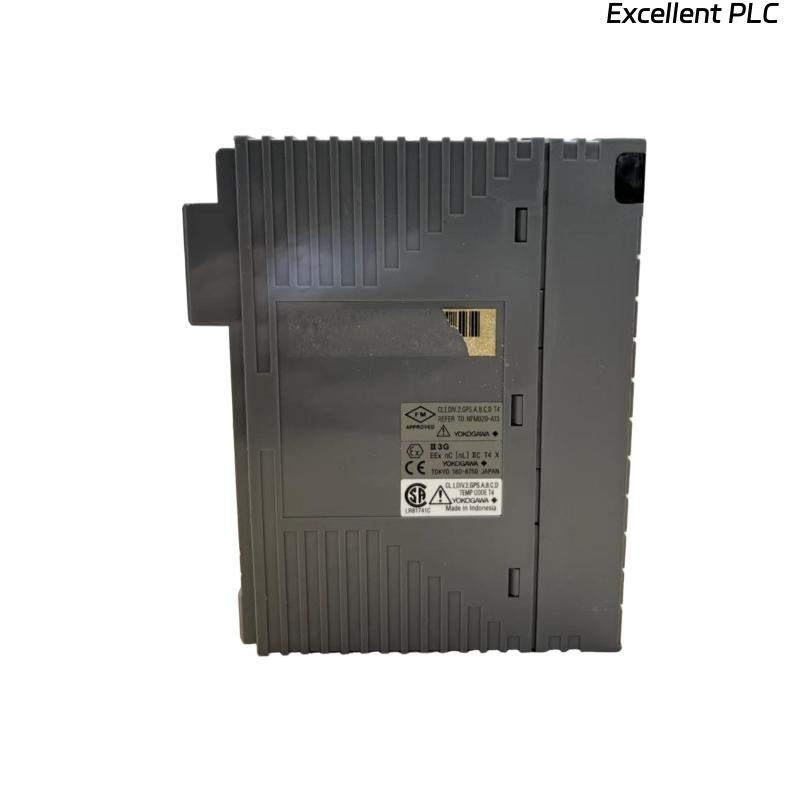

Yokogawa AAI543-H03 Analog Output Module

Product Overview

The Yokogawa AAI543-H03 Analog Output Module is a high-performance 8-channel module designed for precision analog signal transmission in demanding industrial control systems. Specifically developed for integration with Yokogawa’s CENTUM VP and ProSafe-RS systems, this module enables reliable analog control output to field devices such as actuators, control valves, and I/P converters. With built-in HART communication support and advanced diagnostics, it provides operational reliability, remote device configuration, and seamless integration in distributed control architectures.

Key Features

• 8-channel isolated analog output module

• Signal range: 4–20 mA DC

• HART communication enabled (pass-through and command support)

• Channel-to-channel and channel-to-ground isolation

• High-accuracy 12-bit or better digital-to-analog conversion

• Hot-swappable without system interruption

• Advanced self-diagnostic functions for fault detection

• Designed for use in both standard DCS and Safety Instrumented Systems (SIS)

Technical Specifications

Industry Applications

• Distributed control systems in process plants

• Oil & gas production and refining

• Chemical and petrochemical manufacturing

• Power generation systems

• Water treatment and environmental facilities

• Food and beverage processing

• Safety-critical applications in conjunction with ProSafe-RS

Frequently Asked Questions (FAQ)

1. What is the function of the AAI543-H03 module?
   It provides 4–20 mA analog output signals from control systems to field devices.

2. How many output channels does it have?
   It features 8 isolated analog output channels.

3. Does this module support HART communication?
   Yes, it supports both HART pass-through and command communication.

4. Is the module hot-swappable?
   Yes, it supports online maintenance and can be replaced without system shutdown.

5. Can it be used in safety systems?
   Yes, it is compatible with Yokogawa’s ProSafe-RS SIS platform.

6. What is the resolution of its output signal?
   It has a resolution of 12 bits or higher for precise analog control.

7. What diagnostics are available?
   It supports open circuit detection, output errors, and HART communication faults.

8. Is the output signal range configurable?
   The standard output range is 4–20 mA DC, with HART signal superimposition.

9. What is the maximum load resistance?
   Up to 600 Ω.

10. Is it suitable for harsh industrial environments?
    Yes, it is designed to operate reliably in typical plant environments with robust isolation and certifications.
