Product Overview

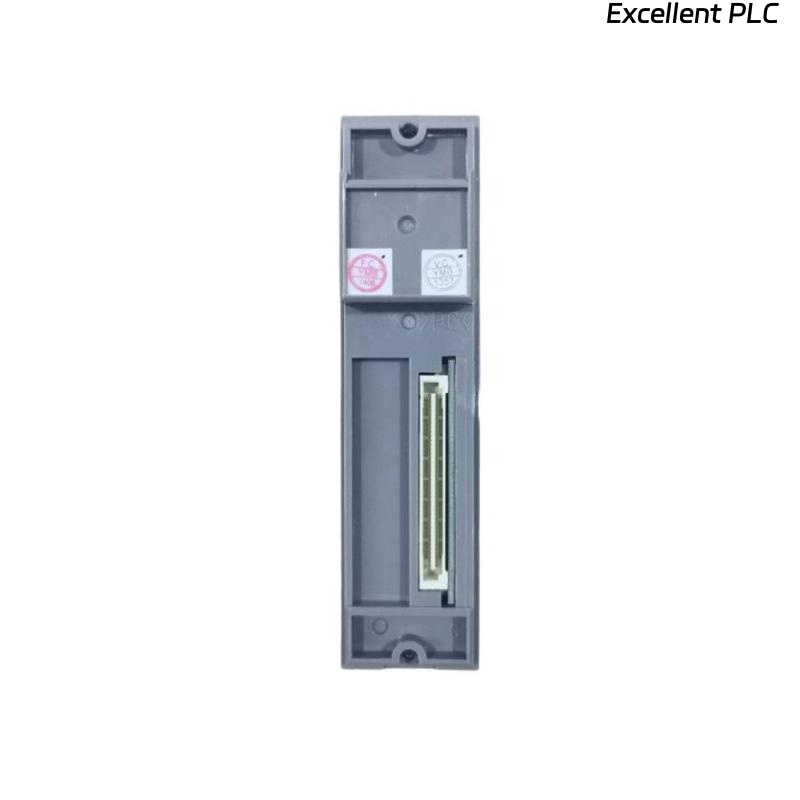

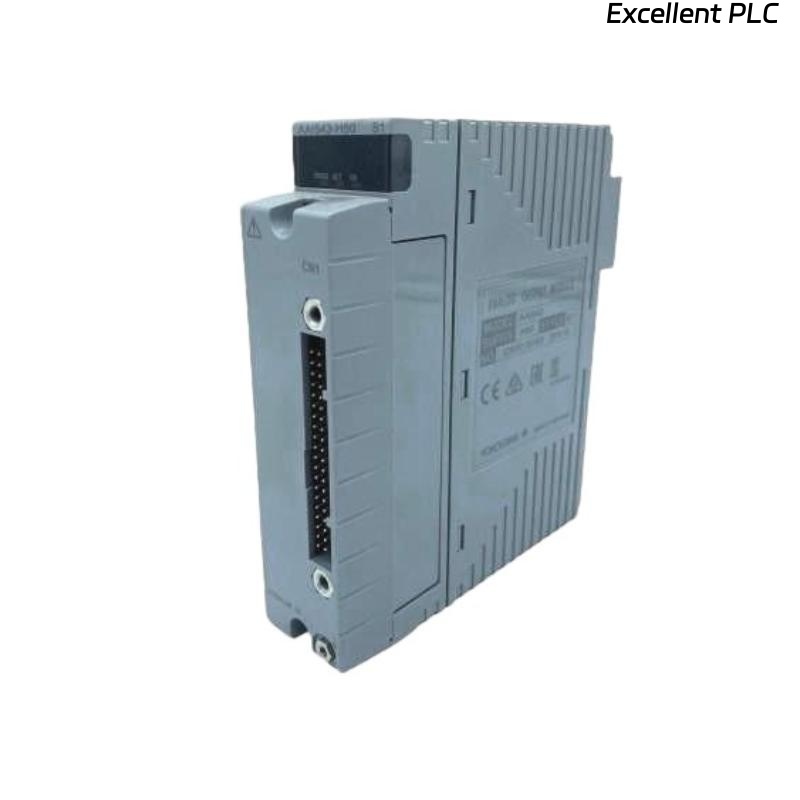

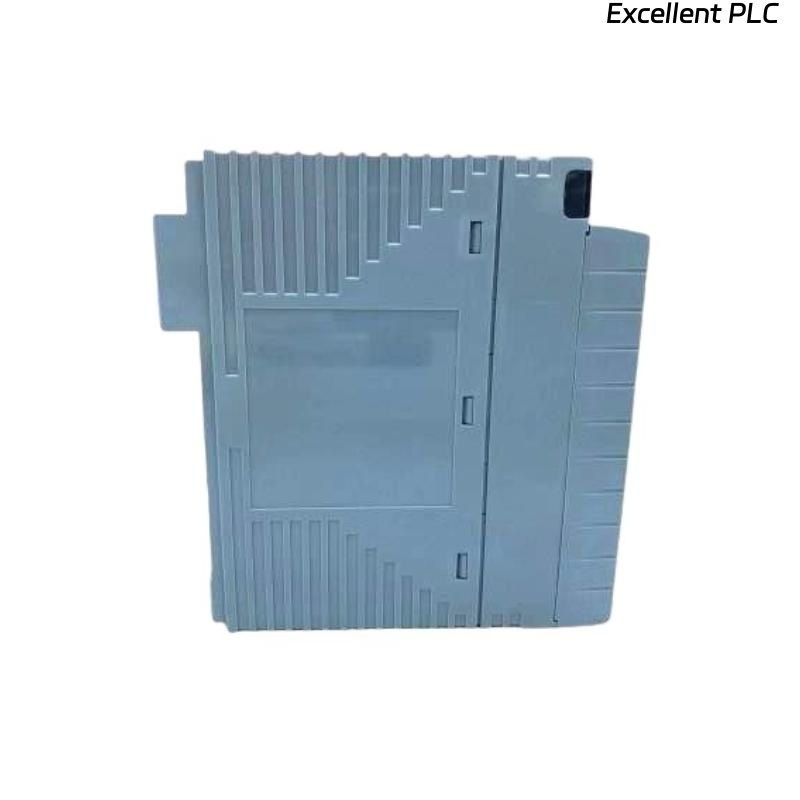

The Yokogawa AAI543-H50 S1 Analog Output Module is a high-density output solution designed for precision signal control in distributed control systems (DCS). With 16 analog output channels, 16-bit resolution, and robust isolation, this module is ideally suited for demanding industrial applications where reliability and accuracy are critical. It is fully compatible with the Yokogawa CENTUM VP system and supports hot-swapping for maximum maintainability.
Key Features
-
16 analog output channels (4–20 mA)
-
High-resolution 16-bit D/A conversion
-
Isolated outputs to prevent signal interference
-
Integrated self-diagnostics and error detection
-
Hot-swappable for reduced downtime
-
Designed for seamless integration with Yokogawa CENTUM VP
-
S1 version ensures enhanced system compatibility and reliability
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Analog Output Module |
| Model Number | AAI543-H50 S1 |
| Manufacturer | Yokogawa Electric Corporation |
| Output Signal | 4–20 mA DC |
| Number of Channels | 16 |
| D/A Resolution | 16-bit |
| Output Load Resistance | 600 Ω max. |
| Accuracy | ±0.1% of Full Scale |
| Isolation | Channel-to-channel and channel-to-system |
| Power Consumption | Approx. 5.1 W |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Mounting Type | Rack-mounted |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.4 kg |
Industry Applications
-
Chemical and Petrochemical Plants
-
Oil & Gas Processing Facilities
-
Power Generation Plants
-
Water and Wastewater Management Systems
-
Food and Beverage Processing
-
Pharmaceutical Manufacturing
-
Industrial Automation and Control
Product Advantages
-
High Channel Density: Offers 16 output channels per module, maximizing I/O capacity in limited panel space.
-
Exceptional Accuracy: Ensures precise analog signal output with 16-bit resolution.
-
Reliable Operation: Designed with Yokogawa’s robust quality standards for industrial environments.
-
Effortless Maintenance: Hot-swappable for easy replacement and service without shutting down the system.
-
Integrated Diagnostics: Enhances system reliability through constant health monitoring.
-
Flexible Integration: Optimized for use in Yokogawa’s CENTUM VP systems.
Frequently Asked Questions (FAQ)
1. What type of signals does this module output?
4–20 mA DC analog signals.
2. How many channels are available in the module?
16 output channels.
3. What is the resolution of the analog output?
16-bit D/A resolution.
4. Can this module be hot-swapped?
Yes, it supports hot-swapping without system shutdown.
5. Is the output isolated?
Yes, it provides channel-to-channel and channel-to-system isolation.
6. What is the maximum load resistance supported?
Up to 600 Ω per channel.
7. What system is this module compatible with?
It is compatible with Yokogawa CENTUM VP.
8. What does the “S1” designation signify?
It refers to a specific system compatibility and revision level optimized for newer architectures.
9. What are the dimensions of the module?
107.5mm × 32.8mm × 130 mm.
10. What is the power consumption of the unit?
Approximately 5.1 W.
Related Modules
| Model Number | Description |
|---|---|
| AAI543-H00 | 8-ch Analog Output Module |
| AAI543-H03 | 8-ch Analog Output Module with diagnostics |
| AAI543-H53 S1 | 16-ch Analog Output Module (S1) |
| AAI141-S00 | 8-ch Analog Input Module |
| AAI143-S50 | 16-ch Analog Input Module |
| ADV551-P13 | Digital Output Module |
