Product Introduction

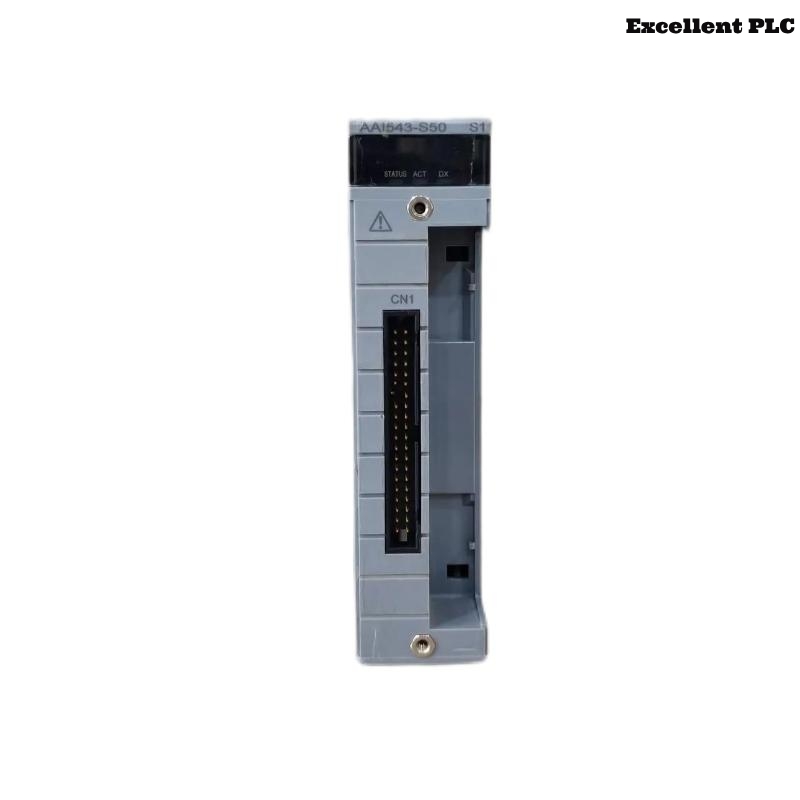

The Yokogawa AAI543-S50 Analog Output Module is part of the AAM series and is designed to provide accurate and reliable analog output control in industrial automation systems. This module plays a key role in controlling a variety of field devices and actuators that require precise analog signals. It is ideal for integration into Distributed Control Systems (DCS), Programmable Logic Controllers (PLC), and process automation systems. The AAI543-S50 is designed to handle demanding applications where precision and reliability are critical.
This 4-channel analog output module is capable of generating output signals such as 4-20 mA and 0-10 V, which are standard for controlling instruments and field devices such as valves, pumps, and sensors. The module is engineered to deliver high accuracy, fast response times, and robust performance even in harsh industrial environments.
The AAI543-S50 module is used in various industries, including chemical processing, oil and gas, power generation, water treatment, and manufacturing. It offers superior quality and long-term reliability, which are essential for maintaining the performance of automated control systems. Additionally, it integrates seamlessly with Yokogawa’s range of process control solutions, ensuring consistent and stable operation.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | AAI543-S50 |
| Module Type | Analog Output Module |
| Channels | 4 Analog Output Channels |
| Output Type | 4-20 mA, 0-10 V |
| Signal Accuracy | ±0.1% of Full Scale (FS) |
| Resolution | 16-bit |
| Power Supply | 24 V DC ±20% |
| Isolation | Channel-to-Channel Isolation: 250 V AC |
| Temperature Range | Operating: -20°C to +60°C |
| Storage: -40°C to +85°C | |
| Response Time | <10 ms (for 0-100% change in output) |
| Dimensions (H x W x D) | 107.5 × 32.8 × 130 mm |
| Weight | 0.4 kg |
| Mounting Type | DIN Rail |
| Compliance | CE, UL, RoHS |
| Certification | Ex-approved versions available upon request |
| Input/Output Connection | Screw Terminal or Spring Terminal Options |
Product Applications
The Yokogawa AAI543-S50 Analog Output Module is a versatile and essential component used in several industries to provide precise and reliable analog signals for controlling field devices. Its applications include:
-
Process Control Systems: Used extensively in chemical plants, power generation, and oil refineries for controlling temperature, pressure, flow, and level using analog signals to control actuators and valves.
-
Industrial Automation: In manufacturing environments, it is used to control processes on production lines, such as controlling motor speeds, regulating heating elements, or adjusting pressures.
-
Environmental Control Systems: Employed in HVAC systems for controlling temperatures, humidity, and air quality by outputting signals that drive heating, cooling, and ventilation devices.
-
Energy and Utilities: Used in power plants and substations to regulate the operation of generators, turbines, and transformers.
-
Water and Wastewater Treatment: Regulates pumps, valves, and other equipment to ensure the continuous treatment of water and wastewater in municipal and industrial plants.
-
Building Automation: Controls and monitors various building systems such as air conditioning, heating, lighting, and more, ensuring optimal environmental conditions.
Product Advantages
-
High Precision and Accuracy: The AAI543-S50 provides high-precision analog output signals with an accuracy of ±0.1% FS, ensuring consistent and reliable performance in demanding control systems.
-
Flexible Output Options: It supports both current (4-20 mA) and voltage (0-10 V) outputs, which can be configured for various field devices.
-
Fast Response Time: The module offers a fast response time of less than 10 milliseconds, making it suitable for real-time control applications where quick adjustments are necessary.
-
Excellent Isolation: With a channel-to-channel isolation of 250 V AC, the module is highly resistant to electrical interference, ensuring stable operation in industrial environments with electrical noise.
-
Wide Temperature Range: It operates efficiently in a wide temperature range of -20°C to +60°C, allowing for use in extreme environments.
-
Compact and Easy to Install: The AAI543-S50 module is compact and designed for DIN rail mounting, which makes it easy to integrate into various industrial control panels and systems with limited space.
-
Robust and Durable: The module is built to withstand harsh environmental conditions, including high vibrations, temperature variations, and electrical surges.
-
Easy Integration with Yokogawa Systems: It is fully compatible with Yokogawa’s DCS, PLC, and SCADA systems, ensuring easy setup and efficient operation in existing systems.
Frequently Asked Questions (FAQ)
-
Q: What is the main function of the AAI543-S50 Analog Output Module?
A: The AAI543-S50 provides high-precision analog output signals (4-20 mA and 0-10 V) for controlling field devices like actuators, valves, and sensors in process control systems. -
Q: How many channels does the AAI543-S50 module have?
A: It has 4 analog output channels. -
Q: What is the accuracy of the analog output signals?
A: The module has an accuracy of ±0.1% of Full Scale (FS). -
Q: What is the response time of the AAI543-S50?
A: The response time is less than 10 milliseconds for a 0-100% change in output. -
Q: What type of power supply does the module require?
A: It requires a 24 V DC power supply with a tolerance of ±20%. -
Q: What are the output signal types supported by the module?
A: The module supports both 4-20 mA and 0-10 V output signals. -
Q: What is the isolation rating of the module?
A: The module has a channel-to-channel isolation of 250 V AC. -
Q: Can the AAI543-S50 operate in high-temperature environments?
A: Yes, the module operates in a temperature range of -20°C to +60°C. -
Q: What is the size and weight of the AAI543-S50 module?
A: The module dimensions are 107.5 × 32.8 × 130 mm, and it weighs 0.4 kg. -
Q: How is the AAI543-S50 mounted?
A: It is designed for DIN rail mounting, making installation simple and efficient.
Related or Similar Models (Same Series/Function)
| Model Number | Description | Channels | Output Type | Compatible Series |
|---|---|---|---|---|
| AAI543-S50/A4S00 | Analog Output Module, 4 Channels | 4 | 4-20 mA, 0-10 V | Yokogawa AAM Series |
| AAI543-S50/A4S01 | Analog Output Module with Extended Features | 4 | 4-20 mA, 0-10 V | Yokogawa AAM Series |
| AAI544-S50/A4S00 | 8-Channel Analog Output Module | 8 | 4-20 mA, 0-10 V | Yokogawa AAM Series |
| AAI545-S50/A4S00 | 8-Channel Analog Output Module | 8 | 4-20 mA, 0-10 V | Yokogawa AAM Series |
| AAI543-S50/A4S02 | High-Precision Analog Output Module | 4 | 4-20 mA, 0-10 V | Yokogawa AAM Series |
| AAI541-S50/A4S00 | 4-Channel Analog Input Module | 4 | 4-20 mA, 0-10 V | Yokogawa AAM Series |
