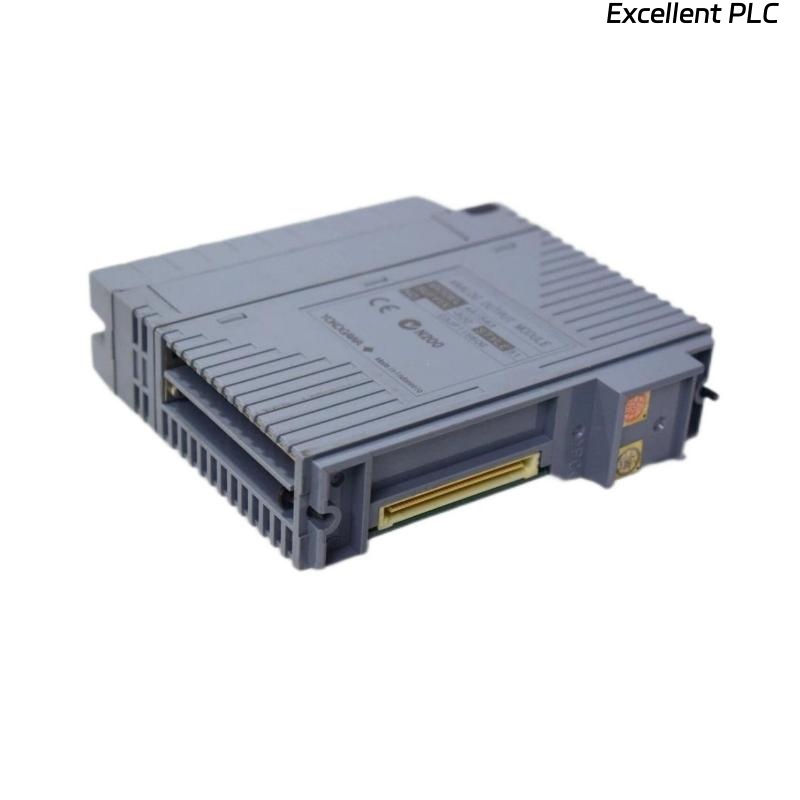

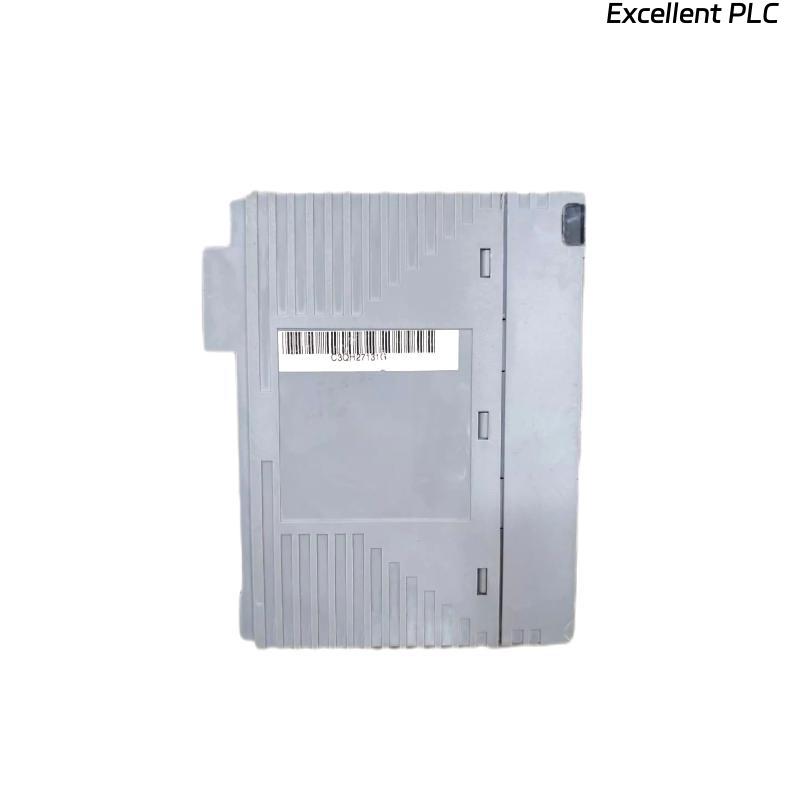

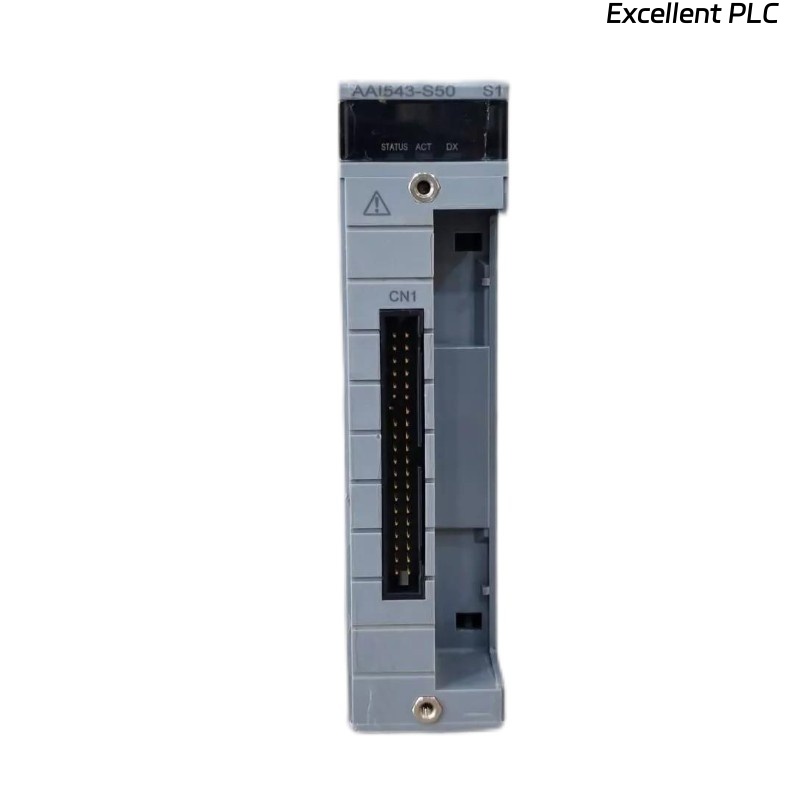

Yokogawa AAI543-S53/K4A00 Analog Output Module

Product Introduction

The Yokogawa AAI543-S53/K4A00 is a high-performance analog output module designed for use in Yokogawa’s CENTUM VP and ProSafe-RS systems. It is engineered to provide precise control by converting digital data from the system’s controller into analog signals. The module plays a crucial role in maintaining the accuracy and reliability of process control systems by delivering output signals to drive actuators, valves, and other devices that require analog input to function.

With a compact size of 107.5 × 32.8 × 130 mm and a weight of 0.4 kg, the AAI543-S53/K4A00 module is built for efficiency and ease of installation. It is capable of handling high-precision analog output with high reliability and low signal distortion. This module is typically used in industrial applications requiring precise control over variable parameters, such as temperature, pressure, and flow rate.

The AAI543-S53/K4A00 module is designed to operate reliably in harsh industrial environments, offering high resistance to temperature fluctuations, electrical noise, and mechanical vibrations. It ensures consistent performance even in the most demanding operational conditions.

Product Parameters

Product Applications

The Yokogawa AAI543-S53/K4A00 analog output module is versatile and suitable for various industrial applications:

1. Process Control Systems: The AAI543-S53/K4A00 module is widely used in process control systems, converting digital data into precise analog signals to control processes such as temperature, pressure, and flow rate. It helps ensure that these processes remain stable and efficient.

2. Industrial Automation: In industrial automation systems, the module is used to interface with actuators, motors, and other devices that require analog input. By converting digital data into an accurate analog signal, it ensures that machines operate within desired parameters, improving performance and safety.

3. Temperature and Pressure Control: This module is ideal for temperature and pressure control systems where accurate analog signals are necessary for the continuous regulation of process variables. It ensures that precise adjustments are made to maintain optimal conditions.

4. Flow Control Systems: The AAI543-S53/K4A00 module is also used in flow control applications where continuous adjustments are needed. It can send output signals to flow control devices, enabling real-time modifications to the flow rate for precise management of fluids in pipes and tanks.

Product Advantages

1. High Accuracy: The AAI543-S53/K4A00 module provides high-precision analog outputs with minimal distortion, ensuring reliable control over process parameters such as temperature, pressure, and flow. This ensures the system operates efficiently and with minimal deviations.

2. Compact and Lightweight: With dimensions of 107.5 × 32.8 × 130 mm and a weight of 0.4 kg, this module is both compact and lightweight, making it ideal for installation in space-constrained environments while still offering excellent performance.

3. Versatile Signal Outputs: The module can output both voltage (0-10V) and current (4-20mA) signals, providing versatility for use with a variety of control systems, actuators, and instruments.

4. Fast Response Time: The AAI543-S53/K4A00 module has a response time of 250 ms, ensuring that the output signals are quickly and accurately delivered to control systems, making it suitable for real-time applications.

5. Durable and Reliable: Built to withstand harsh industrial environments, the module offers robust protection against temperature fluctuations, electrical noise, and vibrations, ensuring reliable performance over time.

6. Seamless Integration: The AAI543-S53/K4A00 module integrates easily into Yokogawa’s CENTUM VP and ProSafe-RS systems, providing an effective solution for complex process automation and control systems.

Frequently Asked Questions (FAQ)

1. What is the size of the Yokogawa AAI543-S53/K4A00 module?

   • The dimensions are 107.5 × 32.8 × 130 mm.

2. How much does the AAI543-S53/K4A00 module weigh?

   • The module weighs 0.4 kg.

3. How many output channels does the AAI543-S53/K4A00 module have?

   • The module has 4 output channels.

4. What types of output signals can the AAI543-S53/K4A00 module provide?

   • The module can provide voltage (0-10V) and current (4-20mA) output signals.

5. What is the output impedance of the AAI543-S53/K4A00 module?

   • The output impedance is 500 Ω.

6. What is the power supply requirement for the AAI543-S53/K4A00 module?

   • The module requires a 24V DC power supply.

7. What is the response time of the AAI543-S53/K4A00 module?

   • The response time is 250 ms.

8. What is the operating temperature range of the AAI543-S53/K4A00 module?

   • The module operates in the temperature range of -10°C to +55°C.

9. Can this module be used in applications where high-speed control is required?

   • Yes, the AAI543-S53/K4A00 module has a fast response time of 250 ms, making it suitable for high-speed control applications.

10. What compliance standards does the AAI543-S53/K4A00 module meet?

    • The module complies with CE and UL standards, ensuring it meets essential safety and quality requirements.
