Product Overview

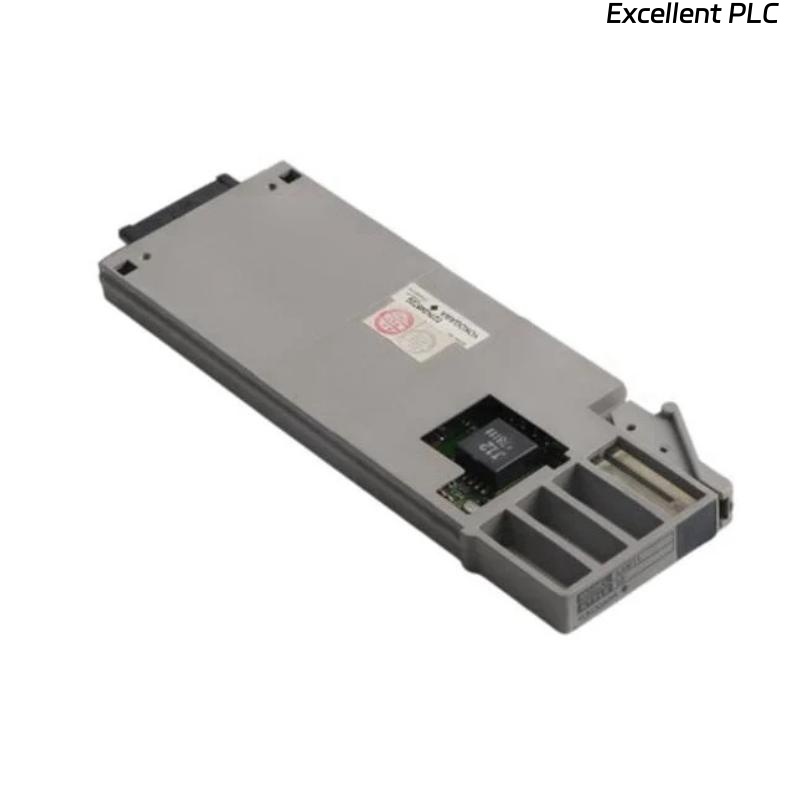

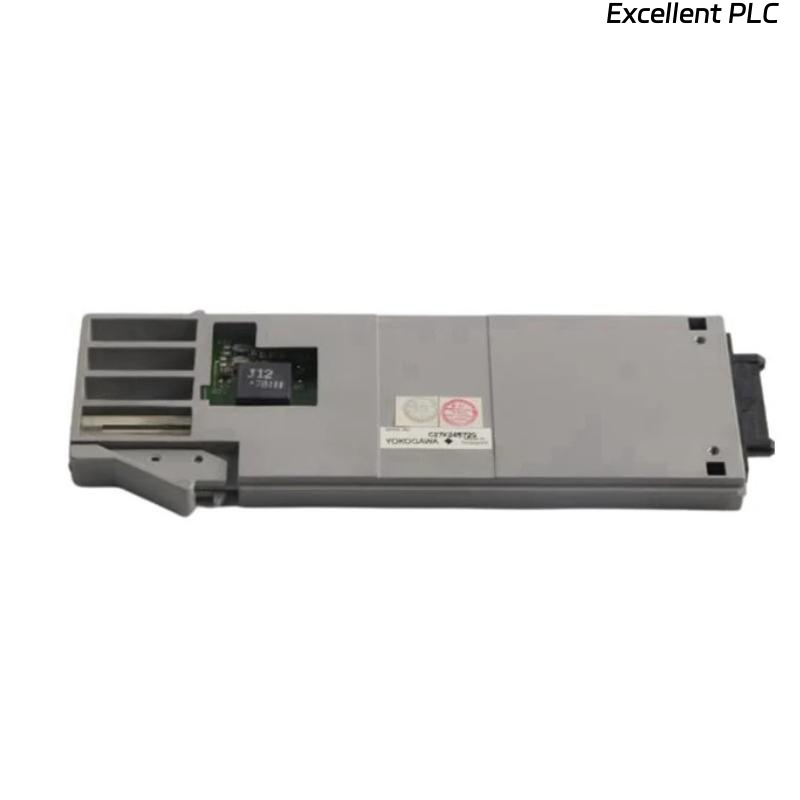

The Yokogawa AAM51-S214 Voltage Output Module is a precision analog output module designed to generate stable voltage signals for process control and instrumentation systems. It converts digital control signals from the host system into precise DC voltage outputs, enabling accurate control of actuators, indicators, and other analog devices.
Key Features
-
Provides high-accuracy voltage output signals
-
Excellent linearity and low drift for stable control performance
-
8-channel isolated output design
-
Fast response time for real-time process control
-
Compact module for space-efficient installation
-
Built-in self-diagnostics for enhanced reliability
-
Seamless integration with Yokogawa control systems
-
Rugged design for demanding industrial environments
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Part Number | AAM51-S214 |
| Product Type | Voltage Output Module |
| Number of Channels | 8 channels |
| Output Type | DC voltage output |
| Output Range | 0–10 V DC (configurable) |
| Accuracy | ±0.1% of span or better |
| Resolution | 12-bit D/A conversion |
| Response Time | Typically 100 ms per channel |
| Isolation | Channel-to-channel and channel-to-system isolated |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | –20 °C to +70 °C |
| Power Supply | Supplied through I/O bus |
| Dimensions | 130 × 27 × 130 mm |
| Weight | 0.113 kg |
| Mounting | DIN rail or card rack installation |
| Applications | Voltage control for actuators, indicators, and analog signal devices |
Industry Applications
-
Power generation and energy control systems
-
Chemical and petrochemical industries
-
Oil and gas processing facilities
-
Manufacturing and automation systems
-
Water and wastewater treatment plants
-
Building and environmental monitoring systems
Frequently Asked Questions (FAQ)
Q1: What does the AAM51-S214 module do?
It converts digital control signals into DC voltage outputs for process control applications.
Q2: How many output channels are available?
The module provides 8 isolated voltage output channels.
Q3: What is the typical voltage output range?
It provides a 0–10 V DC configurable output range.
Q4: What is the output accuracy?
Typical accuracy is ±0.1% of span or better.
Q5: Does the module support isolation?
Yes, it offers channel-to-channel and channel-to-system isolation.
Q6: What is the operating temperature range?
0 °C to +55 °C.
Q7: Is the AAM51-S214 compatible with Yokogawa control systems?
Yes, it integrates seamlessly with Yokogawa process control platforms.
Q8: In which applications is this module commonly used?
It is used in industrial automation and process control systems requiring accurate voltage signal generation.
