Yokogawa AAV144-S00/A4S10 Voltage Input Module

Manufacturer:Yokogawa

Product Number:AAV144-S00/A4S10

Product Type:Voltage Input Module

Origin:Japan

Dimensions:107.5 × 130 × 32.8 mm

Weight:0.2 kg

Views:141

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24


  • Product Details
  • FAQs
  • Related
  • Contact Us
  • Packing & Delivery
  • Product Ratings
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

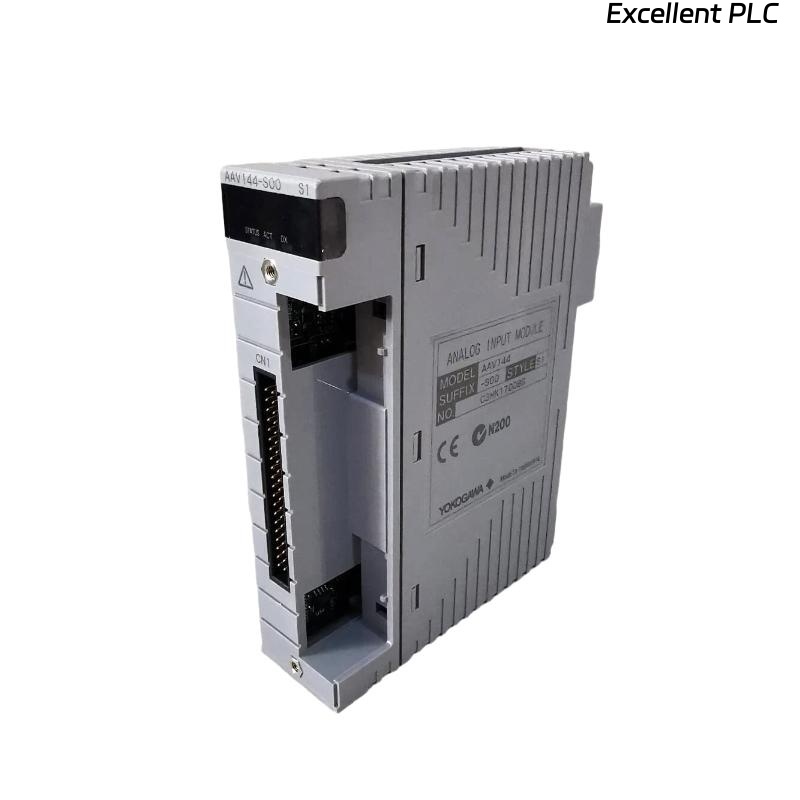

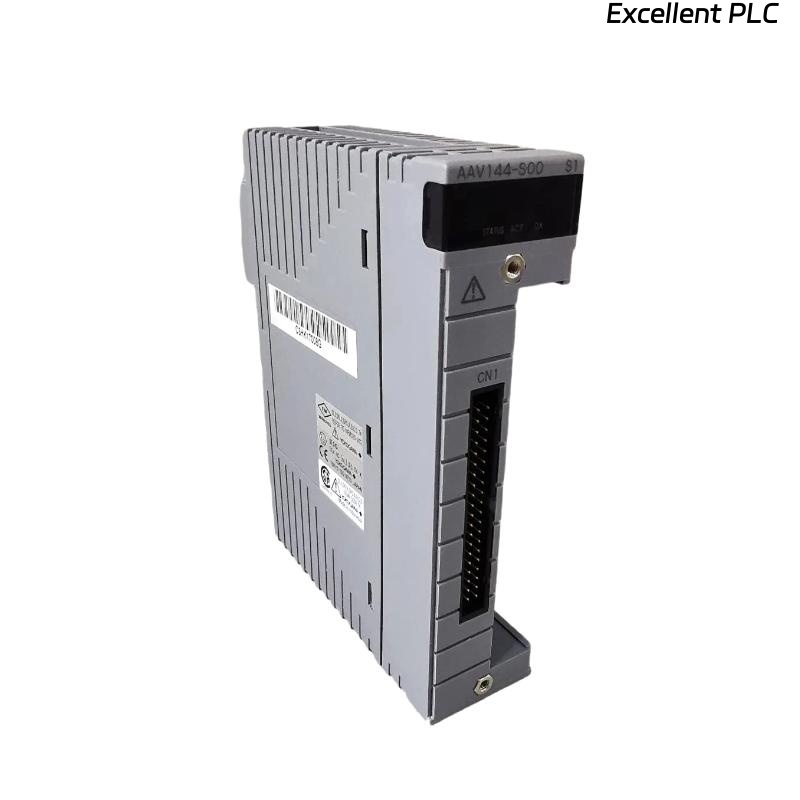

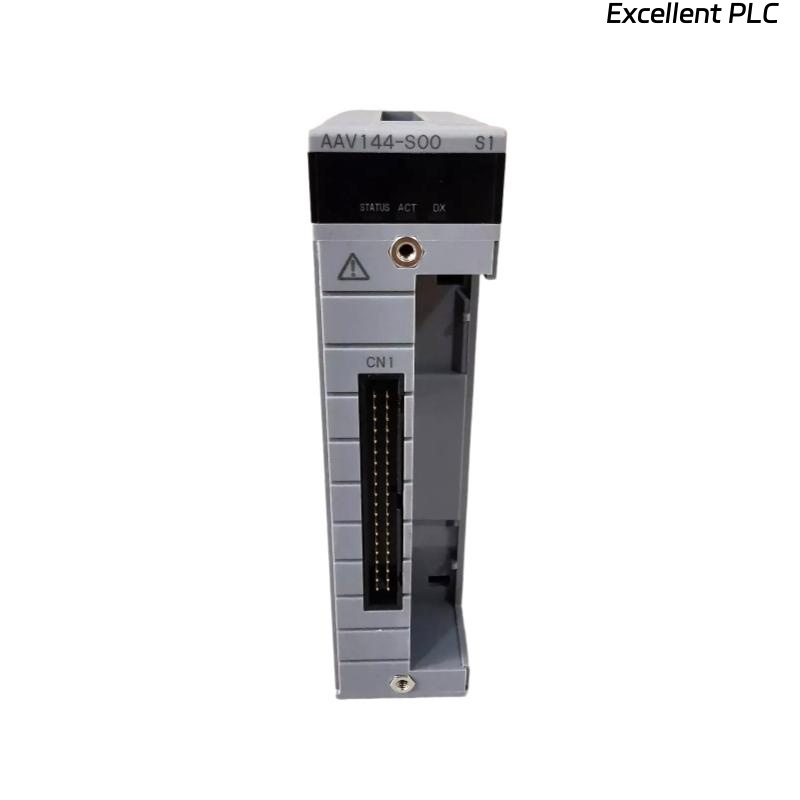

Yokogawa AAV144-S00/A4S10 Voltage Input Module

Product Introduction

The Yokogawa AAV144-S00/A4S10 is a high-precision voltage input module designed for integration into Yokogawa’s CENTUM VP and ProSafe-RS safety systems. Built to perform in demanding industrial environments, the AAV144 module is part of Yokogawa’s I/O subsystem for the FIO (Field I/O) architecture. It ensures accurate and reliable acquisition of analog voltage signals from field instruments, enabling precise control and monitoring functions within DCS and SIS infrastructures.

This module is engineered to support multiple voltage ranges with high noise immunity and robust isolation capabilities. It is suitable for high-integrity systems where accuracy, stability, and system availability are paramount. Typical uses include critical applications in power generation, chemical processing, oil & gas, and water treatment industries.


Product Specifications

Parameter Description
Model AAV144-S00/A4S10
Manufacturer Yokogawa Electric Corporation
Type Voltage Input Module
System Compatibility CENTUM VP, ProSafe-RS
Input Channels 8 isolated analog input channels
Input Signal Range 0 to 10 V DC, ±10 V DC
Resolution 16-bit ADC
Input Impedance ≥ 1 MΩ
Isolation Channel-to-channel and channel-to-ground isolation
Accuracy ±0.1% of full scale
Noise Rejection Common-mode: ≥ 120 dB, Normal-mode: ≥ 60 dB
Diagnostics Input circuit monitoring, module health status
Power Supply Supplied from the base plate (via FIO power system)
Operating Temperature -20°C to +70°C
Storage Temperature -40°C to +85°C
Humidity 5% to 95% RH, non-condensing
Cooling Natural air cooling
Dimensions (W x H x D) 107.5 × 130 × 32.8 mm
Weight 0.2 kg
Mounting Mounted on N-IO baseplate or terminal block
Certifications CE, CSA, ATEX, SIL (via system)
Communication Protocol Vnet/IP via FIO processor module

Product Applications

The Yokogawa AAV144-S00/A4S10 module is tailored for demanding industrial environments that require reliable and secure acquisition of analog voltage signals. Its precise voltage measurement capabilities make it ideal for:

  • DCS Applications: Monitoring and control of process voltages in distributed control systems

  • SIS Safety Systems: Integration with ProSafe-RS for critical safety instrumentation applications

  • Energy Industry: Voltage feedback in turbines, generators, or HV substations

  • Oil & Gas: Monitoring sensor outputs in upstream and downstream applications

  • Chemical Plants: Accurate signal capture for real-time process control

  • Water & Wastewater Treatment: Managing control loops for dosing systems and electrical measurements


Product Advantages

  • High Accuracy: Ensures precision in voltage monitoring with 16-bit resolution and ±0.1% full-scale accuracy

  • Channel Isolation: Each channel is electrically isolated, minimizing signal interference and increasing system reliability

  • Multi-Range Input: Supports both unipolar and bipolar voltage ranges, increasing flexibility in field device compatibility

  • Robust Design: Designed to operate in harsh environments with extended temperature and humidity ranges

  • Integrated Diagnostics: Continuous monitoring of module and channel health enhances system safety and maintainability

  • System Compatibility: Seamlessly integrates with Yokogawa’s CENTUM VP and ProSafe-RS systems for unified control

  • Compact Footprint: Slim design conserves panel space while delivering high-density I/O

  • International Certifications: CE, CSA, and ATEX certifications ensure global compliance


FAQ

  1. What voltage ranges are supported by the AAV144-S00/A4S10 module?
    It supports 0–10 V and ±10 V DC input signals.

  2. Does the module offer channel-to-channel isolation?
    Yes, each input channel is isolated to prevent cross-interference and ensure accurate readings.

  3. What is the resolution of the analog-to-digital conversion?
    It uses a 16-bit ADC, providing high precision for voltage measurement.

  4. Is the module suitable for safety system (SIS) applications?
    Yes, it can be used within ProSafe-RS architectures and meets SIL requirements at the system level.

  5. Can this module detect open or broken input signals?
    Yes, it features built-in diagnostics to monitor input circuit integrity.

  6. How is the module powered within the system?
    It draws power directly from the FIO baseplate via the system power bus.

  7. What is the input impedance of the module?
    The input impedance is greater than or equal to 1 MΩ, ensuring minimal signal loading.

  8. Does the module support redundant configurations?
    Redundancy is handled at the system level via controller and I/O redundancy; the module can be part of such configurations.

  9. What is the common-mode noise rejection ratio?
    It is ≥ 120 dB, offering excellent immunity to electrical noise.

  10. Can this module be hot-swapped during operation?
    Yes, the module supports hot-swapping when used with appropriate FIO systems and redundancy features.


Related Models from the Same Series

Model Number Description
AAV141-S00/A4S10 Voltage Input Module (Standard), 8 channels
AAV142-S00/A4S10 Voltage Input Module with Enhanced Diagnostics
AAI143-S00 Analog Current Input Module
AAI543-S00 Isolated Current Input Module, High Accuracy
ADV151-P03 Digital Input Module, High-Speed
AAB841-S00 Thermocouple Input Module, Multi-type support

Popular Yokogawa Modules

Model Number Description
AAI141-H50 Analog Input Module, High-Speed, 16 channels
ADV551-P00 Digital Output Module, 16 points
AAR181-S00 RTD Input Module for Temperature Measurement
AAI835-H00 HART-enabled Analog Input Module, 8 channels
CP451-10 FIO Control Processor Module
