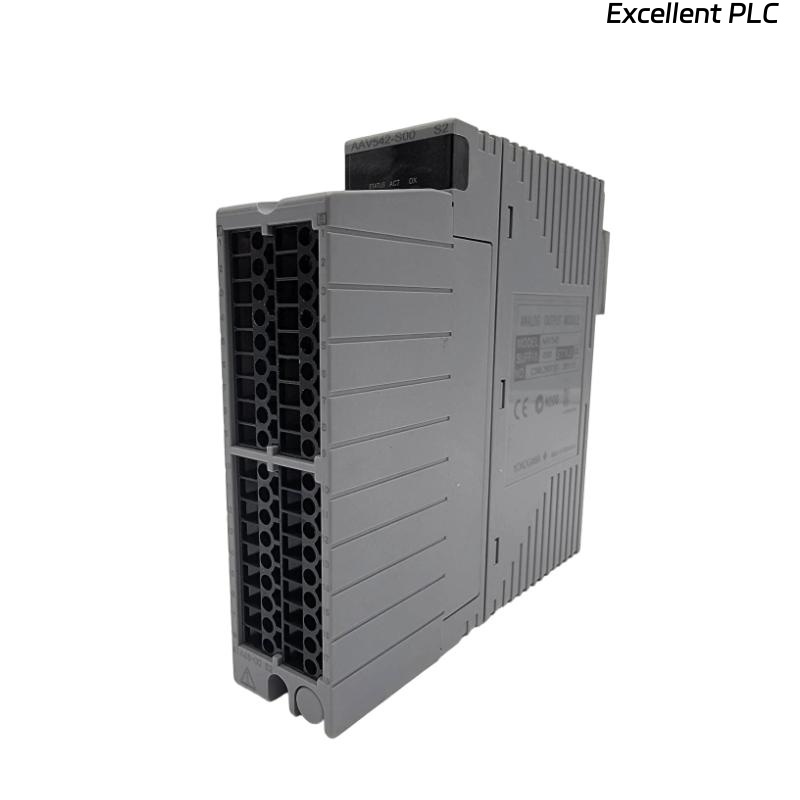

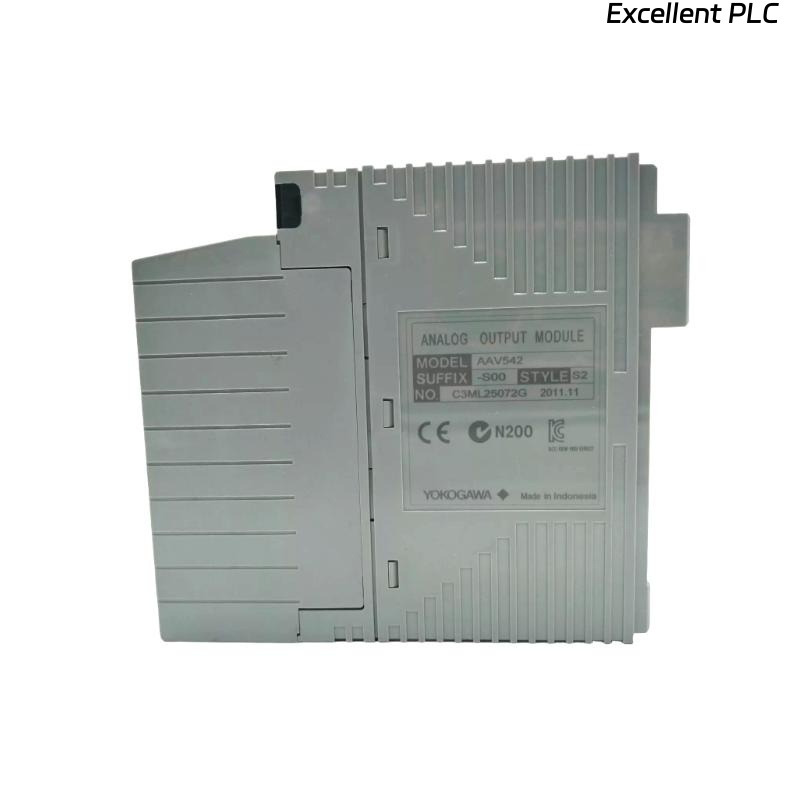

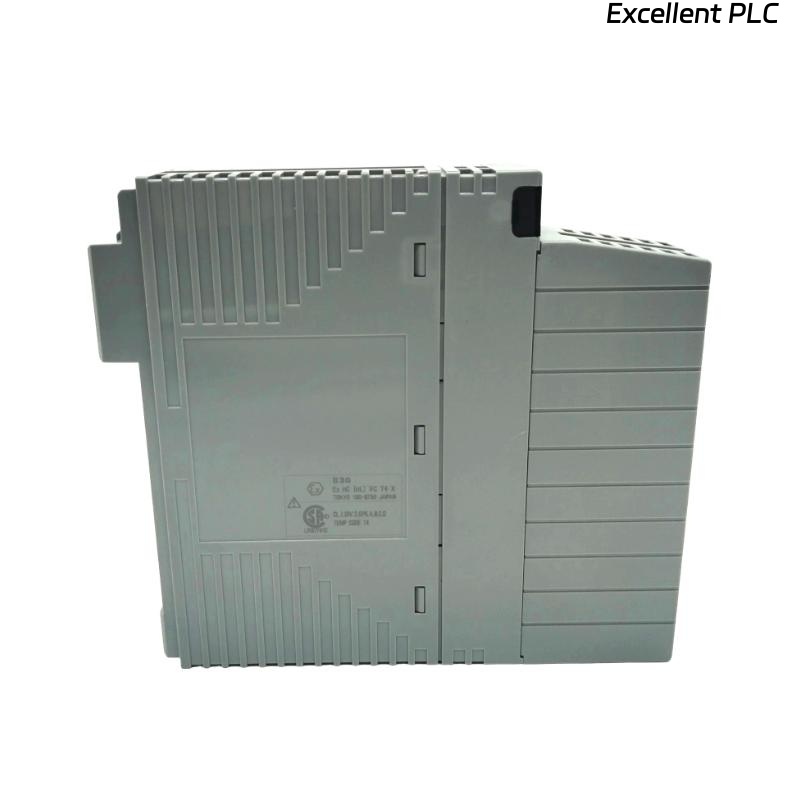

Yokogawa AAV542-S50 Voltage Output Module

Product Introduction

The Yokogawa AAV542-S50 is a Voltage Output Module developed for use in CENTUM VP and ProSafe-RS systems, as part of the Field Control Station (FCS) platform under the N-IO (Network-I/O) architecture. It provides analog voltage outputs to field devices with high accuracy, reliability, and electrical isolation, making it a critical component for output control in modern process automation systems.

This module is equipped with 8 isolated voltage output channels and supports output ranges compatible with standard actuators and control devices. It is designed to function under severe industrial conditions and is ideal for applications that demand precision signal control, robust diagnostics, and safety integrity compliance.

Product Specifications

Product Applications

The AAV542-S50 is designed for reliable and accurate analog voltage signal output, making it well-suited for a wide range of process automation and control applications. It serves as a key interface between digital control logic and analog actuators in the field.

• Process Control Systems: Outputs analog voltage to control valves, dampers, and drives in continuous or batch process industries

• Safety Systems (SIS): Drives analog output devices in fail-safe or emergency stop operations within ProSafe-RS environments

• Energy Sector: Used for control of power converters, variable speed drives, or generator excitation systems

• Chemical and Petrochemical Plants: Provides voltage signals for dosing pumps, flow control valves, and heater controllers

• Oil & Gas Operations: Controls field equipment such as pressure control valves and pump drives in upstream and midstream assets

• Water Treatment Facilities: Sends control signals to variable frequency drives (VFDs), chemical feed pumps, and pH adjusters

Product Advantages

• High Output Accuracy: Delivers precise voltage signals with ±0.1% full-scale accuracy, suitable for fine control applications

• Channel Isolation: Each channel is fully isolated to prevent signal interference and maintain system stability

• Dual Range Support: Compatible with both unipolar (0–10 V) and bipolar (±10 V) voltage outputs for flexible field integration

• Integrated Diagnostics: Built-in health monitoring and open circuit detection improve system reliability and maintenance scheduling

• System Redundancy Support: Enables hot-swapping and fault-tolerant architecture with compatible Yokogawa systems

• Environmentally Robust: Operates over a wide temperature range and under high humidity conditions without loss of performance

• Space-Saving Design: Compact form factor allows dense installation within control panels

• Global Certification Compliance: Certified for deployment in hazardous and regulated environments

• Seamless Integration: Designed to function natively within Yokogawa’s DCS and SIS platforms

• Low Maintenance Requirements: Durable design minimizes the need for frequent module replacements or recalibrations

FAQ

1. What voltage ranges can the AAV542-S50 output?
   It supports 0–10 V DC and ±10 V DC output ranges, configurable per channel.

2. Is each output channel electrically isolated?
   Yes, the module provides channel-to-channel and channel-to-ground isolation.

3. What is the resolution of the DAC in this module?
   The module uses a 16-bit DAC for high-resolution voltage output.

4. Can the module detect if an output is not connected to a load?
   Yes, it includes open circuit detection for output integrity monitoring.

5. What is the minimum load resistance supported?
   The module requires a minimum load resistance of 1 kΩ per channel.

6. How is the output updated and at what interval?
   The typical update time is 20 ms per channel, suitable for most control loops.

7. Is this module suitable for SIL-rated safety applications?
   Yes, when used within a certified ProSafe-RS system, it meets SIL standards.

8. Can it be hot-swapped without system shutdown?
   Yes, hot-swapping is supported when configured with redundant systems.

9. How is the module powered?
   It draws power from the baseplate (N-IO system), eliminating external wiring.

10. Does the module support output range configuration per channel?
    Yes, each channel can be individually configured for its required voltage range.
