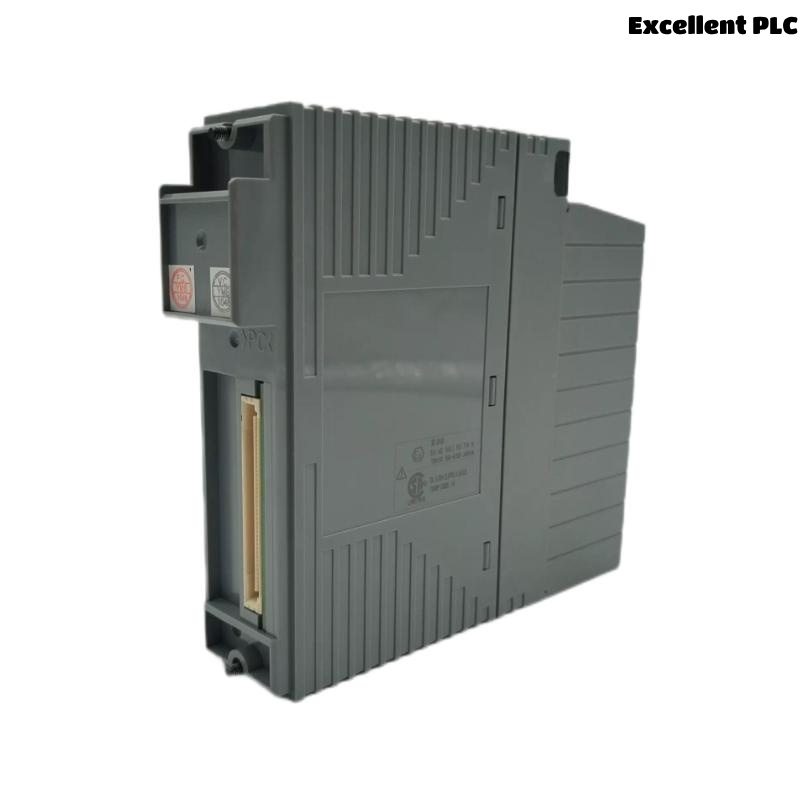

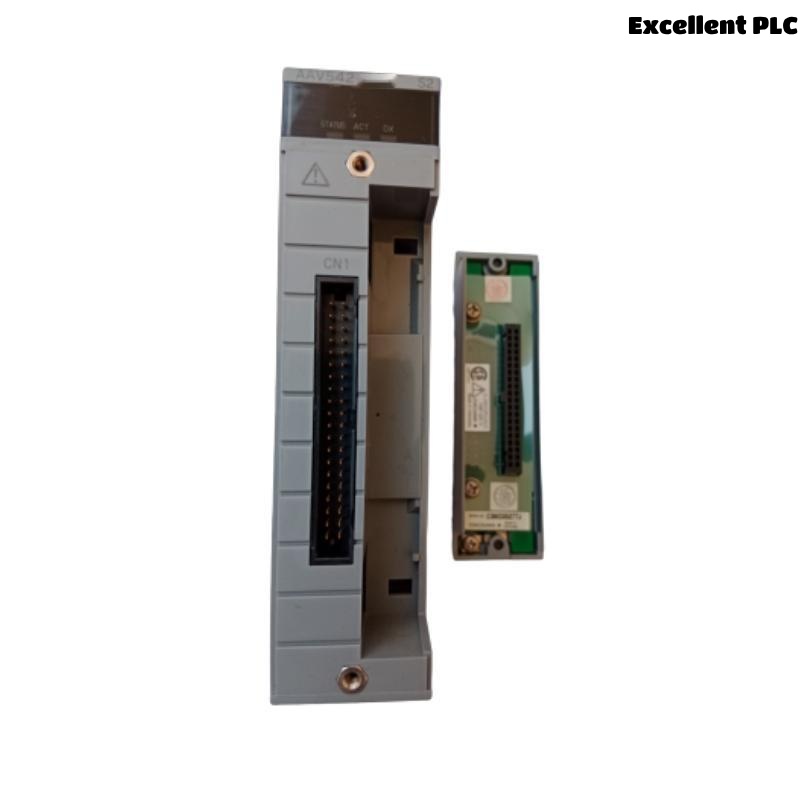

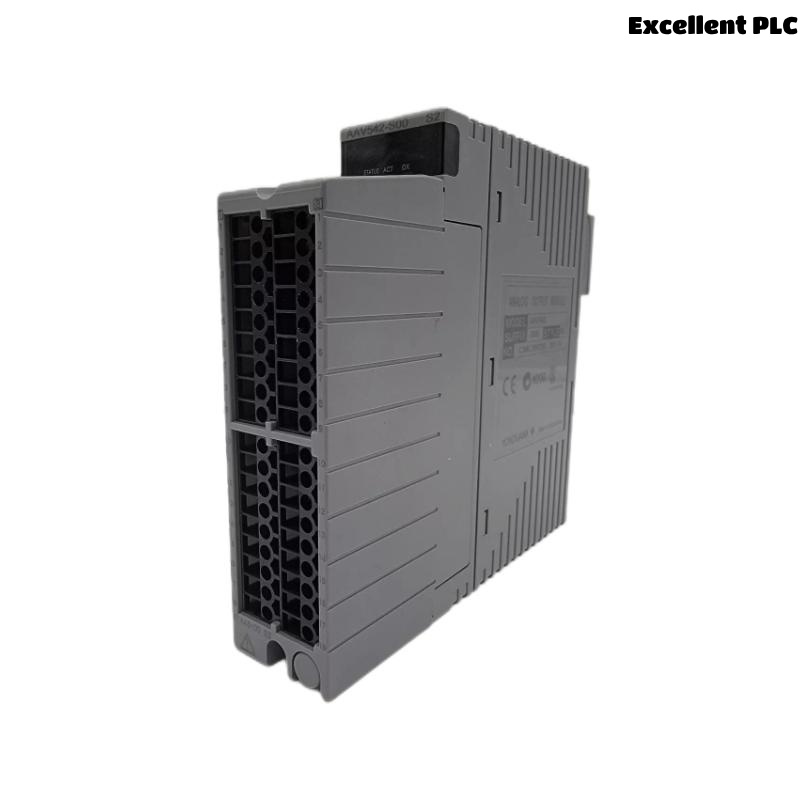

Yokogawa AAV542 Product Introduction
The Yokogawa AAV542 is a high-performance industrial device designed for precision measurement and control applications. It is widely used in industries such as oil & gas, chemical processing, power generation, and water treatment. The AAV542 is known for its reliability, accuracy, and robust construction, making it suitable for harsh environments.
Product Parameters
The AAV542 features a range of technical specifications that ensure optimal performance. Below is a detailed table of its key parameters:
| Parameter | Specification |
|---|---|
| Model Number | AAV542 |
| Input Range | 4-20 mA, 0-10 V, or custom ranges |
| Output Range | 4-20 mA, 0-10 V, or custom ranges |
| Accuracy | ±0.1% of full scale |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Power Supply | 24 VDC (standard), 100-240 VAC (optional) |
| Dimensions | 107.5 × 130 × 32.8 mm |
| Weight | 0.2 kg |
| Enclosure Rating | IP65 (dust and water-resistant) |
| Communication | HART, Modbus, or Profibus (optional) |
Product Applications
The Yokogawa AAV542 is versatile and can be applied in various industrial scenarios, including:
-
Process Control: Ensures precise regulation of flow, pressure, and temperature in manufacturing plants.
-
Oil & Gas: Used in upstream and downstream operations for monitoring and control.
-
Chemical Processing: Provides accurate measurement for reactive and corrosive substances.
-
Power Plants: Facilitates efficient energy management and equipment monitoring.
-
Water Treatment: Helps in maintaining optimal water quality and distribution.
Product Advantages
The AAV542 stands out due to the following benefits:
-
High Accuracy: Delivers precise measurements with minimal deviation.
-
Durability: Built to withstand extreme temperatures and harsh conditions.
-
Flexibility: Supports multiple input/output ranges and communication protocols.
-
Easy Integration: Compatible with existing industrial automation systems.
-
Low Maintenance: Designed for long-term reliability with minimal servicing.
Frequently Asked Questions (FAQ)
-
What is the operating voltage range of the AAV542?
The standard version operates at 24 VDC, but an optional 100-240 VAC version is available. -
Can the AAV542 be used in hazardous environments?
Yes, it is designed to meet industrial safety standards and can be used in hazardous areas with proper certifications. -
What communication protocols does the AAV542 support?
It supports HART, Modbus, and Profibus (optional). -
Is the AAV542 resistant to dust and water?
Yes, it has an IP65 enclosure rating, making it dust and water-resistant. -
What is the accuracy of the AAV542?
It offers an accuracy of ±0.1% of full scale. -
Can the input/output ranges be customized?
Yes, custom ranges are available upon request. -
What is the weight of the AAV542?
It weighs 0.2 kg. -
Does the AAV542 require frequent calibration?
No, it is designed for stable performance with minimal calibration needs. -
What industries commonly use the AAV542?
It is widely used in oil & gas, chemical processing, power generation, and water treatment. -
Is technical support available for the AAV542?
Yes, Yokogawa provides comprehensive technical support and documentation.
