Product Introduction

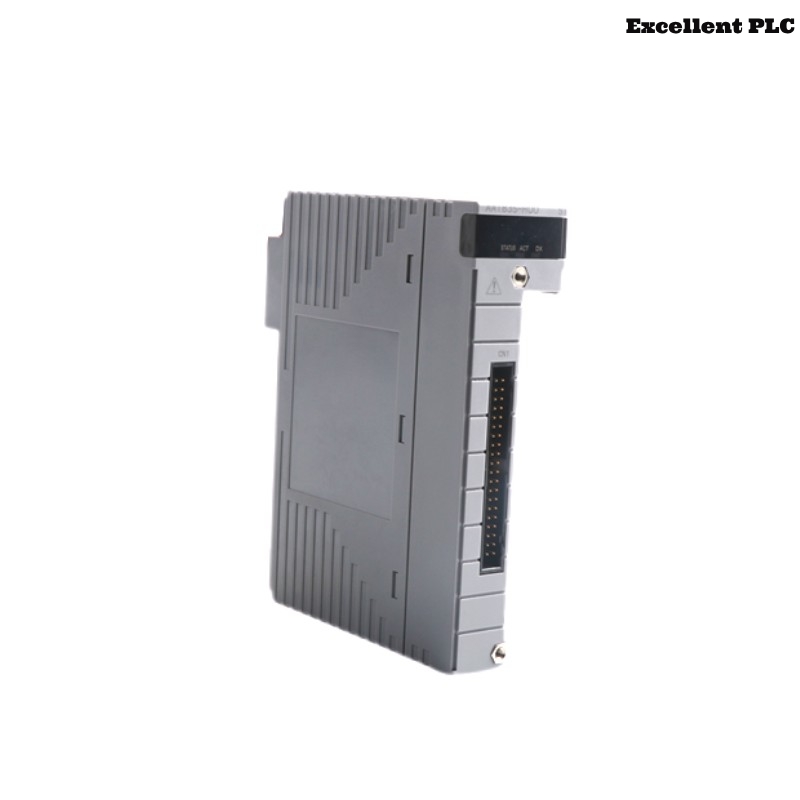

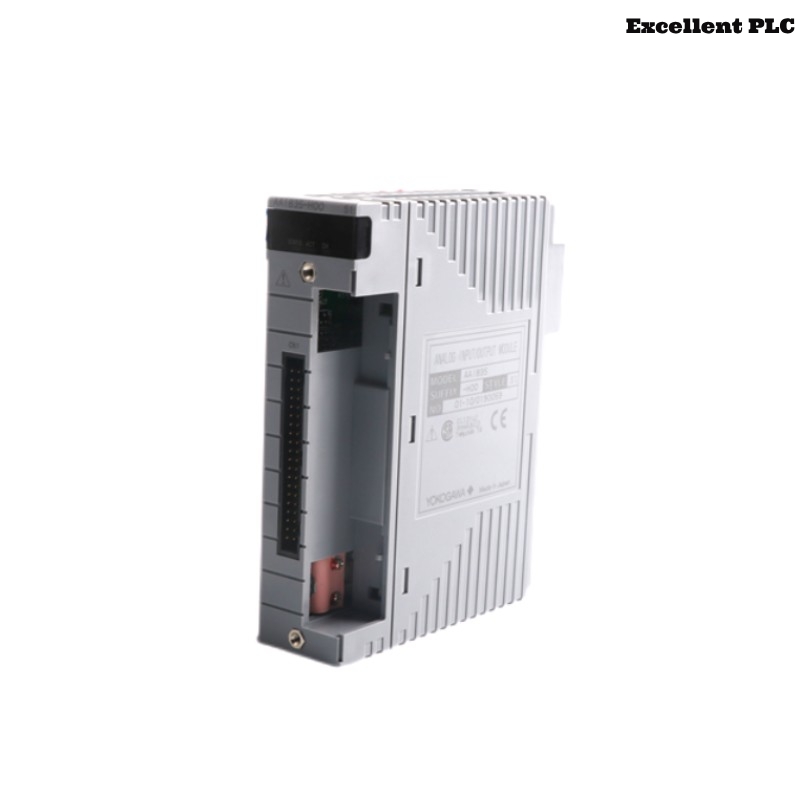

The Yokogawa AAV544-S00 is a high-performance analog output module designed to deliver precise voltage signals in industrial automation systems. As part of Yokogawa’s Field Input/Output (FIO) series, this module provides 16 isolated output channels, each capable of producing a voltage range from -10 V to +10 V. Its robust design and advanced features make it suitable for applications requiring accurate and reliable voltage outputs, ensuring seamless integration into distributed control systems (DCS) like CENTUM CS 3000 and CENTUM VP.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | AAV544-S00 |
| Module Type | Analog Voltage Output Module |
| Number of Output Channels | 16 (Isolated) |
| Output Signal Range | -10 V to +10 V DC |
| Output Impedance | 100 Ω |
| Allowable Load Resistance | 5 kΩ or higher |
| Accuracy | ±0.05% of Full Scale |
| Data Update Period | 10 ms |
| Temperature Drift | ±0.1% per 10°C or ±10 mV per 10°C |
| Withstanding Voltage | 1500 V AC between output and system (1 min) |
| Maximum Current Consumption | 860 mA at 5 V DC |
| Operating Temperature Range | -10°C to +55°C |
| Storage Temperature Range | -20°C to +70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Dimensions (W x H x D) | 107.5 × 130 × 32.8 mm |
| Weight | 0.2 kg |
| Mounting Type | Baseplate-mounted within control panel |
| External Communication | Pressure clamp terminal, MIL connector cable, dedicated cable (KS1) |
Product Applications
The AAV544-S00 module is engineered for a wide range of industrial applications requiring precise voltage control:
-
Process Control Systems: Delivering accurate voltage signals to actuators, control valves, and variable frequency drives (VFDs).
-
Manufacturing Automation: Providing control signals to machinery and equipment requiring voltage inputs.
-
Energy Management: Regulating voltage outputs in power distribution and energy monitoring systems.
-
Laboratory Equipment: Supplying precise voltage levels for testing and measurement instruments.
-
Building Automation: Controlling HVAC systems, lighting, and other building management devices.
-
Water Treatment Facilities: Managing voltage-controlled dosing pumps and monitoring equipment.
Product Advantages
-
High Precision Output: Ensures accurate voltage delivery with an accuracy of ±0.05% of full scale.
-
Fast Response Time: Quick data update period of 10 ms allows for responsive control in dynamic systems.
-
Robust Electrical Isolation: Withstands 1500 V AC between output and system, enhancing safety and reliability.
-
Compact Design: Small form factor facilitates easy integration into existing control panels.
-
Versatile Connectivity: Supports various external communication methods, including pressure clamp terminals and MIL connector cables.
-
Wide Operating Range: Functions effectively across a broad temperature range, suitable for diverse industrial environments.
-
Energy Efficient: Low power consumption contributes to overall system efficiency.
-
Enhanced System Reliability: Supports dual-redundant configurations, minimizing downtime in critical applications.
Frequently Asked Questions (FAQ)
-
What is the output voltage range of the AAV544-S00 module?
-
The module provides an output voltage range from -10 V to +10 V DC.
-
-
How many output channels does the module have?
-
It features 16 isolated output channels.
-
-
What is the accuracy of the voltage outputs?
-
The module offers an accuracy of ±0.05% of full scale.
-
-
Can the AAV544-S00 operate in high-temperature environments?
-
Yes, it operates within a temperature range of -10°C to +55°C.
-
-
Is the module suitable for applications requiring fast response times?
-
Absolutely, with a data update period of 10 ms, it is ideal for applications needing quick response.
-
-
What is the allowable load resistance for the outputs?
-
The module supports a load resistance of 5 kΩ or higher.
-
-
Does the module support redundant configurations?
-
Yes, it can be configured in dual-redundant setups for enhanced system reliability.
-
-
What are the dimensions and weight of the module?
-
Dimensions: 107.5 × 130 × 32.8 mm; Weight: 0.2 kg.
-
-
What types of external communication does the module support?
-
It supports pressure clamp terminals, MIL connector cables, and dedicated KS1 cables.
-
-
Is the module compatible with Yokogawa’s CENTUM systems?
-
Yes, it is designed for seamless integration with CENTUM CS 3000 and CENTUM VP systems.
-
Related Models (Same Series or Related Functionality)
| Model | Function | Channels | Signal Type | Remarks |
|---|---|---|---|---|
| AAV541-S00 | Voltage Output Module | 8 | -10 V to +10 V | Lower channel version of AAV544-S00 |
| AAV542-S00 | Voltage Output Module | 16 | 0 V to +10 V | Single-ended voltage output module |
| AAI543-S00 | Analog Current Output Module | 16 | 4–20 mA | For current-loop controlled devices |
| AAV144-S00 | Voltage Input Module | 16 | -10 V to +10 V | Counterpart input module |
| AAI143-S00 | Analog Current Input Module | 16 | 4–20 mA | Input module for current sensors |
| AAR181-S00 | RTD Temperature Input Module | 8 | RTD | For precision temperature sensing |
