Product Introduction

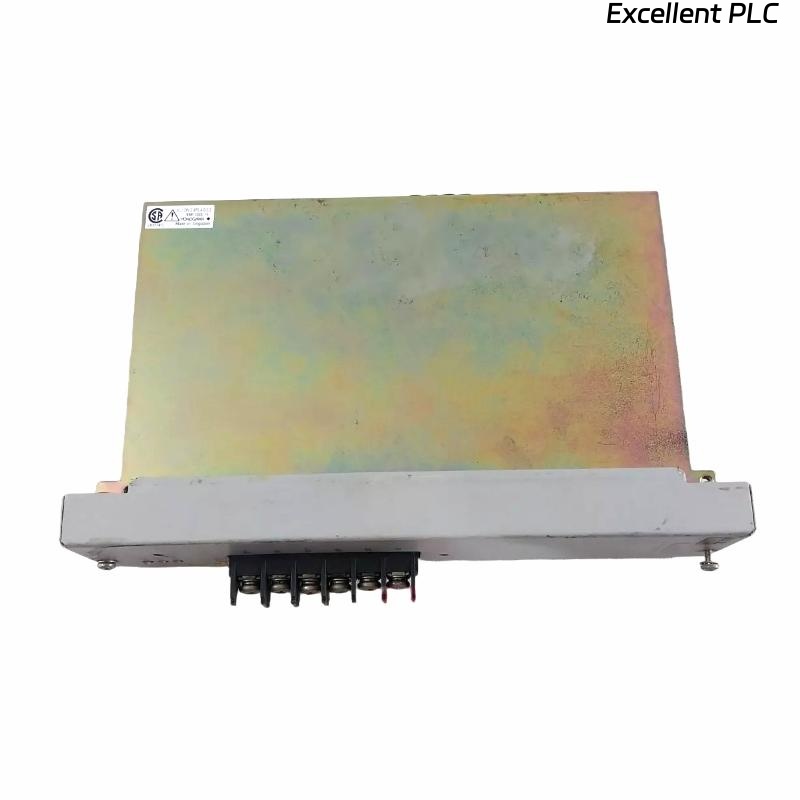

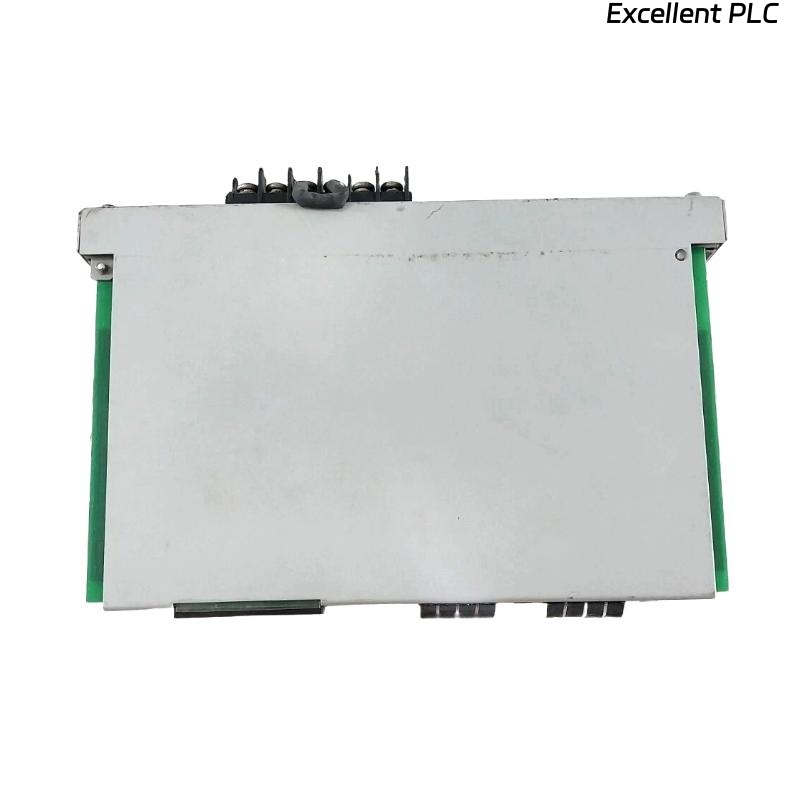

The Yokogawa ACM12 S1 Communication Module is a high-performance interface module designed for integration of field devices into Yokogawa process control and safety systems, including CENTUM VP and ProSafe-RS. This module supports multi-protocol communication, enabling real-time data transfer, protocol conversion, and network management in industrial automation environments.
ACM12 S1 ensures reliable connectivity between controllers and field instruments, providing advanced diagnostics and fault detection to maintain continuous plant operation. Its robust design makes it suitable for deployment in demanding industrial environments such as oil & gas, petrochemical, power generation, and water treatment facilities, where consistent, high-speed communication is essential.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | ACM12 S1 |
| Series | Yokogawa Communication Module |
| Function | Multi-protocol communication, protocol conversion, network management |
| Supported Protocols | FOUNDATION Fieldbus, HART, Modbus, DeviceNet (configuration dependent) |
| Number of Ports | 2 to 4 communication ports |
| Data Transmission Rate | Up to 31.25 kbps (FOUNDATION Fieldbus), up to 115.2 kbps (other protocols) |
| Redundancy Support | Yes, supports redundant communication paths |
| Diagnostic Functions | Communication error detection, device status monitoring, network diagnostics |
| Operating Temperature | 0°C to +55°C |
| Power Supply | 24 VDC via system backplane |
| Communication Interface | RS-485, Ethernet, fieldbus compatible |
| Dimensions | 125 × 248 × 130 mm |
| Weight | 2 kg |
| Mounting | DIN rail or system backplane installation |
| Certifications | CE, UL, CSA, ATEX (depending on configuration) |
Product Applications
The ACM12 S1 module is used to ensure reliable field device communication and integration across various industrial systems:
-
Process Plants – Aggregates sensor and instrumentation data into control systems.
-
Oil & Gas Facilities – Provides real-time, secure communication between controllers and field devices.
-
Power Generation – Supports high-speed data transmission for process monitoring and control.
-
Water & Wastewater Treatment – Enables data collection, protocol conversion, and network diagnostics.
-
Chemical & Petrochemical Plants – Integrates both legacy and modern field devices into centralized monitoring.
-
Refineries – Redundant communication paths guarantee continuous operation for critical safety systems.
Product Advantages
-
Multi-Protocol Support – Integrates FOUNDATION Fieldbus, HART, Modbus, and DeviceNet devices.
-
Redundant Communication – Maintains operational continuity during network failures.
-
Real-Time Diagnostics – Monitors device status and network health, providing immediate alerts.
-
Flexible Installation – DIN rail or system backplane options for easy integration.
-
Seamless System Integration – Works directly with CENTUM VP and ProSafe-RS systems.
-
Compact and Lightweight Design – Reduces rack space requirements and simplifies installation.
FAQ
-
Which communication protocols are supported by ACM12 S1?
Supports FOUNDATION Fieldbus, HART, Modbus, and DeviceNet depending on configuration. -
How many communication ports are available?
Offers 2 to 4 ports depending on the specific model. -
Does ACM12 S1 support redundant communication paths?
Yes, redundancy ensures continuous operation and high reliability. -
What is the maximum data transmission rate?
Up to 31.25 kbps for FOUNDATION Fieldbus and up to 115.2 kbps for other protocols. -
Can ACM12 S1 perform real-time diagnostics?
Yes, it continuously monitors communication health and device status. -
What is the operating temperature range?
0°C to +55°C. -
How is ACM12 S1 powered?
Powered through 24 VDC supplied by the system backplane. -
What mounting options are available?
Supports DIN rail or system backplane installation. -
Can the module integrate both modern and legacy field devices?
Yes, multi-protocol capability allows integration with a wide range of instrumentation. -
Which certifications does ACM12 S1 hold?
CE, UL, CSA, and ATEX depending on the configuration.
