Product Introduction

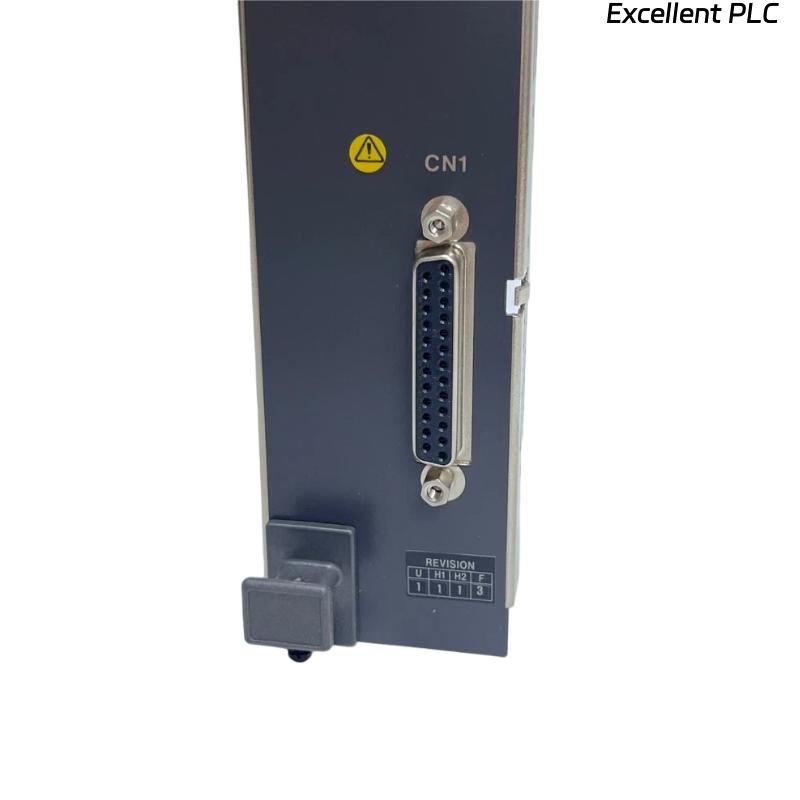

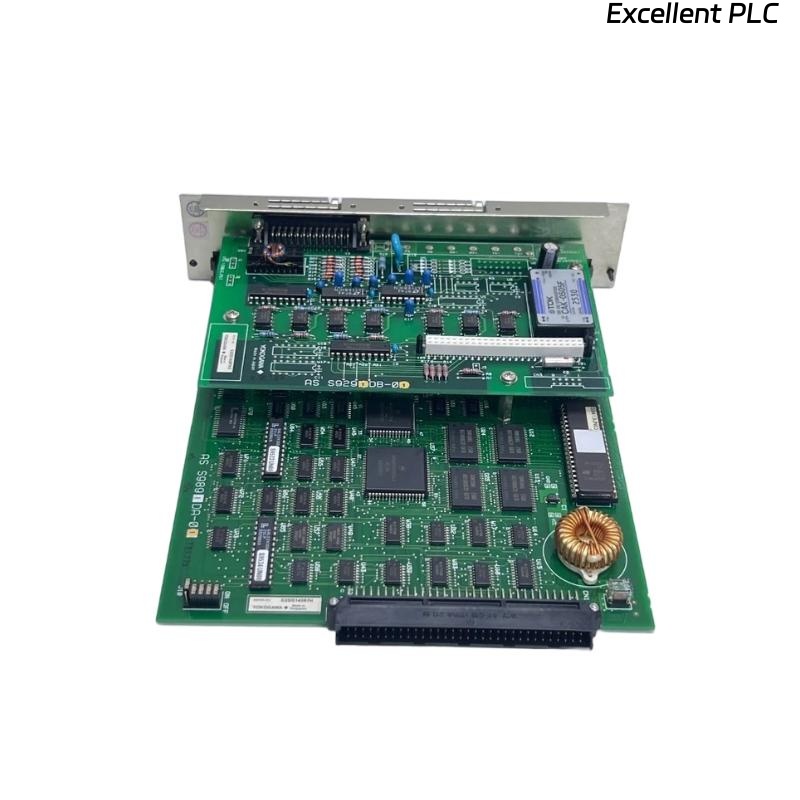

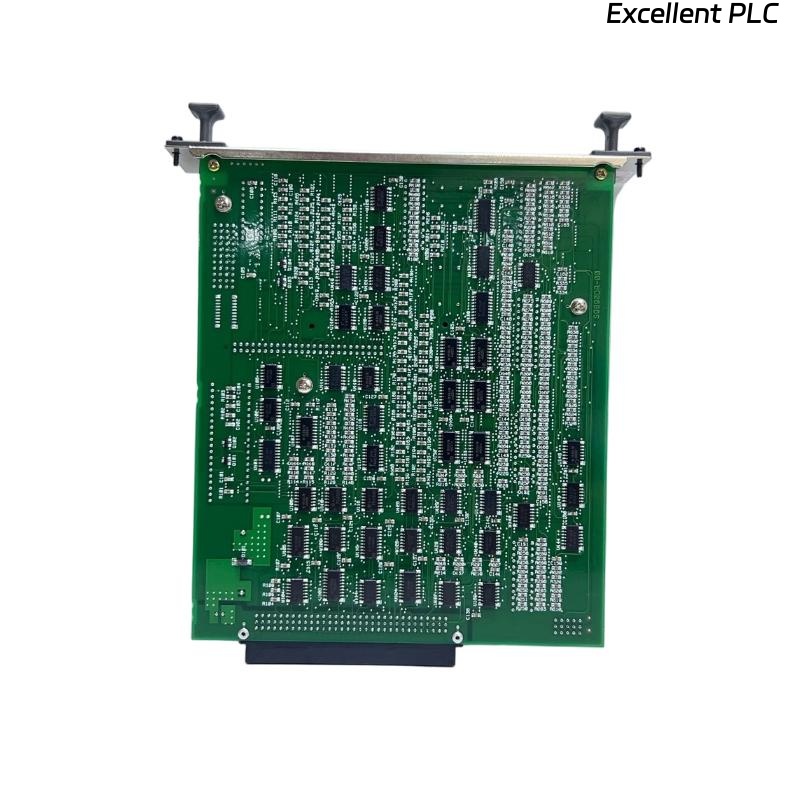

The Yokogawa ACM21 RS-232 Communication Module is a high-performance serial communication interface designed for reliable data transfer in distributed control systems. It enables seamless connectivity between field devices, controllers, and monitoring units using RS-232. Its compact design and robust construction make it suitable for integration into Yokogawa CENTUM and STARDOM systems, ensuring consistent performance in industrial environments.
Product Advantages
-
Reliable RS-232 communication between control systems and external devices.
-
Optical isolation to reduce noise and interference.
-
Flexible configuration for multiple communication modes.
-
Compact and easy to install or replace.
-
Compatible with Yokogawa DCS systems and third-party devices.
-
Industrial-grade durability for stable operation under varying environmental conditions.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | ACM21 |
| Communication Type | RS-232 Serial Interface |
| Transmission Rate | Up to 115.2 kbps |
| Isolation | Optical isolation between field and system |
| Connector | D-sub 9-pin female |
| Power Supply | 24 V DC ±10% |
| Power Consumption | 2.5 W |
| Supported Protocols | RS-232C, Modbus RTU, Yokogawa proprietary protocols |
| Indicators | TX/RX LEDs |
| Operating Temperature | 0 to 55 °C |
| Storage Temperature | -20 to 70 °C |
| Relative Humidity | 10% to 90% RH (non-condensing) |
| Dimensions | 125 × 130 × 248 mm |
| Weight | 0.14 kg |
| Mounting | DIN rail or panel |
| Certification | CE, UL, CSA |
Product Applications
-
Connecting control systems to serial instruments such as analyzers and sensors.
-
Data acquisition and logging in industrial automation systems.
-
Supervisory monitoring and alarm systems.
-
Integrating DCS subsystems with external computing devices.
-
Industrial applications in oil & gas, chemical, power generation, and water treatment plants.
Installation Instructions
-
Power down the system before installation.
-
Mount the module on a DIN rail or panel.
-
Connect the RS-232 communication cable.
-
Wire the 24 V DC power supply.
-
Power on and verify TX/RX LED indicators.
-
Configure communication settings (baud rate, parity, protocol) via system software.
FAQ
Q1: What is the main function of the ACM21 module?
A1: It provides RS-232 serial communication between Yokogawa control systems and external devices such as analyzers, sensors, or computers.
Q2: Does the ACM21 support Modbus communication?
A2: Yes, it supports Modbus RTU over RS-232 for integration with third-party devices.
Q3: How is communication status monitored?
A3: The module features TX and RX LEDs that indicate active transmission and reception.
Q4: Can the baud rate be configured?
A4: Yes, baud rates up to 115.2 kbps can be set through system configuration software.
Q5: What type of connector is used for RS-232?
A5: A standard D-sub 9-pin female connector is used for communication.
Q6: Is the ACM21 suitable for redundant communication setups?
A6: Yes, it can be paired with other modules to implement dual-port or redundant communication systems.
Q7: Does the module have isolation between power and communication circuits?
A7: Yes, optical isolation is provided to protect against electrical interference.
Q8: Can the ACM21 be installed alongside RS-485 modules?
A8: Yes, it can coexist with RS-422/485 modules without causing signal interference.
Q9: What are the power requirements?
A9: The module operates on 24 V DC ±10% and consumes 2.5 W.
Q10: How many communication channels does the ACM21 provide?
A10: The module has one dedicated RS-232 communication port.
