Product Overview

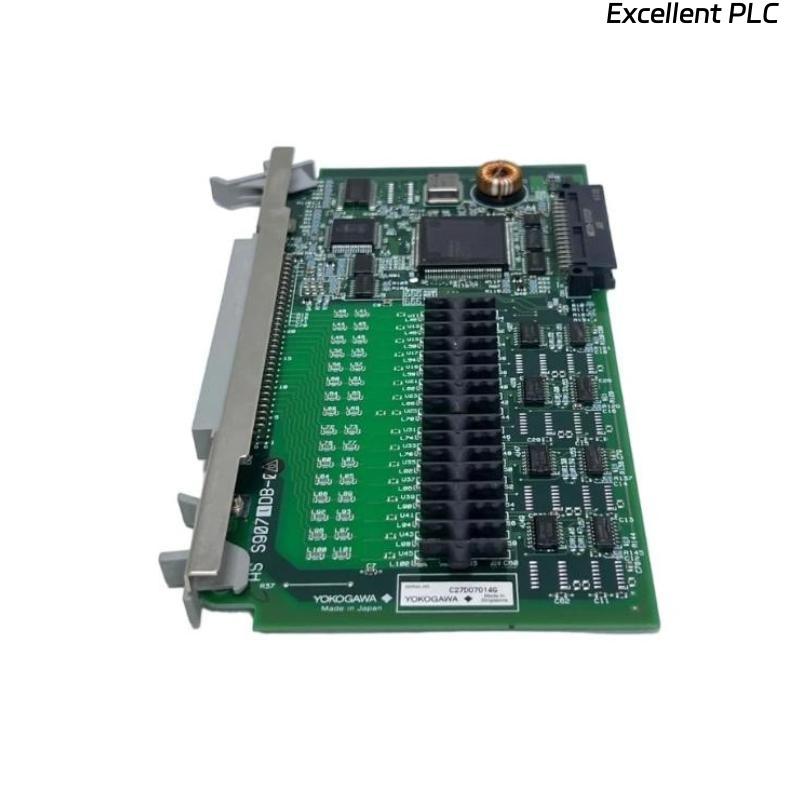

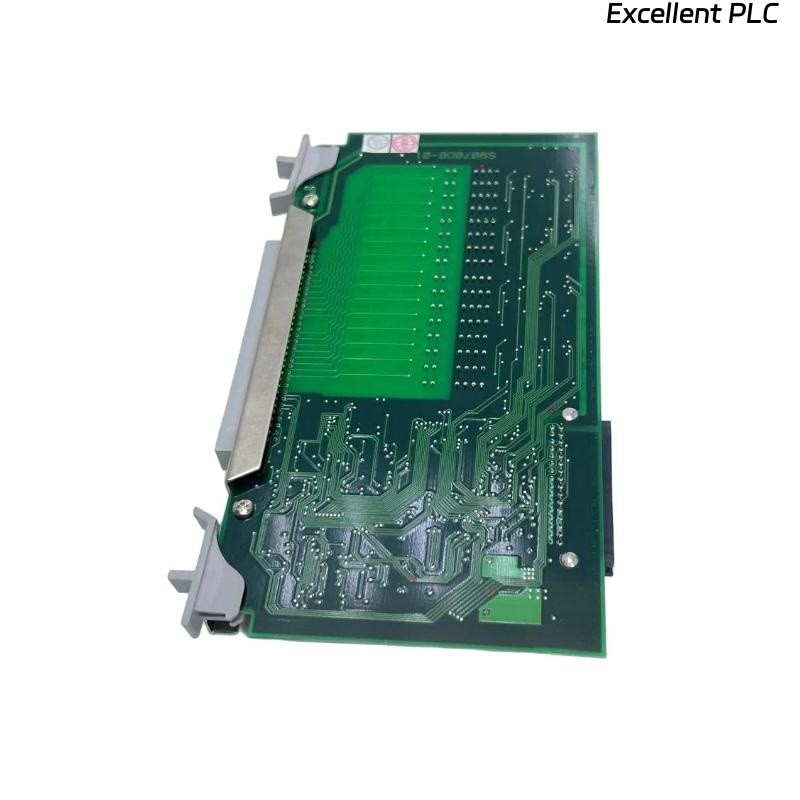

The Yokogawa ADM11-S2 Contact Input Module is designed for reliable acquisition of digital contact signals in Yokogawa distributed control systems (DCS). It allows monitoring of external devices such as switches, relays, and alarms, providing precise and isolated signal input for process automation applications.
Key Features
-
Provides isolated contact input channels for safe and reliable signal acquisition
-
Compatible with Yokogawa ADM series DCS racks
-
Supports multiple input channels for versatile monitoring
-
LED indicators for input status monitoring
-
Compact and modular design for easy installation
-
Hot-swappable for maintenance without system shutdown
-
High reliability in industrial environments
-
Supports detection of normally open (NO) and normally closed (NC) contacts
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Part Number | ADM11-S2 |
| Product Type | Contact Input Module |
| Input Channels | 8 contact input channels per module |
| Input Type | Electromechanical contacts (NO/NC) |
| Isolation | Electrical isolation between channels and backplane |
| Response Time | < 10 ms |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | –20 °C to +70 °C |
| Humidity | 5–95% RH, non-condensing |
| Mounting | ADM series rack |
| Dimensions | 125 x 130 x 248 mm |
| Weight | 0.14 kg |
| Applications | Monitoring of alarms, switches, relays, and other industrial contact signals |
Industry Applications
-
Power generation and distribution
-
Petrochemical and chemical plants
-
Oil and gas processing
-
Water and wastewater treatment
-
Manufacturing and process automation
-
Distributed control systems (DCS) digital input monitoring
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the ADM11-S2 module?
It provides isolated contact input channels for monitoring industrial devices.
Q2: How many input channels does it support?
8 contact input channels per module.
Q3: What types of contacts are supported?
Electromechanical contacts, normally open (NO) and normally closed (NC).
Q4: Can it operate in industrial environments?
Yes, it is designed to operate between 0 °C and +55 °C.
Q5: How is the module mounted?
It is mounted in ADM series racks.
Q6: Are there status indicators on the module?
Yes, LED indicators display the status of each input channel.
Q7: Is it hot-swappable?
Yes, it supports hot-swappable installation for maintenance.
Q8: What are typical applications for this module?
Monitoring switches, relays, alarms, and other contact signals in industrial automation systems.
