Product Introduction

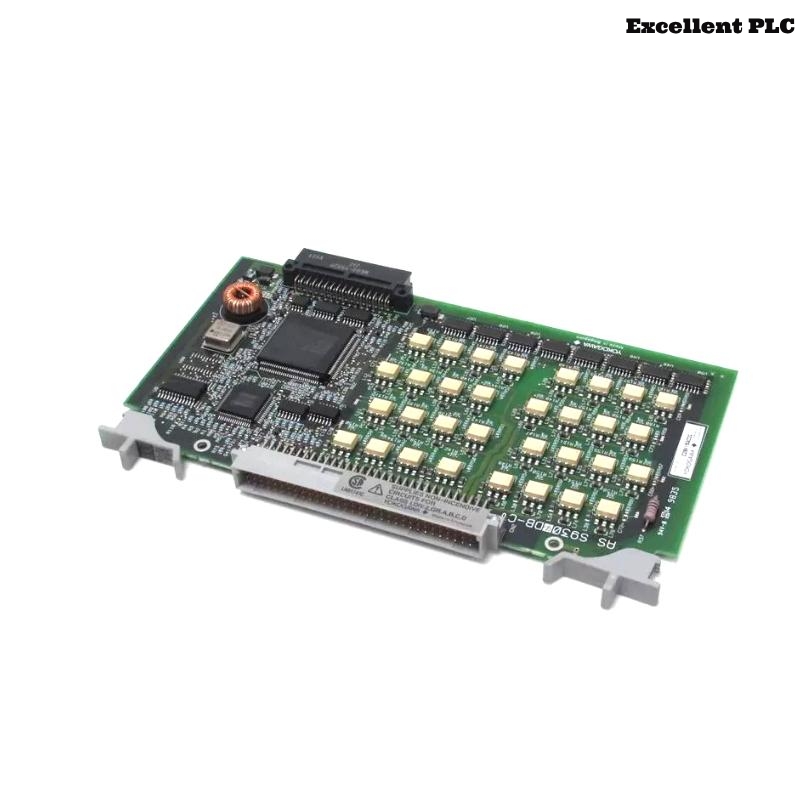

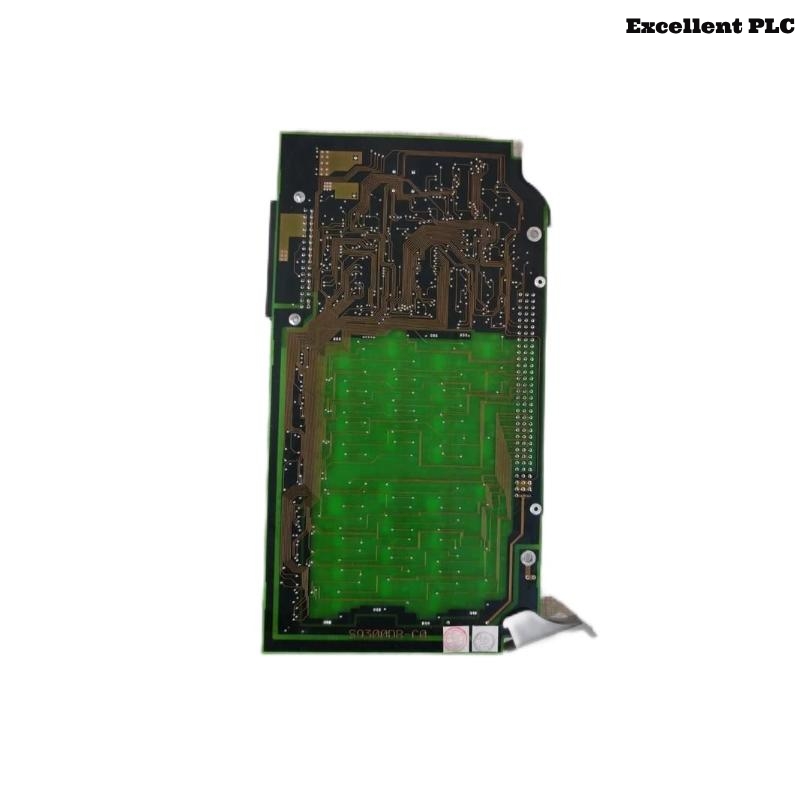

The Yokogawa ADM52 Contact Output Module is a high-density digital output module used within the CENTUM CS 3000 and CENTUM VP process automation systems. It is specifically engineered to handle multiple discrete signal outputs with exceptional reliability and efficiency. Designed for seamless integration into Yokogawa’s I/O baseplate architecture, the ADM52 is built for industrial-grade operation in distributed control systems (DCS) across demanding sectors such as oil & gas, petrochemical, power generation, pharmaceuticals, and water treatment.
With 32 channels of form A relay outputs, the ADM52 module is tailored to provide reliable signal switching to actuate field devices such as solenoid valves, relays, contactors, annunciators, and motor starters. The module’s compact design supports space optimization, and its LED indicators allow for easy troubleshooting and maintenance.
This output module supports Yokogawa’s philosophy of long lifecycle, high availability, and robust field integration, making it a cornerstone component for mission-critical control environments.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | ADM52 |
| Manufacturer | Yokogawa Electric Corporation |
| Series | CENTUM CS 3000 / CENTUM VP |
| Function | Contact Output Module |
| Number of Output Channels | 32 (Form A: Normally Open Relay Contacts) |
| Contact Rating | 24 VDC / 0.1 A or 125 VAC / 0.3 A (Resistive load) |
| Channel Isolation | Yes, channel-to-channel and channel-to-ground isolation |
| Dielectric Strength | 1500 VAC for 1 minute |
| Status Indicators | LED per channel for output status |
| Response Time | Typically <10 ms |
| Power Supply | Supplied via I/O baseplate |
| Mounting Type | DIN-rail or baseplate-mounted within Field Control Station |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Certifications | CE, RoHS, ATEX Zone 2 compliant (system dependent) |
| Maintenance | Hot-replaceable with minimal downtime (system permitting) |
| Dimensions (H × W × D) | 125 x 130 x 248 mm |
| Weight | 2 kg |
| Installation Position | Horizontal within control cabinets |
| Protection | Surge and overvoltage protection integrated |
Product Applications
The Yokogawa ADM52 module is widely applied across various industrial sectors where high-density, reliable contact outputs are required:
-
Oil & Gas Processing Plants
Controls discrete outputs for ESD valves, solenoid actuators, shutdown systems, and annunciators. -
Power Generation Facilities
Activates circuit breaker trip coils, turbine interlocks, and relay-based protection logic. -
Chemical and Petrochemical Plants
Drives field-level devices such as control panel lamps, horns, and field contactors. -
Water and Wastewater Treatment
Signals pump starts/stops, gate actuation, and emergency alarms. -
Food and Beverage Production
Interfaces with conveyors, packaging machines, and visual signaling systems. -
Pharmaceutical Manufacturing
Operates cleanroom-safe relay-based controls for alarms and operational alerts.
Product Advantages
-
High Output Density
32 discrete outputs in a single module reduce the number of required slots, saving space and hardware cost. -
Robust Electrical Isolation
Channel-to-channel and channel-to-ground isolation improve system integrity and protect against cross-talk and surges. -
Simple Diagnostics
Channel-level LED status indicators enable fast and precise troubleshooting. -
Flexible Integration
Easily fits into existing Yokogawa baseplate and backplane systems, requiring no custom mounting. -
Long Service Life
Designed to function reliably for over a decade under 24/7 industrial conditions. -
Global Certifications
Ready for use in regulated and hazardous environments with compliance to international standards. -
Front-Access Maintenance
Designed for tool-free insertion/removal during scheduled maintenance or module replacement.
Frequently Asked Questions (FAQ)
-
How many output channels does the ADM52 provide?
The ADM52 offers 32 Form A (normally open) relay output channels. -
Is the ADM52 suitable for inductive loads like solenoids?
It is optimized for resistive loads. For inductive loads, external snubber circuits are recommended. -
Can this module be hot-swapped?
In redundant or appropriately configured systems, hot-swapping is supported with caution. -
Is the ADM52 compatible with CENTUM VP?
Yes, it is fully compatible with both CENTUM CS 3000 and CENTUM VP control systems. -
What diagnostics are available on the module?
Channel status LEDs indicate the ON/OFF state of each output channel. -
Does the ADM52 offer per-channel protection?
Yes, each output is isolated and protected against voltage surges and faults. -
Can this module be used in safety instrumented systems?
While not SIL-rated, it can be used in non-SIS areas or with additional protection layers. -
What is the expected service life of the ADM52?
It is designed for industrial usage with an expected service life of more than 10 years. -
Are relay contact outputs replaceable or repairable?
The module is not field-repairable. Defective units are replaced as a whole. -
Is configuration software required for output mapping?
Output assignments are configured via Yokogawa’s engineering tools within the DCS.
