Product Overview

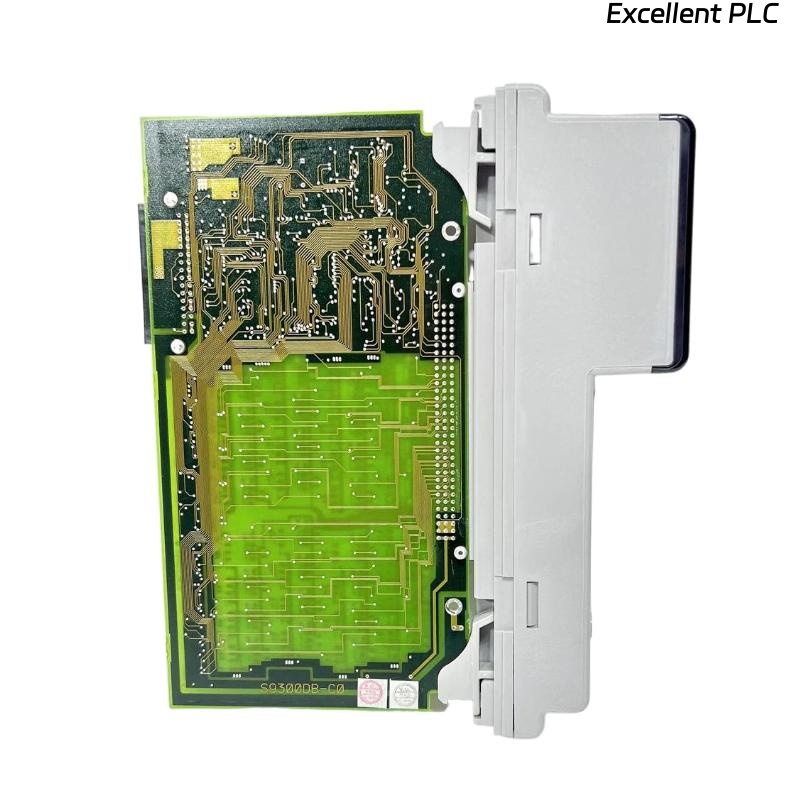

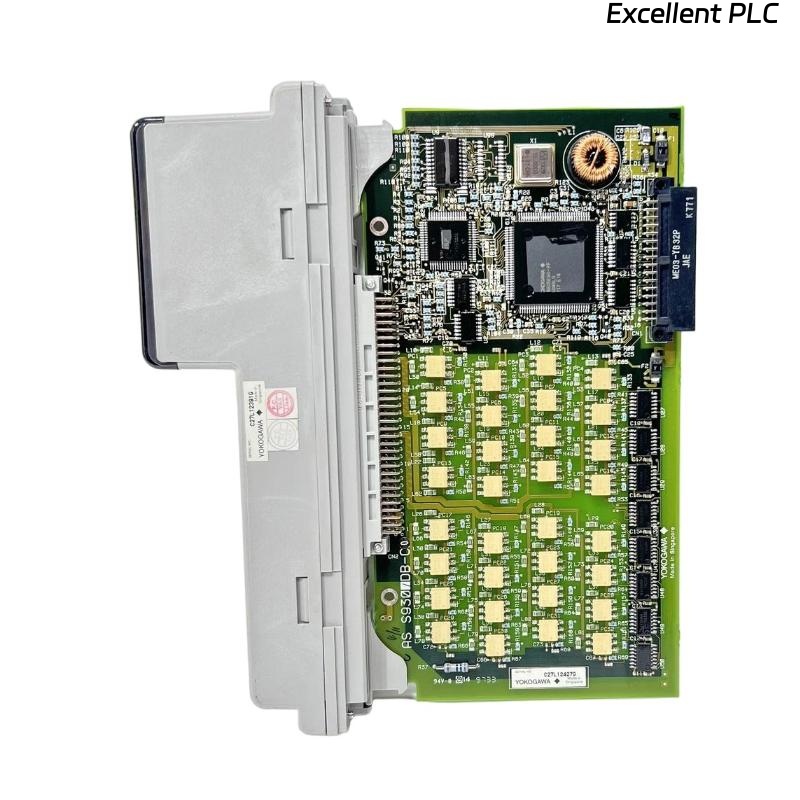

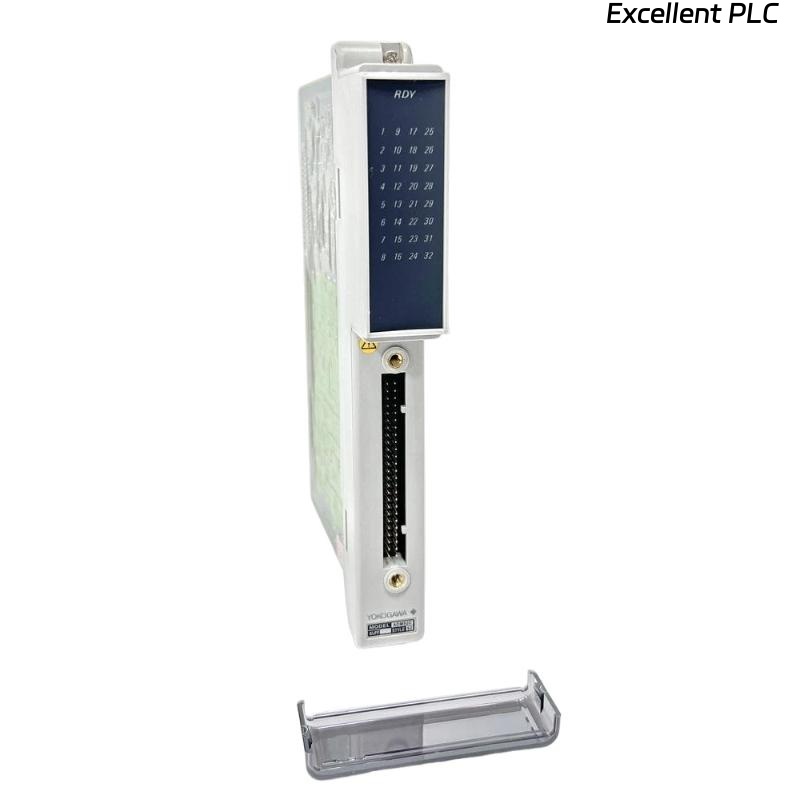

The Yokogawa ADM52C-1 Contact Output Module is a reliable relay-based output module designed for Yokogawa distributed control systems (DCS). It provides isolated contact outputs to control external devices such as alarms, actuators, valves, and motors, enabling safe and precise operation in industrial automation systems.
Key Features
-
Provides isolated relay contact outputs for industrial control
-
Compatible with Yokogawa ADM series DCS racks
-
Supports multiple output channels for versatile control
-
Electromechanical relay with normally open (NO) and normally closed (NC) contacts
-
LED indicators for output status monitoring
-
Compact, modular design for easy installation
-
Hot-swappable for maintenance without system downtime
-
High reliability in demanding industrial environments
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Part Number | ADM52C-1 |
| Product Type | Contact Output Module |
| Output Channels | 8 contact outputs per module |
| Output Type | Electromechanical relay, NO/NC contacts |
| Contact Rating | 2 A @ 250 VAC / 30 VDC |
| Response Time | < 10 ms |
| Isolation | 1500 V AC between channels and backplane |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | –20 °C to +70 °C |
| Humidity | 5–95% RH, non-condensing |
| Mounting | ADM series rack |
| Dimensions | 130 × 100 × 30 mm |
| Weight | 1.5 kg |
| Applications | Control of alarms, actuators, valves, and other industrial devices |
Industry Applications
-
Power generation and distribution
-
Petrochemical and chemical plants
-
Oil and gas processing
-
Water and wastewater treatment
-
Manufacturing and process automation
-
Distributed control systems (DCS) output control
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the ADM52C-1 module?
It provides isolated contact outputs for digital control of external devices.
Q2: How many output channels does it support?
8 contact outputs per module.
Q3: What types of contacts are available?
Electromechanical relay contacts, normally open (NO) and normally closed (NC).
Q4: What is the contact rating?
2 A @ 250 VAC or 30 VDC.
Q5: Can it operate in harsh industrial environments?
Yes, it is rated for 0 °C to +55 °C and resistant to industrial conditions.
Q6: How is the module mounted?
It is mounted in ADM series racks.
Q7: Does it provide status indicators?
Yes, LED indicators show the output status for each channel.
Q8: Is it hot-swappable?
Yes, the module can be replaced without shutting down the system.
