Product Introduction

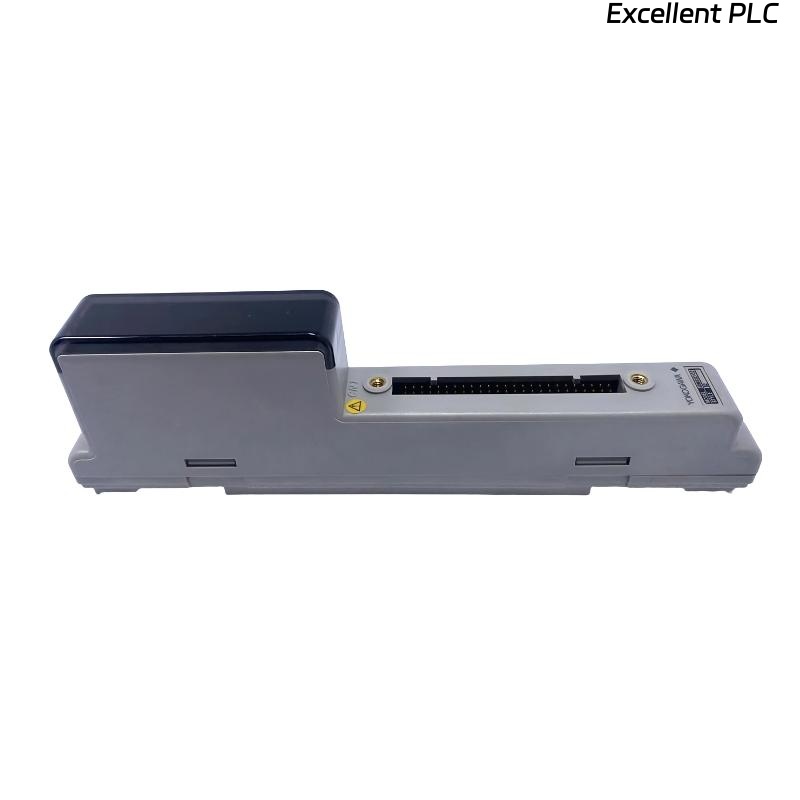

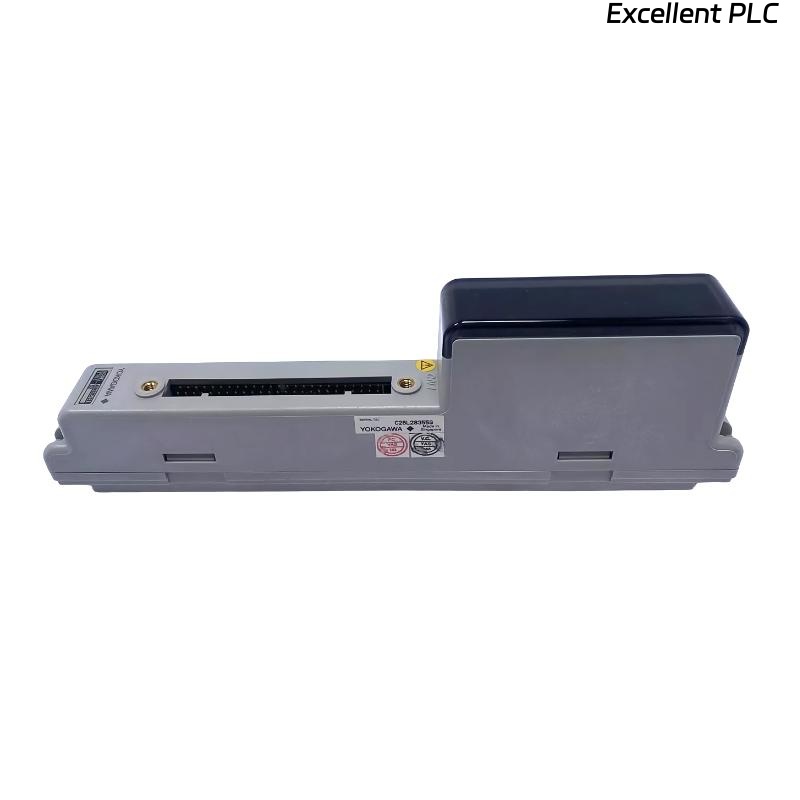

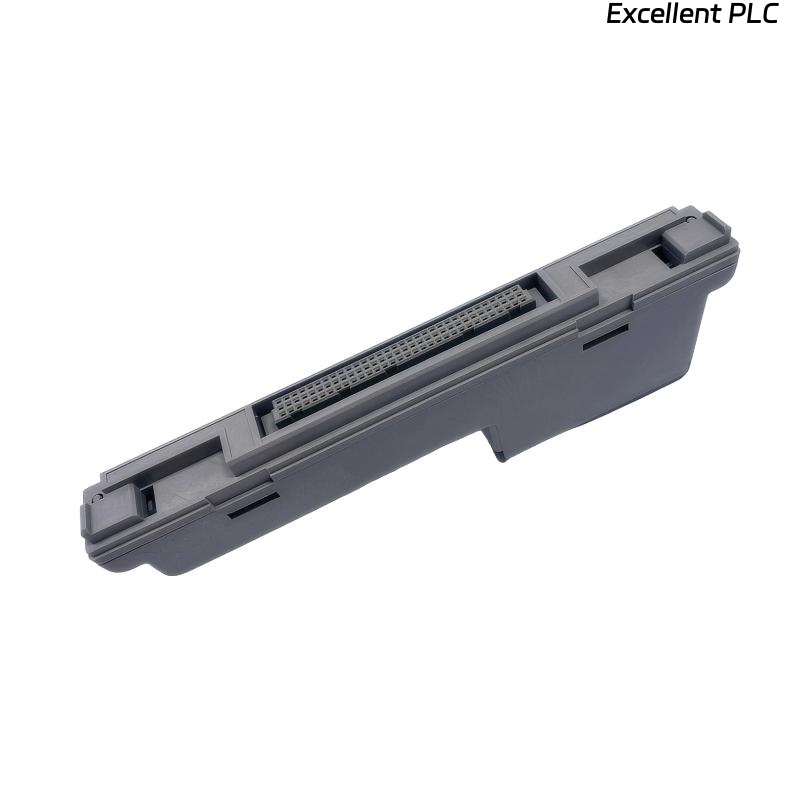

The Yokogawa ADM52C/CE1 S2 Contact Output Module is a high-reliability component designed for use in Yokogawa’s distributed control systems (DCS). It is primarily used for driving external devices through contact outputs, enabling seamless integration with relays, solenoids, and alarms. This module is built with robust isolation, ensuring safe signal transmission while minimizing risks of interference or cross-talk.
As part of Yokogawa’s trusted automation solutions, the ADM52C/CE1 S2 ensures dependable operation under demanding industrial conditions. It delivers high performance for critical control applications, making it widely adopted in industries such as power generation, oil and gas, petrochemicals, and manufacturing automation.
Product Specifications
| Parameter | Description |
|---|---|
| Model | Yokogawa ADM52C/CE1 S2 |
| Function | Contact Output Module |
| Output Type | Relay/Contact output (dry contact switching) |
| Number of Channels | 8 or 16 channels (depending on configuration) |
| Output Rating | Typically 24 V DC / 2 A per channel (resistive load) |
| Isolation | Channel-to-channel and channel-to-system isolation |
| Power Supply Voltage | 24 V DC (±10%) |
| Response Time | < 10 ms (typical) |
| Operating Temperature | 0 to 55 °C |
| Storage Temperature | -20 to 70 °C |
| Humidity | 5% to 95% RH (non-condensing) |
| EMC Compliance | IEC/EN standards compliant |
| Mounting | Mounted on baseplate (Yokogawa system rack) |
| Dimensions | 130 × 100 × 30 mm |
| Weight | 1.5 kg |
Product Applications
The Yokogawa ADM52C/CE1 S2 Contact Output Module is widely used in process automation and control systems. Its primary applications include:
-
Alarm and Event Signaling: Driving external alarm lamps, sirens, or annunciator panels.
-
Relay Control: Interfacing with external relays for controlling higher power loads.
-
Solenoid Actuation: Operating valves and actuators in process control loops.
-
Process Safety Systems: Enabling interlock and emergency shutdown functions.
-
Batch and Sequential Control: Executing step-based operations where discrete control signals are required.
-
General Automation: Integration with field equipment requiring reliable contact closure signals.
Product Advantages
The ADM52C/CE1 S2 offers several advantages that make it a preferred choice in industrial automation:
-
High Reliability: Designed for continuous operation in critical control environments.
-
Robust Isolation: Ensures electrical safety and minimizes interference between channels.
-
Fast Response: Quick signal switching for time-sensitive applications.
-
Flexible Integration: Compatible with Yokogawa DCS platforms such as CENTUM CS 3000/VP.
-
Scalability: Multiple modules can be used to expand contact output capacity.
-
Low Maintenance: Modular design simplifies replacement and reduces downtime.
-
Industrial-Grade Durability: Capable of operating in harsh conditions with high immunity to environmental stress.
FAQ
-
What is the typical response time of the ADM52C/CE1 S2 contact outputs?
The module responds within 10 ms under normal conditions. -
Are the contact outputs isolated from each other?
Yes, each channel is isolated to prevent cross-talk and ensure reliable operation. -
What types of loads can the module control directly?
It is suitable for resistive and inductive loads within rated limits (e.g., relays, solenoids, alarms). -
Can the module handle inductive loads without additional protection?
For inductive loads, external snubbers or flyback diodes are recommended to protect contacts. -
How is the module connected within the Yokogawa system?
It mounts on the system rack baseplate and interfaces with the processor via the backplane bus. -
Does the module support fail-safe output states?
Yes, it can be configured to switch to predefined fail-safe states during system failures. -
What is the maximum switching current supported per channel?
Up to 2 A at 24 V DC (resistive load), depending on system configuration. -
Is hot-swapping supported for this module?
It depends on the system rack configuration; typically, Yokogawa modules support guided replacement under controlled conditions. -
How does the module ensure EMC compliance?
The design complies with IEC/EN standards for electromagnetic compatibility. -
Can this module be used in safety instrumented systems (SIS)?
It can be applied in safety systems when used within rated specifications and certified architectures.
