Product Introduction

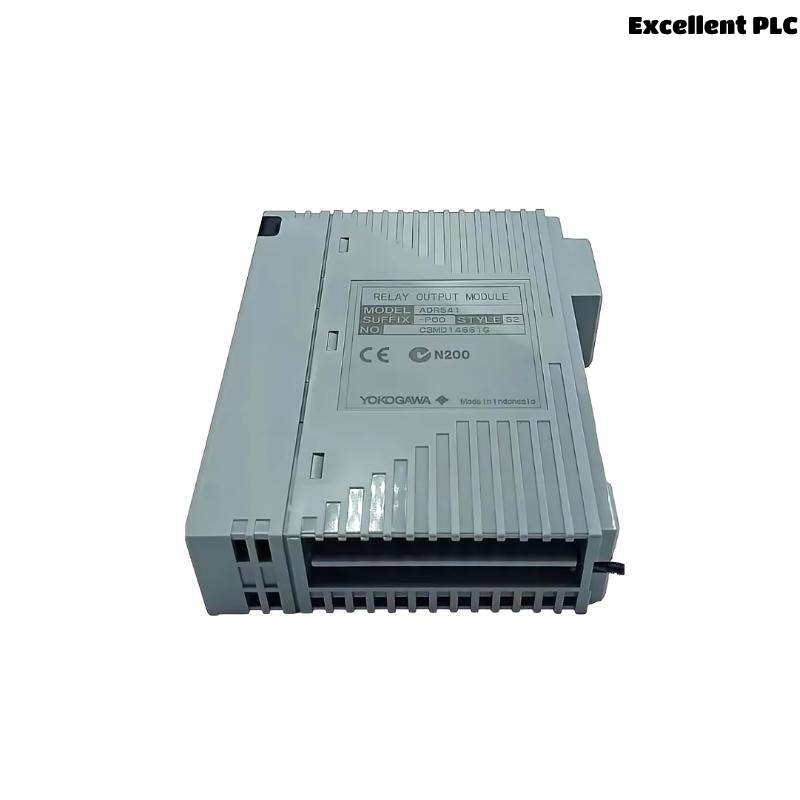

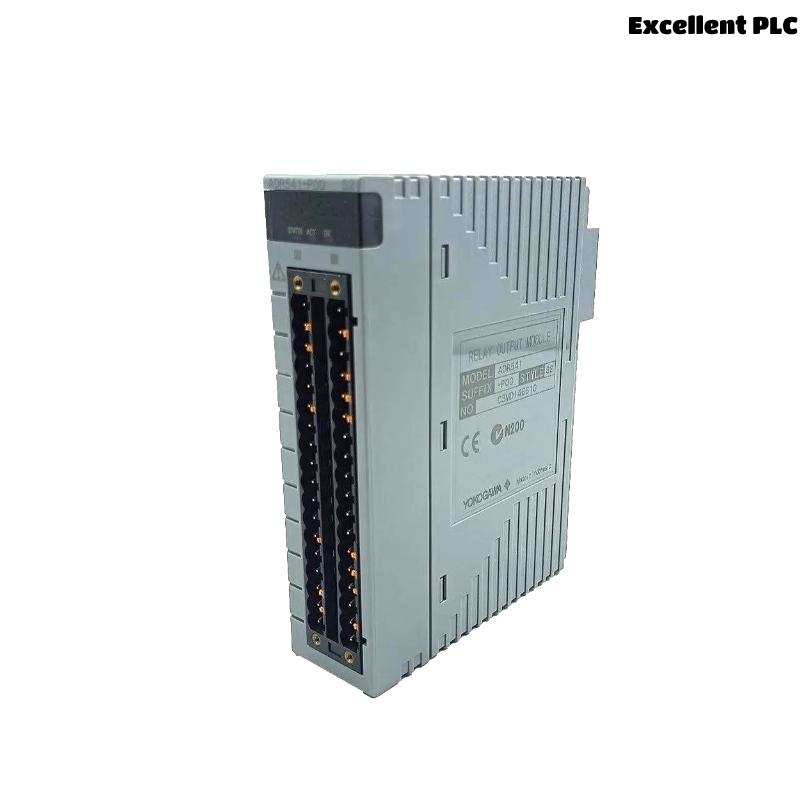

The Yokogawa ADR541-P00 is a high-performance relay output module designed for robust, reliable operation in distributed control systems (DCS). Engineered by Yokogawa, a global leader in industrial automation and process control, this module serves as a critical component for switching and controlling field devices in various industrial applications.
With its relay-based switching mechanism, the ADR541-P00 offers superior electrical isolation and noise immunity, making it suitable for use in demanding industrial environments. The module is tailored to seamlessly integrate with the Yokogawa CENTUM VP and ProSafe-RS control systems, ensuring stability, safety, and process efficiency.
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | ADR541-P00 |
| Type | Relay Output Module |
| Output Type | Mechanical Relay (Form A) |
| Number of Output Channels | 16 channels |
| Rated Load | 2 A at 30 V DC or 2 A at 250 V AC |
| Contact Life (Electrical) | 100,000 operations minimum (at rated load) |
| Contact Life (Mechanical) | Over 10 million operations |
| Isolation | Optical and mechanical isolation between field and logic |
| Response Time | Typically <10 ms |
| Power Supply Voltage | Supplied by base plate or backplane |
| Mounting Type | Rack-mounted |
| Status Indication | LED per channel |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | -20 to 70 °C |
| Humidity | 5% to 95% RH (non-condensing) |
| Shock Resistance | 10 G |
| Vibration Resistance | 5 to 9 Hz, amplitude 3.5 mm; 9 to 150 Hz, 9.8 m/s² |
| Protection Rating | IP00 (module); system-dependent with enclosure |
| Dimensions | 130 x 32.8 x 107.5 mm |
| Weight | 0.3 kg |
| Certifications | CE, CSA, ATEX (depending on configuration) |
Applications
The ADR541-P00 is engineered for use in a variety of industrial sectors that require precise and safe relay-based switching. Key application areas include:
-
Oil and Gas Processing Plants – Reliable control of pumps, valves, and motors.
-
Chemical Plants – Managing interlocks and control signals to chemical dosing equipment.
-
Power Generation Facilities – Interface for circuit breakers, alarms, and process interlocks.
-
Water and Wastewater Treatment – Relay-based actuation of aerators, pumps, and valves.
-
Pharmaceutical Manufacturing – Integration with GMP-compliant control architectures.
-
Pulp and Paper Industry – Control and safety interlock for conveyors and cutters.
Product Advantages
-
High Reliability: Mechanical relays are proven for long-term durability and predictable operation.
-
Isolation Safety: Excellent field-to-control system isolation protects against surges and noise.
-
Modular Design: Easy to integrate and replace without disturbing adjacent modules.
-
System Compatibility: Fully supports Yokogawa’s control systems for consistent performance.
-
Status Indication: Per-channel LED status simplifies troubleshooting and diagnostics.
-
Robust Build: Designed to meet industrial-grade vibration and shock standards.
-
Versatile Operation: Capable of handling both AC and DC loads up to 2 A.
-
Fail-Safe Design: Contact design ensures safe shutdown or controlled recovery on failure.
-
Compliance Ready: Available with ATEX, CE, and CSA certifications for global operations.
Frequently Asked Questions (FAQ)
-
Q: What control systems is the ADR541-P00 compatible with?
A: It is primarily designed for Yokogawa’s CENTUM VP and ProSafe-RS systems. -
Q: How many outputs does the module support?
A: The ADR541-P00 supports 16 relay output channels. -
Q: Can this module handle both AC and DC loads?
A: Yes, it can switch up to 2 A at either 30 V DC or 250 V AC. -
Q: What kind of isolation is used between field and control?
A: It uses a combination of mechanical relay and optical isolation. -
Q: Does it provide any form of indication for output status?
A: Yes, each output channel has an individual status LED. -
Q: Is the module hot-swappable?
A: It depends on the system architecture, but typically it supports maintenance replacement with minimal downtime. -
Q: What is the module’s expected mechanical life?
A: Over 10 million operations. -
Q: Is the ADR541-P00 certified for hazardous area use?
A: Certain configurations are available with ATEX and CSA certifications. -
Q: What is the weight of the module?
A: 0.3 kg. -
Q: Can it be used in high-vibration environments?
A: Yes, it complies with vibration and shock standards suitable for industrial use.
Related Models from the Same Series or Family
| Model Number | Output Type | Channels | Load Capacity | Notes |
|---|---|---|---|---|
| ADR541-P10 | Relay Output | 16 | 2 A @ 250 VAC | Enhanced EMI shielding |
| ADV551-P00 | Analog Output | 8 | 4–20 mA | Analog signal control |
| ADM551-P00 | Digital Input | 16 | 24 V DC | High-speed digital input |
| ADV161-P00 | Analog Output | 4 | Voltage/Current Select | Precise analog modulation |
| ADM161-P00 | Digital Input | 8 | 24 V DC | Compact input module |
| AAI543-P00 | Analog Input | 16 | 4–20 mA | High-accuracy signal capture |
