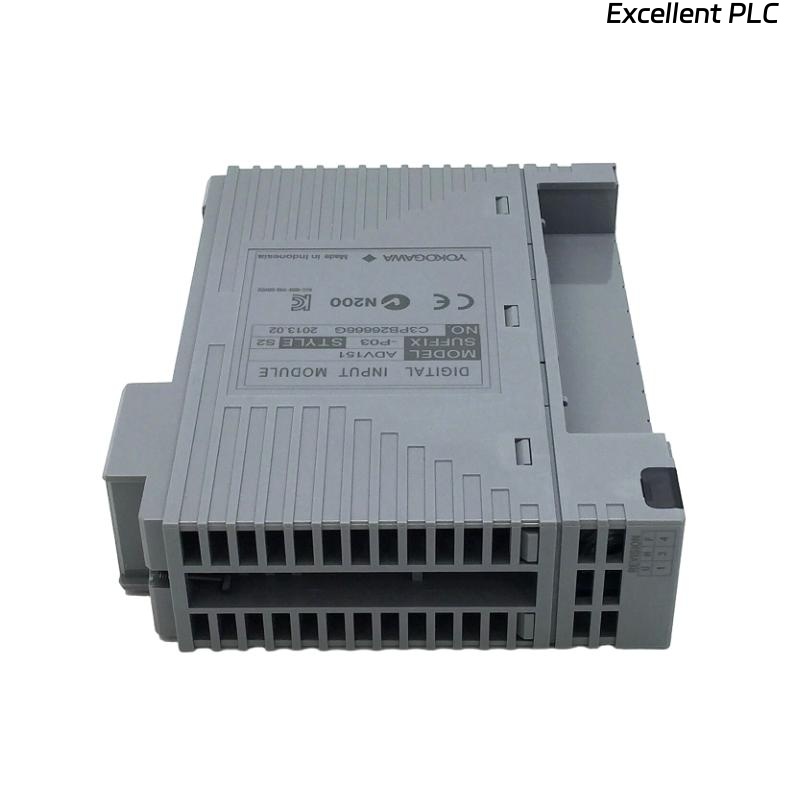

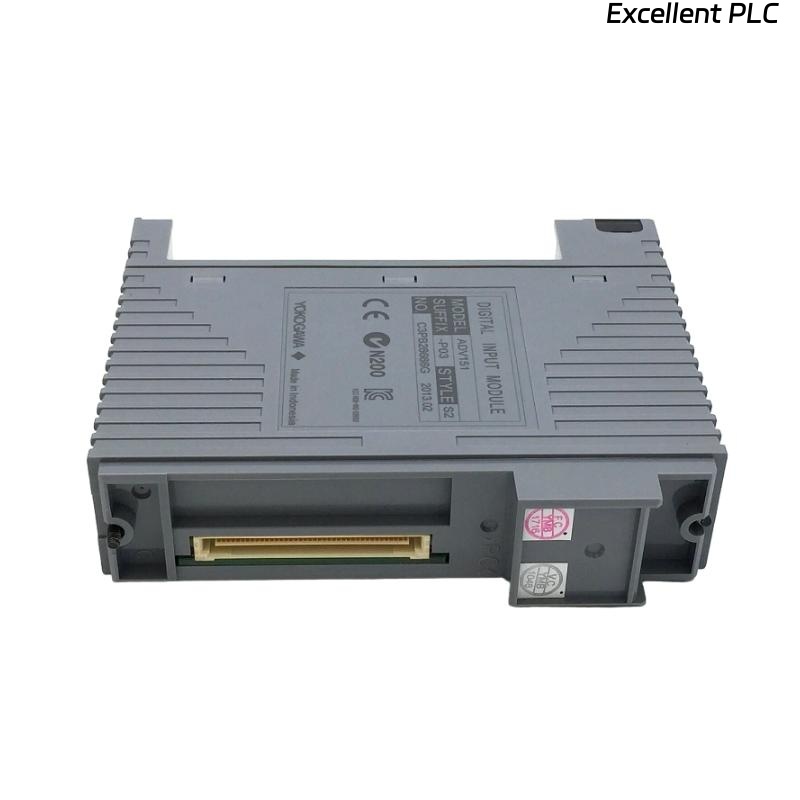

The Yokogawa ADV151-D132 Digital Input Module is a high-performance I/O module designed for advanced industrial automation and process control systems. It provides reliable digital signal acquisition from field devices such as limit switches, proximity sensors, and push-button stations, ensuring precise data collection for distributed control systems (DCS) and programmable logic controllers (PLC). Built with robust electronics and high-density input capacity, the ADV151-D132 offers superior noise immunity, quick response, and stable operation in harsh industrial environments such as power generation plants, petrochemical complexes, and large-scale manufacturing facilities. Its compact size and modular design simplify installation, maintenance, and system expansion.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | ADV151-D132 |
| Type | Digital Input Module |
| Input Channels | 32 isolated digital inputs |
| Input Voltage Range | 24 V DC nominal (19–30 V DC operating range) |
| Input Current | 6 mA typical per channel |
| Isolation | Optical isolation between field and logic circuits |
| Input Filtering | 1–10 ms configurable debounce |
| Update Rate | <5 ms scanning time |
| Logic Levels | ON ≥ 15 V DC, OFF ≤ 5 V DC |
| Diagnostics | Channel status indication and self-diagnostics |
| Power Consumption | Approx. 5 W |
| Dimensions | 107.5 × 130 × 32.8 mm |
| Weight | 0.3 kg |
| Operating Temperature | –20 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity | 10–90 % RH non-condensing |
| Mounting | DIN-rail or panel mount |
| Compliance | CE, RoHS, and IEC industrial standards |
Applications
-
Process Automation: Interfaces with field devices in chemical, oil & gas, and water treatment plants.
-
Power Generation: Captures critical status signals from circuit breakers, valves, and turbines.
-
Factory Automation: Handles discrete input from sensors and switches on production lines.
-
Safety Systems: Monitors emergency stop circuits, alarms, and interlocks.
-
Building Management: Integrates with HVAC systems, lighting, and security equipment.
-
Infrastructure Monitoring: Used in transportation, energy distribution, and public utility control systems.
Advantages
-
High Channel Density: 32 digital inputs reduce panel space and simplify wiring.
-
Robust Electrical Isolation: Optical isolation improves system safety and protects control logic.
-
Flexible Input Filtering: Adjustable debounce time eliminates false triggering from electrical noise.
-
Fast Response Time: <5 ms scan time supports real-time control applications.
-
Reliable Diagnostics: Built-in LED indicators and self-diagnostics provide easy status monitoring.
-
Modular Design: Enables quick replacement or system expansion without extensive downtime.
-
Wide Operating Range: Performs reliably in demanding industrial environments.
-
Low Power Consumption: Energy-efficient design lowers operating costs.
FAQ
-
What is the nominal input voltage for the ADV151-D132?
It operates at a nominal 24 V DC with an acceptable range of 19–30 V DC for flexible field wiring. -
How many digital inputs are supported?
The module supports 32 isolated digital input channels for high-density applications. -
Is the module optically isolated?
Yes, each input channel is optically isolated to protect control logic from field voltage spikes. -
What is the typical input current per channel?
Each channel typically draws about 6 mA at 24 V DC. -
Can the input filter be adjusted?
Yes, a configurable debounce filter of 1–10 ms helps avoid false signals from noise. -
What is the update or scan rate of the module?
The module provides a fast update rate of less than 5 ms for real-time monitoring. -
How are channel states indicated?
Each channel has an LED indicator showing ON/OFF status for easy diagnostics. -
Is it compatible with Yokogawa DCS systems?
Yes, it is fully compatible with Yokogawa CENTUM and other Yokogawa DCS platforms. -
Does the module include self-diagnostics?
Yes, internal self-check functions continuously monitor module health. -
What mounting options are available?
It can be mounted on a DIN rail or directly to a control panel for flexible installation.
