Product Introduction

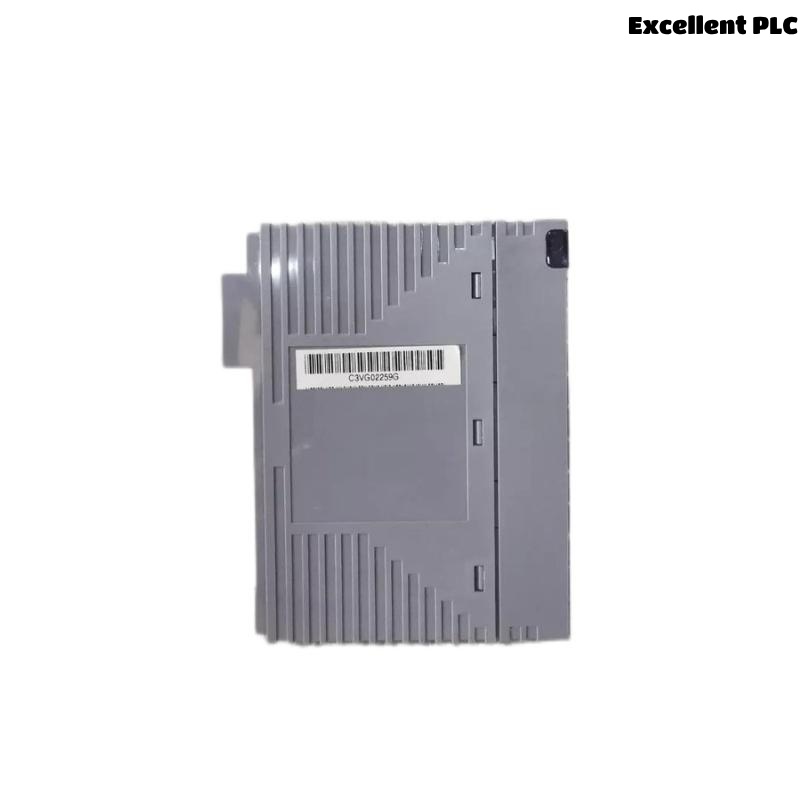

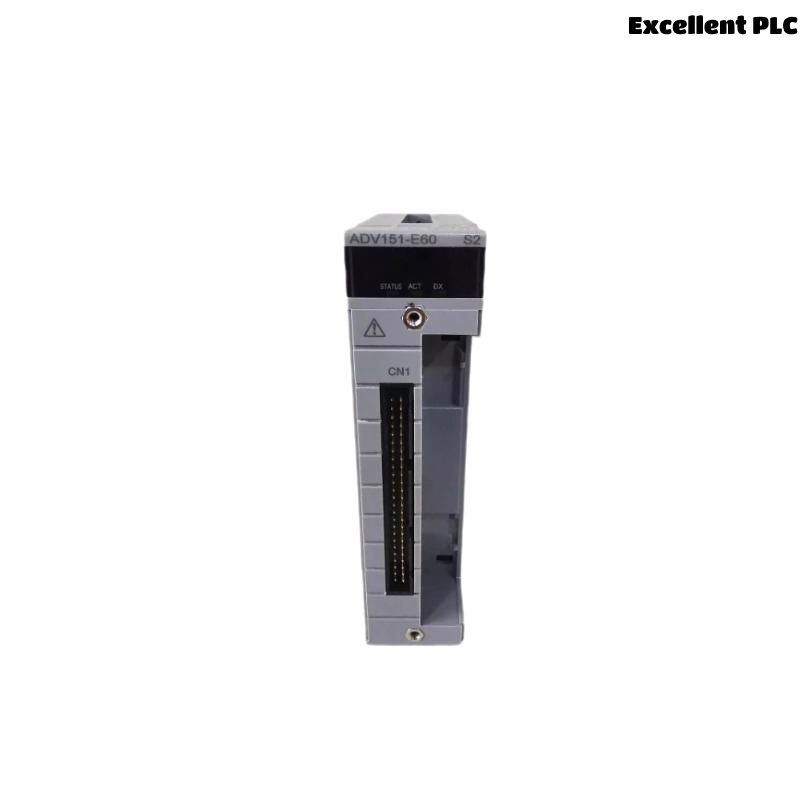

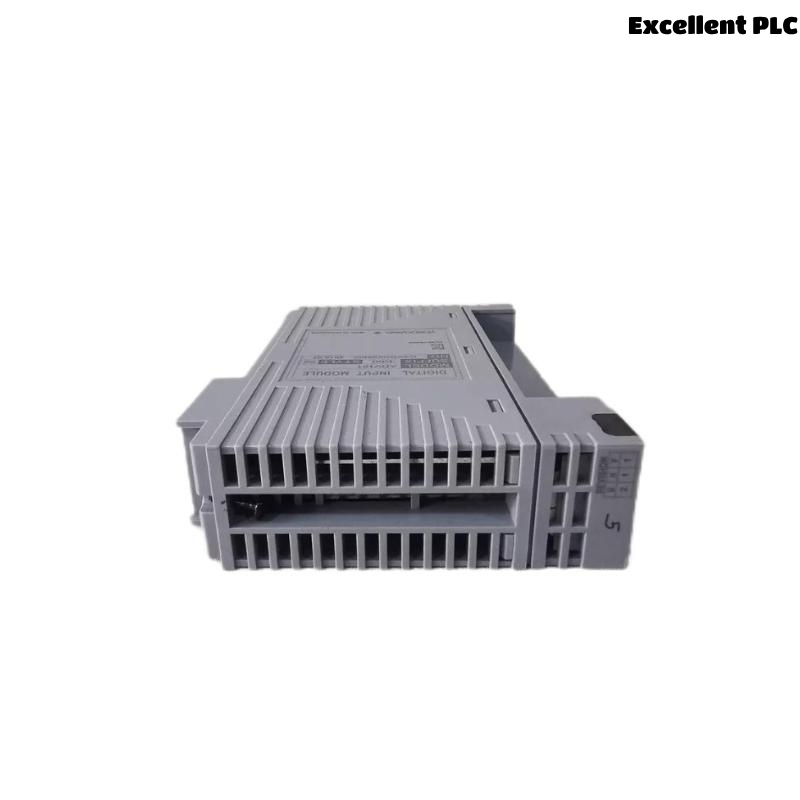

The Yokogawa ADV151-E60 is a state-of-the-art 16-channel digital input module designed for the CENTUM VP and ProSafe-RS automation and safety systems. It serves as a reliable interface for the acquisition of binary signals from various field devices such as switches, sensors, and relay contacts. The module is built to meet the demanding requirements of process control and safety applications, ensuring accurate and timely signal processing.
Engineered with a focus on operational reliability and safety compliance, the ADV151-E60 supports advanced diagnostics, channel-level isolation, and hot-swappable features. These capabilities make it an essential component in environments where uptime, safety integrity, and precise monitoring are critical, including oil and gas, power generation, chemical processing, and marine industries.
Product Specifications
| Specification | Details |
|---|---|
| Model | ADV151-E60 |
| Manufacturer | Yokogawa Electric Corporation |
| Product Category | Digital Input Module |
| Compatible Systems | CENTUM VP, ProSafe-RS |
| Number of Input Channels | 16 |
| Input Signal Type | Dry contact / Open collector |
| Rated Input Voltage | 24 V DC (range 18 V to 32 V DC) |
| Input Impedance | Approximately 4.7 kΩ |
| ON Voltage Threshold | ≥ 15 V DC |
| OFF Voltage Threshold | ≤ 5 V DC |
| Input Filter Time | Selectable: 1 ms or 10 ms |
| Channel Isolation | Individual optical isolation |
| Redundancy Support | Supported |
| Hot Swap Capability | Yes |
| Diagnostic Features | Loop test, open circuit detection, channel status monitoring |
| Fail-Safe Mode | Configurable per channel |
| Module Status Indicators | LED per channel + overall module status LED |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Humidity | 5% to 95% RH (non-condensing) |
| Vibration Resistance | 10 to 60 Hz, 0.7 mm amplitude, continuous |
| Shock Resistance | 10 m/s² |
| Mounting Method | DIN-rail mounting on base terminal units |
| Dimensions (H × W × D) | 107.5 × 130 × 32.8 mm |
| Weight | 0.3 kg |
| Certifications | CE, KC, ATEX, SIL2/SIL3 (when used in safety system) |
Product Applications
-
Petrochemical and Refining Plants: Utilized for monitoring emergency shutdown switches, valve position feedback, and safety interlock statuses.
-
Power Generation Facilities: Provides digital input for breaker status, turbine protection switches, and safety system alarms.
-
Offshore Platforms and Marine Installations: Designed to withstand harsh environments while accurately detecting critical binary signals.
-
Manufacturing Automation: Facilitates the monitoring of equipment status, safety interlocks, and operator pushbuttons.
-
Water and Wastewater Treatment: Used for digital feedback from pump starters, level switches, and valve actuators.
-
Pharmaceutical Industry: Supports batch control systems with precise, reliable discrete input acquisition to ensure safe process control.
Product Advantages
-
Safety Compliance: Fully compatible with SIL2 and SIL3 levels when integrated with ProSafe-RS, meeting stringent safety standards.
-
High Reliability: Channel-level isolation and diagnostics reduce failure risks and enhance system availability.
-
Fast Signal Processing: Selectable input filter times optimize responsiveness without sacrificing noise immunity.
-
Advanced Diagnostics: Includes loop testing and open circuit detection for proactive maintenance and fault identification.
-
Hot Swappable: Enables module replacement without interrupting system operation, minimizing downtime.
-
Compact Design: Small footprint saves valuable control room space while maintaining ease of access.
-
Clear Visual Indications: Individual LEDs for each channel simplify troubleshooting and operational monitoring.
-
Robust Construction: Designed to withstand vibration, shock, and industrial environmental stresses.
-
Wide Operating Conditions: Supports operation across a broad temperature and humidity range.
-
Flexible Deployment: Suitable for both conventional and hazardous area installations due to global certifications.
Frequently Asked Questions (FAQ)
-
What type of signals does the ADV151-E60 accept?
It accepts dry contact and open collector input signals typically at 24 V DC. -
Is the module suitable for use in safety-related applications?
Yes, it meets SIL2 and SIL3 requirements when used with the ProSafe-RS safety system. -
Can the ADV151-E60 be replaced without shutting down the system?
Yes, it supports hot swapping for seamless module replacement. -
Does the module provide diagnostic feedback?
Yes, it offers loop tests, open circuit detection, and channel status indicators. -
How are input signals isolated?
Each input channel is individually optically isolated for maximum noise immunity. -
What is the operating temperature range of the module?
The module operates between 0°C and 60°C. -
What physical size does the module have?
It measures 107.5 × 130 × 32.8 mm. -
How many input channels are available?
There are 16 digital input channels. -
What is the power supply voltage for input signals?
Rated input voltage is 24 V DC, with an operating range from 18 V to 32 V DC. -
Can the input filter time be adjusted?
Yes, the filter time can be selected between 1 ms and 10 ms to balance noise filtering and responsiveness.
Related Models (Same Series or Similar Functionality)
| Model Number | Description | Channels | Key Features |
|---|---|---|---|
| ADV151-E00 | Standard 16-channel digital input module | 16 | Basic diagnostic functions |
| ADV151-E50 | Digital input module with enhanced diagnostics | 16 | Channel-level fault detection |
| ADV151-E70 | High-performance digital input with SIL3 support | 16 | Advanced safety diagnostics |
| ADV551-E03 | High-speed digital input module | 16 | Fast response time |
| ADV101-E00 | Compact 8-channel digital input module | 8 | Space-saving design |
| ADV161-E00 | Dual redundant 16-channel digital input module | 16 | Supports redundancy configuration |
