Product Introduction

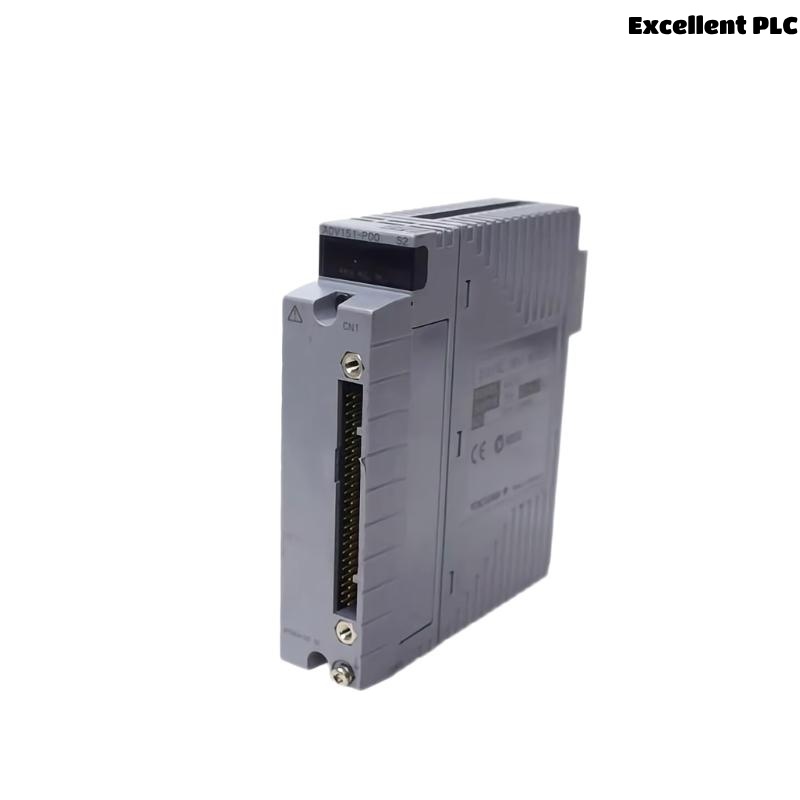

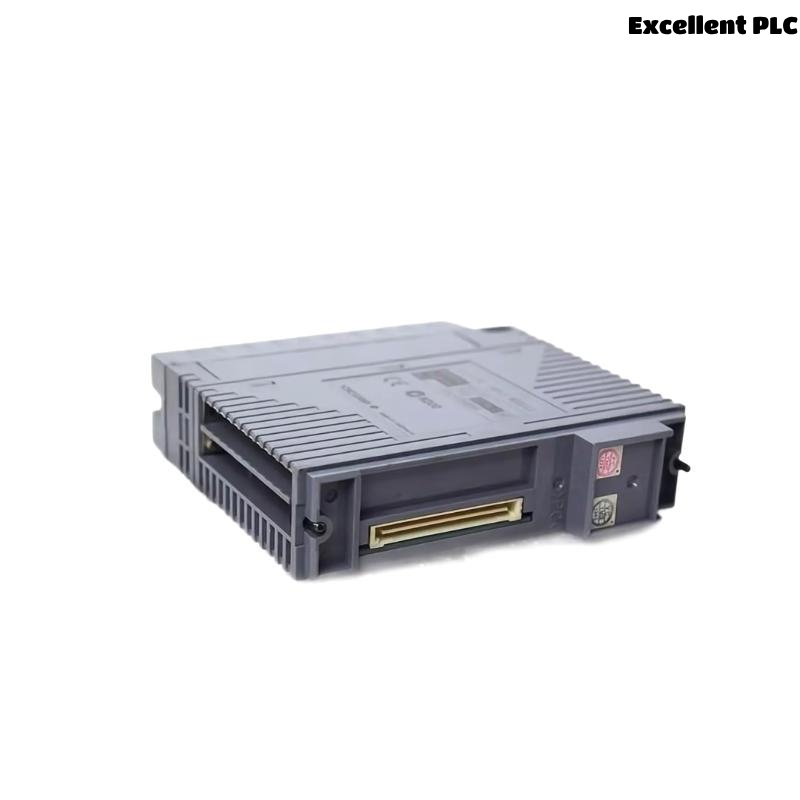

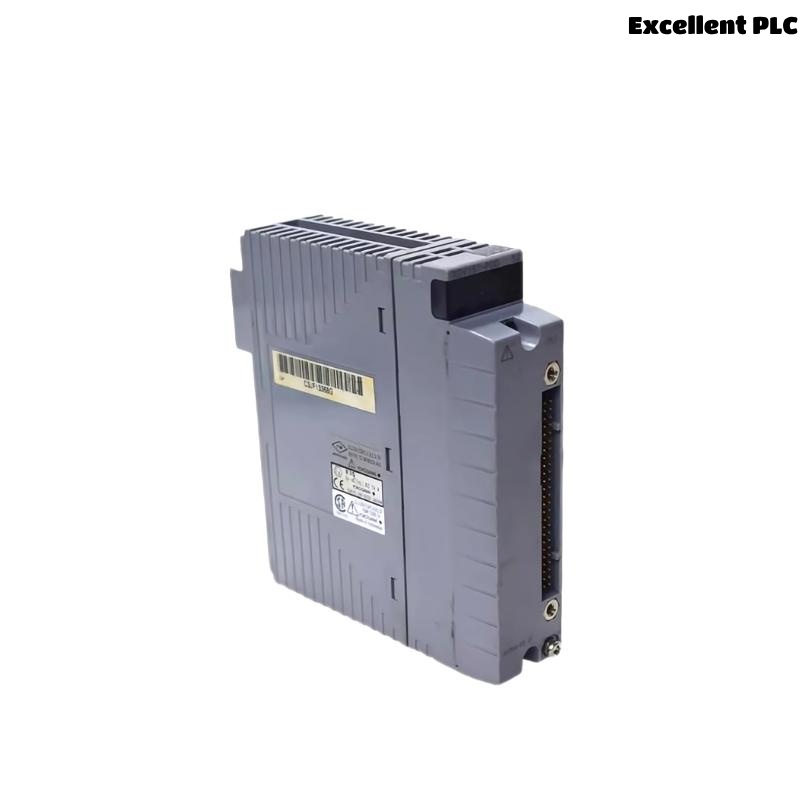

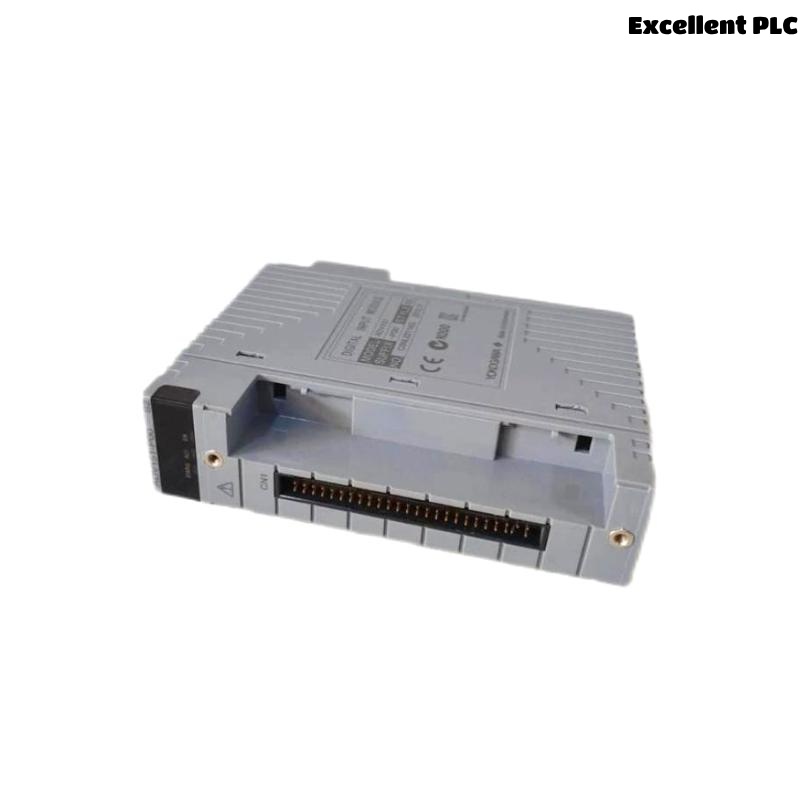

The Yokogawa ADV151-P00 S2 ATD5A-00 is a high-performance Digital Input Module engineered to operate within Yokogawa’s CENTUM VP and ProSafe-RS control systems. Designed with robust architecture and dependable signal processing capabilities, it serves a vital role in safely and accurately acquiring digital input signals from field devices. The module is an integral component for use in industries that demand continuous and reliable monitoring, such as oil & gas, petrochemical, power generation, and water treatment.
This module ensures compliance with international industrial automation standards, offering superior signal isolation, fast response times, and reliable diagnostics. The ADV151 module supports 16 channels of digital inputs, operates on a 24 VDC system, and includes contact input capability for various digital field signals such as limit switches, push buttons, and relays.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | ADV151-P00 S2 ATD5A-00 |
| Module Type | Digital Input Module |
| Number of Input Channels | 16 Channels |
| Input Signal Type | Dry Contact / 24 VDC Digital Signal |
| Input Voltage Range | 18 to 30 VDC |
| Input Current | ≤ 4 mA per channel |
| Isolation | Optical isolation between channels and system |
| Input Response Time | Typically ≤ 10 ms |
| Diagnostic Function | Channel diagnosis, wire break detection, short circuit detection |
| Power Consumption | Approx. 3.5 W |
| Communication Interface | Vnet/IP via node unit |
| Operating Temperature Range | 0 to 55°C |
| Storage Temperature Range | -20 to 70°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Mounting Type | Rack-mounted |
| Compatible System | Yokogawa CENTUM VP / ProSafe-RS |
| Certification & Standards | CE, CSA, UL, ATEX (depending on configuration) |
| Dimensions (W x H x D) | 107.5 × 130 × 32.8 mm |
| Weight | 0.3 kg |
Applications
-
Process Automation Systems: Integrates seamlessly into CENTUM VP systems for central control and monitoring of industrial processes.
-
Safety Instrumented Systems (SIS): Compatible with ProSafe-RS, enhancing safety and integrity in critical operations.
-
Energy and Power Plants: Captures input signals from circuit breakers, relays, and interlocks for monitoring and control.
-
Oil & Gas Facilities: Used in upstream and downstream installations for equipment status tracking.
-
Water Treatment Plants: Supports plant-wide automation by gathering input signals from pumps, valves, and sensors.
-
Chemical Processing: Ensures high-reliability input capture from safety-critical field devices.
Advantages
-
High Input Density: Supports 16 channels, enabling compact and cost-effective system design.
-
Robust Diagnostics: Built-in diagnostic features improve maintenance and allow for predictive fault detection.
-
Fast Response: Short input response time ensures real-time data acquisition in critical systems.
-
Reliable Isolation: Optical isolation between channels and the system prevents cross-interference and enhances reliability.
-
Modular Design: Easy to replace and maintain within existing Yokogawa rack systems.
-
Flexible Signal Compatibility: Works with both dry contact and 24 VDC digital signal types.
Frequently Asked Questions (FAQ)
-
What is the primary function of the ADV151-P00 S2 module?
It captures digital signals from field devices and transmits their states to the control system. -
Is this module compatible with ProSafe-RS safety systems?
Yes, it is fully compatible and widely used within Yokogawa’s ProSafe-RS architecture. -
Can I use this module with dry contact inputs?
Absolutely, it supports dry contact inputs and standard 24 VDC digital signals. -
Does the module support hot swapping?
No, modules should be powered down before replacement to ensure safety and prevent damage. -
What diagnostics does this module provide?
It can detect open circuits, short circuits, and wiring faults on individual input channels. -
What is the power consumption of the module?
It consumes approximately 3.5 W under normal operation. -
Is the ADV151 module CE certified?
Yes, it conforms to CE standards along with other relevant industrial certifications. -
How is the module installed?
It is rack-mounted in a Yokogawa system chassis. -
Can it operate in high-humidity environments?
Yes, up to 95% RH, provided it is non-condensing. -
What field devices are typically connected to this module?
Limit switches, emergency stop buttons, relay contacts, and similar binary devices.
Related Models from the Same Series or System
| Model Number | Description | Input Type | Channels | System Compatibility |
|---|---|---|---|---|
| ADV151-P00 S1 | Digital Input Module (S1 version) | 24 VDC | 16 | CENTUM VP, ProSafe-RS |
| ADV151-P03 | Isolated Digital Input Module | 24 VDC | 16 | CENTUM VP |
| ADV161-P00 | Digital Output Module | 24 VDC | 16 | CENTUM VP, ProSafe-RS |
| ADV551-P00 | Analog Input Module | 4–20 mA | 8 | CENTUM VP |
| ADV561-P00 | Analog Output Module | 4–20 mA | 8 | CENTUM VP |
| ATD5A-00 | Terminal Board for ADV151 Module | Signal Interface | N/A | Used with ADV151 |
