Product Overview

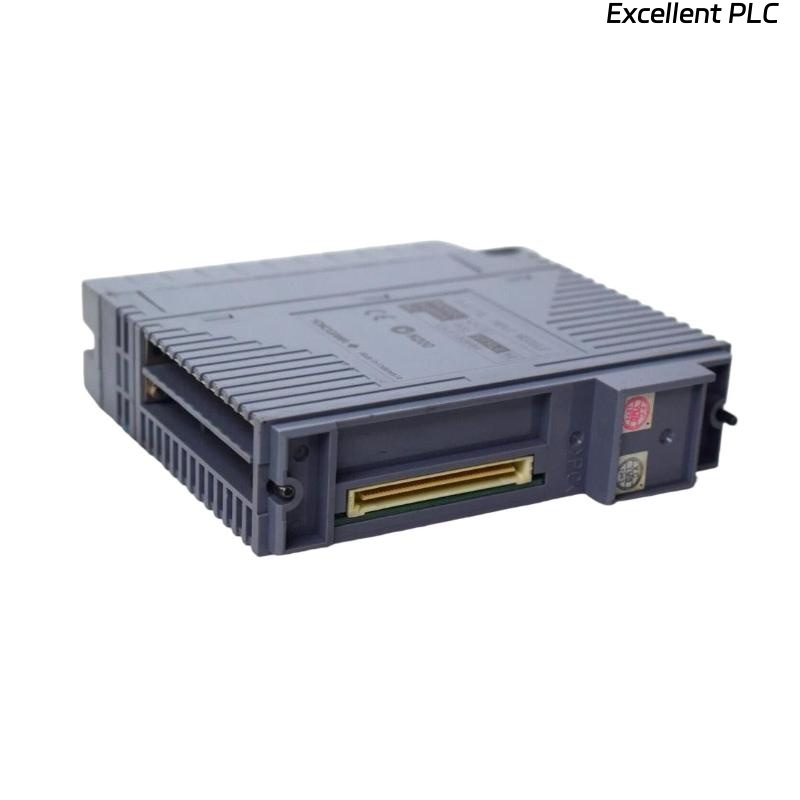

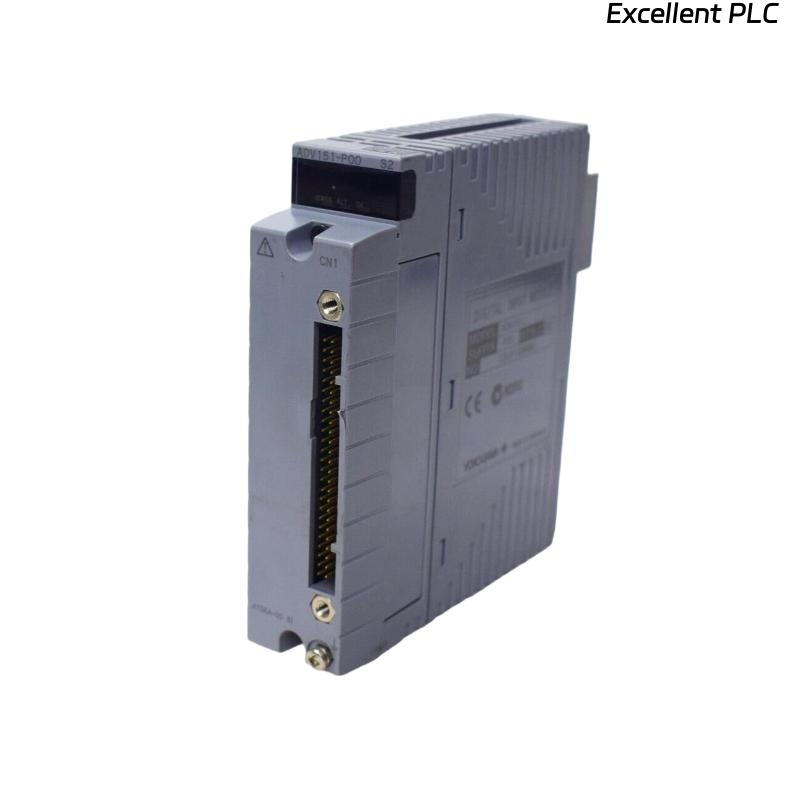

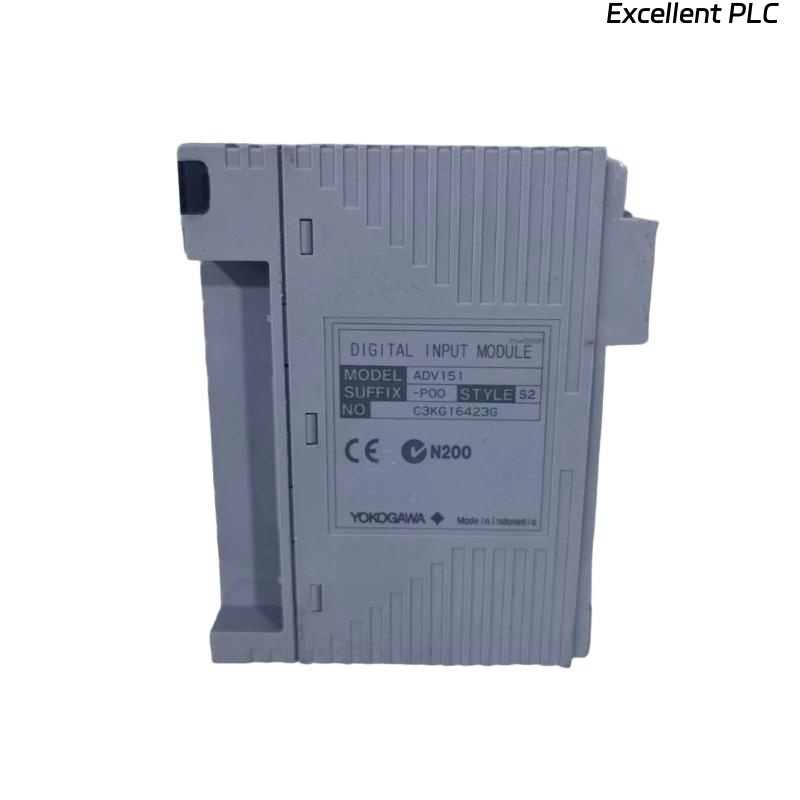

The Yokogawa ADV151-P00 S2 Digital Input Module is designed for high-performance digital signal processing within Yokogawa’s CENTUM and ProSafe-RS control systems. It offers reliable and accurate digital input acquisition from field devices, supporting critical automation and control functions. This module is engineered for durability and stable operation in demanding industrial environments.
Key Features
-
High-speed, reliable digital input acquisition
-
Compatible with Yokogawa CENTUM and ProSafe-RS systems
-
Supports various input signal types
-
Compact design for efficient installation
-
Robust construction for industrial conditions
-
Conforms to international safety and EMC standards
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | ADV151-P00 S2 |
| Module Type | Digital Input Module |
| Input Channels | 16 channels |
| Input Signal Type | Discrete contact input, TTL level |
| Input Voltage Range | 24 VDC nominal |
| Response Time | Typically 10 ms |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Humidity Range | 10% to 90% non-condensing |
| Dimensions | 107.5 × 130 × 32.8 mm |
| Weight | 0.3 kg |
| Safety Certifications | CE, UL |
Industry Applications
-
Process control in oil and gas
-
Chemical manufacturing
-
Power generation
-
Food and beverage processing
-
Pharmaceutical production
-
Water and wastewater treatment
Frequently Asked Questions (FAQ)
Q1: How many input channels does the ADV151-P00 support?
It supports 16 digital input channels.
Q2: What types of input signals are compatible?
Discrete contact inputs and TTL level signals.
Q3: What is the typical response time?
Approximately 10 milliseconds.
Q4: Is the module compatible with Yokogawa control systems?
Yes, it is compatible with CENTUM and ProSafe-RS systems.
Q5: What are the operating temperature limits?
From 0°C to 55°C.
Q6: What are the module dimensions and weight?
Dimensions are 107.5mm × 130mm × 32.8 mm; weight is about 0.3 kg.
Q7: Does the module meet safety standards?
Yes, it is CE and UL certified.
Q8: Can it be used in harsh industrial environments?
Yes, it is designed for industrial use with robust construction.
Q9: How is the module installed?
It fits into the standard Yokogawa rack system for easy installation.
Q10: What maintenance does the module require?
Minimal maintenance; periodic inspection recommended.
