Product Overview

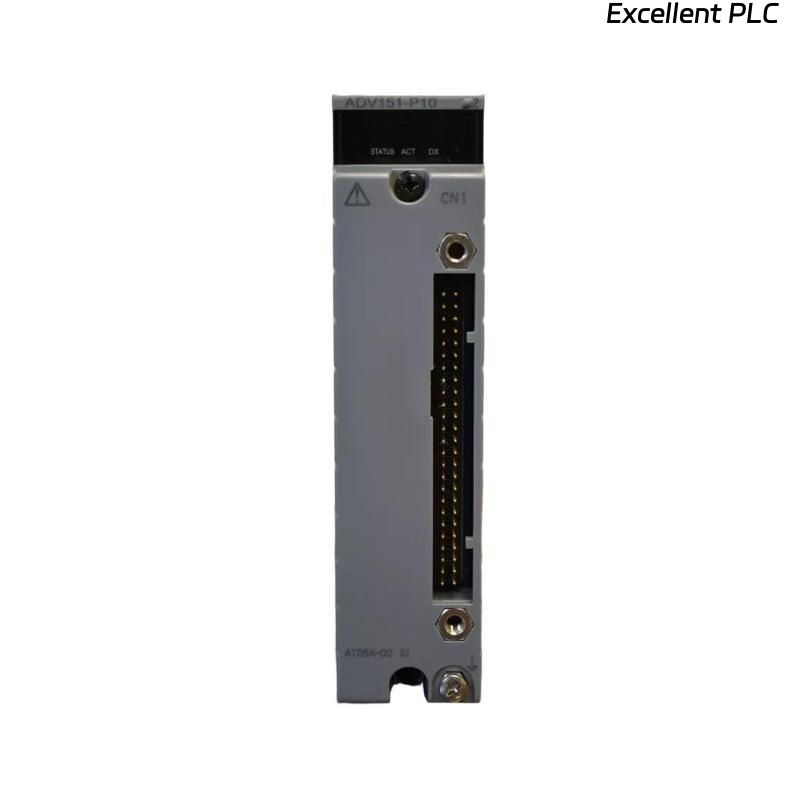

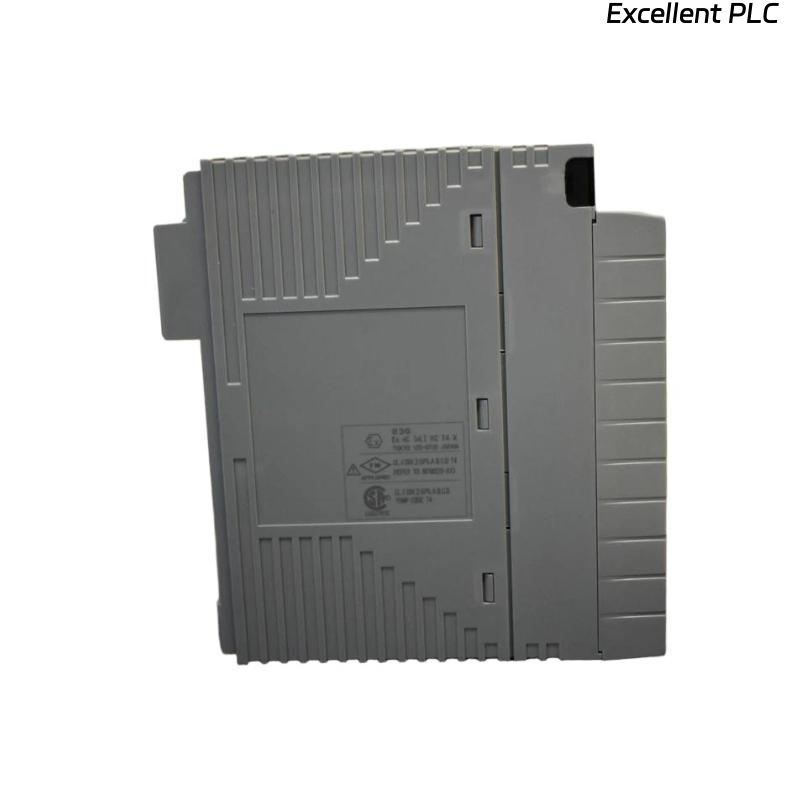

The Yokogawa ADV151-P10/B5S10 Digital Input Module is a high-performance digital input unit designed for use within Yokogawa’s CENTUM and ProSafe-RS control systems. It offers enhanced input processing capabilities with fast response times, providing accurate and reliable digital signal acquisition from field devices. Built for demanding industrial environments, the module ensures stable operation and supports critical automation tasks.
Key Features
-
High-speed digital input processing for rapid signal acquisition
-
Compatible with Yokogawa CENTUM and ProSafe-RS systems
-
Supports 16 discrete input channels
-
Robust design suitable for harsh industrial conditions
-
Compact form factor for efficient rack integration
-
Complies with international safety and electromagnetic compatibility standards
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | ADV151-P10/B5S10 |
| Module Type | Digital Input Module |
| Input Channels | 16 channels |
| Input Signal Type | Discrete contact input, TTL level |
| Input Voltage Range | 24 VDC nominal |
| Response Time | Typically 5 ms |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Humidity Range | 10% to 90% non-condensing |
| Dimensions | 107.5 × 130 × 32.8 mm |
| Weight | 0.3 kg |
| Safety Certifications | CE, UL |
Industry Applications
-
Process automation in oil and gas
-
Chemical manufacturing plants
-
Power generation facilities
-
Food and beverage processing industries
-
Pharmaceutical production
-
Water and wastewater treatment plants
Frequently Asked Questions (FAQ)
Q1: How many input channels does the ADV151-P10/B5S10 support?
It supports 16 digital input channels.
Q2: What type of input signals are accepted?
Discrete contact inputs and TTL level signals.
Q3: What is the response time of the module?
Typically 5 milliseconds.
Q4: Is this module compatible with Yokogawa control systems?
Yes, it is designed for CENTUM and ProSafe-RS systems.
Q5: What are the operating temperature limits?
From 0°C to 55°C.
Q6: What are the module’s dimensions and weight?
Dimensions: 107.5mm × 130mm × 32.8 mm; Weight: approx. 0.3 kg.
Q7: Does it meet international safety standards?
Yes, it is CE and UL certified.
Q8: Can it operate in harsh industrial environments?
Yes, it is built for reliable operation under demanding conditions.
Q9: How is the module installed?
It fits into Yokogawa’s standard rack system for straightforward installation.
Q10: What maintenance is required?
Minimal maintenance; routine inspection is recommended.
Related Models
| Model Number | Description |
|---|---|
| ADV151-P00 S2 | Digital Input Module (Standard Speed) |
| ADV153-P00 S2 | Digital Output Module |
| ADV156-P00 S2 | Analog Input Module |
| ADV157-P00 S2 | Analog Output Module |
| ADV160-P00 S2 | Communication Interface Module |
| ADV151-P10/B5S20 | Digital Input Module (Enhanced Version) |
