Product Introduction

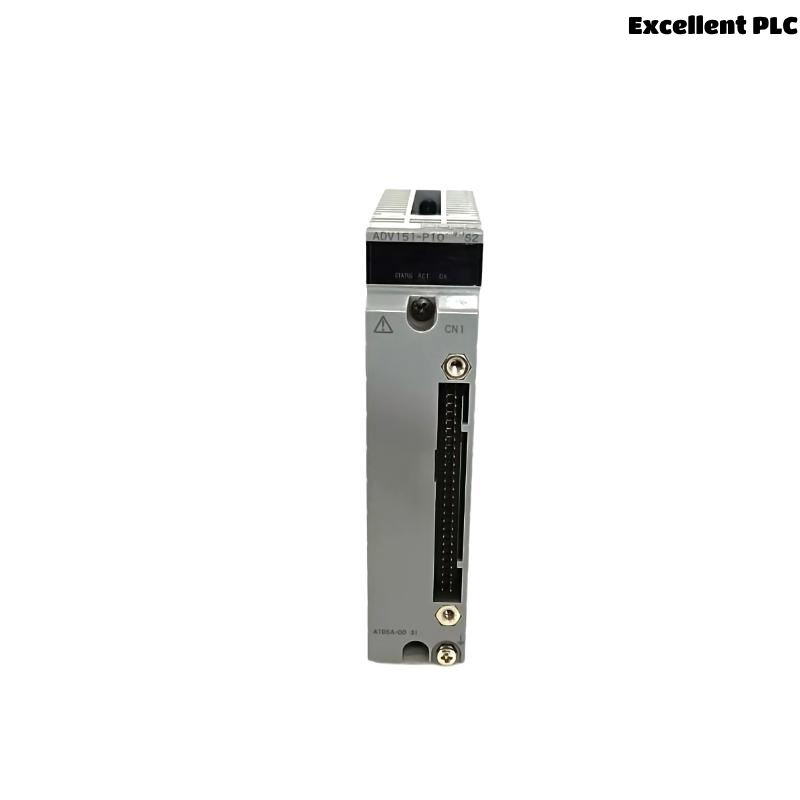

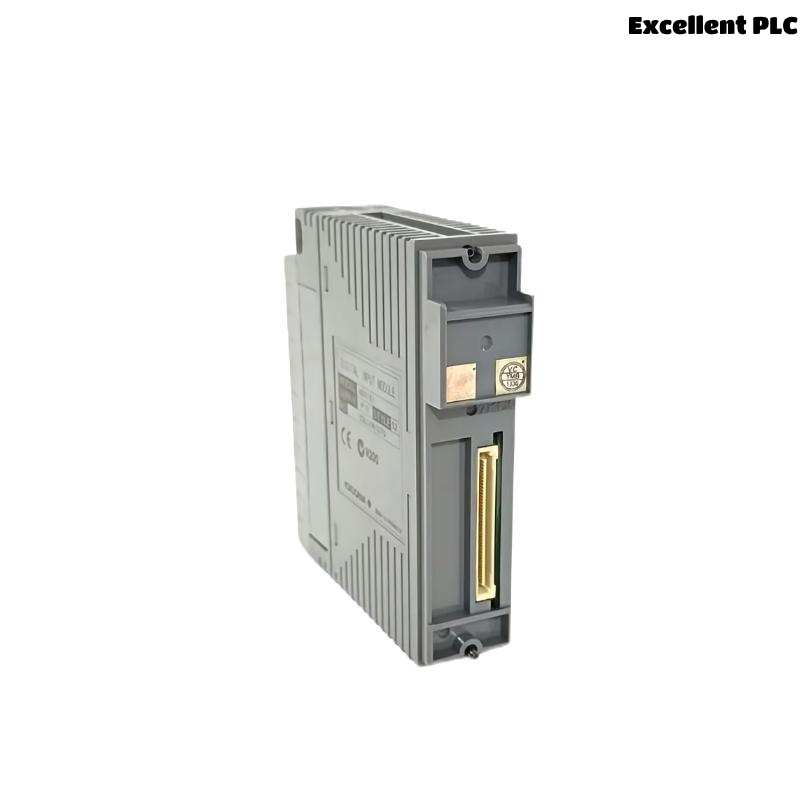

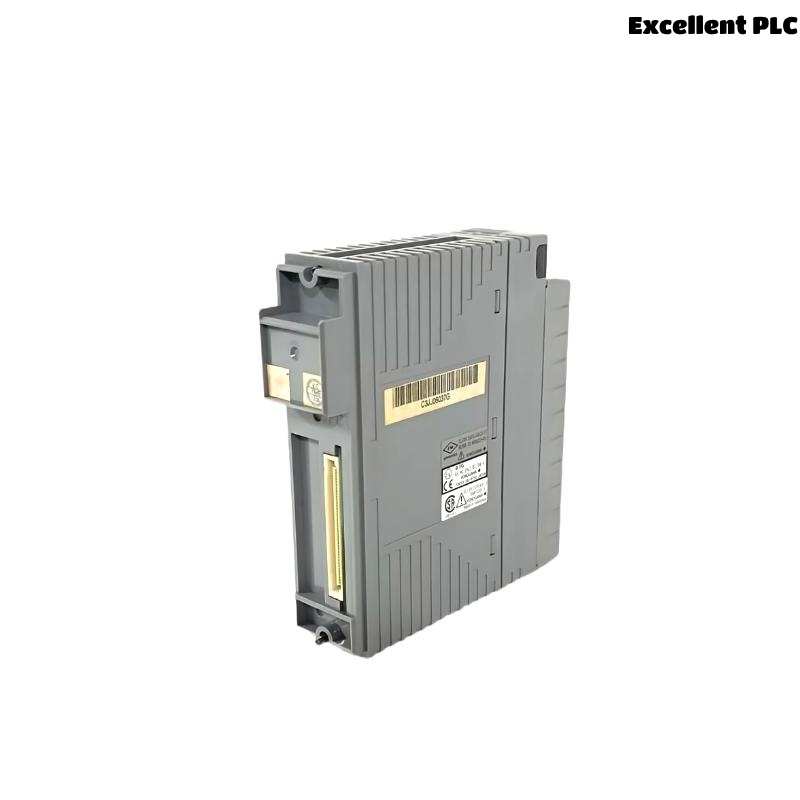

The Yokogawa ADV151-P10 is a high-performance digital input module designed for integration into Yokogawa’s CENTUM VP and related distributed control systems (DCS). Engineered with precision and reliability, this module provides accurate detection and processing of multiple digital signals within industrial automation environments. It supports the seamless acquisition of binary input data, enabling operators to monitor and control various field devices such as switches, contactors, and safety interlocks.
This module is well-suited for industries requiring stable, responsive digital input channels with robust noise immunity and minimal downtime. Its modular design and compatibility with Yokogawa’s advanced control platforms make it an essential component for building scalable, efficient, and highly available control systems.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | ADV151-P10 |
| Module Type | Digital Input Module |
| Number of Inputs | 16 channels |
| Input Signal Type | Dry contact / NAMUR sensor input |
| Input Voltage Range | 24 V DC nominal |
| Response Time | ≤ 10 ms |
| Isolation Voltage | 1500 Vrms between channels and system |
| Communication Protocol | Proprietary Yokogawa DCS communication |
| Power Consumption | Approx. 3.5 W |
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
| Humidity | 5% to 95% RH, non-condensing |
| Dimensions (H x W x D) | 107.5 × 130 × 32.8 mm |
| Weight | 0.3 kg |
| Mounting Type | Rack-mounted |
Product Applications
-
Process Automation: Ideal for integrating discrete field signals into large-scale process control systems in chemical, petrochemical, and pharmaceutical plants.
-
Power Generation: Used in turbine control and plant safety systems to monitor critical digital inputs like alarms and breaker statuses.
-
Water and Wastewater Treatment: Enables reliable monitoring of valve positions, pump status, and other on/off digital signals critical for water treatment automation.
-
Oil & Gas: Essential for onshore and offshore platform control systems to capture signals from safety interlocks and emergency shutdown devices.
-
Manufacturing Automation: Supports production line equipment status monitoring and fault detection through digital input monitoring.
-
Building Management Systems: Helps monitor and control access systems, HVAC status signals, and lighting controls.
Product Advantages
-
High Reliability: Designed to operate continuously in industrial environments with high noise and vibration levels.
-
Fast Response Time: Digital inputs respond within 10 milliseconds, ensuring timely detection of changes.
-
Robust Isolation: 1500 Vrms isolation voltage protects the control system from electrical noise and surges.
-
Modular Design: Facilitates easy installation, maintenance, and system expansion without extensive downtime.
-
Compatibility: Seamlessly integrates with Yokogawa CENTUM VP and other DCS platforms, simplifying system configuration.
-
Compact Size: Space-saving form factor reduces cabinet footprint, allowing denser packing of modules.
-
Energy Efficient: Low power consumption helps reduce operational costs over long-term use.
-
Wide Operating Range: Supports a broad temperature and humidity range, suitable for diverse industrial environments.
-
Clear Diagnostics: Built-in diagnostics simplify troubleshooting and maintenance.
-
Proven Technology: Supported by Yokogawa’s global service and support network, ensuring dependable lifecycle management.
Frequently Asked Questions (FAQ)
-
What type of digital signals does the ADV151-P10 accept?
It accepts dry contact and NAMUR sensor signals commonly used in industrial environments. -
How many digital input channels are available on this module?
The module provides 16 independent digital input channels. -
Is the module compatible with all Yokogawa DCS systems?
It is fully compatible with Yokogawa CENTUM VP systems and related control platforms. -
What is the power consumption of the ADV151-P10?
The module consumes 3.5 watts during normal operation. -
Can the module handle high electrical noise environments?
Yes, it features 1500 Vrms isolation between channels and the system to resist electrical interference. -
What is the typical response time for input signal changes?
The response time is 10 milliseconds or less, ensuring rapid detection. -
How is the module mounted?
It is designed for rack mounting within Yokogawa system cabinets. -
What are the operating temperature and humidity ranges?
It operates between 0 to 55°C and 5% to 95% relative humidity, non-condensing. -
Does the module offer diagnostic capabilities?
Yes, it includes built-in diagnostics to monitor input channel health and module status. -
Is the module suitable for use in hazardous areas?
The module itself is not intrinsically safe; however, it is typically installed in safe control cabinets away from hazardous zones.
Related Models from Yokogawa ADV Series
| Model Number | Module Type | Number of Inputs | Operating Temperature | Notes |
|---|---|---|---|---|
| ADV151-P20 | Digital Input Module | 32 channels | 0 to 55°C | Extended input count |
| ADV152-P10 | Digital Output Module | 16 channels | 0 to 55°C | Complementary digital output |
| ADV153-P10 | Analog Input Module | 8 channels | 0 to 55°C | Analog signal acquisition |
| ADV154-P10 | Analog Output Module | 8 channels | 0 to 55°C | Analog control output |
| ADV155-P10 | Digital Input Module | 16 channels | -20 to 60°C | Wider temperature range |
| ADV156-P10 | Digital Input Module | 16 channels | 0 to 55°C | High-speed input processing |
Popular Yokogawa Models (Same Brand)
| Model Number | Description | Application |
|---|---|---|
| CENTUM VP | Integrated DCS Platform | Process automation |
| ProSafe-RS | Safety Instrumented System | Critical process safety |
| ADV151-P30 | High-Density Digital Input Module | Complex process control |
| YTA610 | Temperature Transmitter | Precise temperature measurement |
| YHC620 | Digital Controller | Control valve and loop control |
| DPharp EJA Series | Differential Pressure Transmitter | Process pressure measurement |
