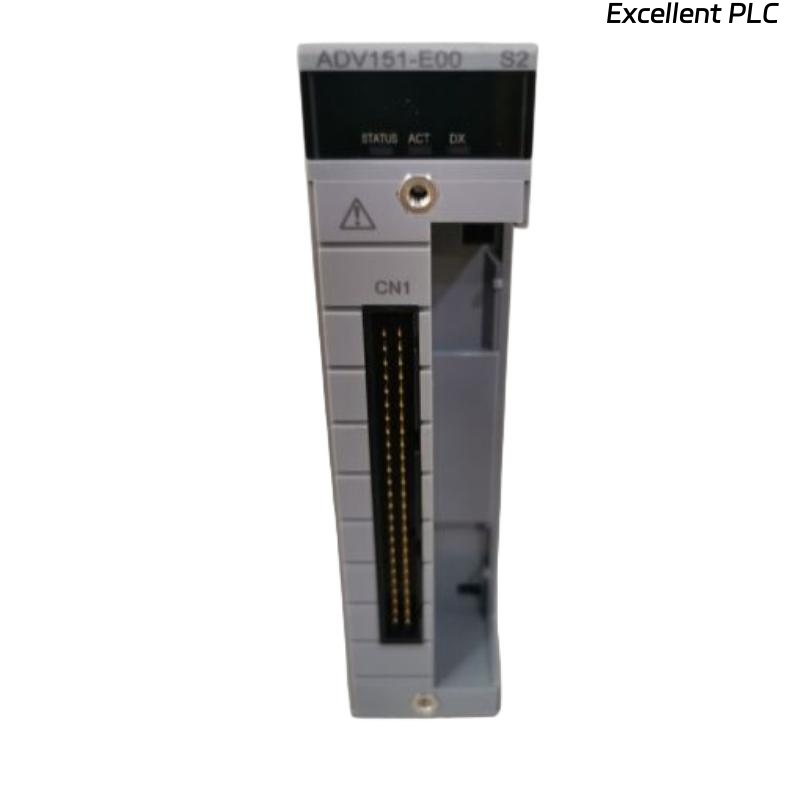

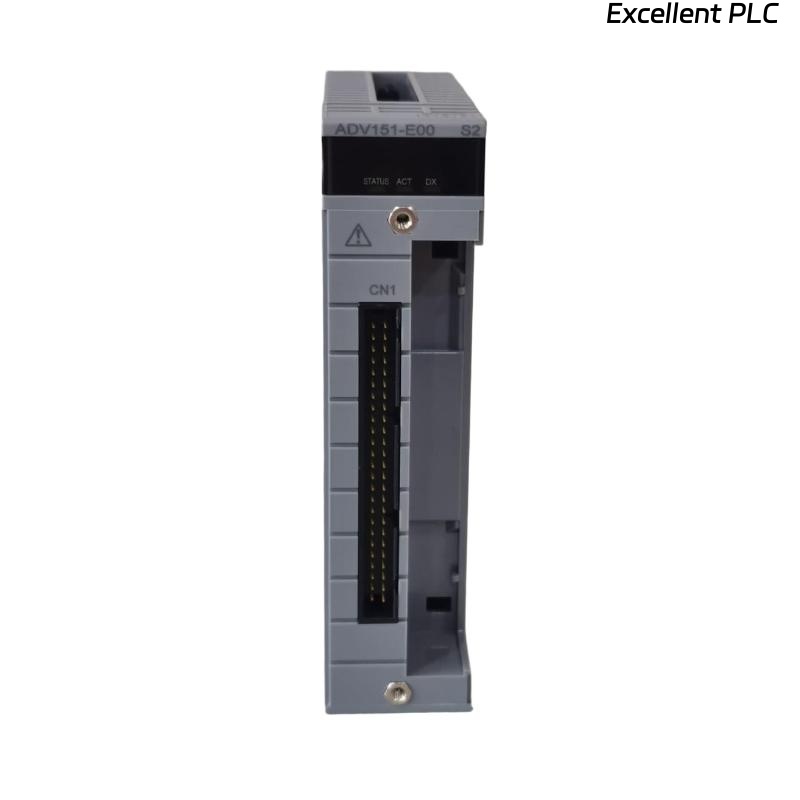

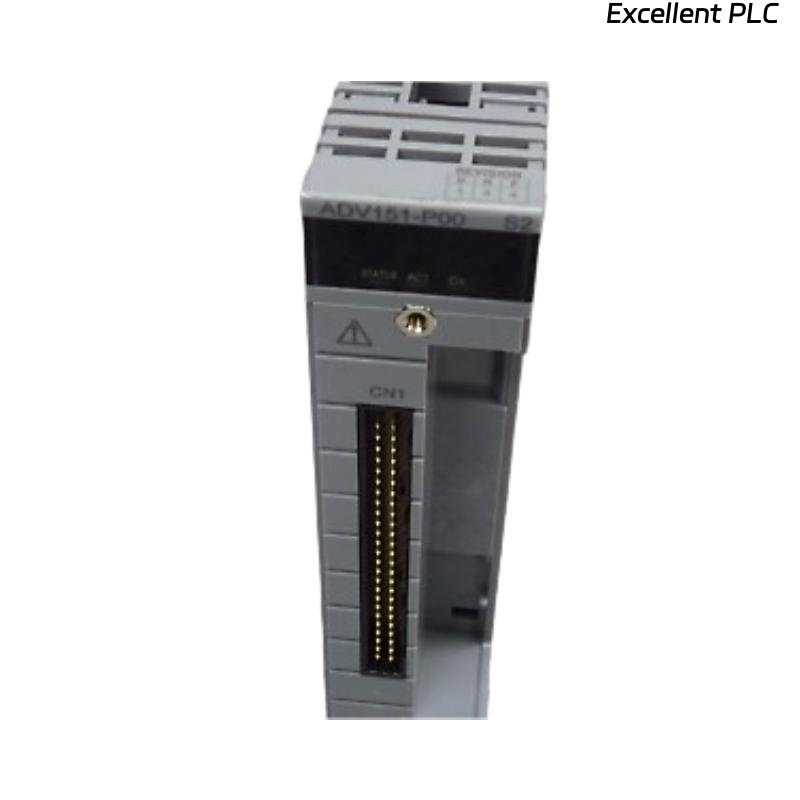

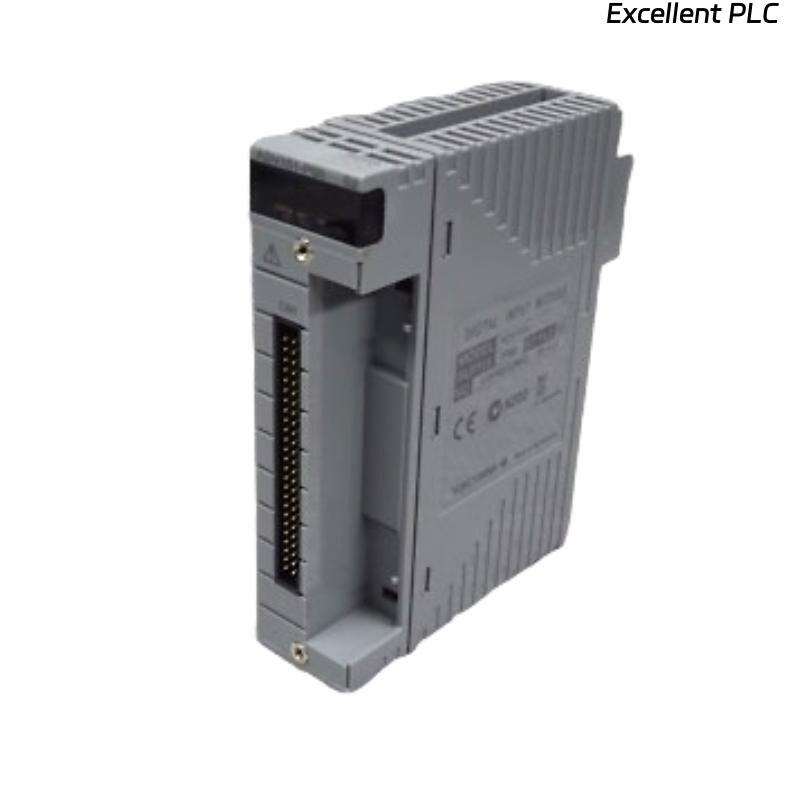

Yokogawa ADV151-P10-S2 Product Introduction
The Yokogawa ADV151-P10-S2 is a high-performance analog input module designed for industrial automation and process control applications. It is part of Yokogawa’s advanced line of signal conditioners and isolators, offering reliable signal conversion, isolation, and transmission. This module is widely used in harsh industrial environments due to its robust construction, high accuracy, and compatibility with various signal types.
Product Parameters
The ADV151-P10-S2 features the following specifications:
| Parameter | Specification |
|---|---|
| Input Signal | 4-20 mA, 0-20 mA, 0-10 V, etc. (configurable) |
| Output Signal | 4-20 mA, 0-20 mA, 0-10 V, etc. (configurable) |
| Isolation | 1500 V AC (input-to-output) |
| Accuracy | ±0.1% of span |
| Operating Temperature | -20°C to +60°C |
| Power Supply | 24 V DC (±10%) |
| Dimensions | 107.5 × 130 × 32.8 mm |
| Weight | 0.3 kg |
| Mounting | DIN rail mountable |
| Certifications | CE, UL, IECEx, ATEX |
Product Applications
The ADV151-P10-S2 is suitable for a wide range of industrial applications, including:
-
Process Control Systems: Ensures accurate signal transmission in chemical, oil, and gas industries.
-
Factory Automation: Integrates with PLCs and DCS for reliable signal conditioning.
-
Power Plants: Used for monitoring and control of critical parameters.
-
Water Treatment: Facilitates signal isolation in harsh environments.
-
HVAC Systems: Provides stable signal conversion for temperature and pressure sensors.
Product Advantages
-
High Accuracy: ±0.1% accuracy ensures precise signal conversion.
-
Robust Isolation: 1500 V AC isolation protects against electrical noise and surges.
-
Wide Compatibility: Supports multiple input/output signal types.
-
Compact Design: DIN rail mounting saves space in control panels.
-
Durability: Operates reliably in extreme temperatures and harsh conditions.
-
Certified Safety: Complies with international standards (CE, UL, ATEX).
Frequently Asked Questions (FAQ)
-
What input signals does the ADV151-P10-S2 support?
It supports 4-20 mA, 0-20 mA, 0-10 V, and other configurable signals. -
What is the isolation voltage of this module?
It provides 1500 V AC isolation between input and output. -
Can it be used in hazardous environments?
Yes, it is certified for use in hazardous areas (ATEX, IECEx). -
What is the operating temperature range?
-20°C to +60°C. -
How is the module powered?
It requires a 24 V DC power supply (±10% tolerance). -
Is the ADV151-P10-S2 DIN rail mountable?
Yes, it is designed for easy DIN rail installation. -
What is the weight of the module?
0.3 kg. -
What certifications does it have?
CE, UL, ATEX, and IECEx. -
Can it be used with PLCs?
Yes, it is compatible with most PLC and DCS systems. -
What is the accuracy of the signal conversion?
±0.1% of span.
