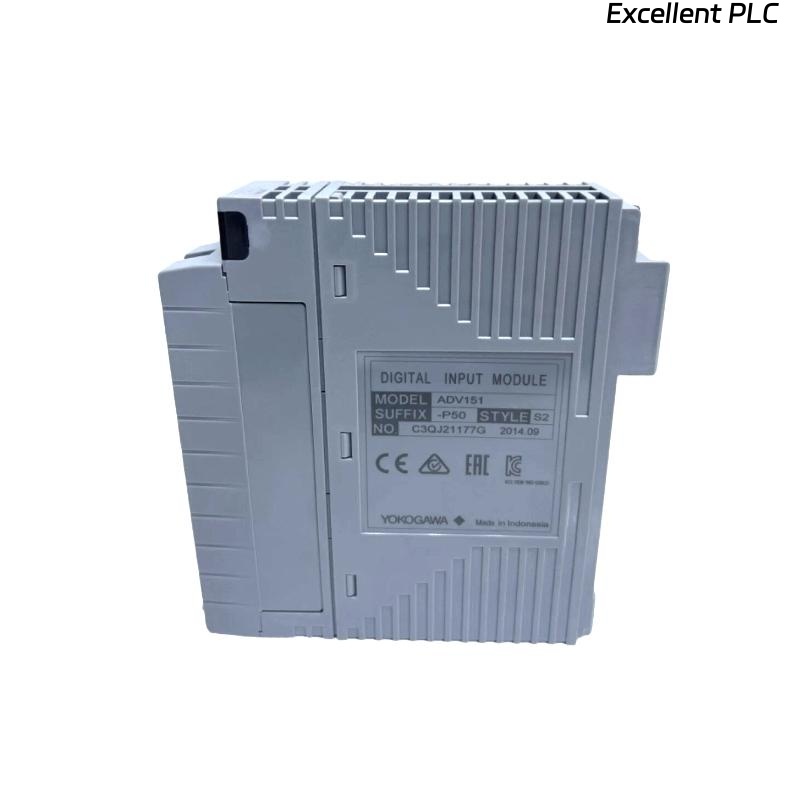

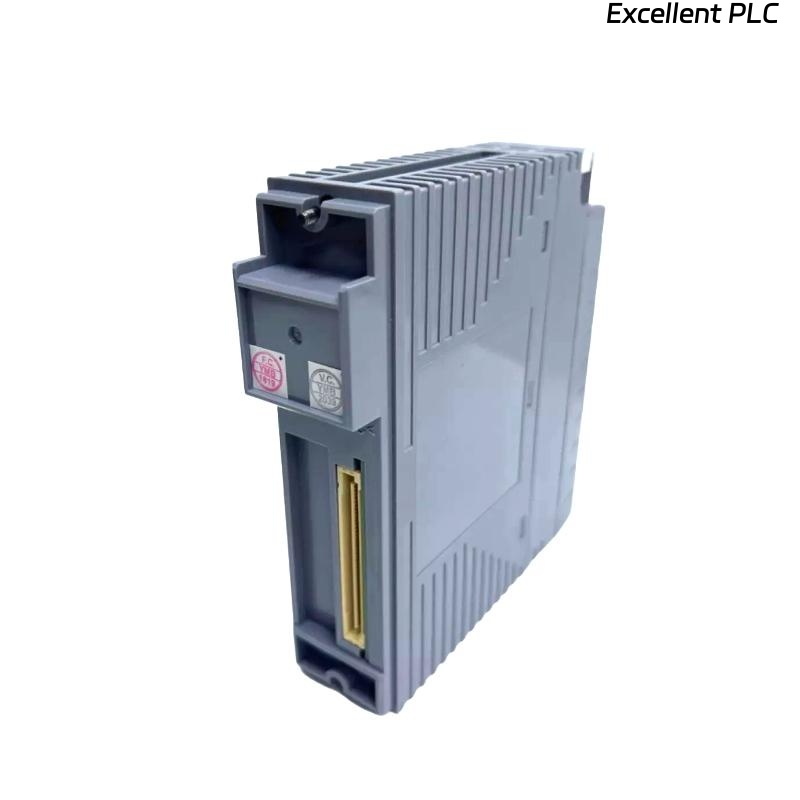

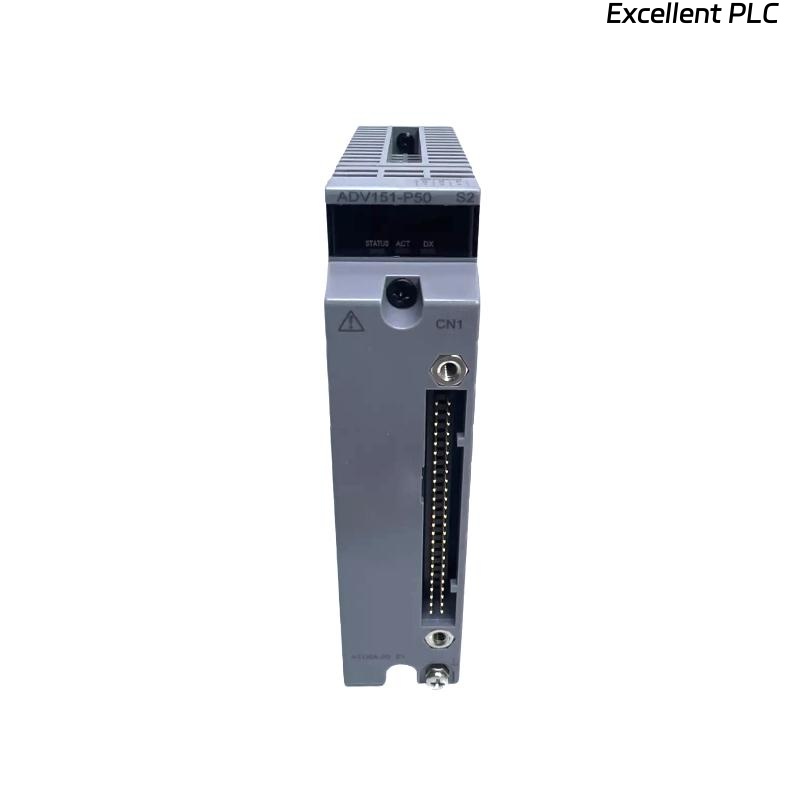

Yokogawa ADV151-P50 S1 Digital Input Module

Product Introduction

The Yokogawa ADV151-P50 S1 Digital Input Module is a high-performance digital input module engineered for advanced process control environments. Designed as part of Yokogawa’s CENTUM VP distributed control system, this module delivers exceptional reliability, precise signal detection, and enhanced diagnostic capabilities. The ADV151-P50 S1 is ideal for industrial automation where digital signal integrity and quick response times are essential. Featuring state-of-the-art noise immunity and robust isolation, it protects the control system from electrical disturbances and ensures accurate input signal processing.

With a compact and modular design, the module supports hot-swapping and easy maintenance, facilitating uninterrupted plant operations. It is widely adopted in sectors such as oil and gas, power generation, chemical processing, and manufacturing industries, where dependable digital input acquisition is critical for operational safety and efficiency.

---

Product Parameters

---

Product Applications

The ADV151-P50 S1 Digital Input Module is designed for critical process automation and control applications, including but not limited to:

• Advanced Process Automation – Real-time acquisition of digital signals from field devices such as switches, alarms, and sensors.

• Safety Instrumented Systems – Reliable detection of safety signals to initiate protective actions.

• Power Plant Control – Monitoring turbine status, breaker positions, and generator operation.

• Oil & Gas Industry – Supervising valve states, pump conditions, and compressor controls.

• Chemical Manufacturing – Input monitoring for reactors, mixers, and emergency shutdown signals.

• Infrastructure Automation – Control of water treatment plants, transportation systems, and other utilities.

---

Product Advantages

• Enhanced Diagnostics – Provides detailed status and fault reporting for proactive maintenance.

• Fast and Accurate Input Detection – Ensures minimal latency in signal processing.

• Robust Isolation – Protects the control logic from electrical noise and voltage spikes.

• Wide Operating Temperature Range – Suitable for varied industrial environments.

• Compact and Modular – Saves space and supports easy replacement or expansion.

• Hot-Swappable Design – Enables module replacement without shutting down the system.

• High Reliability – Designed for continuous operation in demanding industrial settings.

• Energy Efficient – Low power consumption reduces heat dissipation and energy costs.

---

FAQ

1. How many input channels does the ADV151-P50 S1 module support?
It supports 16 digital input channels.

2. What types of signals can this module accept?
It accepts dry contact inputs and 24 VDC voltage inputs.

3. What is the nominal voltage range for inputs?
The nominal input voltage range is 19–32 VDC.

4. What is the typical response time for signal detection?
The module responds within 5 milliseconds or less.

5. Does the module provide isolation between input channels and the control logic?
Yes, it uses optical isolation to protect the control system.

6. Can the module be hot-swapped?
Yes, it supports hot-swapping without interrupting system operation.

7. What diagnostics does this module provide?
It offers detailed channel status and fault detection information.

8. Is the ADV151-P50 S1 compatible with Yokogawa CENTUM VP systems?
Yes, it is fully compatible with CENTUM VP distributed control systems.

9. What is the maximum ambient operating temperature?
It operates reliably up to 55°C ambient temperature.

10. Does the module operate in high humidity environments?
Yes, it functions well in 5–95% relative humidity, non-condensing conditions.

---
