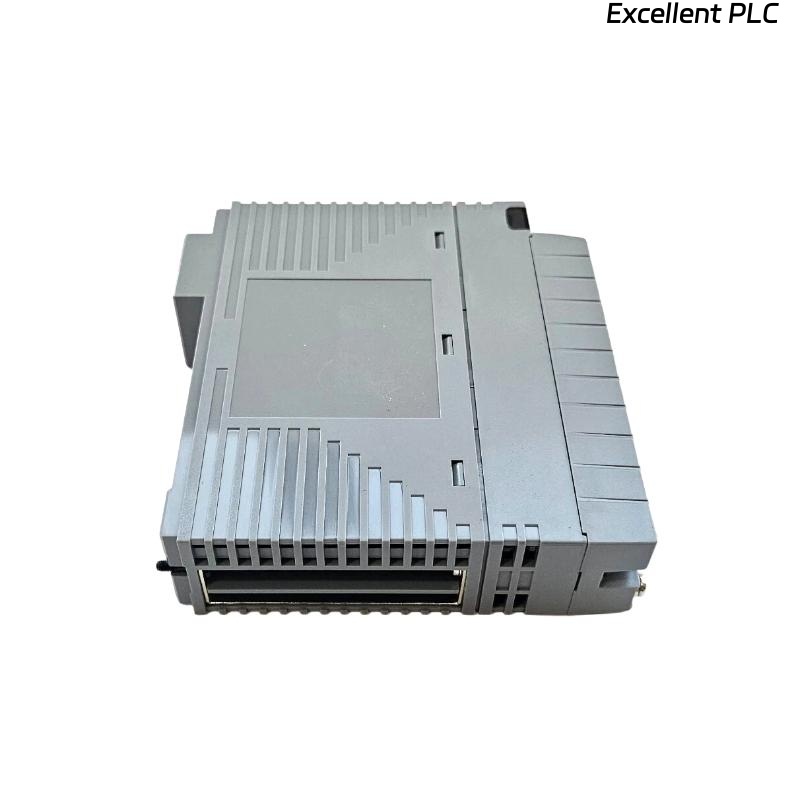

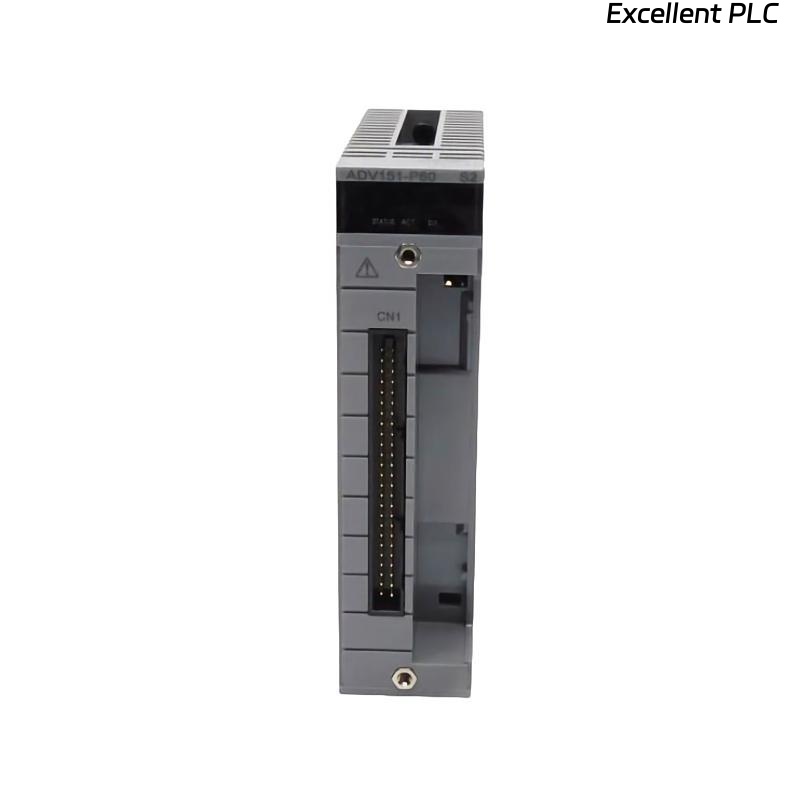

The Yokogawa ADV151-P60/D5A00 Digital Input Module is a reliable and versatile component designed to support advanced process automation and control systems. Part of Yokogawa’s CENTUM VP series, this module is engineered to accurately capture and process digital input signals from various field devices such as switches, contacts, and sensors.
The ADV151-P60/D5A00 excels in delivering high-speed, noise-immune digital signal processing, with optical isolation that safeguards the system from electrical noise and transient surges. Its modular design facilitates quick installation and maintenance, helping to reduce downtime in critical industrial environments. This module is ideal for use in sectors demanding high reliability and precision, including oil and gas, power plants, chemical processing, and manufacturing.
Product Parameters
| Parameter | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Model Number | ADV151-P60/D5A00 |
| Module Type | Digital Input Module |
| Input Channels | 16 channels |
| Input Signal Type | Dry contact and 24 VDC voltage input |
| Input Voltage Range | 19–32 VDC nominal (typical 24 VDC) |
| Input Current | ≤ 7 mA per channel |
| Isolation | Optical isolation between input and logic |
| Response Time | ≤ 5 milliseconds |
| Power Supply Voltage | 5 VDC (from base unit) |
| Power Consumption | Approx. 3.5 W |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Humidity | 5–95% RH (non-condensing) |
| Mounting | Plug-in module |
| Certifications | CE, CSA, UL |
| Dimensions (W × H × D) | 107.5 × 130 × 32.8 mm |
| Weight | 0.3 kg |
Product Applications
The ADV151-P60/D5A00 is widely used across multiple industries for critical digital signal input tasks, including:
-
Oil and Gas: Monitoring valve positions, equipment statuses, and safety interlocks.
-
Power Generation: Tracking breaker states, turbine operation signals, and emergency alarms.
-
Chemical Plants: Managing digital signals from process alarms and control switches.
-
Manufacturing Automation: Detecting machine status, fault alarms, and safety inputs.
-
Water Treatment: Controlling pumps, valves, and remote switches.
-
Transportation and Infrastructure: Integrating with control systems for monitoring and automation.
Product Advantages
-
Accurate Signal Processing: Ensures precise detection and processing of digital input signals.
-
Fast Response Time: Delivers response times under 5 milliseconds to support real-time control.
-
Enhanced System Protection: Optical isolation protects against voltage surges and electrical noise.
-
Modular and Compact: Designed for easy installation, replacement, and system expansion.
-
Hot-Swappable: Allows module maintenance and replacement without system shutdown.
-
Robust Operation: Performs reliably under wide temperature and humidity conditions.
-
Low Power Consumption: Supports energy-efficient system designs.
-
Integrated Diagnostics: Provides fault detection and input status monitoring for improved maintenance.
FAQ
1. How many input channels are supported by the ADV151-P60/D5A00?
It supports 16 isolated digital input channels.
2. What types of signals can be input into this module?
Dry contact and 24 VDC voltage signals are supported.
3. What is the nominal input voltage range?
The nominal input voltage range is 19–32 VDC, typically 24 VDC.
4. What is the response time for detecting digital inputs?
The response time is 5 milliseconds or less.
5. Does the module provide isolation between inputs and control logic?
Yes, optical isolation is provided for protection against electrical noise.
6. Can the module be replaced without shutting down the system?
Yes, it is hot-swappable to enable replacement during operation.
7. Is this module compatible with the CENTUM VP system?
Yes, it is designed for seamless integration with the CENTUM VP platform.
8. What environmental conditions can this module operate under?
It operates within 0°C to 55°C and 5–95% relative humidity (non-condensing).
9. What diagnostic features does the module include?
It supports fault detection and channel status monitoring.
10. What power supply voltage does this module require?
It requires a 5 VDC power supply provided by the base unit.
