Product Introduction

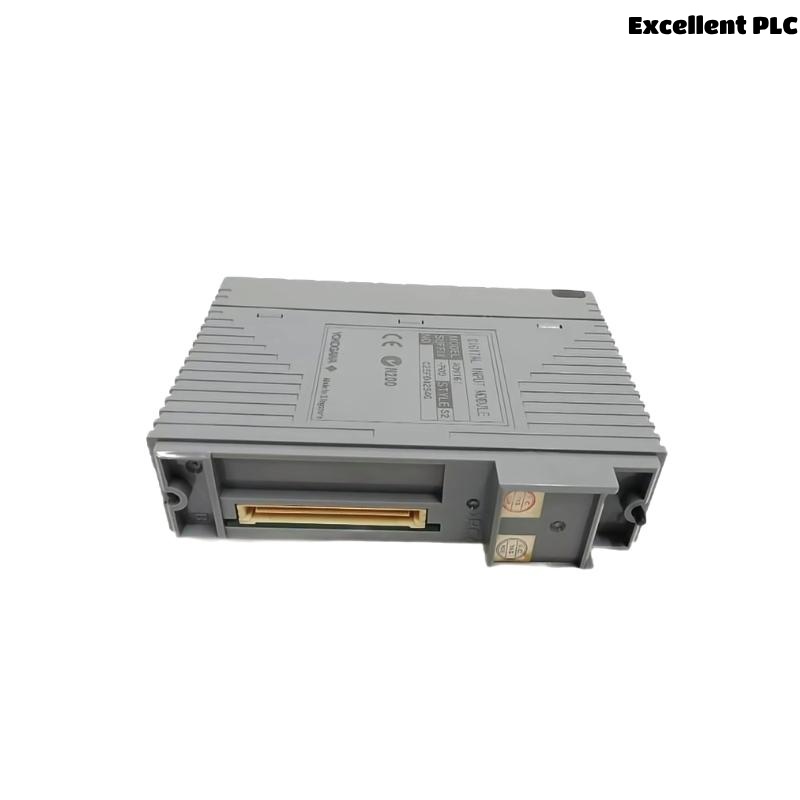

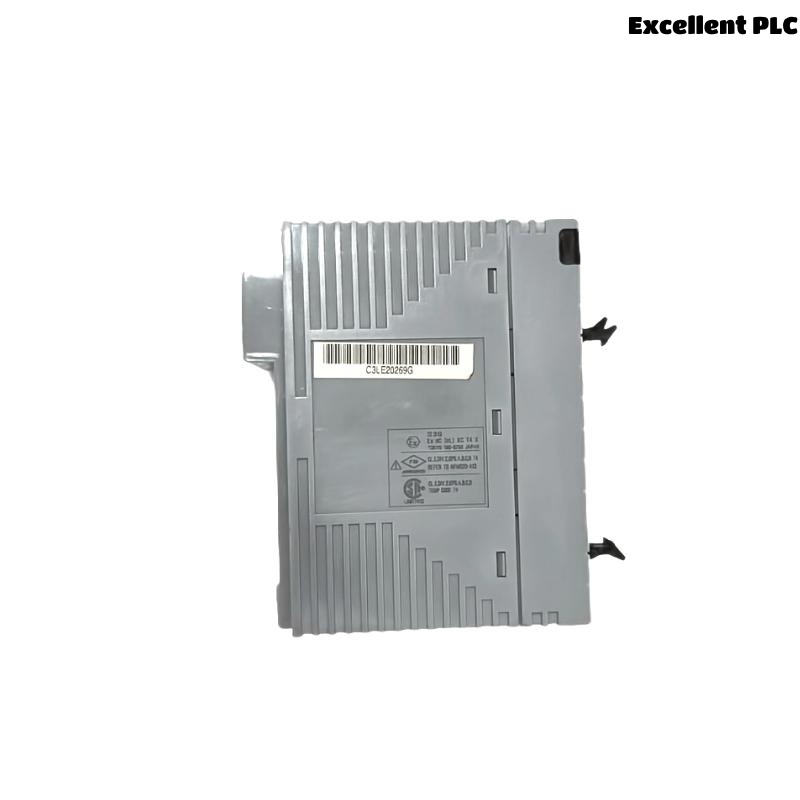

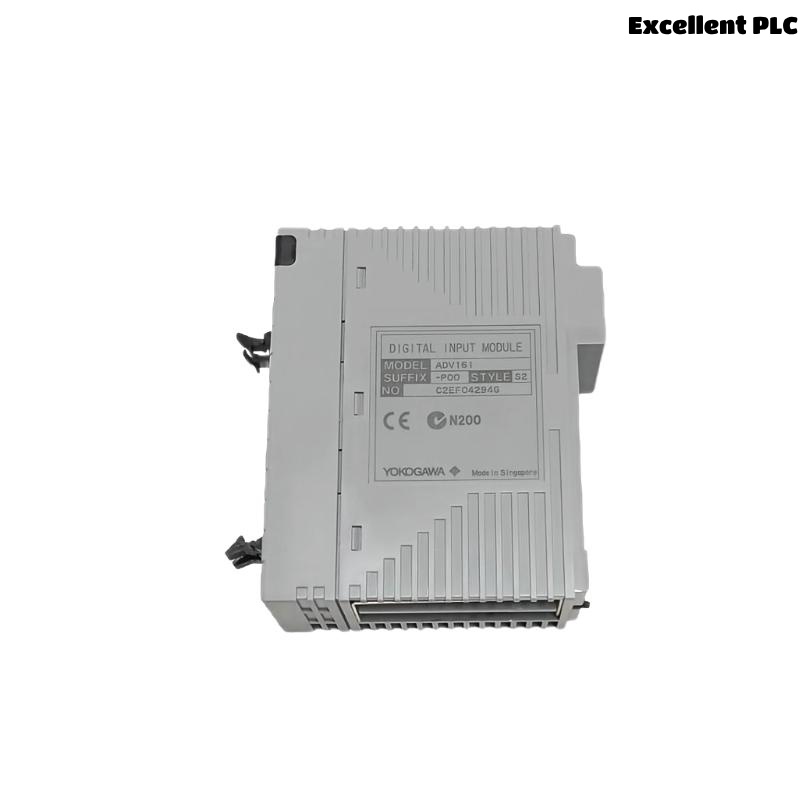

The Yokogawa ADV161-P00 is a high-density Digital Input Module designed to interface digital signals with the Yokogawa CENTUM VP Distributed Control System (DCS). Engineered for accuracy, durability, and operational efficiency, this module plays a key role in industrial process control systems by collecting on/off status signals from field equipment such as proximity switches, relays, and push buttons.
The ADV161-P00 provides precise data acquisition over 32 isolated digital input channels and is ideal for applications requiring reliable signal detection, high immunity to noise, and seamless integration into control architectures. As part of Yokogawa’s highly regarded I/O subsystem, it ensures stable system performance with minimal maintenance overhead.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | ADV161-P00 |
| Module Type | Digital Input Module |
| Number of Channels | 32 channels |
| Input Type | Voltage input (24 V DC, dry contact) |
| Rated Input Voltage | 24 V DC (range: 19.2 V to 30 V) |
| Input Signal Detection | OFF: 0–5 V / ON: 15–30 V |
| Isolation Method | Optical isolation |
| Channel Isolation | No isolation between channels; isolated from system |
| Input Resistance | Approx. 4.7 kΩ |
| Response Time | 10 ms (typical) |
| Power Consumption | 2.5 W (typical) |
| Module Status Indication | LED indication per channel |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Mounting | Mounted on base plate or VJ Series terminal block |
| Dimensions (W x H x D) | 130 x 119.9 x 32.8 mm |
| Weight | 0.3 kg |
| Terminal Type | Compatible with N-IO terminals (detachable) |
| Certifications | CE, KC, UL (depending on configuration) |
| System Compatibility | CENTUM VP, ProSafe-RS |
Product Applications
The ADV161-P00 module is widely deployed across multiple industrial domains due to its versatility and robust performance. Below are its core application areas:
-
Oil & Gas: Monitoring and controlling field devices in upstream and downstream operations.
-
Chemical Plants: Ensures safe and accurate tracking of digital signals in hazardous environments.
-
Power Generation: Used for real-time input signal detection from protective devices and switches.
-
Manufacturing Automation: Enables reliable equipment status monitoring for production lines.
-
Water and Wastewater Treatment: Ideal for SCADA-based signal interfacing in distributed control networks.
-
Pharmaceutical Industry: Supports regulatory-compliant process monitoring and automation.
Product Advantages
The Yokogawa ADV161-P00 offers a number of advantages that make it a dependable choice in mission-critical environments:
-
High Signal Integrity
Optical isolation and robust design ensure clean signal transmission with minimal interference from field noise. -
Compact High-Density Design
With 32 input channels in a compact footprint, the module reduces panel space requirements and optimizes control cabinet layouts. -
Fast Response Time
A 10 ms signal response rate makes it suitable for time-sensitive applications. -
Long-Term Stability
High durability components and rigorous Yokogawa quality control ensure years of trouble-free operation. -
Maintenance-Friendly
LED indicators per channel simplify diagnostics, enabling faster fault detection and reduced downtime. -
Flexible Integration
The module is fully compatible with Yokogawa’s CENTUM VP and ProSafe-RS platforms, supporting a unified automation architecture. -
Industrial-Grade Reliability
Designed to withstand extreme temperatures, vibration, and electromagnetic interference, ensuring reliable performance in the harshest environments. -
Low Power Consumption
Efficient energy usage reduces the thermal load on the system, contributing to overall power savings.
Frequently Asked Questions (FAQ)
-
What is the main function of the ADV161-P00 module?
The ADV161-P00 serves as a 32-channel digital input module that captures on/off status from external field devices. -
Can this module be used with CENTUM VP?
Yes, it is fully compatible with Yokogawa’s CENTUM VP DCS and can be integrated seamlessly. -
What types of input signals are supported?
It supports 24 V DC digital signals with dry contact or voltage input types. -
Is each channel optically isolated?
No, channels are not isolated from each other, but the entire module is optically isolated from the system side. -
What is the response time of the ADV161-P00?
The typical response time is approximately 10 milliseconds. -
Can this module operate in extreme temperatures?
Yes, it is rated for operation between -20°C and +60°C and storage from -40°C to +85°C. -
Does the ADV161-P00 have any LED indicators?
Yes, each input channel has a status LED to indicate signal presence or activity. -
How is the module mounted?
It is designed to be mounted on a dedicated base plate or terminal block provided by Yokogawa. -
What is the weight of the module?
The module weighs 0.3 kg. -
Is the ADV161-P00 certified for industrial use?
Yes, it carries CE, KC, and UL certifications depending on the regional and system configuration.
Related Models (Same Series or Functional Category)
| Model | Channels | Input Type | Voltage | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| ADV151-P60 | 60 DI | Voltage (24 VDC) | 19.2–30 VDC | 27.2 × 130 × 130 | 0.45 kg |
| ADV151-P30 | 30 DI | Voltage (24 VDC) | 19.2–30 VDC | 22 × 130 × 130 | 0.35 kg |
| ADV161-P10 | 32 DI | Voltage (Dry Contact) | 24 VDC | 27.2 × 130 × 130 | 0.26 kg |
| ADV151-P90 | 90 DI | Voltage (24 VDC) | 19.2–30 VDC | 33 × 130 × 130 | 0.52 kg |
| ADV171-P00 | 16 DI | Voltage + Time Stamp | 24 VDC | 20 × 130 × 130 | 0.30 kg |
| ADV161-P00-EX | 32 DI | Explosion-Proof Design | 24 VDC | 27.2 × 130 × 130 | 0.28 kg |
