Product Introduction

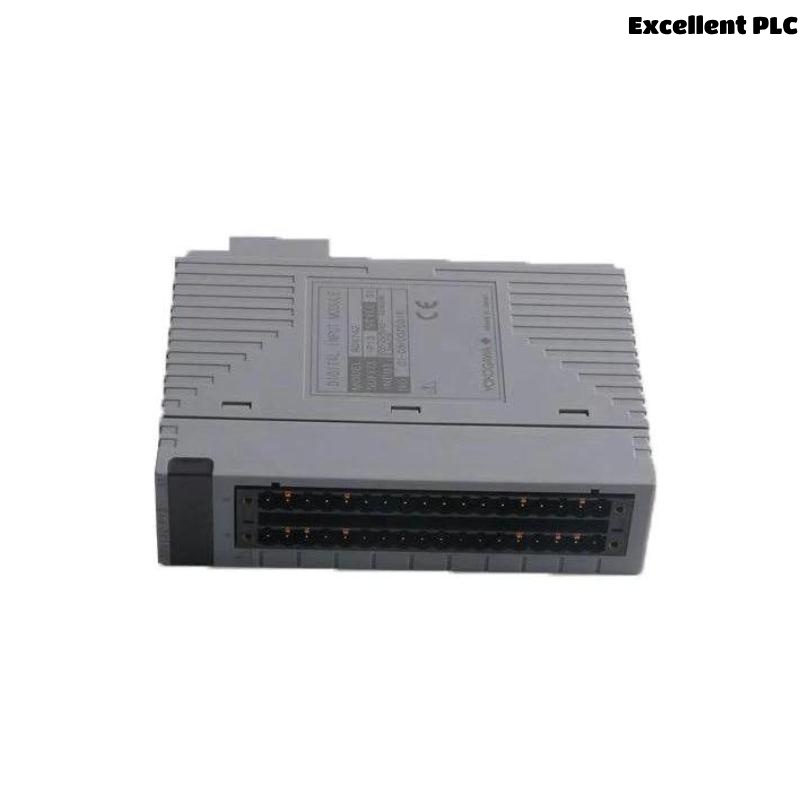

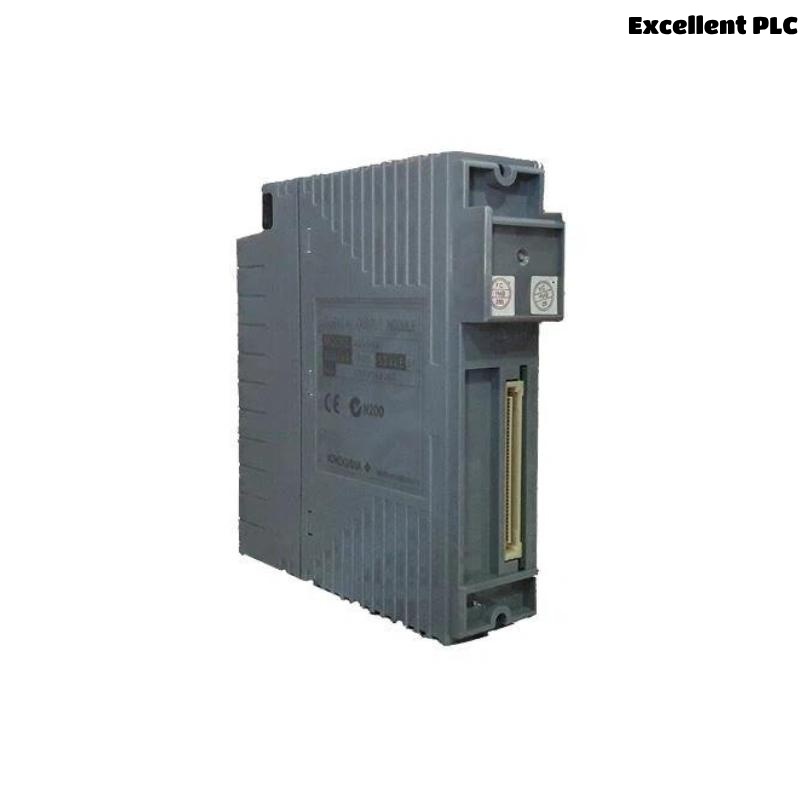

The Yokogawa ADV169 Digital Input Module is a high-performance discrete input module engineered for use in Yokogawa’s CENTUM VP, CENTUM CS 3000, and ProSafe-RS control and safety systems. Designed to capture digital signals from field devices such as limit switches, push buttons, proximity sensors, and relay outputs, the ADV169 ensures reliable status monitoring across industrial automation processes.
Equipped with 16 optically isolated digital input channels, this module supports 24 V DC logic levels and dry contact signal types. The ADV169 is ideal for fail-safe system architectures, delivering fast response times, signal integrity, and advanced diagnostic capabilities. It is particularly well-suited for demanding sectors like oil & gas, chemical processing, utilities, and power generation, where continuous operation, safety, and real-time signal acquisition are mission-critical.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | ADV169 |
| Module Type | Digital Input Module |
| Input Channels | 16 points |
| Input Signal Type | 24 V DC (positive logic), dry contact |
| Input Voltage Range | 18–30 V DC |
| Input Current | 6–8 mA typical per channel |
| Response Time | ≤10 ms |
| Isolation | Optical isolation per channel |
| Fail-Safe Features | Diagnostic monitoring, input wire break detection |
| Power Supply | Via I/O baseplate (5 V DC nominal) |
| Dimensions (HxWxD) | 130 x 127.2 x 32.8 mm |
| Weight | 0.3 kg |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Mounting | Mounted on FCS or safety system baseplate |
| Certifications | CE, ATEX, FM, CSA |
Product Applications
The Yokogawa ADV169 is widely deployed in systems that require precise digital signal acquisition and robust fail-safe operation. It is especially beneficial in safety-critical environments.
-
Oil & Gas Production Facilities
Detects emergency shutdown (ESD) signals, valve feedback status, and trip conditions. -
Chemical Plants
Integrates with hazardous zone interlocks, tank overfill prevention systems, and pump status indicators. -
Power Generation
Captures turbine start/stop signals, breaker statuses, and generator protection interlocks. -
Water and Wastewater Treatment
Reads level switches, gate actuator signals, and motor start confirmation. -
Mining and Metals
Monitors conveyor system feedback, machine safety gates, and contactor states. -
Food and Beverage Industry
Interfaces with packaging machine interlocks, pressure switches, and safety barriers.
Product Advantages
-
Fail-Safe Ready: Designed for integration with safety instrumented systems (SIS), supporting wire-break detection and diagnostics.
-
Optical Isolation per Channel: Reduces signal noise and protects against electrical surges.
-
Fast Signal Acquisition: ≤10 ms response time ensures near real-time input detection.
-
High Reliability in Harsh Environments: Certified for use in hazardous areas with ATEX, FM, and CSA ratings.
-
Diagnostic Capabilities: Built-in functions to detect faulty inputs, wiring issues, and configuration mismatches.
-
Compact, Rack-Mount Design: Saves panel space while maintaining accessibility and serviceability.
-
Low Power Consumption: Operates efficiently, reducing thermal load and operational cost.
-
System Compatibility: Seamlessly integrates with Yokogawa’s CENTUM and ProSafe-RS systems.
Frequently Asked Questions (FAQ)
-
What is the ADV169 used for?
It is used to acquire digital (discrete) signals from field equipment like switches, relays, and interlocks. -
How many channels does the module have?
It offers 16 optically isolated input channels. -
Can this module be used in a safety system?
Yes, it is designed with fail-safe features and is compatible with ProSafe-RS SIS platforms. -
What type of signals are supported?
24 V DC standard logic inputs and dry contact signals. -
Does the ADV169 detect wire breaks?
Yes, it includes diagnostic features that identify wire faults and signal loss. -
Is the module hot-swappable?
No, for safety and system stability, modules should only be replaced with the system powered down. -
Can the module be installed in hazardous environments?
Yes, it carries certifications for ATEX, FM, and CSA for hazardous area use. -
Is optical isolation provided for each input?
Yes, each channel is isolated individually to improve safety and signal integrity. -
What are typical applications for the ADV169?
Emergency shutdown monitoring, valve feedback, safety interlocks, and critical equipment feedback. -
Is it compatible with other Yokogawa I/O modules?
Yes, it integrates seamlessly with the wider Yokogawa automation ecosystem.
