Product Overview

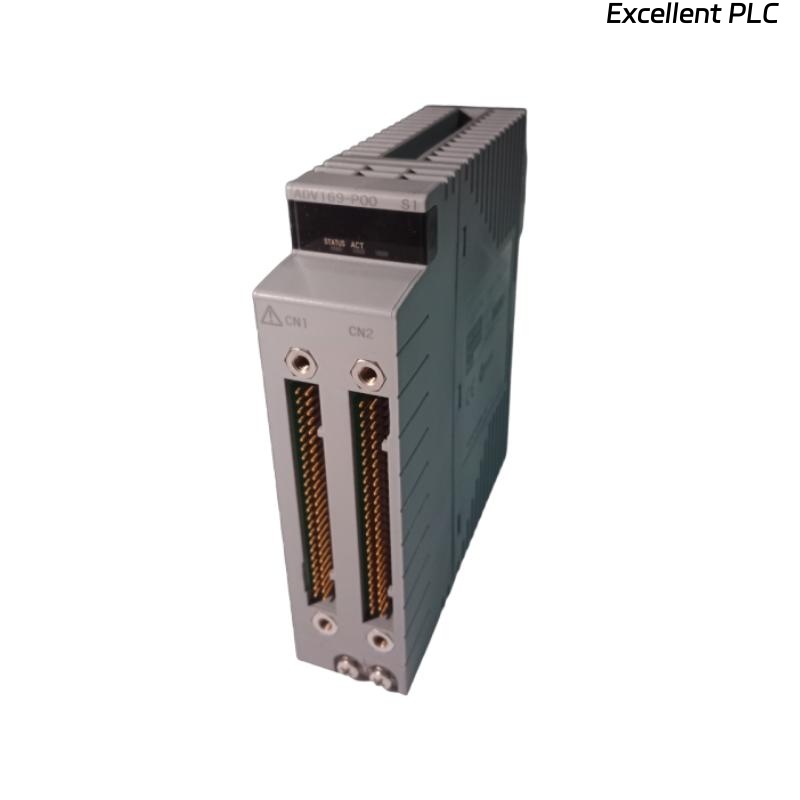

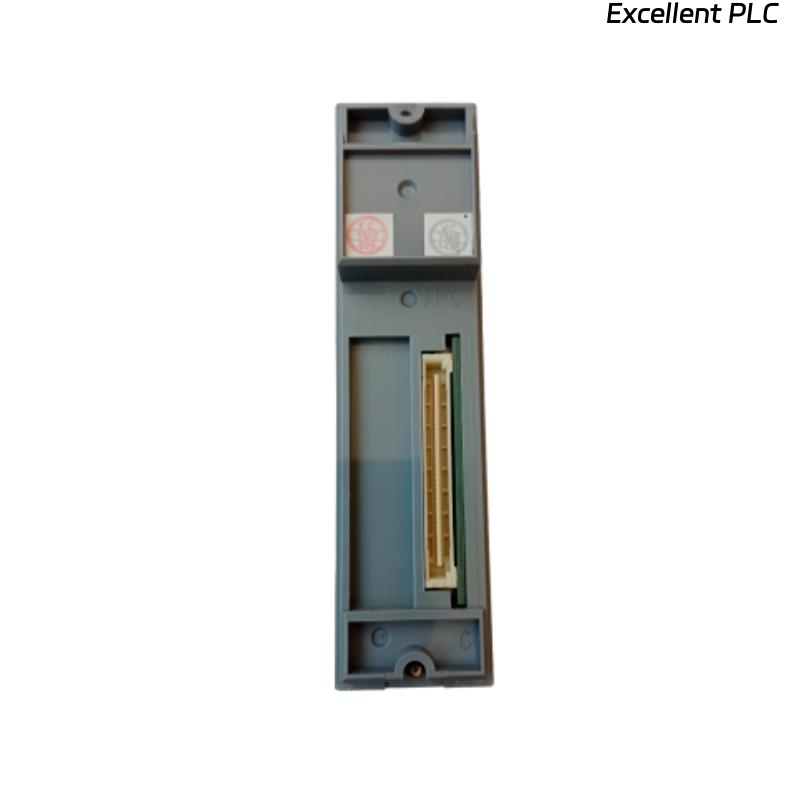

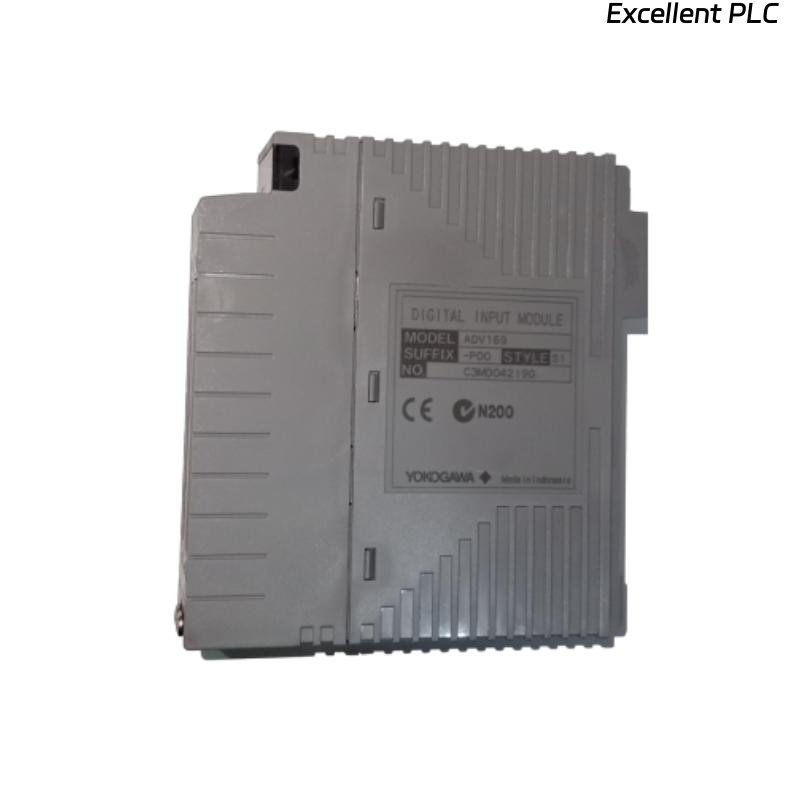

The Yokogawa ADV169-P00 S1 Digital Input Module is designed to provide reliable and precise acquisition of digital input signals for Yokogawa’s CENTUM and ProSafe-RS control systems. This module supports efficient processing of discrete signals from field devices, ensuring robust performance in demanding industrial applications. Its compact design and robust construction make it ideal for use in various process automation environments.
Key Features
-
Supports 16 discrete digital input channels
-
Compatible with CENTUM and ProSafe-RS systems
-
Designed for reliable operation in harsh industrial conditions
-
Compact size for easy integration into control cabinets
-
Meets international safety and EMC standards
-
Provides rapid and accurate signal processing
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | ADV169-P00 S1 |
| Module Type | Digital Input Module |
| Input Channels | 16 channels |
| Input Signal Type | Discrete contact input, TTL level |
| Input Voltage Range | 24 VDC nominal |
| Response Time | Typically 10 ms |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Humidity Range | 10% to 90% non-condensing |
| Dimensions | 130 x 127.2 x 32.8 mm |
| Weight | 0.3 kg |
| Safety Certifications | CE, UL |
Industry Applications
-
Oil and gas process automation
-
Chemical and petrochemical plants
-
Power generation facilities
-
Food and beverage processing
-
Pharmaceutical manufacturing
-
Water and wastewater treatment
Frequently Asked Questions (FAQ)
Q1: How many input channels does the ADV169-P00 S1 support?
It supports 16 digital input channels.
Q2: What types of signals can it accept?
Discrete contact inputs and TTL level signals.
Q3: What is the typical response time?
Approximately 10 milliseconds.
Q4: Is it compatible with Yokogawa control systems?
Yes, compatible with CENTUM and ProSafe-RS systems.
Q5: What are the operating temperature limits?
0°C to 55°C.
Q6: What are the module’s dimensions and weight?
Dimensions: 130mm x 127.2mm x 32.8 mm; Weight: approx. 0.3 kg.
Q7: Does it have safety certifications?
Yes, it holds CE and UL certifications.
Q8: Is the module suitable for harsh industrial environments?
Yes, it is designed for reliable operation in demanding conditions.
Q9: How is the module installed?
It fits into standard Yokogawa racks and cabinets.
Q10: What maintenance is recommended?
Routine inspections with minimal maintenance requirements.
