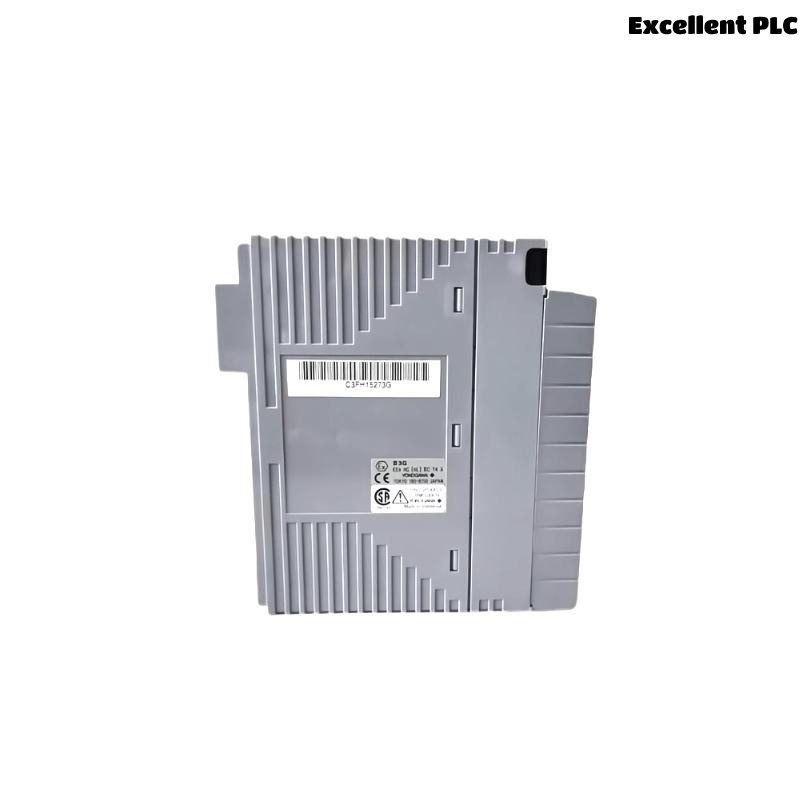

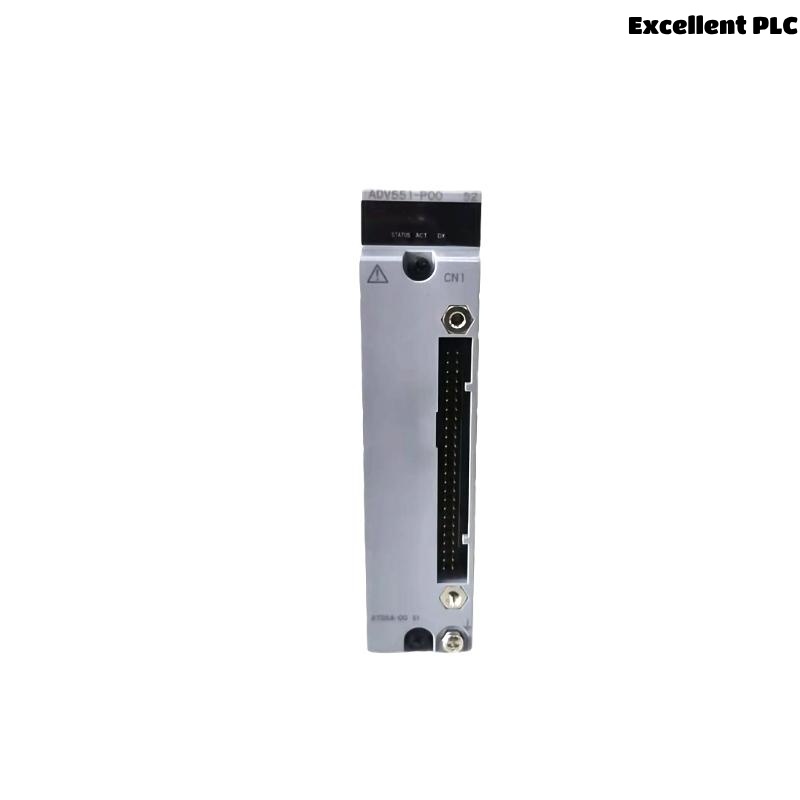

The Yokogawa ADV551-P00 S2 is a robust and reliable 8-channel digital output module designed for use within Yokogawa’s CENTUM VP and ProSafe-RS control systems. It functions as a critical interface for driving field devices such as solenoid valves, motor starters, alarms, and other actuators requiring discrete ON/OFF signals.

Developed with high-performance and safety in mind, the ADV551-P00 S2 module offers individual channel isolation and a strong electrical output capability. This module is capable of switching AC or DC loads directly, supporting a wide range of industrial automation applications. Its design integrates seamlessly into Yokogawa’s Fieldbus I/O (FIO) architecture, enabling flexible and scalable control system configurations.

The ADV551-P00 S2 is suited for mission-critical environments where output reliability, fast response times, and detailed diagnostics are essential. Its compact footprint and hot-swappable capability enhance system availability and maintainability, allowing for minimized downtime during routine maintenance or upgrades.

---

Product Specifications

---

Product Applications

• Industrial Automation: Control of motors, pumps, fans, and solenoid valves in manufacturing plants and process industries.

• Process Control Systems: Used in oil refineries, chemical plants, and power generation facilities for operating discrete actuators and alarm outputs.

• Safety Instrumented Systems (SIS): Integration into ProSafe-RS to safely control shutdown valves and emergency devices.

• Water & Wastewater Treatment: Management of valves, alarms, and actuators in water purification and sewage processing.

• Energy Sector: Controlling auxiliary equipment and switchgear in power plants and substations.

• Material Handling Systems: Drives conveyor belts, gate controls, and safety interlocks in logistics and distribution centers.

---

Product Advantages

• High Reliability and Durability: Designed to withstand harsh industrial environments with robust relay outputs and protective circuitry.

• Wide Voltage Compatibility: Supports a broad range of AC and DC output voltages, enhancing system flexibility.

• Isolated Channels: Prevents interference between output channels, ensuring signal integrity and system safety.

• Fast Switching: Low response times improve control system responsiveness and reduce latency.

• Hot-Swappable Module: Facilitates maintenance and replacement without shutting down the entire control system, thereby increasing uptime.

• Compact Design: Slim profile saves valuable rack space in control cabinets.

• Built-in Protection: Integrated surge suppression protects the module and connected devices from electrical transients.

• Comprehensive Diagnostics: Real-time monitoring and fault detection help quickly identify wiring issues or device failures.

• Certified for Safety: Compliance with international standards (e.g., CE, UL, ATEX) allows usage in hazardous or safety-critical applications.

• Seamless Integration: Full compatibility with Yokogawa’s CENTUM VP and ProSafe-RS platforms enables flexible system architecture.

---

Frequently Asked Questions (FAQ)

1. Q: Can the ADV551-P00 S2 module drive both AC and DC loads?
   A: Yes, the relay contacts support switching of AC loads (24 to 250 V) and DC loads (24 to 125 V).

2. Q: What is the maximum current per output channel?
   A: Each channel is rated for up to 2 A resistive load.

3. Q: Is the module hot-swappable?
   A: Yes, it can be replaced or installed without powering down the system.

4. Q: How is the module connected to field wiring?
   A: Through removable screw-type terminal blocks for secure and easy wiring.

5. Q: What kind of protection does the module have against electrical surges?
   A: It includes built-in surge and transient suppression on each output.

6. Q: What certifications does the ADV551-P00 S2 hold?
   A: The module meets CE and UL standards and can be configured for ATEX hazardous environment certification.

7. Q: What are the dimensions and weight of the module?
   A: The module measures 107.5 × 130 × 32.8 mm, weighing 0.2 kg.

8. Q: Can this module be used in safety instrumented systems (SIS)?
   A: Yes, it is compatible with Yokogawa’s ProSafe-RS SIS platform.

9. Q: How many output channels does the module have?
   A: It features 8 independent digital output channels.

10. Q: What is the typical switching response time?
    A: The module typically switches outputs in less than 10 milliseconds.

---
