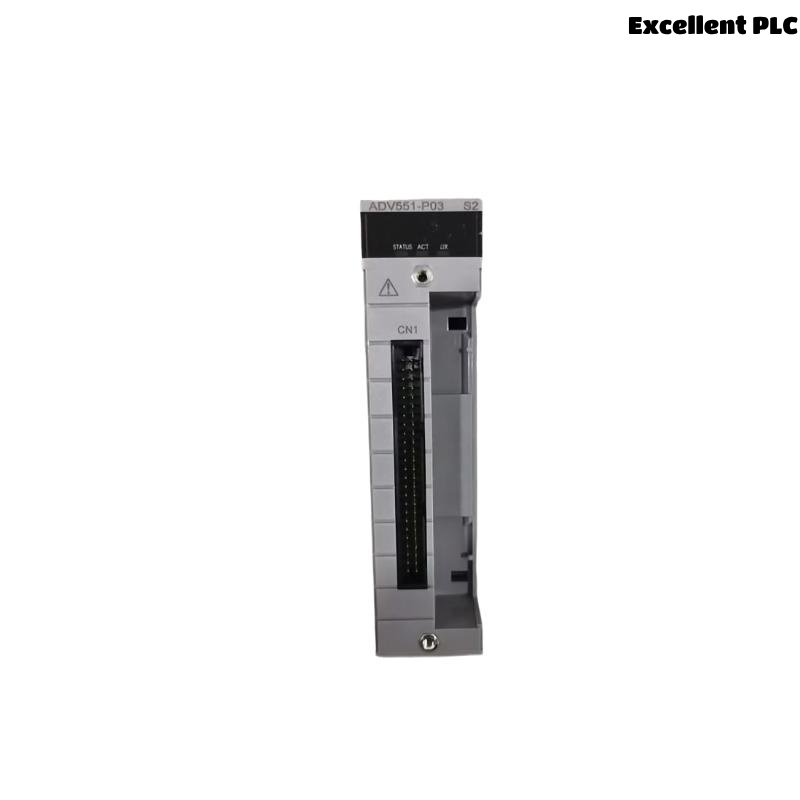

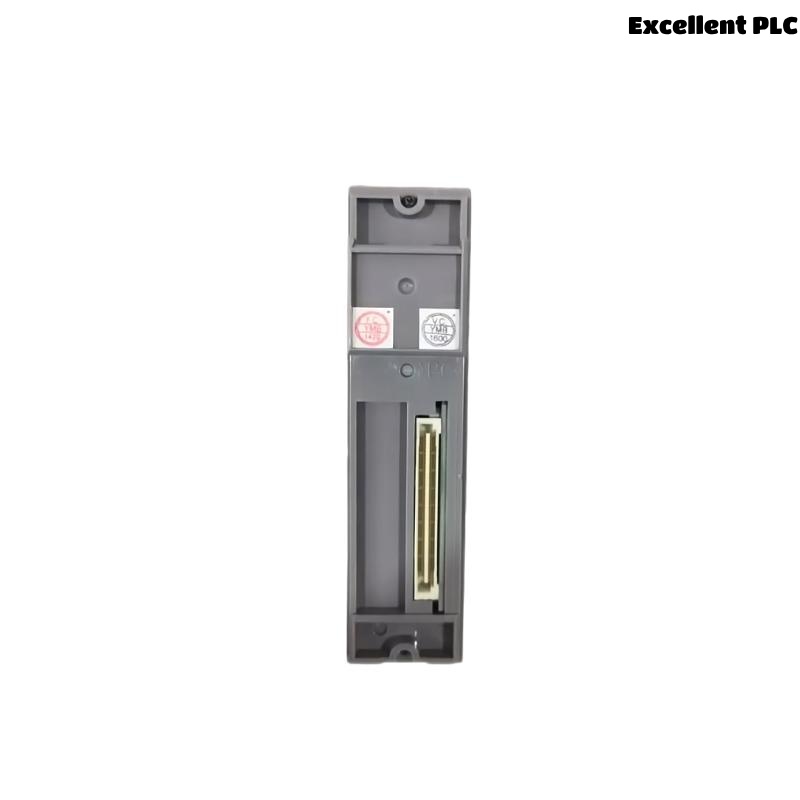

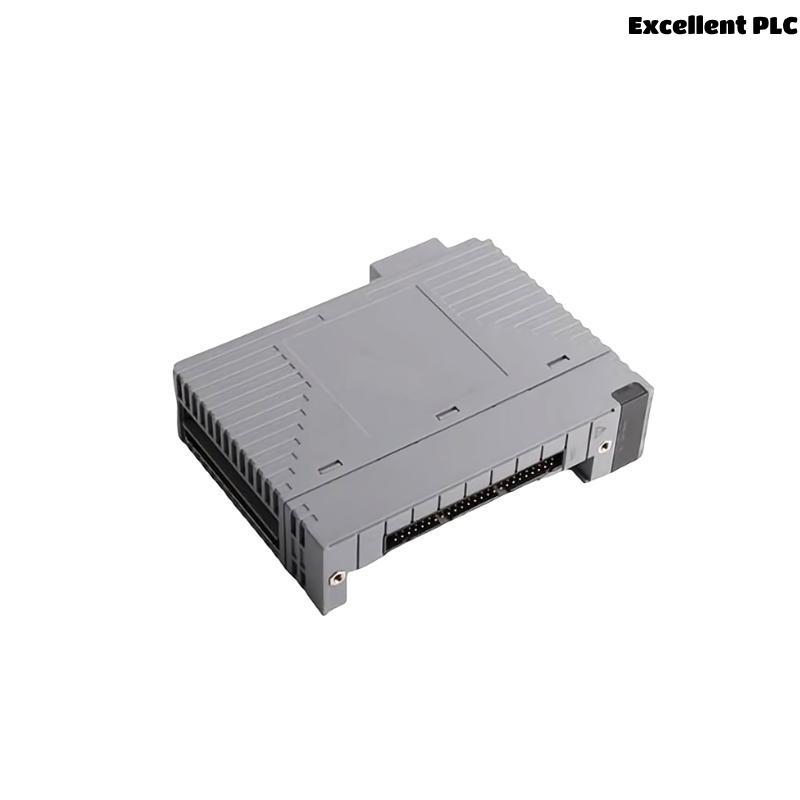

Yokogawa ADV551-P03/D5A00 Digital Output Module

Product Introduction

The Yokogawa ADV551-P03/D5A00 is a digital output module designed for the Yokogawa CENTUM VP Distributed Control System (DCS). This module serves as a critical interface between the control system and field devices that require discrete output signals such as valves, relays, and alarms.

Built to meet the demanding requirements of process industries, the ADV551-P03/D5A00 offers reliable and precise digital switching functions. Its design focuses on signal integrity, electrical isolation, and durability, making it suitable for harsh industrial environments. The module supports 32 output channels, each capable of controlling individual field devices.

This model features comprehensive diagnostic capabilities to facilitate preventive maintenance and reduce downtime. Integration with the CENTUM VP system ensures seamless communication and control coordination. The module is well-suited for various applications in oil and gas, chemical processing, power generation, and water treatment sectors.

Product Specifications

Applications

• Chemical and Petrochemical Plants: Provides control outputs for actuators, solenoid valves, and alarm systems.

• Power Plants: Controls auxiliary devices such as cooling pumps and emergency shutdown systems.

• Oil & Gas Processing: Interfaces with field devices for remote on/off control of critical components.

• Water and Wastewater Treatment: Manages control valves and pumps for precise process automation.

• Pharmaceutical Industry: Ensures accurate discrete output control for batch processes and safety interlocks.

• Building Automation: Integration for managing lighting systems, security alarms, and HVAC control.

Product Advantages

• High Reliability: With photocoupler isolation on each channel, the module minimizes interference and ensures stable output signals.

• Comprehensive Diagnostics: Includes detection of output short circuits and open circuits to aid maintenance.

• Compact Design: High channel density (32 outputs) reduces cabinet space requirements and wiring complexity.

• Easy Integration: Fully compatible with Yokogawa CENTUM VP and ProSafe-RS systems, allowing smooth installation and configuration.

• Robust Build Quality: Engineered for durability in industrial conditions, including resistance to temperature variations and electrical noise.

• Energy Efficient: Low power consumption reduces overall system energy usage.

• Long Lifecycle: Supported by Yokogawa’s global service network ensuring parts availability and technical support for years.

• Modular Architecture: Facilitates easy replacement and system scalability.

Frequently Asked Questions (FAQ)

1. What is the output type of the ADV551-P03/D5A00 module?
   It uses open collector transistor outputs with a sink type configuration.

2. How many output channels does this module provide?
   It provides 32 discrete output channels.

3. What is the maximum current each output channel can handle?
   Each channel supports up to 0.5 amperes.

4. Does the module support diagnostics?
   Yes, it detects short circuits and open circuits on output lines.

5. What are the physical dimensions of the module?
   The module measures 107.5 × 130 × 32.8 mm.

6. Is the module compatible with the ProSafe-RS safety system?
   Yes, it is fully compatible when integrated within the ProSafe-RS platform.

7. What is the operating temperature range for the module?
   It operates reliably between 0 °C and 55 °C.

8. Can the module be installed on a DIN rail?
   Yes, it is designed for DIN rail mounting on the system base plate.

9. What is the update cycle time for output signals?
   The typical update time is 100 milliseconds or less.

10. Is it possible to replace the module while the system is powered?
    No, the module should be replaced only after powering down the system to avoid damage.
