Product Overview

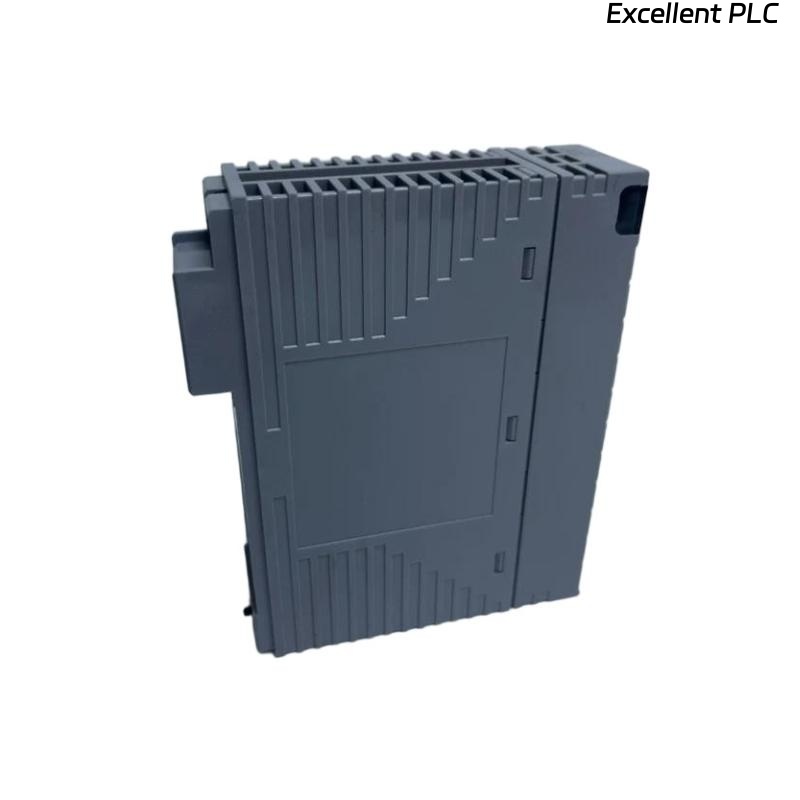

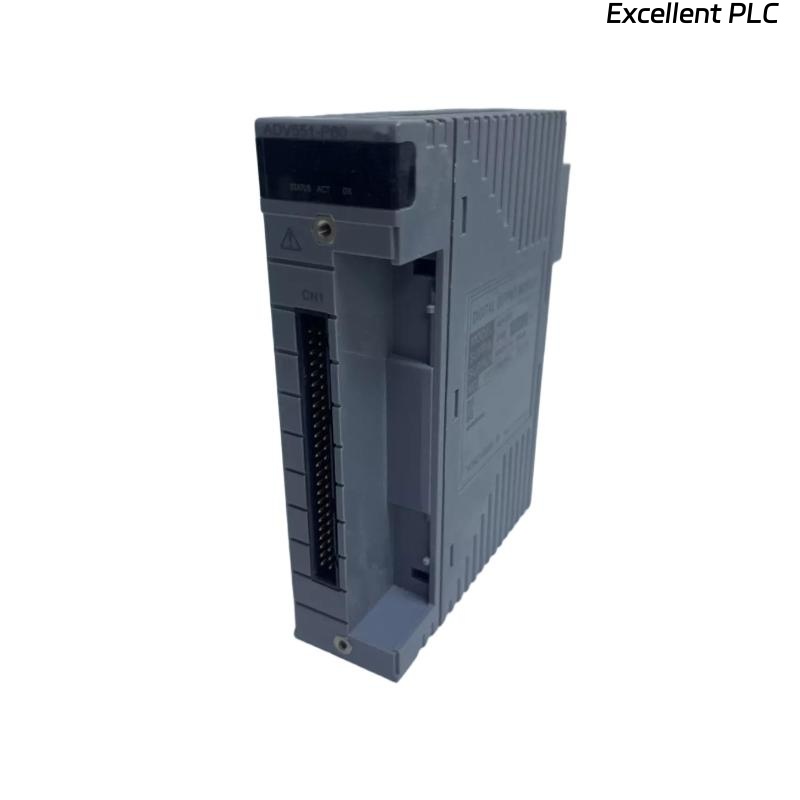

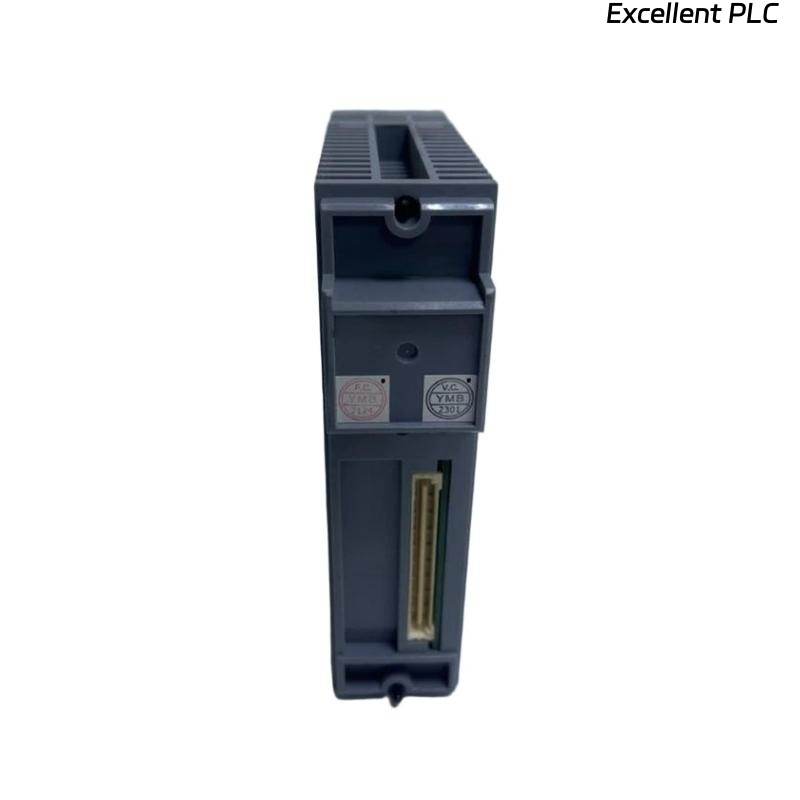

The Yokogawa ADV551-P60/D5A00 Digital Output Module is a high-performance digital output solution designed for Yokogawa’s CENTUM and ProSafe-RS control systems. It offers multiple discrete output channels with enhanced current capacity to control a wide range of actuators and devices efficiently in industrial automation environments. Built for robustness and reliability, this module ensures stable operation and easy integration in demanding process control applications.
Key Features
-
Provides 16 discrete digital output channels
-
Enhanced output current capacity for demanding loads
-
Compatible with CENTUM and ProSafe-RS systems
-
Robust design suitable for harsh industrial environments
-
Complies with international safety and EMC standards
-
Facilitates seamless integration into Yokogawa control architectures
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | ADV551-P60/D5A00 |
| Module Type | Digital Output Module |
| Output Channels | 16 channels |
| Output Signal Type | Discrete ON/OFF switching |
| Output Voltage | 24 VDC nominal |
| Output Current | Up to 1.5 A per channel |
| Response Time | Typically 10 ms |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Humidity Range | 10% to 90% non-condensing |
| Dimensions | 107.5 × 130 × 32.8 mm |
| Weight | 0.2 kg |
| Safety Certifications | CE, UL |
Industry Applications
-
Oil and gas process automation
-
Chemical and petrochemical plants
-
Power generation
-
Food and beverage processing
-
Pharmaceutical manufacturing
-
Water and wastewater treatment
Frequently Asked Questions (FAQ)
Q1: How many output channels does the ADV551-P60/D5A00 support?
It supports 16 discrete digital output channels.
Q2: What type of output signals does it provide?
Discrete ON/OFF switching signals.
Q3: What is the maximum output current per channel?
Up to 1.5 A per channel.
Q4: Is it compatible with Yokogawa control systems?
Yes, compatible with CENTUM and ProSafe-RS systems.
Q5: What are the operating temperature limits?
0°C to 55°C.
Q6: What are the module’s dimensions and weight?
Dimensions: 107.5 × 130 × 32.8 mm; Weight: approx. 0.2 kg.
Q7: Does it have safety certifications?
Yes, it holds CE and UL certifications.
Q8: Is it designed for harsh industrial environments?
Yes, it is built for reliable operation in demanding conditions.
Q9: How is the module installed?
Designed for standard Yokogawa rack and cabinet mounting.
Q10: What maintenance is recommended?
Routine inspections with minimal maintenance needs.
