Product Overview

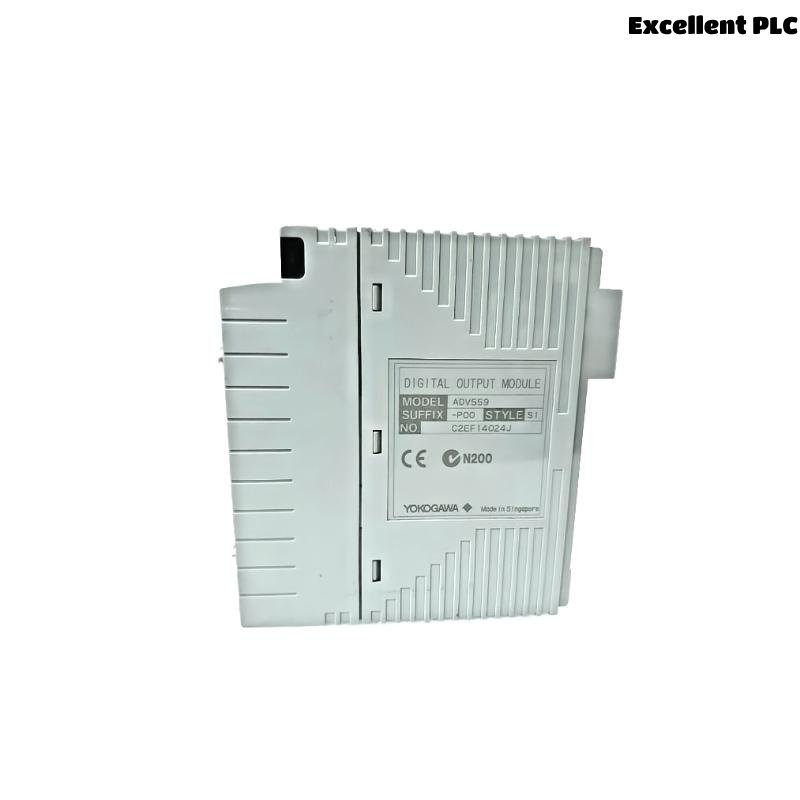

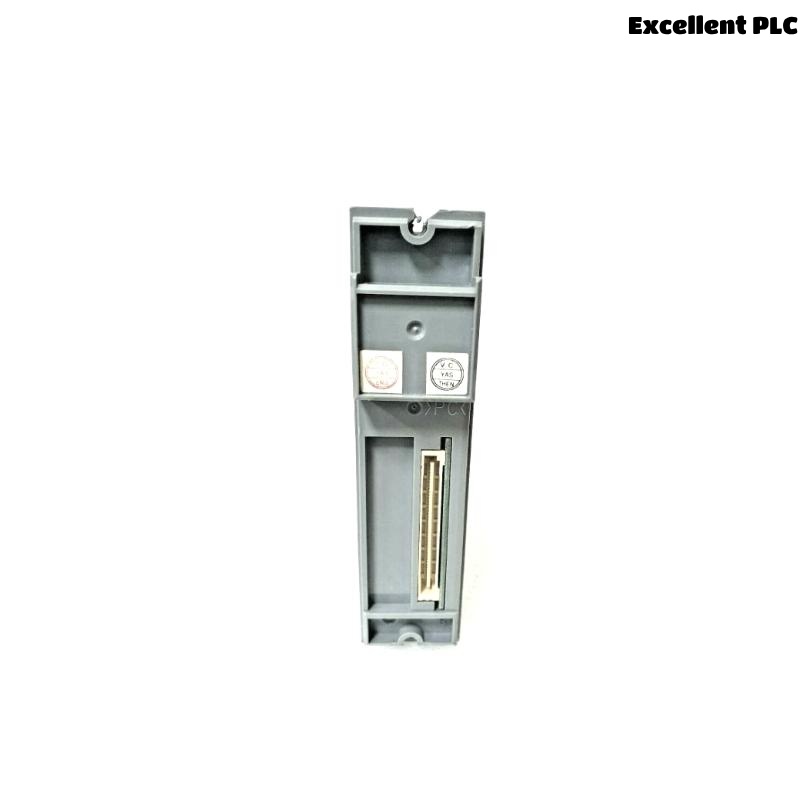

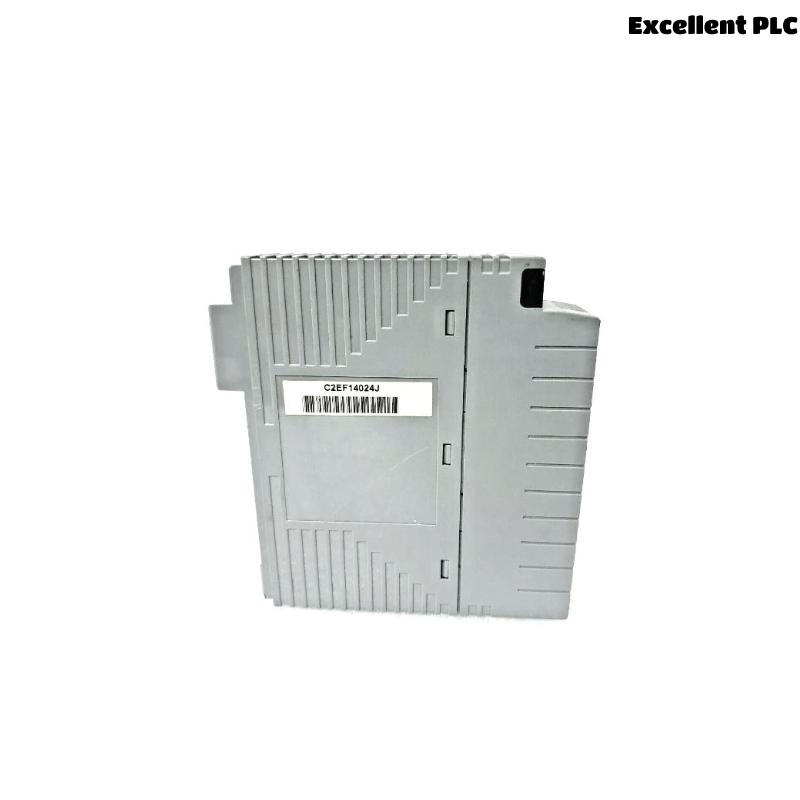

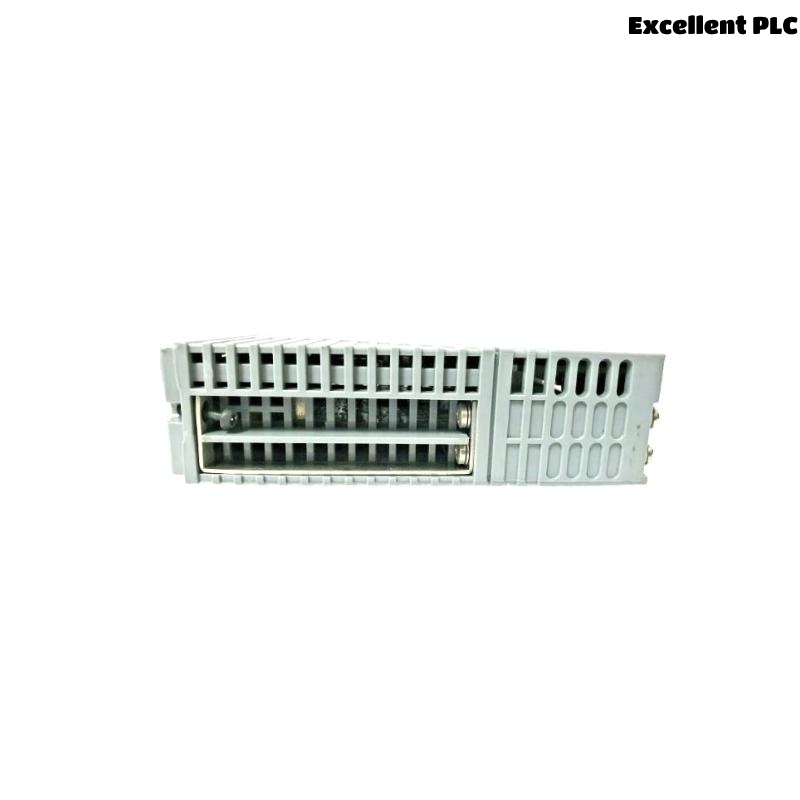

The Yokogawa ADV559-P00 is a high-performance digital output module designed for integration within the CENTUM-ST Distributed Control System (DCS). Engineered to handle 32 isolated digital output channels, this module is ideal for controlling a wide range of field devices such as actuators, relays, and indicators in industrial automation environments.
Manufactured by Yokogawa Electric Corporation, a global leader in industrial automation, the ADV559-P00 ensures reliable operation, fast response times, and seamless integration into existing control systems. Its compact design and robust features make it suitable for applications where space is limited, and performance is critical.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | ADV559-P00 |
| Type | Digital Output Module |
| Number of Output Channels | 32 |
| Output Type | Transistor Contact Output |
| Output Voltage Range | 30 V DC (maximum) |
| Output Current Capacity | 100 mA per channel (inductive/resistive load) |
| Signal Isolation | Isolated channels to prevent signal interference |
| Output Response Time | 16 ms or less |
| Pulse Width Range | 8 ms to 7200 s |
| Pulse Width Resolution | 8 ms, with a maximum ON/OFF delay of 1 ms |
| Power Supply | 5 V DC, 570 mA (maximum current consumption) |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
| Storage Temperature | -25°C to +70°C (-13°F to 158°F) |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Dimensions (W×H×D) | 130 x 127.2 x 32.8 mm |
| Weight | 0.3 kg |
| Mounting | DIN rail mount |
| External Connection | Dedicated cable (KS2) |
| Compatible Card | ST4 compatible |
| Certifications | CE, UL, CSA |
Applications
The ADV559-P00 module is versatile and can be employed in various industrial sectors. Its primary applications include:
-
Factory Automation: Controls production line equipment for precise operation.
-
Process Control: Manages valves and actuators within industrial processes.
-
Building Automation: Operates HVAC systems and lighting controls.
-
Water and Wastewater Treatment: Controls pumps, valves, and other equipment.
-
Oil and Gas Industry: Manages drilling equipment and safety systems.
-
Power Generation: Controls turbines, generators, and related systems.
Advantages
-
High Channel Density: Offers 32 output channels in a compact module, optimizing space in control cabinets.
-
Robust Isolation: Ensures reliable operation and protection with isolated channels.
-
Fast Switching: Provides rapid response times for real-time control applications.
-
Versatile Output: Suitable for various digital control tasks in automation systems.
-
Seamless Integration: Fully compatible with CENTUM-ST DCS, facilitating easy system integration.
-
Durable Design: Built to withstand harsh industrial environments with wide temperature and humidity ranges.
-
Energy Efficient: Low power consumption contributes to overall system efficiency.
-
Certified Quality: Meets international safety and quality standards (CE, UL, CSA).
Frequently Asked Questions (FAQ)
-
What is the primary function of the ADV559-P00 module?
It serves as a digital output module, providing 32 isolated transistor outputs for controlling various field devices. -
Can the ADV559-P00 handle both inductive and resistive loads?
Yes, it supports both inductive and resistive loads up to 30 V DC and 100 mA per channel. -
Is the module compatible with other Yokogawa systems?
It is designed for CENTUM-ST DCS but may be compatible with other systems using ST4 cards. -
What is the response time of the outputs?
The output response time is 16 milliseconds or less. -
Does the module support pulse width modulation?
Yes, it supports pulse widths ranging from 8 milliseconds to 7200 seconds. -
What are the environmental operating conditions?
Operating temperature ranges from -10°C to +55°C, with humidity between 5% and 95% RH (non-condensing). -
How is the module mounted?
It is designed for DIN rail mounting. -
What type of external connections does it use?
It utilizes a dedicated KS2 cable for external connections. -
Is the module certified for international use?
Yes, it carries CE, UL, and CSA certifications. -
What is the weight and size of the module?
It weighs 0.3 kg and measures 130 x 127.2 x 32.8 mm.
Related Models in the Same Series
| Model Number | Description | Channels | Output Type |
|---|---|---|---|
| ADV551-P61 | Digital Output Module | 8 | Relay |
| ADV552 | Digital Input Module | 16 | Voltage Sensing |
| ADV553 | Digital Output Module | 16 | Transistor |
| ADV561 | Analog Input Module | 8 | 4–20 mA |
| ADV571 | Analog Output Module | 8 | 4–20 mA |
| ADV552-P03 | Isolated Digital Input Module | 32 | Opto-Isolated |
