Product Overview

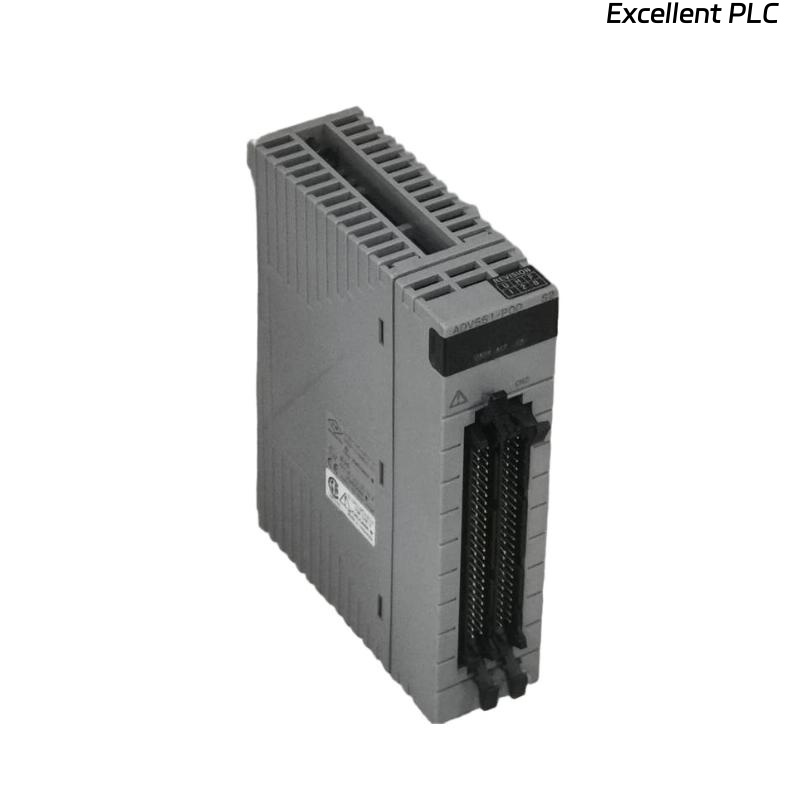

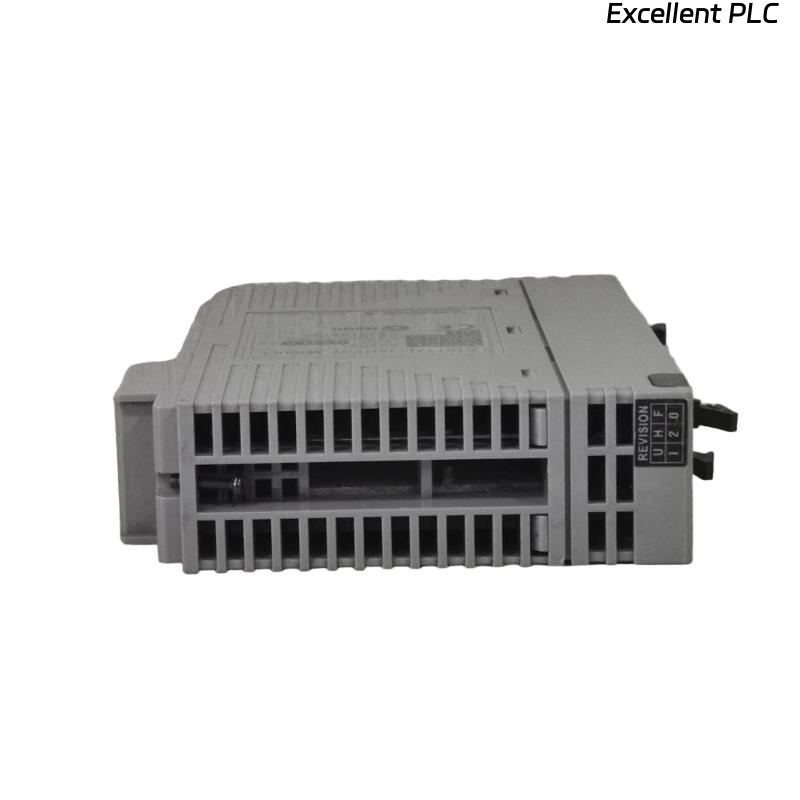

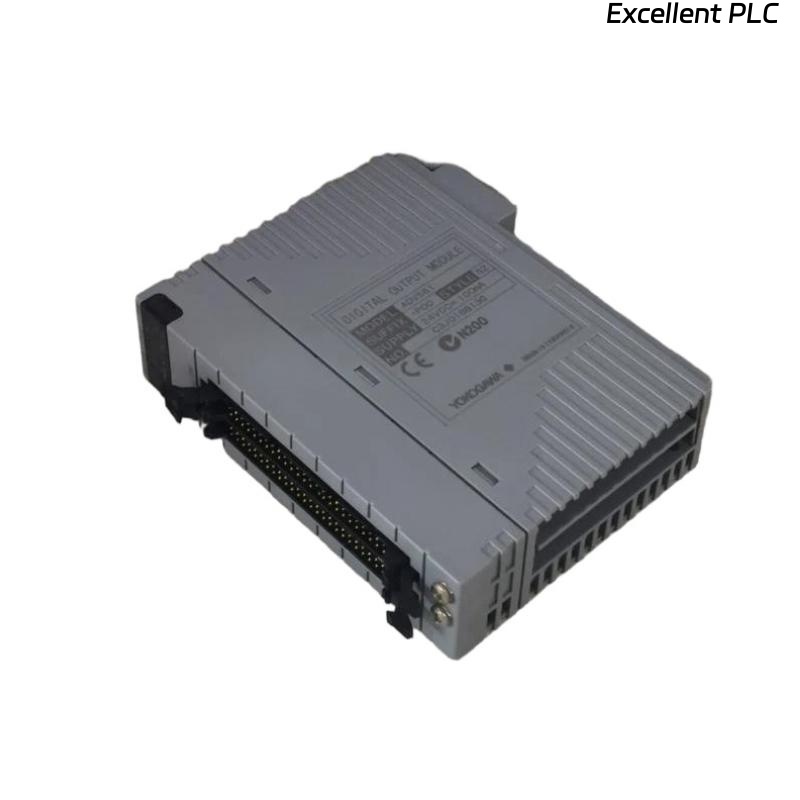

The Yokogawa ADV561-P00 S2 Digital Output Module is designed for use within Yokogawa’s S2 bus-based distributed control systems. This module provides reliable and precise digital output signals used for controlling various field devices such as valves, solenoids, alarms, and actuators. Built to meet demanding industrial automation requirements, it delivers fast and accurate switching of discrete outputs, ensuring robust and efficient process control.
Optimized for seamless integration within Yokogawa’s control system architecture, the ADV561-P00 supports flexible channel configuration and comprehensive diagnostic functions, enhancing operational reliability and maintenance efficiency.
Technical Specifications
Parameter | Specification |
---|---|
Model Number | ADV561-P00 |
Module Type | Digital Output Module (S2 bus compatible) |
Number of Channels | 16 discrete output channels |
Output Type | Relay contact or transistor outputs (depending on variant) |
Output Voltage | Typically 24 V DC (application dependent) |
Output Current | Up to 0.5 A per channel |
Response Time | Typically less than 10 milliseconds |
Operating Voltage | 24 V DC nominal |
Power Consumption | Approximately 4 W |
Operating Temperature | 0°C to 55°C |
Storage Temperature | -20°C to 70°C |
Humidity Range | 10% to 90% non-condensing |
Dimensions | 130 x 119.9 x 32.8mm |
Weight | 0.3 kg |
Communication Interface | Yokogawa S2 bus |
Mounting | Rack-mounted in Yokogawa control system racks |
Safety Certifications | Complies with relevant industrial standards |
Applications
-
Discrete control of field devices including valves, solenoids, and actuators
-
Process automation in chemical, petrochemical, power generation, and water treatment plants
-
Alarm and interlock signal output
-
Integration within Yokogawa Centum and other S2 bus DCS systems
-
Industrial environments requiring dependable digital output control
Advantages
-
Compact and High-Density: 16 output channels optimize rack space usage.
-
Versatile Output Options: Supports relay or transistor outputs according to application needs.
-
Fast Switching: Output signals switch within milliseconds to meet control requirements.
-
Seamless Integration: Designed specifically for Yokogawa S2 bus systems, ensuring compatibility.
-
Robust and Reliable: Built to withstand industrial environmental conditions.
-
Comprehensive Diagnostics: Facilitates maintenance through built-in fault detection features.
-
Flexible Configuration: Easy channel setup to adapt to various control scenarios.
Frequently Asked Questions (FAQ)
-
How many digital outputs does the ADV561-P00 support?
It supports 16 discrete output channels. -
What output types are available?
Relay contact and transistor outputs, depending on module variant. -
What is the maximum output current per channel?
Up to 0.5 A per channel. -
What is the typical response time for outputs?
Less than 10 milliseconds. -
Is the module compatible with Yokogawa’s Centum DCS?
Yes, it is designed for full integration with Yokogawa Centum and S2 bus systems. -
What are the environmental operating conditions?
Operating temperature from 0°C to 55°C and humidity from 10% to 90% non-condensing. -
How is the module mounted?
It is rack-mounted inside Yokogawa control system racks. -
Does the module support diagnostics?
Yes, it includes built-in diagnostics for fault detection. -
What is the power consumption of the module?
Approximately 4 Watts. -
What safety standards does the module comply with?
Complies with relevant industrial safety and performance certifications.
