Product Overview

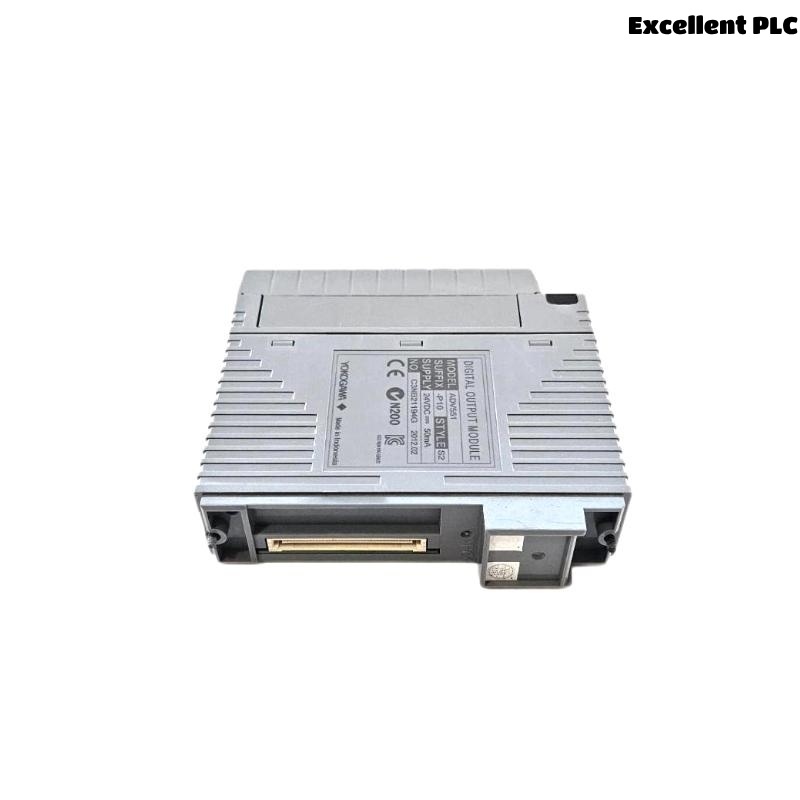

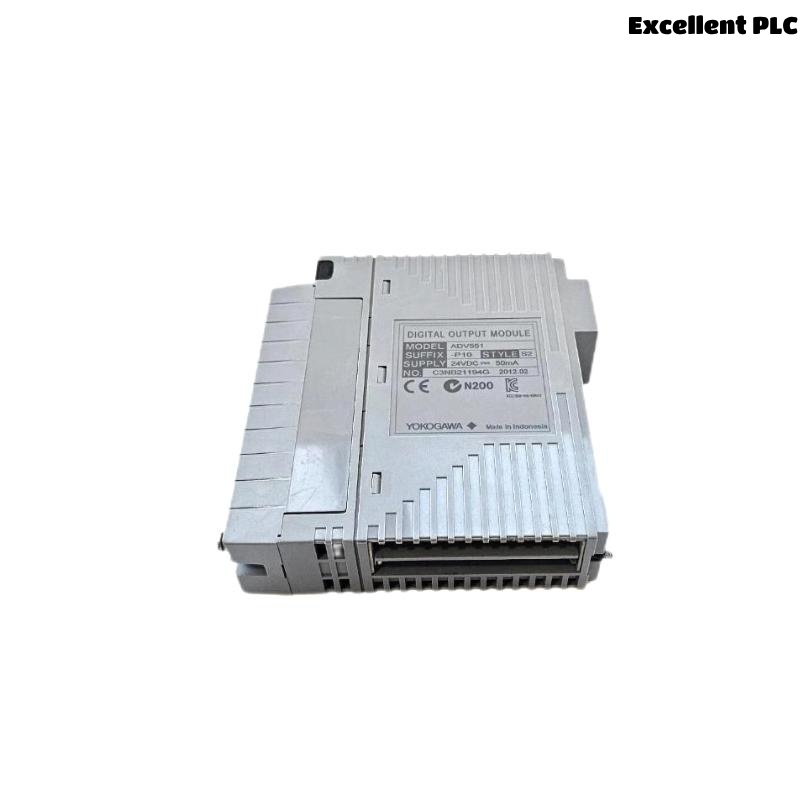

The Yokogawa ADV561-P10 is a high-density digital output module designed for integration within the CENTUM VP Distributed Control System (DCS). Engineered to handle 64 isolated digital output channels, this module is ideal for controlling a wide range of field devices such as actuators, relays, and indicators in industrial automation environments.
Manufactured by Yokogawa Electric Corporation, a global leader in industrial automation, the ADV561-P10 ensures reliable operation, fast response times, and seamless integration into existing control systems. Its compact design and robust features make it suitable for applications where space is limited, and performance is critical.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | ADV561-P10 |
| Type | Digital Output Module |
| Number of Output Channels | 64 |
| Output Type | Transistor Contact Output |
| Rated Applied Voltage | 24 V DC |
| Load Voltage | 24 V DC, 100 mA per channel |
| External Power Supply Voltage Range | 20.4 to 26.4 V DC |
| Output ON Voltage Maximum Value | 2 V DC |
| Leak Current Maximum Value When Output OFF | 0.1 mA |
| Output Format | Current Sink |
| Maximum Load Current | 100 mA/channel, 26.4 V |
| Withstanding Voltage | Between output signal and system: 2 kV AC for 1 minute Between commons: 500 V AC for 1 minute, common minus (–) side every 16-channel |
| Functions | ON/OFF status output function One-shot pulse width output function Time-proportioning ON/OFF |
| Output Response Time | 3 ms or less (for status output) 10 ms or less (for mixed status and pulse outputs) |
| Pulse Width | 8 ms to 7200 s |
| Pulse Width Resolution | 8 ms, but ON/OFF delay of maximum 1 ms is added |
| Maximum Current Consumption | 700 mA (5 V DC) 120 mA (external power supply) |
| Dimensions (W×H×D) | 130 x 119.9 x 32.8 mm |
| Weight | 0.3 kg |
| Mounting | DIN rail mount |
| External Connection | Dedicated cable (AKB337), MIL connector cable |
| Certifications | CE, UL, CSA |
Applications
The ADV561-P10 module is versatile and can be employed in various industrial sectors. Its primary applications include:
-
Factory Automation: Controls production line equipment for precise operation.
-
Process Control: Manages valves and actuators within industrial processes.
-
Building Automation: Operates HVAC systems and lighting controls.
-
Water and Wastewater Treatment: Controls pumps, valves, and other equipment.
-
Oil and Gas Industry: Manages drilling equipment and safety systems.
-
Power Generation: Controls turbines, generators, and related systems.
Advantages
-
High Channel Density: Offers 64 output channels in a compact module, optimizing space in control cabinets.
-
Robust Isolation: Ensures reliable operation and protection with isolated channels.
-
Fast Switching: Provides rapid response times for real-time control applications.
-
Versatile Output: Suitable for various digital control tasks in automation systems.
-
Seamless Integration: Fully compatible with CENTUM VP DCS, facilitating easy system integration.
-
Durable Design: Built to withstand harsh industrial environments with wide temperature and humidity ranges.
-
Energy Efficient: Low power consumption contributes to overall system efficiency.
-
Certified Quality: Meets international safety and quality standards (CE, UL, CSA).
Frequently Asked Questions (FAQ)
-
What is the primary function of the ADV561-P10 module?
It serves as a digital output module, providing 64 isolated transistor outputs for controlling various field devices. -
Can the ADV561-P10 handle both inductive and resistive loads?
Yes, it supports both inductive and resistive loads up to 24 V DC and 100 mA per channel. -
Is the module compatible with other Yokogawa systems?
It is designed for CENTUM VP DCS but may be compatible with other systems using similar configurations. -
What is the response time of the outputs?
The output response time is 3 milliseconds or less for status output and 10 milliseconds or less for mixed status and pulse outputs. -
Does the module support pulse width modulation?
Yes, it supports pulse widths ranging from 8 milliseconds to 7200 seconds with a resolution of 8 milliseconds. -
What are the environmental operating conditions?
Operating temperature ranges from -10°C to +55°C, with humidity between 5% and 95% RH (non-condensing). -
How is the module mounted?
It is designed for DIN rail mounting. -
What type of external connections does it use?
It utilizes a dedicated AKB337 cable with MIL connector for external connections. -
Is the module certified for international use?
Yes, it carries CE, UL, and CSA certifications. -
What is the weight and size of the module?
It weighs 0.3 kg and measures 130 x 119.9 x 32.8 mm.
Related Models in the Same Series
| Model Number | Description | Channels | Output Type |
|---|---|---|---|
| ADV561-P01 | Digital Output Module | 64 | Transistor |
| ADV561-P11 | Digital Output Module | 64 | Transistor |
| ADV561-P50 | Digital Output Module | 64 | Transistor |
| ADV551-P60 | Digital Output Module | 32 | Transistor |
| ADV551-P63 | Digital Output Module | 32 | Transistor |
| ADV557 | Digital Output Module | 32 | Transistor |
