Product Introduction

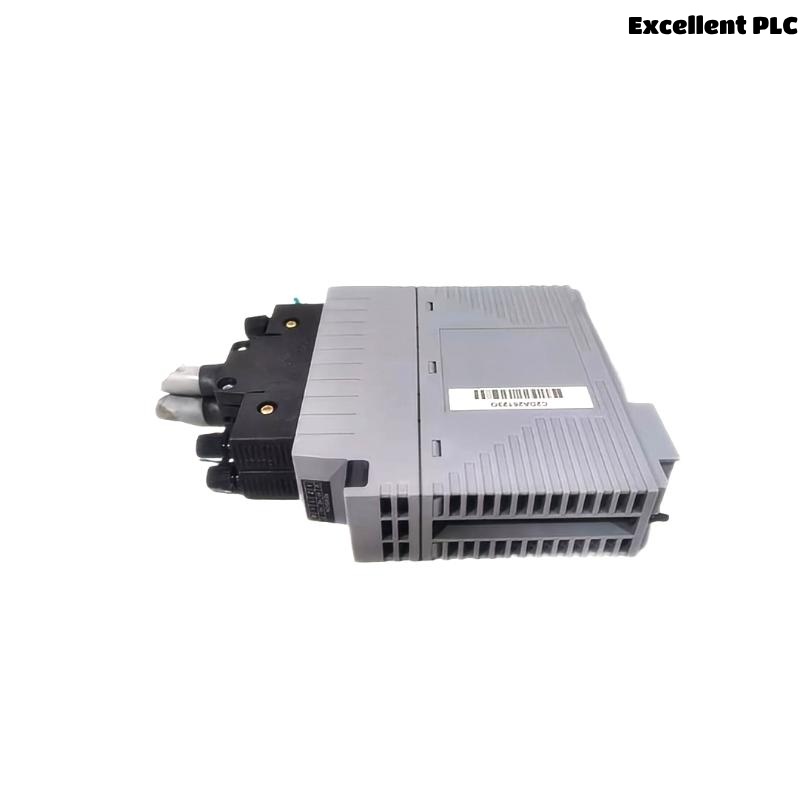

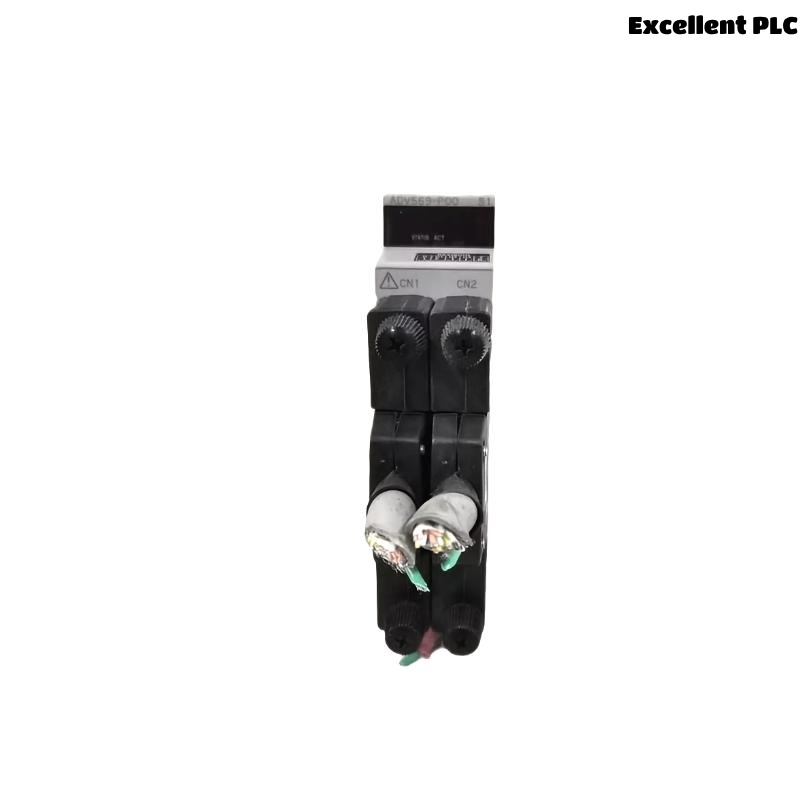

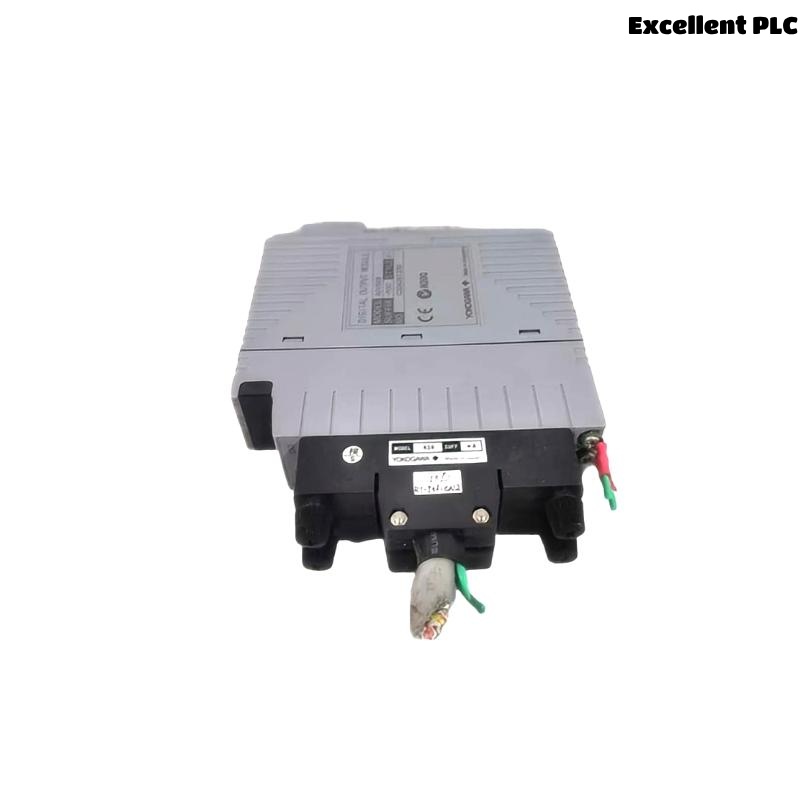

The Yokogawa ADV569-P00 Digital I/O Module is a robust and versatile module designed for use in Yokogawa’s advanced Distributed Control Systems (DCS). It integrates both digital input and digital output channels in a single compact unit, making it an efficient choice for managing discrete signals in complex industrial control environments. This module is a part of the ADV500 series, known for its reliability and precision in demanding automation applications.
The ADV569-P00 is built to provide stable, accurate signal transmission with high-speed switching capability, essential for process control, safety systems, and industrial automation. Its dual I/O functionality reduces cabinet space requirements and simplifies wiring, helping optimize system architecture.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | ADV569-P00 |
| Series | ADV500 Series |
| Input Channels | 8 Digital Inputs |
| Output Channels | 8 Digital Outputs |
| Input Voltage | 24 V DC nominal |
| Output Voltage | 24 V DC nominal |
| Output Current | 0.5 A per channel |
| Response Time | ≤10 ms |
| Power Consumption | Approx. 4 W |
| Operating Temperature | -20°C to +60°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Dimensions (L x W x H) | 130 x 127.2 x 32.8 mm |
| Weight | 0.3 kg |
| Mounting Type | DIN Rail Mount |
| Connector Type | Screw Terminal |
| Protection Rating | IP20 |
| Certifications | CE, UL, RoHS compliant |
Applications
The ADV569-P00 Digital I/O Module is widely applied in industries requiring precise control and monitoring of discrete signals. Typical applications include:
-
Process Industries: Chemical, petrochemical, and pharmaceutical plants use this module to monitor and control valves, switches, alarms, and other discrete devices.
-
Factory Automation: Controls actuators, sensors, and other equipment in assembly lines and manufacturing plants.
-
Power Generation: Used for status monitoring and control of generators, turbines, and protection relays.
-
Oil and Gas: Manages digital signals for emergency shutdown systems, valve controls, and safety interlocks.
-
Water and Wastewater Treatment: Controls pumps, valves, and alarms in purification and distribution systems.
-
Building Automation: Interfaces with HVAC systems, lighting controls, and security systems to manage on/off states.
Product Advantages
-
Dual Functionality in One Module
The ADV569-P00 combines both digital inputs and outputs, reducing the number of modules needed, saving space and simplifying system design. -
High Reliability
Engineered for harsh industrial environments, it performs reliably across wide temperature ranges (-20°C to +60°C) and humidity levels (up to 95% RH). -
Compact Design
Small footprint with dimensions of 130 x 127.2 x 32.8 mm allows for dense panel layouts and efficient space use in control cabinets. -
High-Speed Response
The module’s response time of less than 10 ms ensures quick reaction to input changes, which is critical for real-time control applications. -
Wide Compatibility
Fully compatible with Yokogawa DCS systems and supports standard communication protocols, facilitating seamless integration. -
Easy Installation and Maintenance
DIN rail mounting and screw terminal connectors simplify installation and wiring. The robust design requires minimal maintenance. -
Energy Efficient
Low power consumption of approximately 4 W ensures minimal heat generation and operational costs. -
Safety and Compliance
Meets international standards including CE, UL, and RoHS, ensuring safe and environmentally friendly operation. -
Versatile Application Range
Suitable for a broad range of industrial automation tasks, supporting both status monitoring and control functions. -
Proven Industry Performance
Used worldwide, Yokogawa’s ADV569-P00 has a strong track record for stability and longevity in critical systems.
Frequently Asked Questions (FAQ)
-
How many digital inputs and outputs does the ADV569-P00 have?
It has 8 digital inputs and 8 digital outputs. -
What is the nominal input and output voltage?
Both input and output nominal voltage is 24 V DC. -
What is the output current capacity per channel?
Each output channel can deliver up to 0.5 A. -
What is the operating temperature range?
The module operates between -20°C and +60°C. -
How is the module mounted?
It is mounted using a standard DIN rail. -
What is the response time for signal changes?
The response time is less than or equal to 10 milliseconds. -
Is the ADV569-P00 suitable for hazardous environments?
It is designed for industrial environments but is not intrinsically safe for hazardous zones without additional certification. -
What type of connectors does it use?
It uses screw terminal connectors for reliable wiring. -
Is this module compatible with all Yokogawa DCS systems?
It is compatible with most Yokogawa DCS platforms supporting the ADV500 series modules. -
What are the dimensions and weight of the ADV569-P00?
Dimensions: 130 x 127.2 x 32.8 mm; Weight: 0.3 kg.
